Vault

Vault is a backup and restore daemon for Unraid servers. It protects Docker containers, libvirt VMs, ZFS datasets, folders, and plugins by backing them up to pluggable storage destinations — local disk, SFTP, SMB, NFS, WebDAV, or S3-compatible object storage. Vault ships with a REST API, an MCP server for AI assistants, WebSocket progress streaming, and an integrated web UI built with Svelte 5.

Features

Backup sources

• Docker containers — image, XML template, and every mapped appdata volume; per-container path exclusions
• libvirt VMs — live snapshot or cold mode, with NVRAM preservation
• ZFS datasets — native zfs send/receive with snapshot management
• Folders and plugins — any path on the host, plus all installed Unraid plugins
• Stale-item detection — flags items that disappear from the host so jobs stay clean

Storage destinations

• Local, SFTP, SMB, NFS, WebDAV, and S3-compatible (AWS S3, Backblaze B2, MinIO, Cloudflare R2, Wasabi, MEGA, IDrive E2)
• Bandwidth throttling per remote destination
• Test-connection and storage-health probes
• Scan + import for backups produced by other Vault instances or AppData Backup

Backup strategy

• Full, incremental, and differential chains
• Simple-count retention or Long-Term Retention / LTR (keep_latest/daily/weekly/monthly/yearly)
• AES-256-GCM encryption with per-passphrase key derivation
• Content-defined deduplication (Keyed-FastCDC + per-destination dedup repo) with vault dedup gc/repair CLI helpers
• Per-run SHA-256 verification and on-demand restore-point verify
• Per-job notifications (success/failure) via Discord webhook

Scheduling

• Cron, hourly/daily/weekly/monthly/yearly presets, plus "first/last day of month"
• No-progress stall watchdog per job (cancels only after ~2h of zero bytes moved); no fixed total-job time cap, so long backups that keep transferring are never killed
• Cancellation propagated end-to-end (file I/O, traversal, engine handlers)

Web UI

• Dashboard, Jobs, Restore, Storage, History, Replication, Recovery, Logs, Settings
• Live WebSocket progress streaming and runner queue visibility
• Light/dark themes with mobile-responsive layout
• Recovery plan that explains how to rebuild from scratch

Integration

• REST API at /api/v1 with token-based auth for non-loopback callers
• MCP server (streamable HTTP + stdio) for Claude Desktop, Claude Code, and other AI tooling
• Home Assistant custom integration: ha-vault
• Hybrid SQLite snapshot (RAM working DB + persistent snapshot + USB shadow) survives reboots
• Diagnostics bundle export (redacted) for support requests

Installation

Unraid Community Applications

Search for Vault in the Unraid Community Applications store and click Install.

Manual Install

Paste this URL into Plugins > Install Plugin in the Unraid web UI:

https://raw.githubusercontent.com/ruaan-deysel/vault/main/plugin/vault.plg

Quick Start

1. Add Storage — Go to the Storage page and configure a backup destination (local, SFTP, SMB, NFS, WebDAV, or S3)
2. Create a Job — Go to the Jobs page, pick what to back up, choose a schedule, and set retention
3. Run Backup — Click Run Now or wait for the schedule

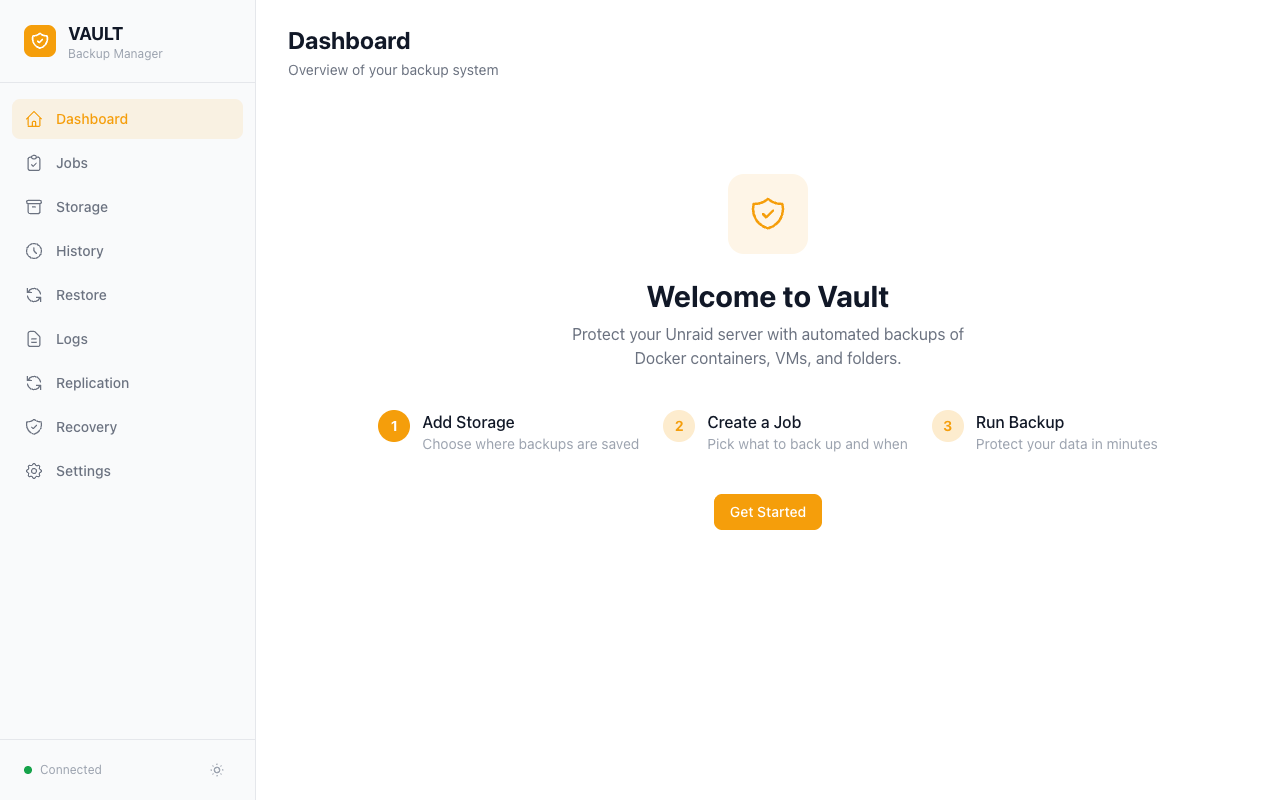

4. Monitor — Watch live progress on the Dashboard or check the History page for results

Documentation

Home Assistant users: use the ready-to-use custom integration at ha-vault.

Requirements

• Unraid 7.0 or newer

Support and Feedback

• Bug reports: open a bug report
• Enhancement requests: request an improvement
• Questions and support: use the Unraid forum support thread

License

Vault is licensed under the MIT License. It is a third-party community plugin for Unraid OS.
