UGREEN LED Control for Unraid

LED control for UGREEN DX/DXP NAS devices on Unraid 7: colour, brightness and effect for every front LED, and a status mode that turns the bay and network LEDs into a live view of your array. Developed on a DXP6800 Pro, confirmed by users on the DXP4800 family and the DXP8800 Plus.

Features

• Per LED: colour, brightness and effect – static, breathe and pulse (run by the LED controller), rainbow and CPU temperature (run by the plugin, with speed, direction and "only when idle")
• Status mode: bay LEDs blink on disk activity, show an error colour for disabled or missing disks, warn on rising SMART values (with an "Acknowledge" button), breathe during parity checks and rebuilds, and dim, switch off or pulse slowly for spun-down disks. Each bay can show its disk's temperature colour, based on Unraid's warning and critical limits
• Network LED: blinks with traffic, shows only the link, or stays manual; optionally coloured by link speed (10 Mbit/s to 10 Gbit/s, one colour per speed), so a link that negotiated less than expected stands out. The network ports are also drawn next to the LAN LED in the case picture and the dashboard tile, as RJ45 sockets with the speed they run at, or dimmed with the speed they support when unplugged
• Night mode: dim or switch off at fixed times, also across midnight
• Unraid alerts: the power LED blinks while there are unread warnings or alerts
• Shutdown and reboot: the power LED blinks or breathes from the moment the array is stopped by a shutdown or reboot, in a colour you choose (with a test button)
• Identify a bay: blink one bay white before you pull a disk
• Dashboard tile: the live LEDs of every bay in a compact tile, optionally with temperatures
• Interface: English, German and Spanish; dark, light or "same as Unraid"; every setting saves on change and survives a reboot
• It never wakes sleeping disks and needs no kernel module

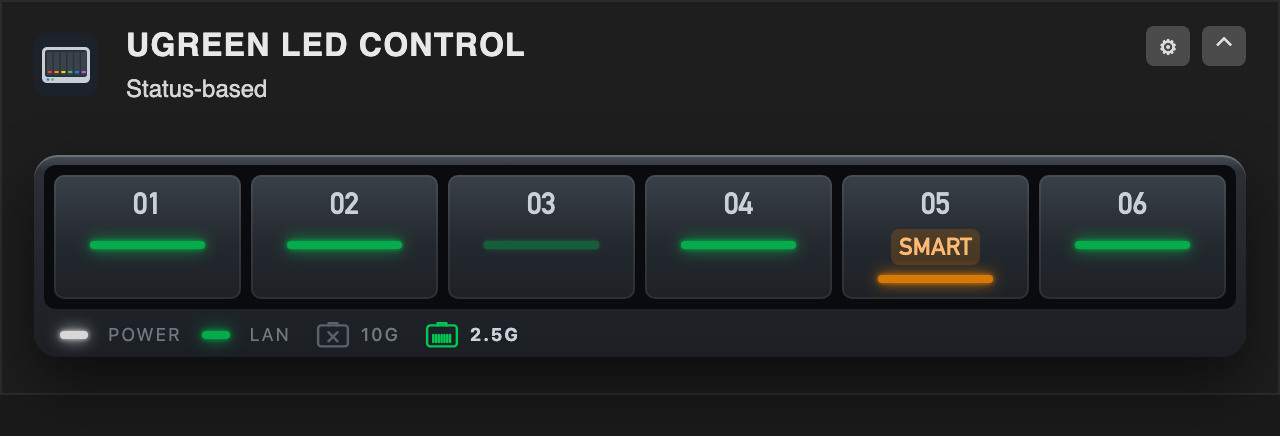

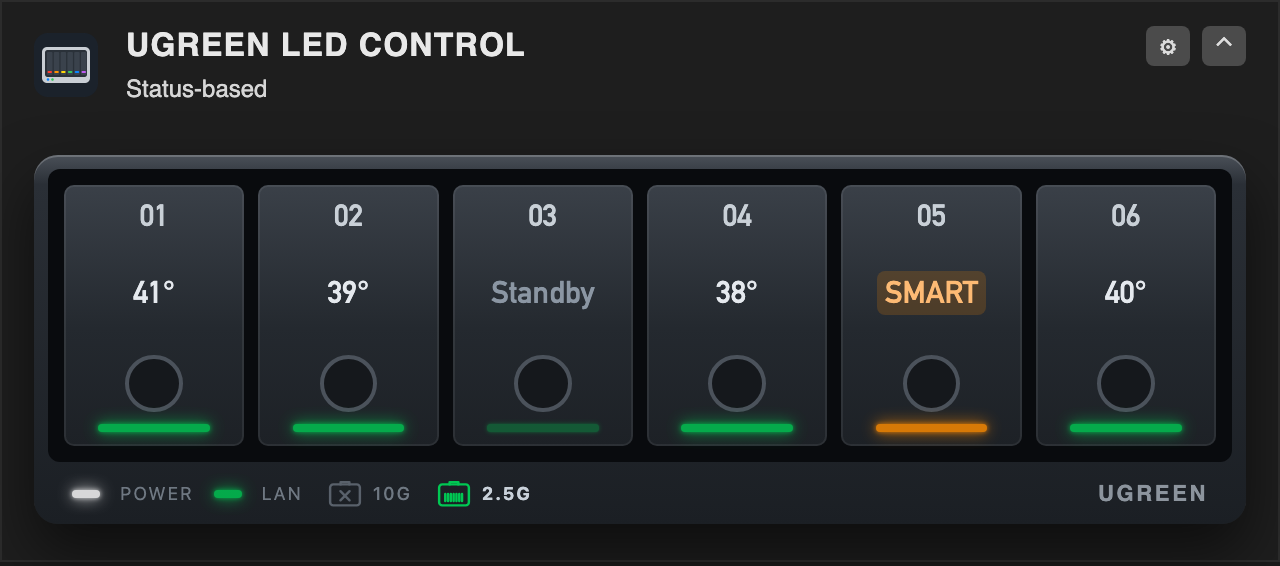

Dashboard tile, compact (the default) and with temperatures (Settings → System → Appearance → Dashboard tile):

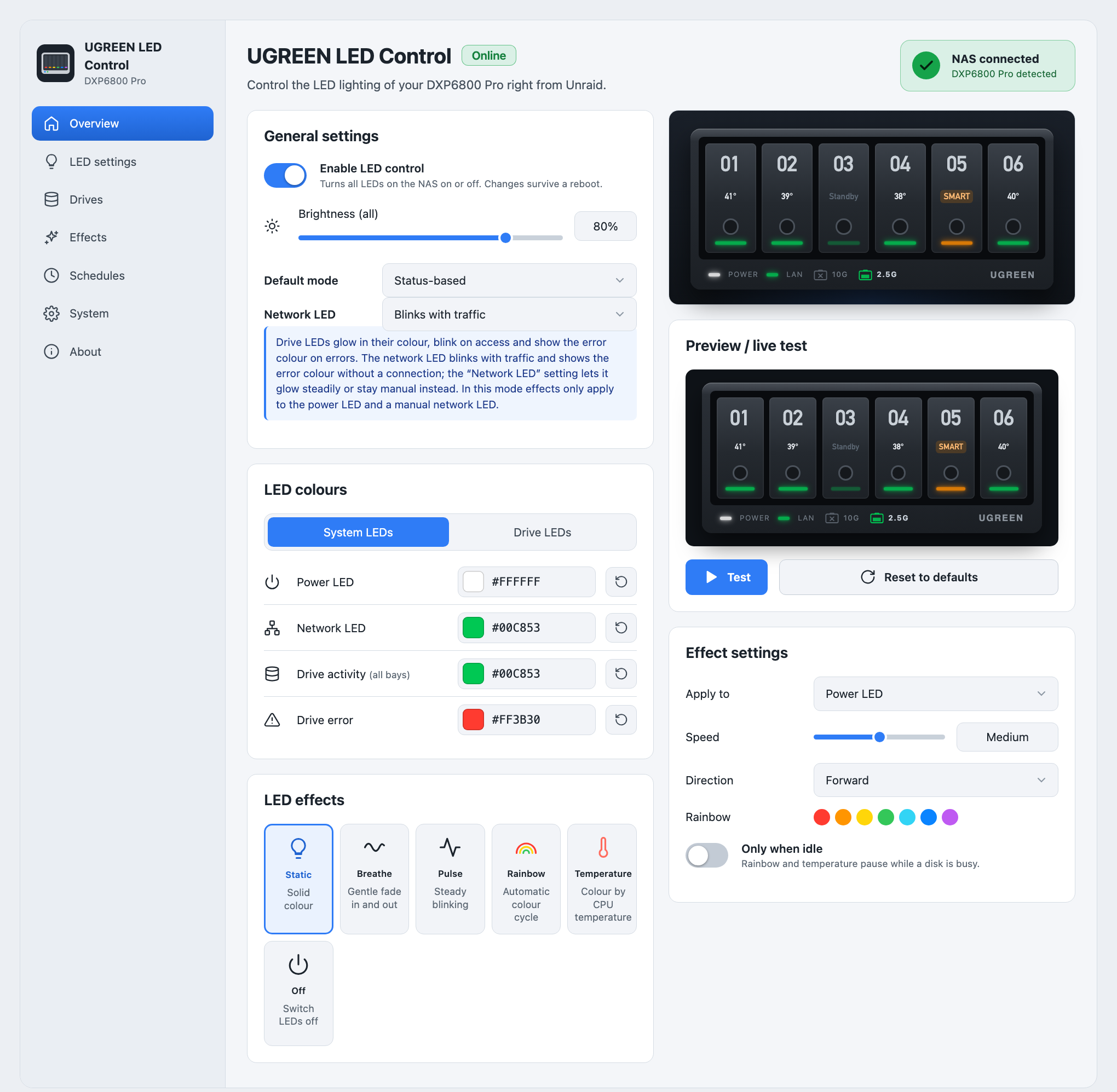

The light colour scheme (System → Appearance → Colour scheme):

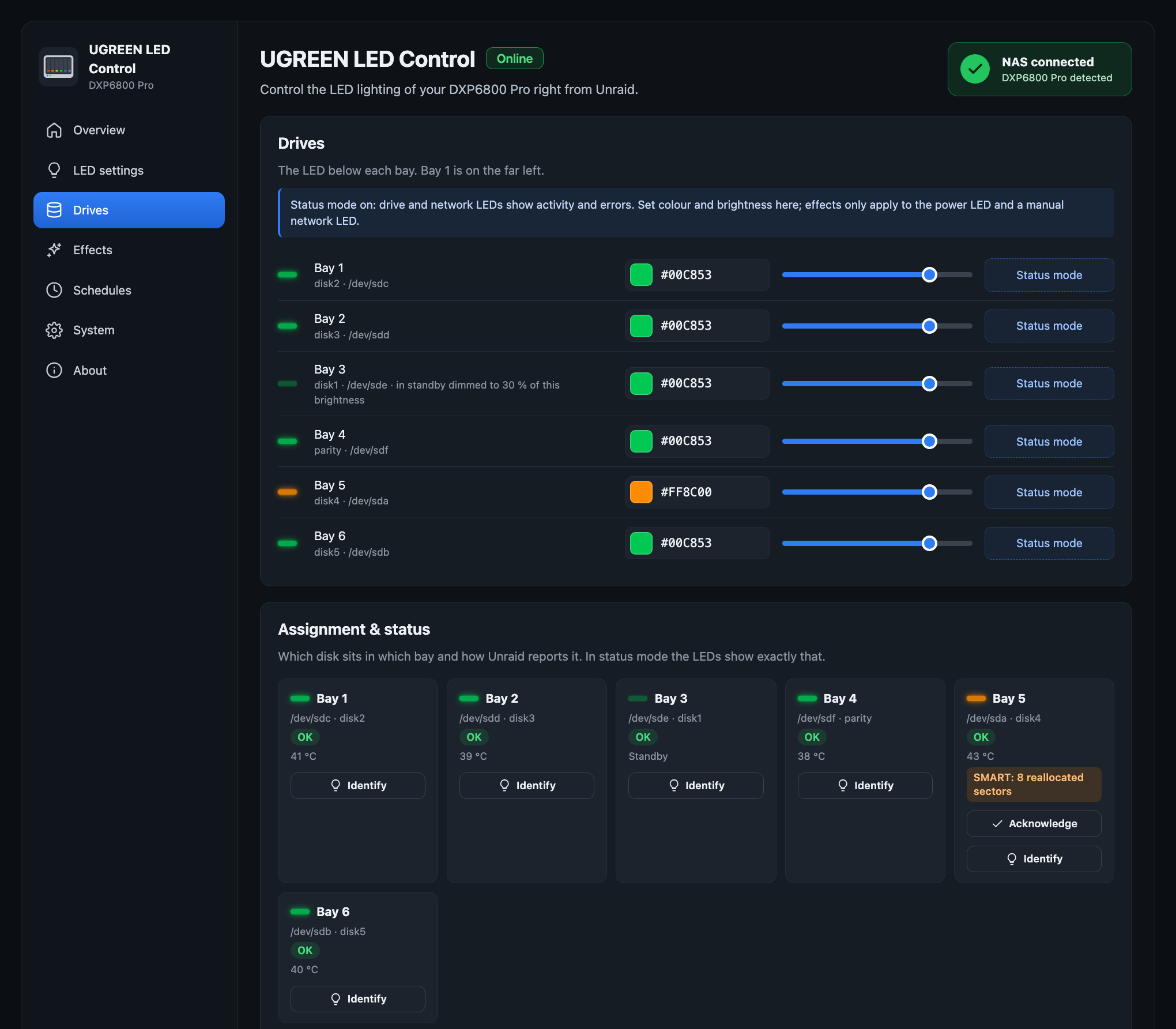

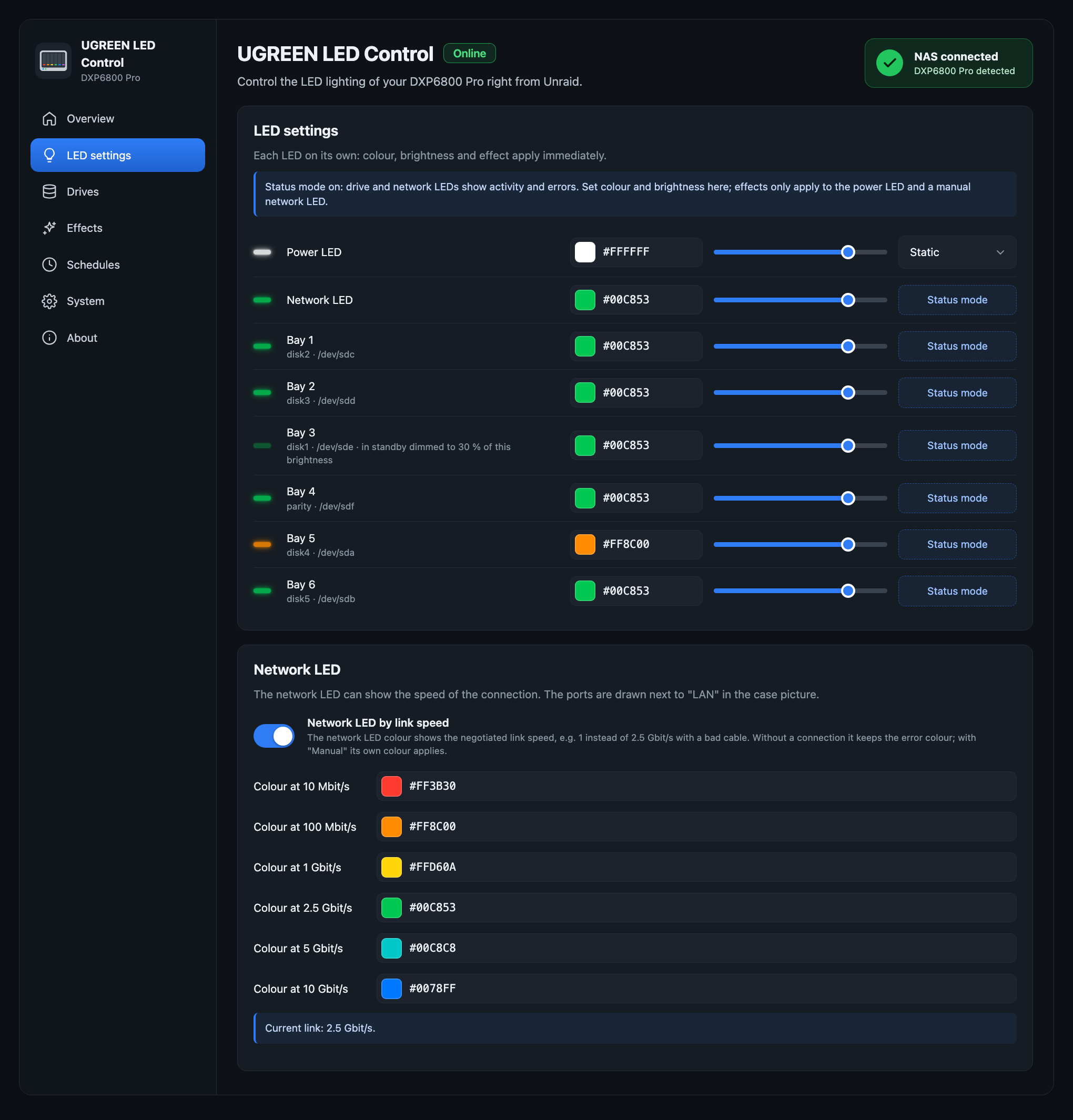

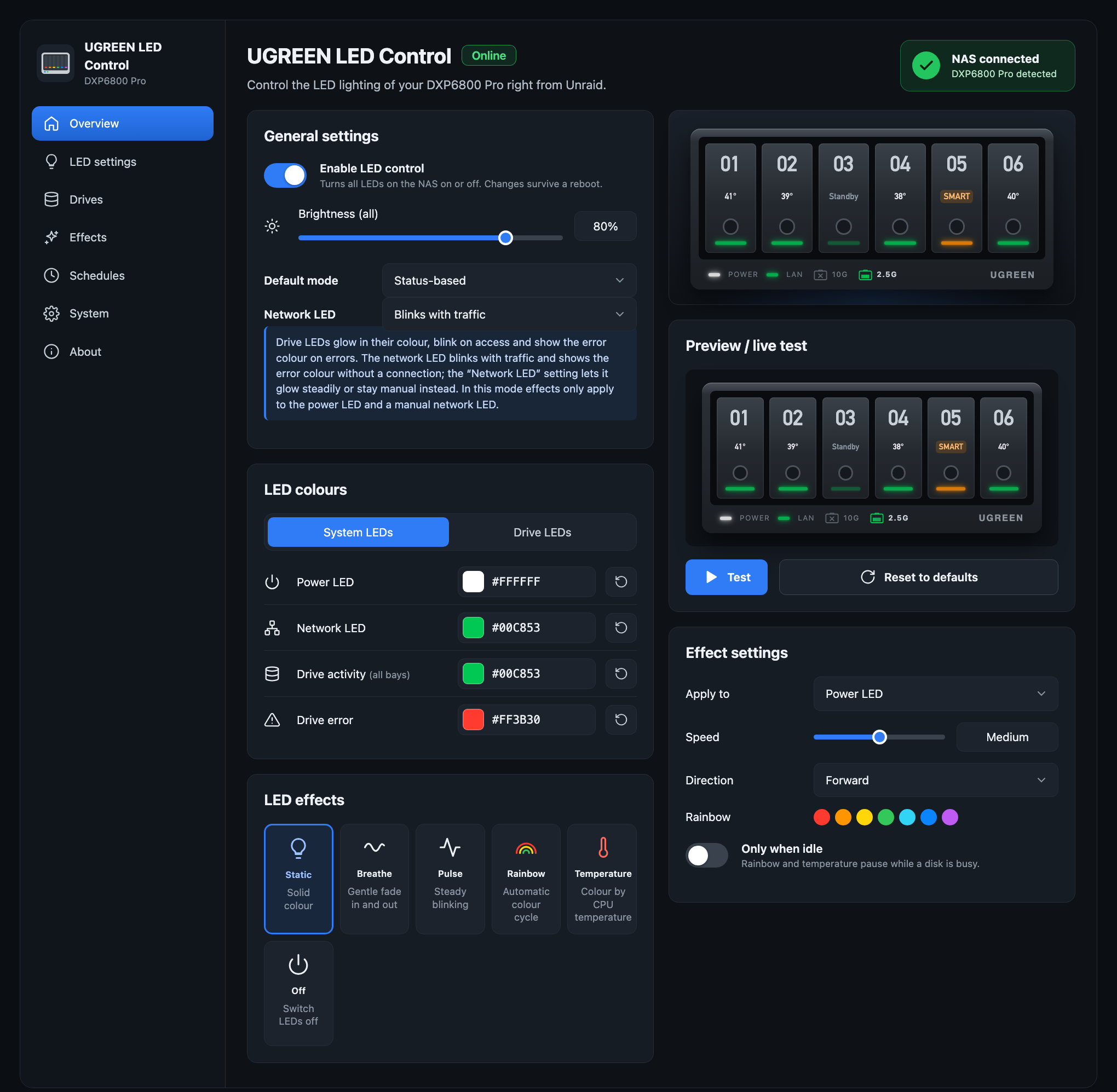

The screenshots show the interface with sample data of a DXP6800 Pro.

Support

Questions and problems: the support thread in the Unraid forum. Bug reports and feature requests are also welcome as GitHub issues. Please include your NAS model, the Unraid and plugin versions and the output of:

/usr/local/emhttp/plugins/ugreen-led-control/backend/ugreen-led-ctl status
/usr/local/emhttp/plugins/ugreen-led-control/backend/ugreen-led-ctl smbus
/usr/local/emhttp/plugins/ugreen-led-control/backend/ugreen-led-i2c probe

Supported models

The LED controller (I2C address 0x3a on the SMBus I801 adapter) is the same across UGREEN's DX/DXP series. Bays are matched to disks by SATA port, after miskcoo/ugreen_leds_controller:

The System page shows which applies; "Identify" on the Drives page checks it. Not supported: DXP2800 V1.2 and the GT models, which miskcoo lists as experimental. The DXP480T Plus only has a power LED on a simpler chip (address 0x26); the plugin sets it to static white and offers no more.

If your model isn't found, this lists the addresses that answer on every I²C bus (it only reads):

/usr/local/emhttp/plugins/ugreen-led-control/backend/ugreen-led-i2c scan all

Install

Unraid 7.0 or newer (developed and tested on 7.3.2 and later; reports from 7.0 to 7.3.1 are welcome). Plugins → Install Plugin:

https://raw.githubusercontent.com/alexanderschubert/ugreen-led-control/main/plugin/ugreen-led-control.plg

The settings page is at Settings → UGREEN LED Control. If you use the ugreenleds-driver plugin, uninstall it first: both would write the same LEDs. The plugin is submitted to Community Applications.

How it works

• i2c/ – ugreen-led-i2c, a static Go tool that talks to the LED controller (address 0x3a on the "SMBus I801 adapter") through /dev/i2c-N. No kernel module, so new Unraid kernels keep working. Protocol after miskcoo/ugreen_leds_controller.
• src/backend/ugreen-led-ctl – settings (apply), bay mapping (bays) and the status daemon, on top of ugreen-led-i2c.
• src/web/api.php is the JSON API for the settings page; writes need the WebGUI csrf_token.

Development

Copy the working tree onto the running system without a release. It needs build/ugreen-led-i2c (the CI artifact of the "I2C tool" workflow, e.g. gh run download <id> -n ugreen-led-i2c -D build):

bash scripts/install-dev.sh

Translations

The interface texts are in src/web/js/i18n.js, one block per language (de, en, es). Missing texts show in English.

python3 scripts/i18n.py export en > en.json   # all English texts as a template
python3 scripts/i18n.py check                 # same keys, {placeholders} and HTML as English (CI runs this)

To add or improve a language: translate only the values, keep {placeholders} and HTML tags as they are, and open a pull request or post the JSON in an issue. Spanish: ivolution.

Release

1. Bump version and CHANGES in plugin/ugreen-led-control.plg.
2. Update the MD5 of every download in the .plg with the binary of the pull request's CI run (python3 scripts/plg-hashes.py plugin/ugreen-led-control.plg --binary ugreen-led-i2c=build/ugreen-led-i2c); CI fails on stale hashes.
3. Merge to main. The Tag release workflow creates the tag v<version> and a release with the ugreen-led-i2c binary.

The plugin downloads its files from that tag and the binary from the release. Wait for the workflow to finish (about a minute) before updating in Unraid; an update attempted earlier can leave GitHub caching a 404 for up to five minutes.

Community Applications

ca_profile.xml and plugins/ugreen-led-control.xml are the Community Applications listing (author profile and plugin entry). The <PluginURL> in the listing must stay identical to the pluginURL of plugin/ugreen-led-control.plg.

License

MIT.
