TraefikShaper

Docker container to manipulate Traefik's IpAllowList middleware for dynamic IP whitelisting

🔆 How it works

This Docker container provides a Python Flask web application that handles the manipulation of a custom Traefik dynamic configuration file dynamic-ipwhitelist.yml. The configuration file is bind mounted into the Flask container and can therefore be manipualted through code.

Within the dynamic configuration file, an IpAllowList middleware is defined, which can be used by other containers. As it is a dynamic configuration file, Traefik can monitor it for changes and reflect those dynamically without the necessity of restarting Traefik itself or any containers behind. So if we add or remove IP addresses to the middleware, Traefik will pick them up and dynamically grant or deny access to a container service.

The Flask web application offers a custom /knock-knock endpoint. If this HTTP endpoint is requested, an approval link will be generated based on the IP address the request originated from. The approval link will then be sent out via a defined Apprise notification channel to an admin. The admin in this case would be the operator of the Traefik reverse proxy. The /knock-knock endpoint is typically requested by an external party, which initially does not have access to a container service proxied by Traefik. However, if setup correctly, the external party can access this endpoint and therefore ask for access. This will trigger the aforementioned procedure of creating an approval link, sending it out to the admin and waiting for approval.

If the admin would like to grant access, he must open the approval link. That's it. The approval link contains the (WAN) IP address of the external party, a secure token for authorization as well as the same random word shown previously to the external party when asking for access. The admin can instantly grant access by opening the link or first validating the random word or IP address with the external party. Once the link is opened, the (WAN) IP address of the external party is added to the IpAllowList middleware. Therefore, the external party gets temporary access to the container services proxied by Traefik that use the middleware. Access will expire after a predefined period of time. Once access is expired, the admin receives another notification and the external party the standard 403 Forbidden HTTP error by Traefik.

Areas of use:

• Granting temporary access to web services (alternative to VPN, BasicAuth and static IP whitelists)

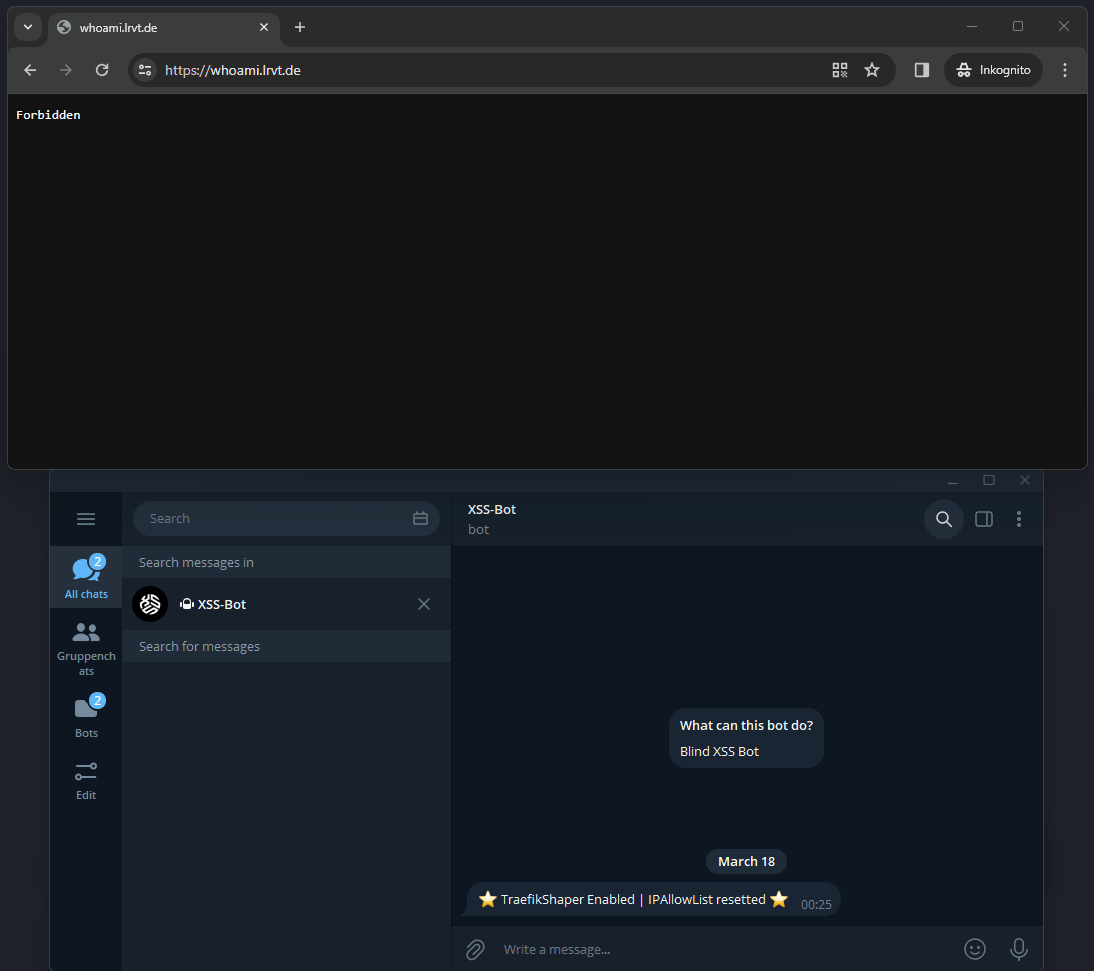

🎥 Demo

🔨 Setup and Usage

[!TIP] HHF Technology build a Traefik plugin around this idea. May check it out here.

Prerequisites

You have to enable and use Traefik's feature of dynamic configuration files via the file provider.

As we introduce a new dynamic configuration file and some of you may already use one, it is necessary to enable Traefik's directory configuration option for the file provider instead of relying on the filename parameter, which allows a single dynamic conf only. To do so, please adjust your static Traefik configuration file as follows:

providers:
  file:
    directory: /etc/traefik/dynamic-confs/
    watch: true

Then, create the new directory dynamic-confs at your Traefik's bind volume mount. Move all of your previously used dynamic configuration files into this new directory. The directory will be monitored by Traefik from now an and you can place any number of configuration files.

Also create a blank dynamic-ipwhitelist.yml file within the directory.

Middleware Container

Now use the provided docker-compose.yml file and spawn up the new traefikshaper container.

Please adjust the Traefik labels and ensure that this container is accessible by authorized persons only.

Following environment variables are available:

You can spawn it up as follows:

docker compose up -d

Target Containers

For any target containers you wish to protect with this dynamic IP whitelisting setup, you have to add new Traefik labels:

      # add the new dynamic-ipwhitelist middleware, which denies access in general
      # this middleware is defined in the new file provider config /dynamic-confs/dynamic-ipwhitelist.yml
      - traefik.http.routers.CHANGEME.middlewares=dynamic-ipwhitelist@file

      # add a new route for the GRANT_HTTP_ENDPOINT endpoint; here default is /knock-knock
      # requests to this endpoint are forwarded to the `traefikshaper` container
      # this will trigger the creation of an approval link and telegram notification
      - traefik.http.routers.CHANGEME-dynamic.rule=PathPrefix(`/knock-knock`)
      - traefik.http.routers.CHANGEME-dynamic.service=traefikshaper
      - traefik.http.services.CHANGEME-dynamic.loadbalancer.server.port=5000

Here is an example of the infamous whoami container:

version: '3.3'

services:

  whoami:
    image: traefik/whoami
    container_name: traefikshaper-whoami
    command:
       - --name=whoami
    networks:
      - proxy
    labels:
      - traefik.enable=true
      - traefik.docker.network=proxy
      - traefik.http.routers.whoami.rule=Host(`whoami.example.com`)
      - traefik.http.routers.whoami.service=whoami
      - traefik.http.services.whoami.loadbalancer.server.port=80
      - traefik.http.routers.whoami.middlewares=dynamic-ipwhitelist@file
      - traefik.http.routers.whoami-dynamic.rule=Host(`whoami.example.com`) && PathPrefix(`/knock-knock`)
      - traefik.http.routers.whoami-dynamic.service=traefikshaper
      - traefik.http.services.whoami-dynamic.loadbalancer.server.port=5000

networks:
  proxy:
    external: true

Once spawned, an external party cannot access the whoami service at https://whoami.example.com/. The external party will receive a 403 Forbidden error. However, the external party can browse the https://whoami.example.com/knock-knock endpoint, which will be forwarded to the traefikshaper container. On success, the external party will receive an HTTP response, stating that an admin was asked for approval. Furthermore, a random word is displayed and highlighted.

The admin, on the other hand, will receive an Apprise notification with an approval link and the random word. The admin and external party can now compare the random word, which ensures that the request originated from the external party. Furthermore, the (WAN) IP address of the external party is also included and displayed within the approval link. Once the admin opens the approval link, the (WAN) IP address of the external party will be added to the IPAllowList of Traefik's dynamic configuration file dynamic-ipwhitelist@file. The external party can now browse https://whoami.example.com and gain temporary access to the whoami container service.

[!WARNING]

The TraefikShaper container is usually not exposed to the Internet.

You may do so for convenient admin approvals, but I recommend accessing it locally or via VPN only.

[!CAUTION]

If your Traefik reverse proxy runs behind another proxy (e.g. CloudFlare), you must adjust the IP strategy. You can either use the depth strategy via the environment varibale IPSTRATEGY_DEPTH or the excludeips strategy via the environment varibale EXCLUDED_IPS.

Usually, a depth of 1 will work and select the correct client IP address for whitelisting. More details here. If your Traefik reverse proxy is exposed directly to the Internet, you can leave the depth at the default value of 0 and ignore all available ip strategies.

Once you have enabled a depth of 1 though, local requests via split brain DNS won't work anymore. You will always receive 403 Forbidden. Read this for more info. You can then opt for the excludeips strategy and define all CloudFlare IPv4 and IPv6 addresses as comma-separated string. Those IPs will then be excluded by Traefik in the X-Forwarded-For HTTP header and the first IP will be used that remains. More information here. However, this likely will not resolve the issue, as stated here. So TraefikShaper may only work reliably behind a second proxy like CloudFlare if you use the depth ip strategy set to 1 and can live with the fact that local requests won't work and cannot match the IPAllowList (will always lead to Rejecting IP : empty). Use different routers for internal and external proxy hosts!
