Stream Viewer for Unraid

A real time media stream monitor and statistics tracker for Unraid. View active streams from your Plex, Jellyfin and Emby servers directly from the dashboard, and track watch history, library content and user activity through a dedicated statistics page.

Features

Dashboard Widget

• Monitor active streams in real-time from the Unraid dashboard
• Multi-server support for up to 10 Plex, Jellyfin and Emby servers simultaneously
• Stream details including user, device, IP address, playback progress, quality and codec info
• Custom SVG media type icons for movies, series, music and photos
• Collapsible Synopsis section with thumbnail, description and dominant color tinting from cover art
• Collapsible technical details row per stream (codec, audio channels, container, subtitles, HW acceleration, transcode reasons)
• Transcode monitoring with visual indicators for Direct Play, Direct Stream and Transcode sessions
• Transcode speed badge on active transcodes
• Docker CPU and RAM micro-bars per media server container with color thresholds
• Kill Session button to terminate active streams directly from the widget
• Badge Color Theme picker with 12 color options for server name badges
• Server type filter (Plex, Jellyfin, Emby)
• Configurable auto-refresh with adjustable polling interval
• Mobile responsive layout

Statistics Tool Page (Beta)

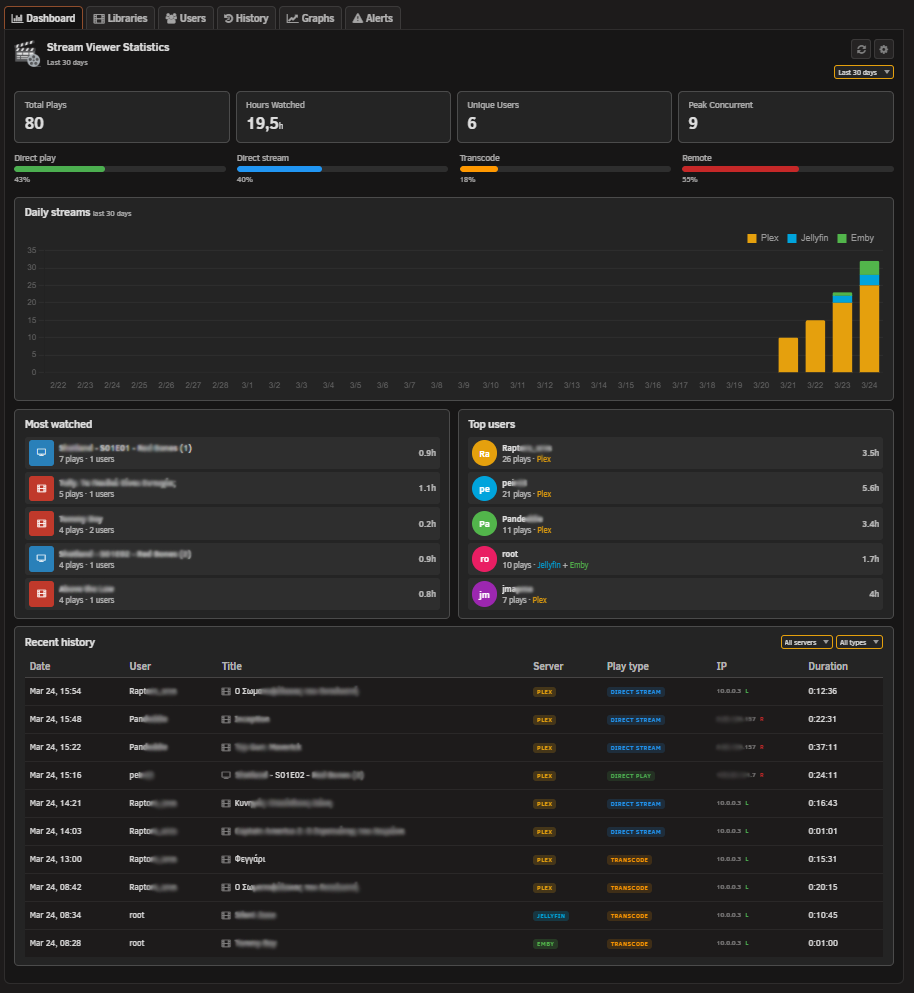

• Dashboard tab with active streams overview, most watched titles, top users and recent history
• Libraries tab with server overview, collapsible sections and recently added items

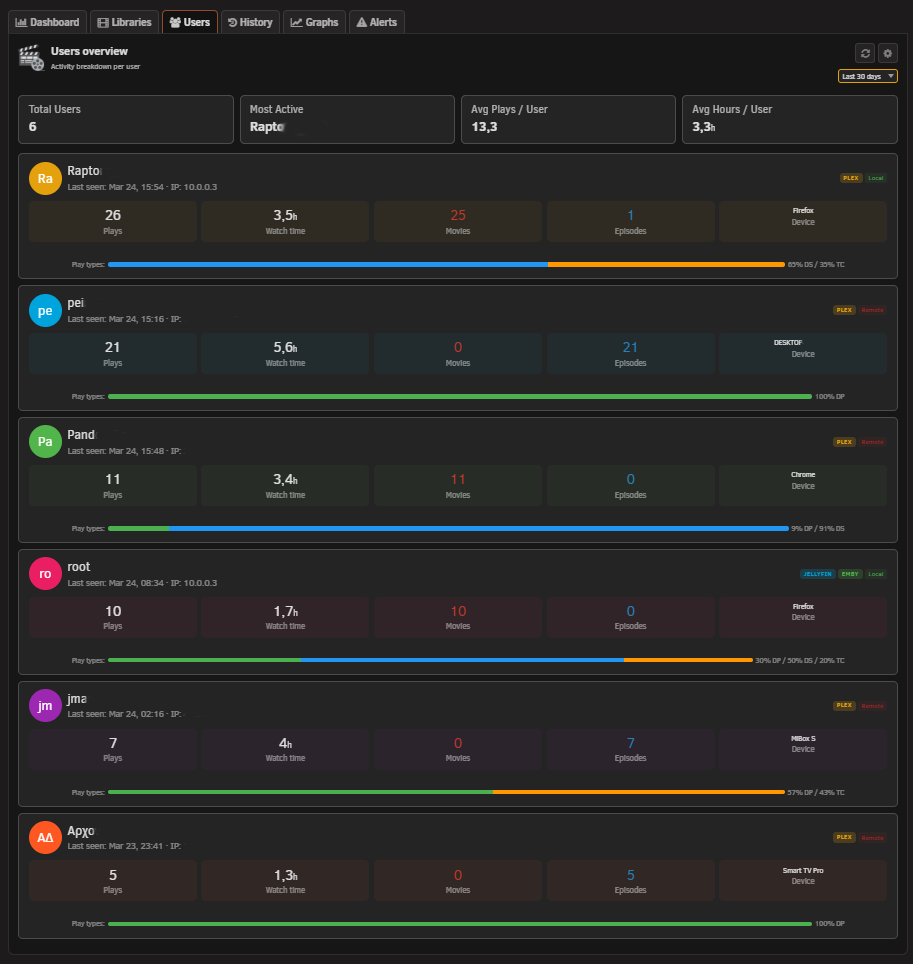

• Users tab with per-user play counts, watch time, content breakdown and play type distribution

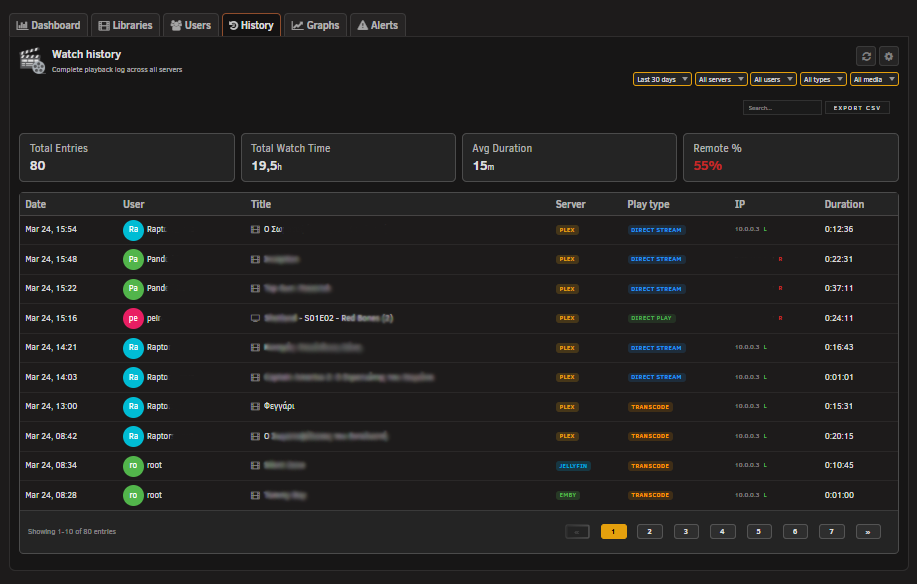

• History tab with full watch history, filters, search, pagination and CSV export

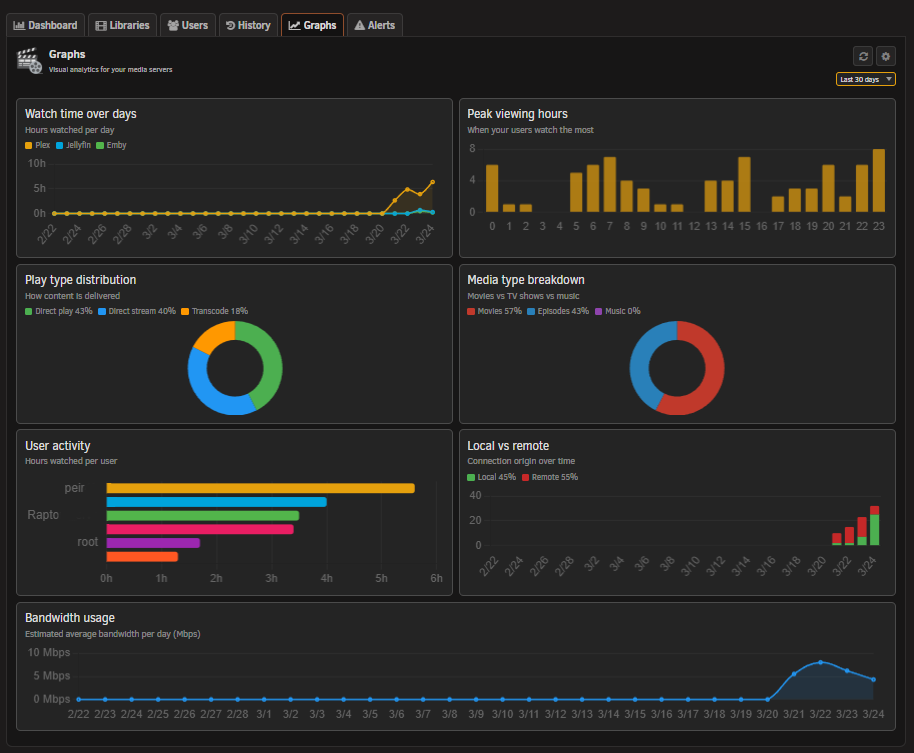

• Graphs tab with daily streams, watch time distribution and play type breakdown charts

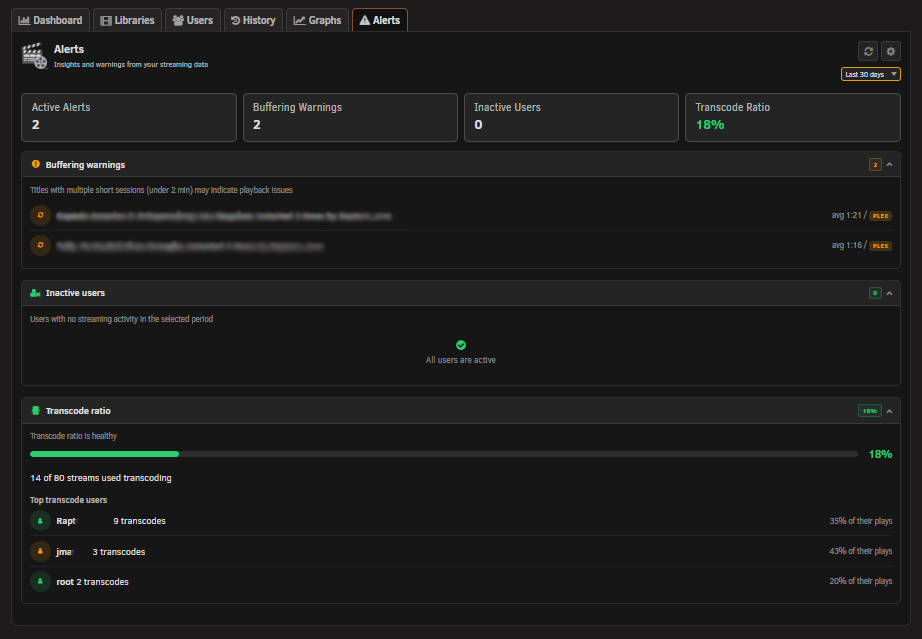

• Alerts tab (placeholder for future alert rules)
• SQLite database with automatic schema migration system
• Configurable data retention and IP anonymization

Server Integration

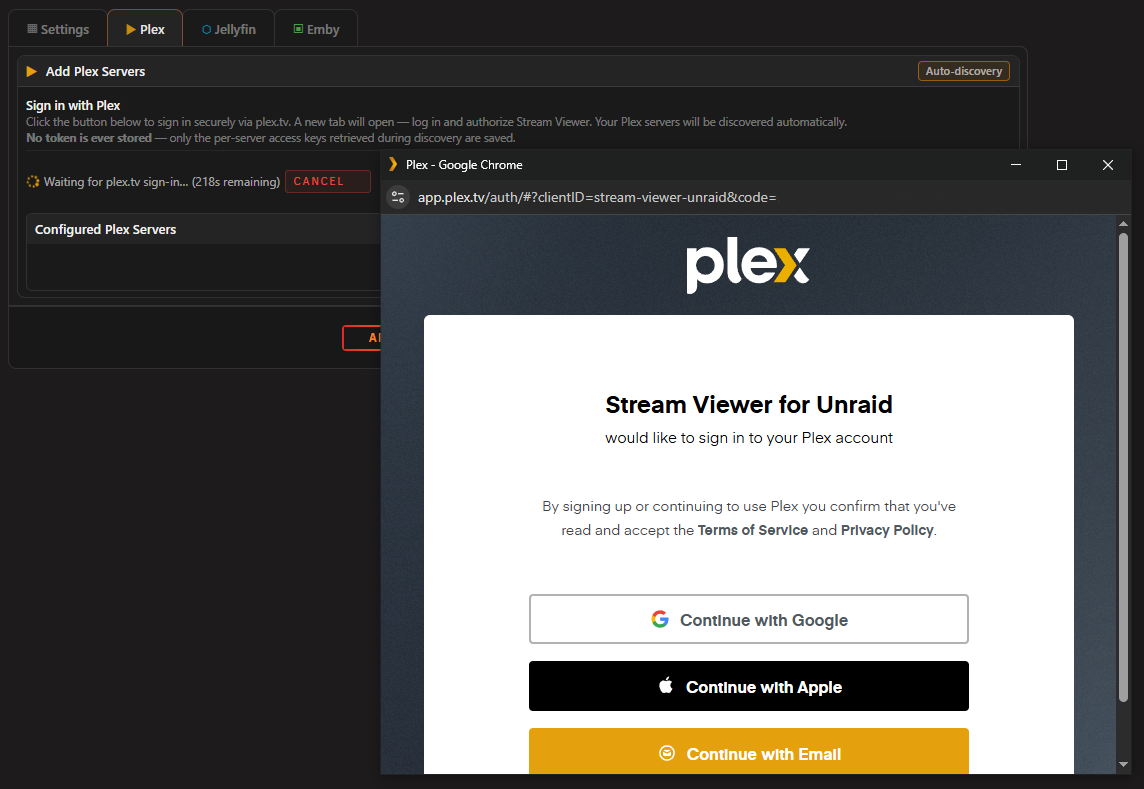

• Plex OAuth for secure server setup without storing passwords
• Auto-rediscover for Plex servers after IP changes
• Test Connection per server in Settings

Installation

Via Community Applications (recommended)

1. Open Community Applications in Unraid
2. Search for Stream Viewer
3. Click Install

Manual Installation

1. Go to Plugins in Unraid
2. Click Install Plugin
3. Paste the following URL:

https://raw.githubusercontent.com/Lazaros-Chalkidis/unraid-streamviewer/main/streamviewer.plg

Configuration

After installation, go to Settings > Stream Viewer to configure the plugin. The settings page is organized into three sections.

Widget Settings

Connections Servers

Statistics Settings

Supported Servers

Security

• CSRF token (nonce) protection on all API requests with sliding expiration
• Rate limiting (120 requests per minute per IP)
• Origin validation blocks cross-origin requests
• Input validation and sanitization on all parameters
• Prepared statements for all SQLite queries (no string concatenation)
• LIKE wildcard escaping with explicit ESCAPE clause
• Docker container ID hex-only validation before API use
• Security headers on all API responses (X-Frame-Options, X-Content-Type-Options, CSP, X-XSS-Protection, Referrer-Policy)
• Image proxy with URL allowlist, only proxies thumbnails from configured servers
• MIME type validation on proxied images with 5 MB size cap
• Plex account token never stored, only per-server access tokens are saved
• Database file permissions restricted to owner only (0600)
• Cache directory created with restricted permissions (0700)
• Cache-Control: no-cache, must-revalidate header
• AJAX-only enforcement (X-Requested-With check)
• HTTP method restriction (GET/POST only)
• URL validation on outbound HTTP requests
• PHP 7 compatible (no PHP 8 only functions)

Screenshots

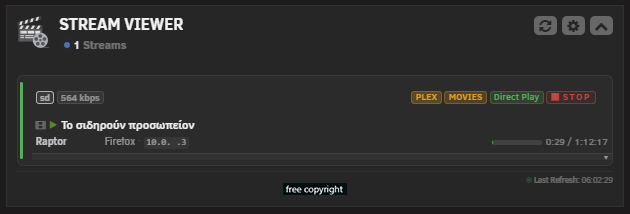

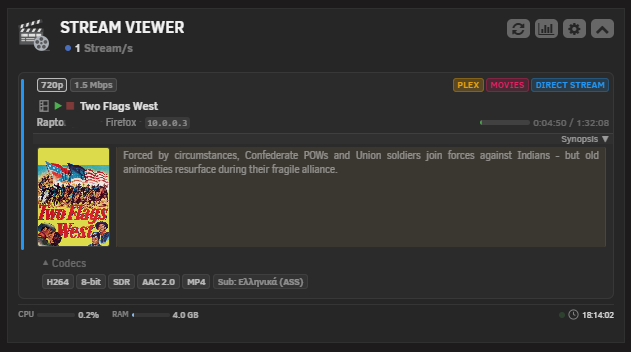

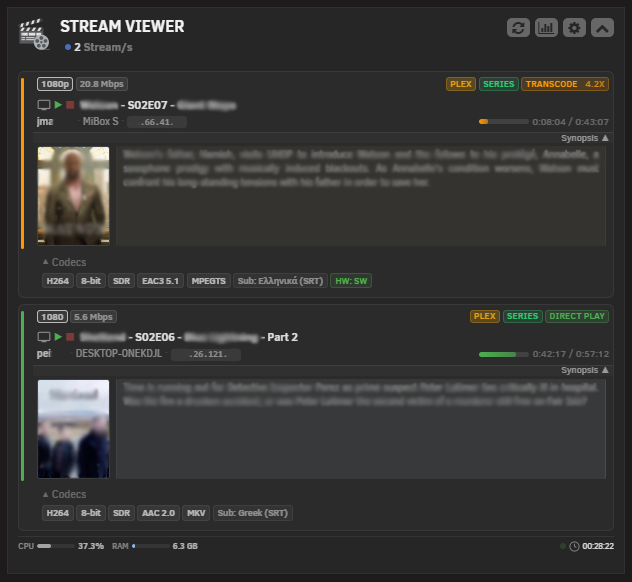

Dashboard Widget

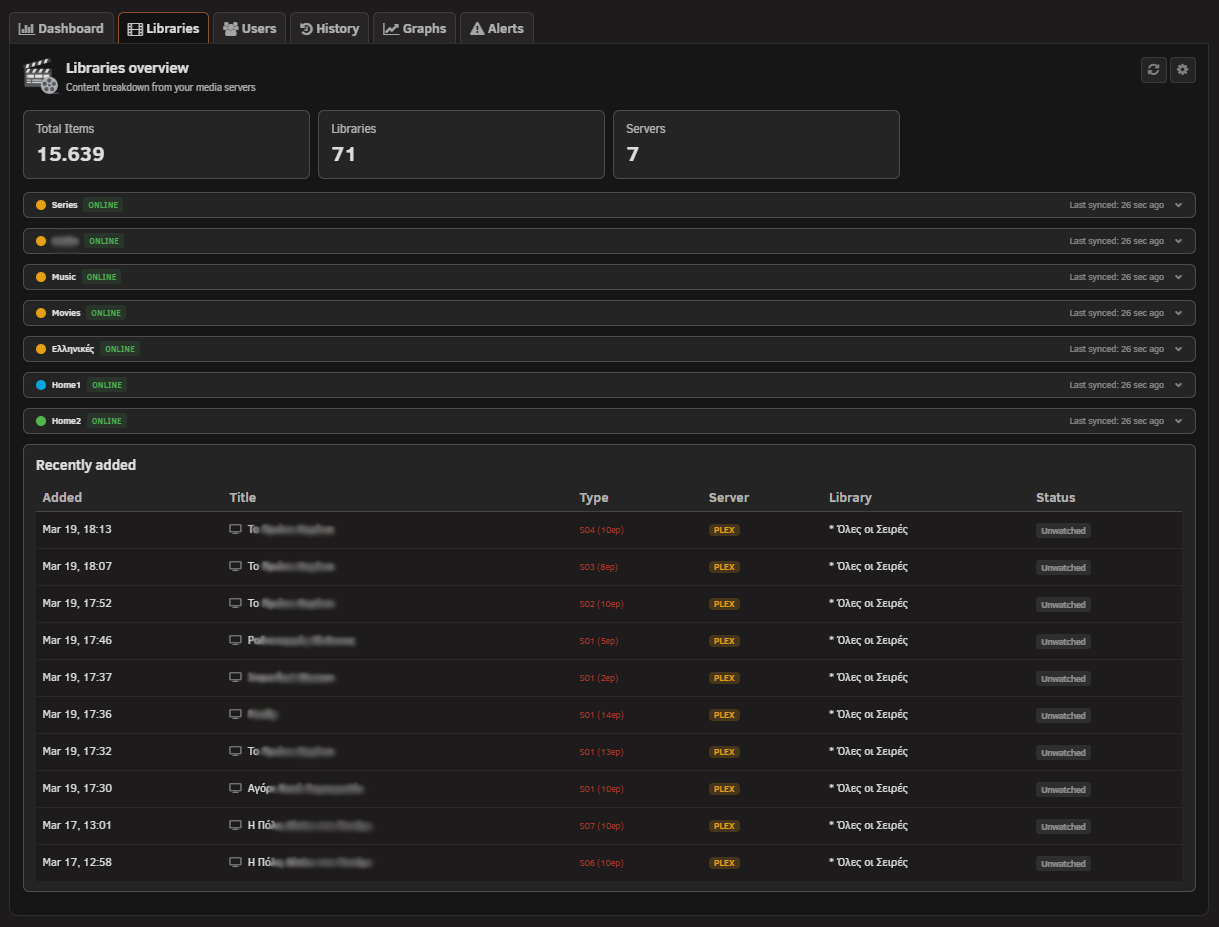

Statistics Tool

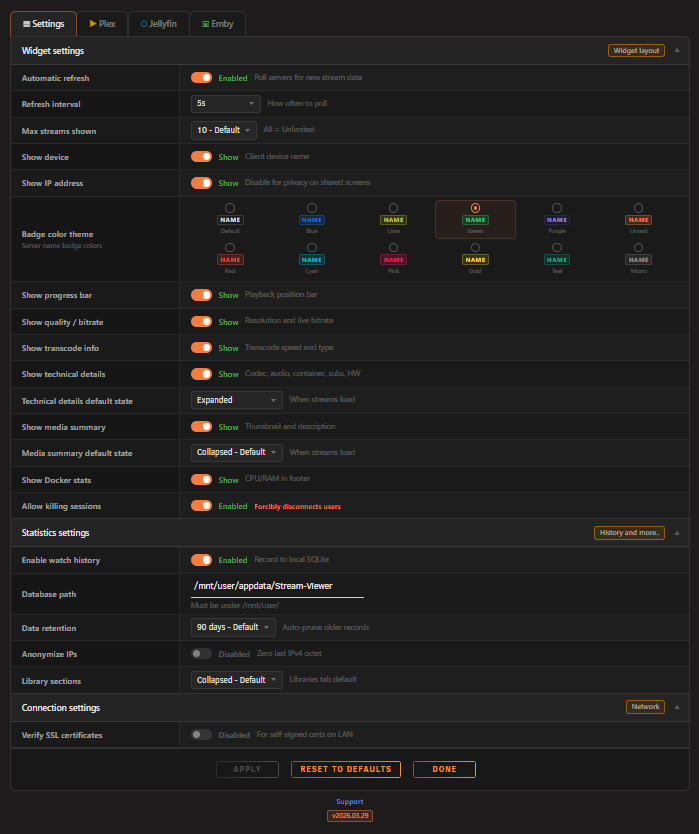

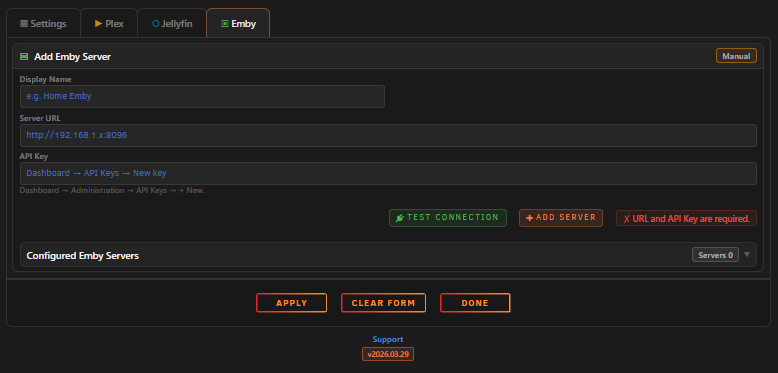

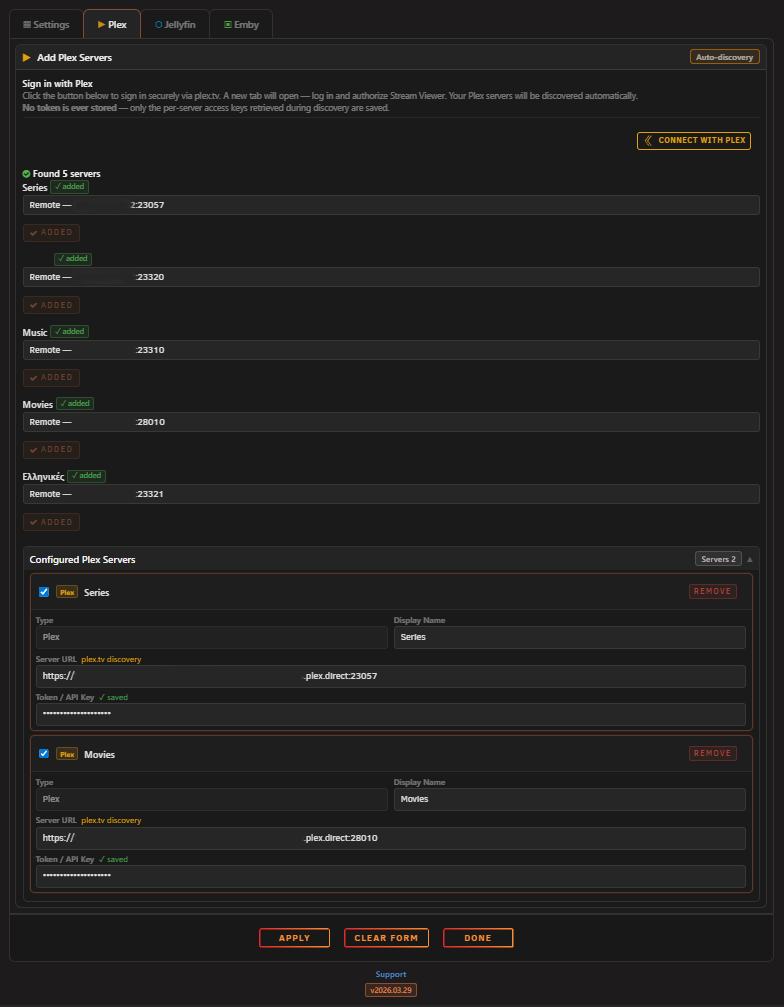

Settings Page

Development

Requirements

• Unraid 7.2.0 or later
• Bash (for build script)

Build

# Release build
./build.sh

# Dev build
./build.sh "" dev

# Local build (embedded package, no internet required)
./build.sh "" "" local

# Release with letter suffix (e.g. 2026.03.13a)
./build.sh a

Project Structure

unraid-streamviewer/
├── source/
│   ├── css/
│   │   ├── widget.css
│   │   ├── settings.css
│   │   └── tool.css
│   ├── js/
│   │   ├── streamviewer.js
│   │   ├── streamviewer-tool.js
│   │   ├── streamviewer-header.js
│   │   └── chart.min.js
│   ├── include/
│   │   ├── streamviewer_api.php
│   │   ├── streamviewer_cron.php
│   │   ├── streamviewer_header.php
│   │   └── streamviewer_poll.sh
│   ├── img/
│   │   ├── streamviewer.png
│   │   ├── streamviewerplugin.png
│   │   └── avatar.png
│   ├── icons/
│   │   └── cast.svg
│   ├── event/
│   │   ├── started
│   │   └── stopped
│   ├── StreamViewer.page
│   ├── StreamViewerButton.page
│   ├── StreamViewerSettings.page
│   ├── StreamViewerTool.page
│   └── README.md
├── screenshots/
│   └── pc/
├── build.sh
├── CHANGELOG.md
├── streamviewer.plg
├── streamviewer.xml
└── LICENSE

Changelog

See CHANGELOG.md for version history.

Issues and Support

To suggest features, report bugs or share feedback, open an issue on GitHub or post on the Unraid Forum.

Author

Lazaros Chalkidis GitHub

License

Copyright (C) 2026 Stream Viewer Unraid Plugin, Lazaros Chalkidis

Licensed under the GNU General Public License v3.0 or later (GPL-3.0-or-later). See the LICENSE file for the full license text.
