Sonos Panel

A touchscreen-friendly web app for controlling a whole-house Sonos system. Runs as a single Docker container -- built Docker-first and geared toward Unraid (a ready-made template is included), though any Docker host works. No server? It also runs directly on an always-on Windows PC -- see Running on Windows. Installs as a fullscreen app on Android/iOS home screens (PWA): point any number of cheap tablets at it and use them as wall-mounted control panels around the house.

Built and battle-tested against a real 9-room household with a 160,000-track music library.

S1 and S2 support

The panel works with both Sonos generations -- current S2 systems and legacy S1 (firmware 11.x) systems -- but one container controls one generation, never both. S1 and S2 hardware on the same network run as two entirely separate Sonos households that cannot group or play together; that is a Sonos platform rule, not a panel limitation.

• The Sonos System template variable (SONOS_SYSTEM) picks the generation: s2 (default) or s1. Devices of the other generation on the same LAN are detected (via each speaker's reported software generation) and excluded from the room list automatically.
• Want to control both systems? Install the container twice -- separate fixed IPs, separate appdata paths, one set to s2 and one to s1. Two panels, two households, no crosstalk.
• Differences in what each generation can play are handled by the Local Music Library scanner automatically -- see the format table below.
• On S1, the "Up Next" line under the progress bar is disabled: it relies on S2-verified queue behavior under shuffle that S1 firmware has not been confirmed to share. Everything else works identically.

Features

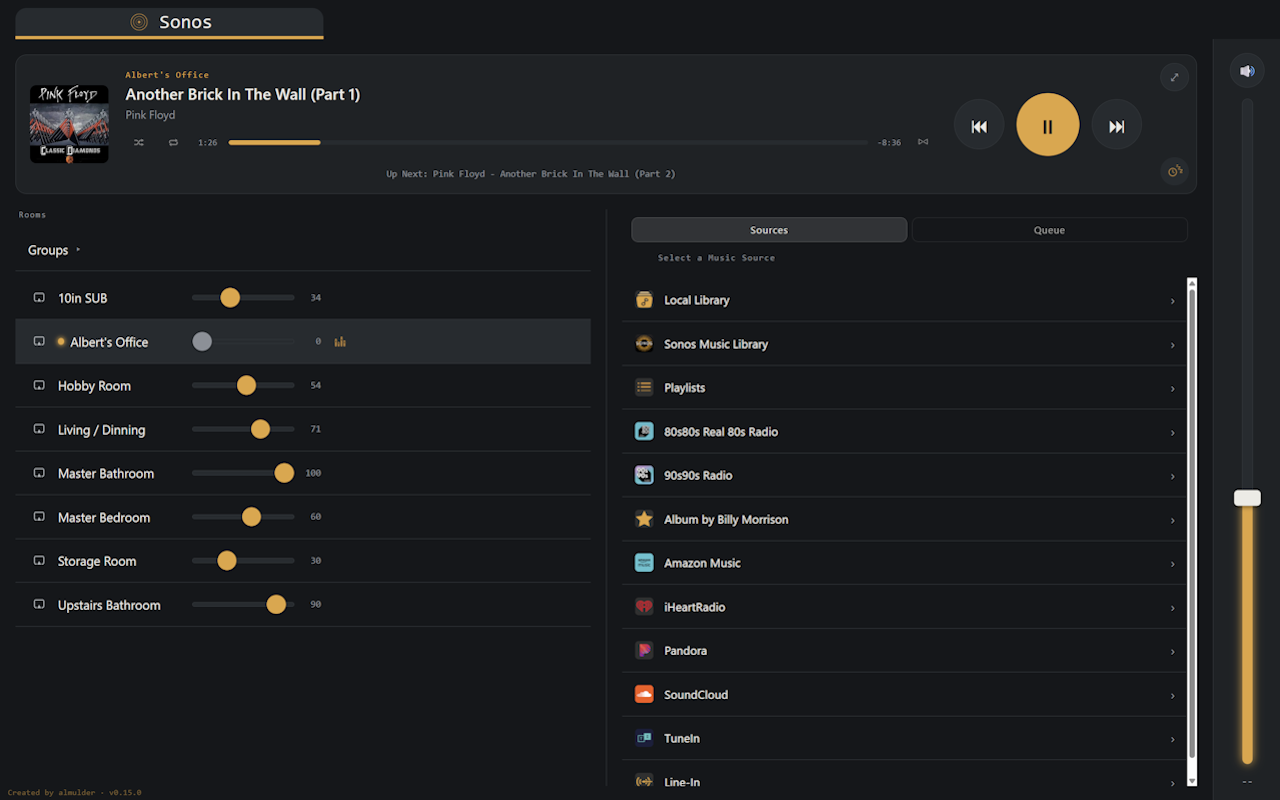

• Every room in the system, tap to control; grouped rooms expand under their group head

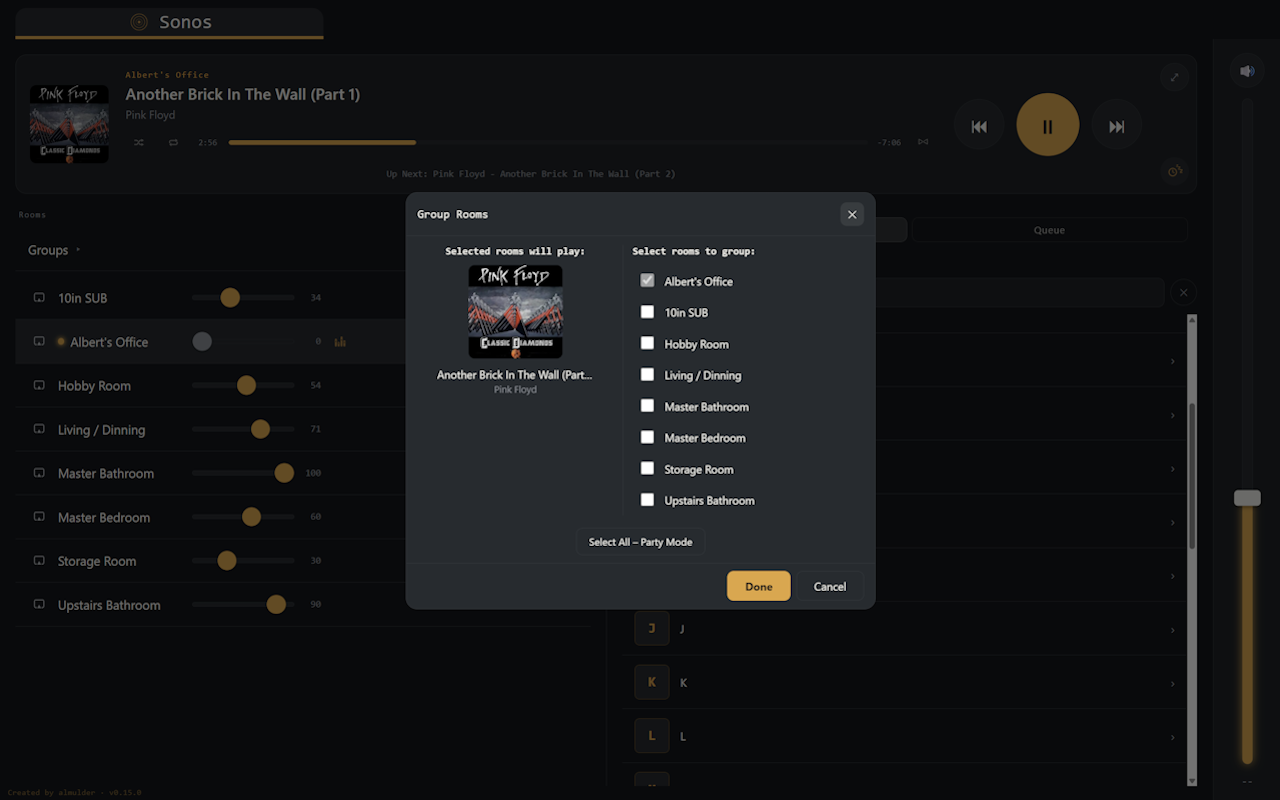

• Group Rooms dialog mimicking the official app: tap the group icon on any room, check who joins -- the tapped room is always the group coordinator. Party Mode included. Saved group presets for one-tap recall
• Play/pause/skip, seek, volume (per-room or ratio-preserving group master), per-speaker EQ (bass/treble/loudness), sleep timers
• Shuffle, Repeat (off / all / one), and Crossfade buttons

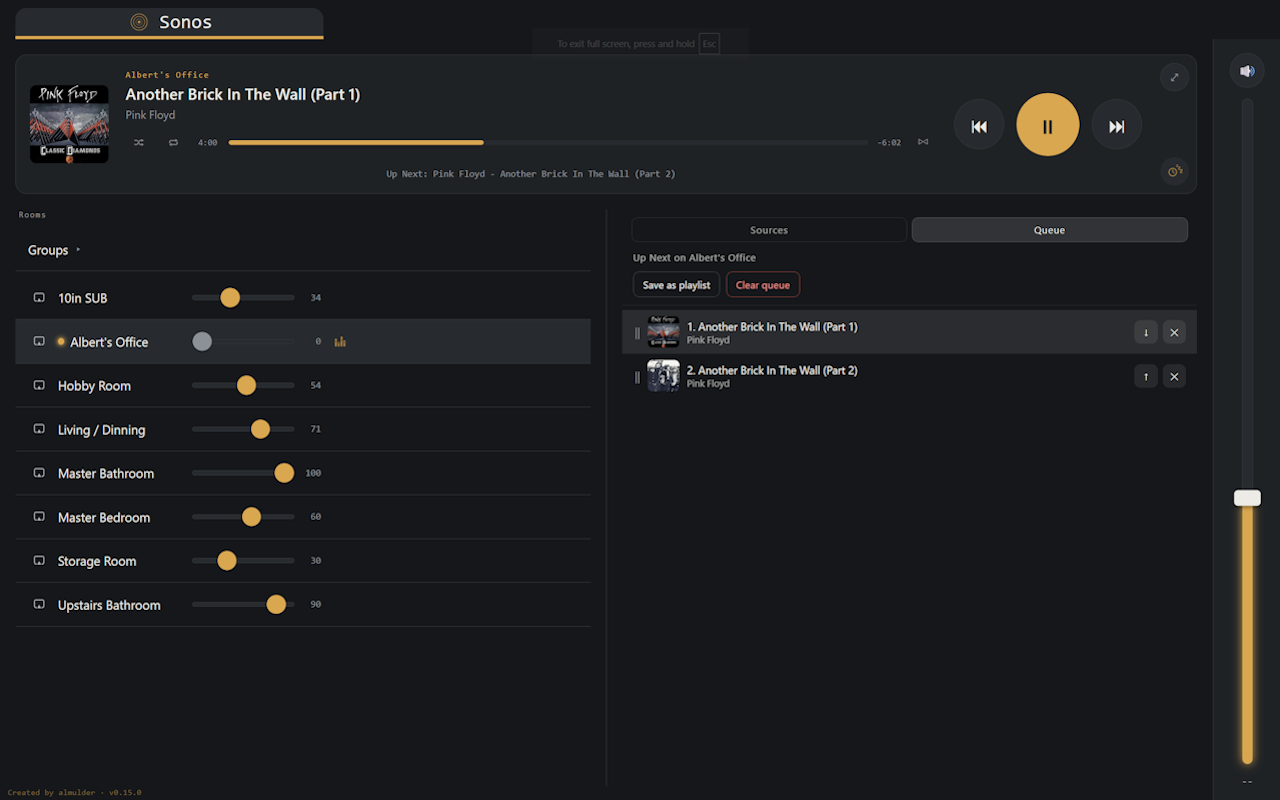

• Full queue management: view, jump, remove, drag-to-reorder, clear, and save the queue as a playlist; live-updating via speaker events
• Browse and play Favorites (grouped by service with proper logos), Sonos Playlists (create, rename, delete, add/remove tracks), and Line-In sources
• Multi-account services: households with several logins of one service (three Pandora accounts, say) get a user list per service ("Albert's Playlists", "Family's Playlists" -- names editable on the panel), so nobody interrupts anyone else's stream by grabbing a station from the wrong login
• Music service directory (public/icons/music_services.js): all 134 Sonos-supported services with display names and icons, fully user-editable -- no code changes needed to add or rename a service (see "Adding a music service" below)

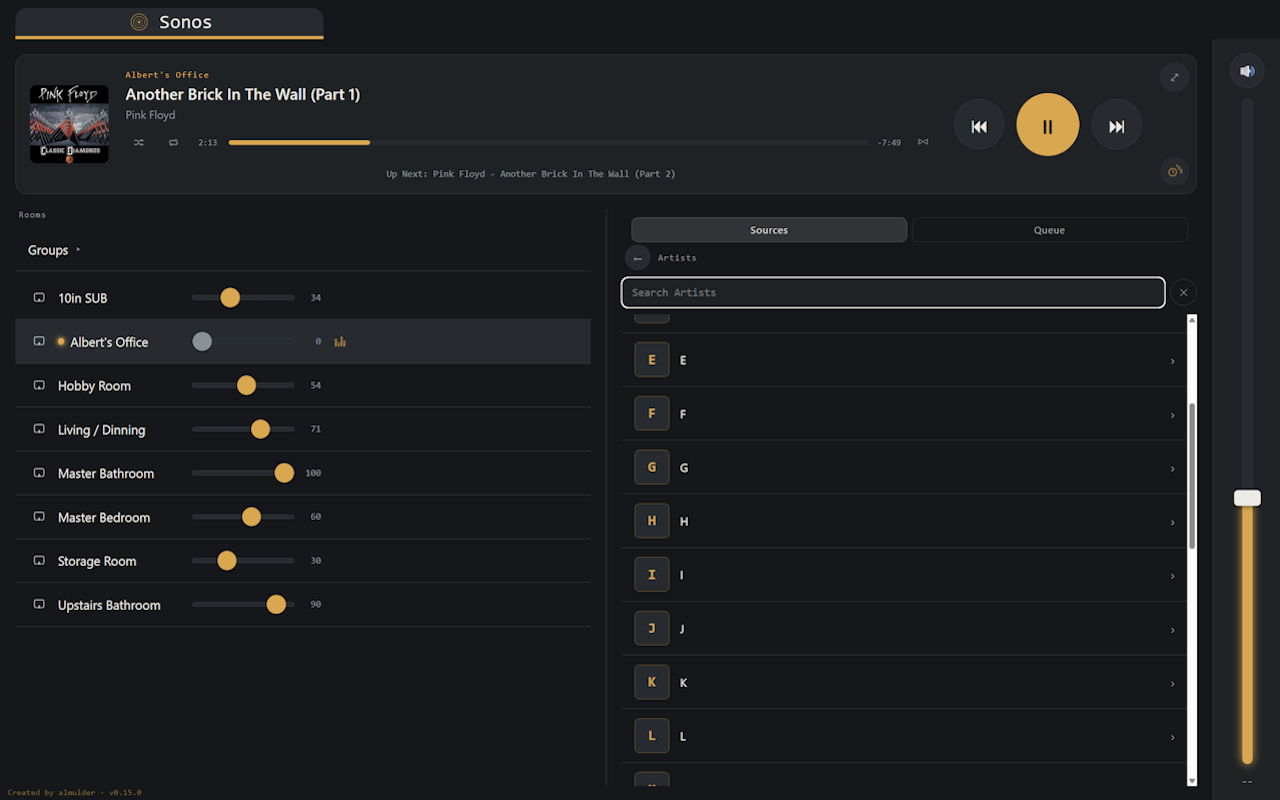

• Network Music Library: browse and stream your own music files straight from the server to the speakers -- no Sonos 65,000-song index limit. Artists / Albums / Songs / Genres / Composers / Folders / Recently Added, unified search across everything, letter buckets that ignore "The" and accents, artist "All Songs", fully self-healing album art
• "Up Next" line under the progress bar during queue/playlist playback (S2 systems)
• Passcode lock (optional): a 4-digit code gates structural changes -- deleting/renaming playlists, editing account names, adding tracks to playlists, and any group add/edit/apply -- behind an onscreen keypad. Playback and queue stay open for guests. Unlocked panels re-lock after 60 seconds without a touch
• Pull down to refresh: drag down from the top edge of the screen to reload the panel -- no browser chrome needed on kiosk tablets

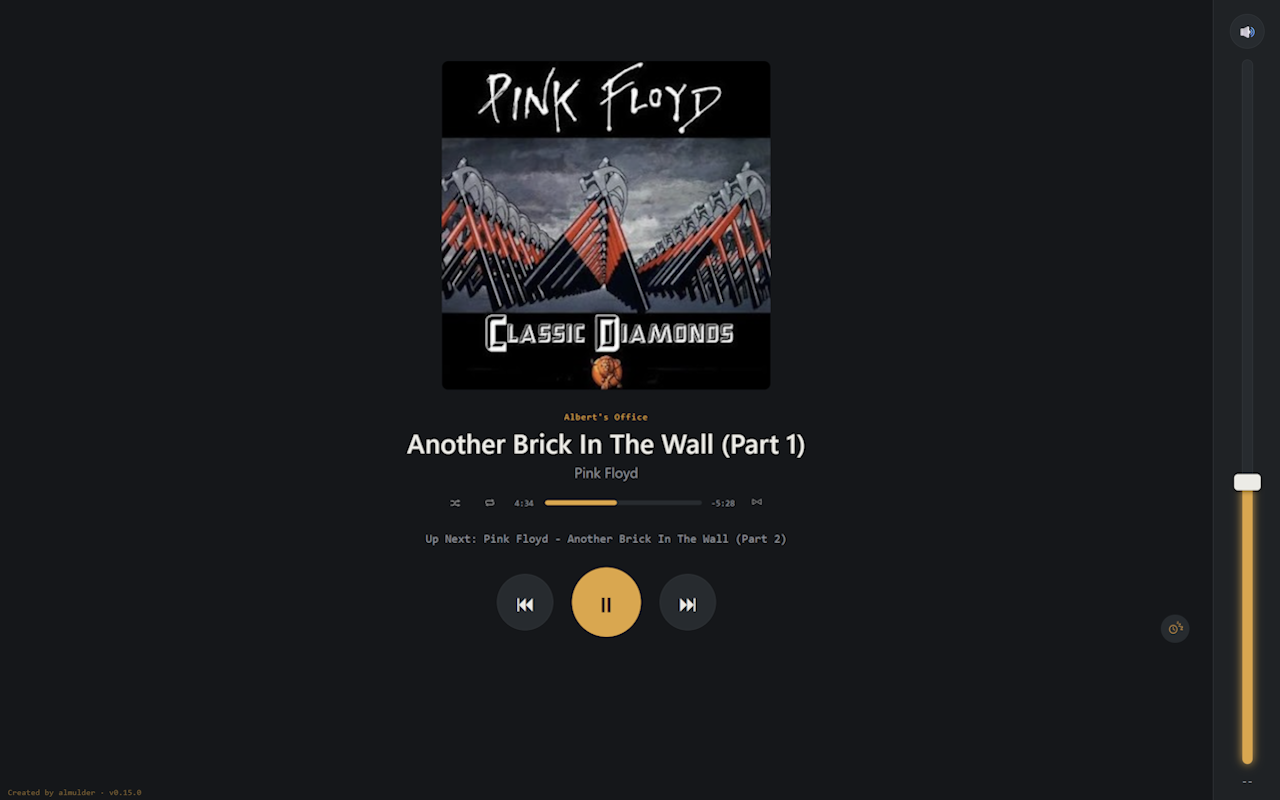

• Album art, track/artist, and source info while playing; ambient screensaver (bouncing now-playing, or color-cycling rings when idle)
• Up to 3 extra tabs alongside Sonos, each embedding another local dashboard (Hubitat, Home Assistant, anything on your LAN)

Quick start (Docker)

git clone https://github.com/almulder/Sonos_Panel.git
cd Sonos_Panel
docker compose up -d

Then open http://<your-server-ip>:3000.

Important: this only works with host networking (already set in docker-compose.yml). Sonos discovery uses SSDP (UDP multicast) to find speakers on the local network, which Docker's default bridge network silently blocks -- the app will start fine and just never find any speakers, with no obvious error pointing at why. Don't switch this to bridge networking.

Running on Unraid (recommended)

Full walkthrough in UNRAID_SETUP.md. The short version:

1. Docker tab -> Add Container, using templates/sonos-panel.xml from this repo (place it in /boot/config/plugins/dockerMan/templates-user/, or paste its fields manually)
2. Network Type: Custom (br0) with a fixed IP on the same subnet as your speakers (set br0 to ipvlan in Docker settings). The panel needs its own LAN address both for SSDP discovery/eventing and so speakers can stream Network Music Library audio back from it
3. Optionally set Music Path and the other template fields (see Settings below for what each one does), Apply, then open http://<the-ip-you-chose>/

Running on Windows (no Docker, no server needed)

If you don't have a NAS or home server, Sonos Panel runs directly on any always-on Windows PC -- a cheap mini PC tucked behind the TV is perfect. No Docker, no Unraid, no networking setup.

Don't use Docker Desktop for this. On Windows it runs containers inside a virtual machine behind NAT, which blocks the speaker discovery this app depends on. Running it directly, as below, avoids the problem entirely.

1. Install Node.js

Download the LTS installer from nodejs.org and run it, accepting the defaults. This is the engine the panel runs on. Node 20 or newer is required.

To check it worked, open Command Prompt and run node -v -- it should print a version number like v22.11.0 or higher.

2. Download Sonos Panel

Download this repository as a ZIP (green Code button at the top of the GitHub page, then Download ZIP) and extract it to C:\Sonos_Panel.

3. Install its components

Open the Start menu, type cmd, and open Command Prompt. Then run these two lines:

cd C:\Sonos_Panel
npm install --omit=dev

This takes a minute or two and prints a lot of text. That's normal.

4. Create the start file

In C:\Sonos_Panel, create a new text file named start-panel.bat. Copy everything below into it.

If you're updating an existing start-panel.bat, delete everything already in the file first. The last line, node server\index.js, is what actually starts the panel -- anything pasted below it never runs, so a file with that line in the middle will silently ignore every setting after it.

Lines starting with rem are notes and are ignored -- to switch a setting on, delete the rem from the front of its line and fill in your value. Everything except the first four lines is optional.

@echo off
rem ===== Basic settings (leave these as they are unless noted) =====
set PORT=8080
set DATA_DIR=C:\Sonos_Panel\data
set TZ=America/Denver
rem Use s1 instead of s2 if you have a legacy Sonos system:
set SONOS_SYSTEM=s2

rem ===== Your music folder (optional) =====
rem Point this at your music to enable the Network Music Library.
rem Delete this line entirely if you don't have a music folder.
set MUSIC_DIR=D:\Music

rem ===== Passcode lock (optional) =====
rem Any 4 digits. Stops guests deleting playlists or changing groups.
rem Playback and the queue stay open to everyone.
rem set PASSCODE=1234

rem ===== Screensaver (optional) =====
rem Seconds of no touch before the screensaver starts. Default 600.
rem set SCREENSAVER_TIMEOUT_SECONDS=600

rem ===== Extra tab 2 (optional) =====
rem Embeds another page on your network as a second tab, such as a
rem Home Assistant or Hubitat dashboard. Only the URL is required --
rem the other three lines just change how the tab looks.
rem set TAB2_URL=http://192.168.1.50:8123
rem set TAB2_TITLE=Home
rem set TAB2_COLOR=#41bdf5
rem set TAB2_ICON=http://192.168.1.50:8123/static/icons/favicon-192x192.png

rem ===== Extra tab 3 (optional) =====
rem set TAB3_URL=http://192.168.1.60/dashboard
rem set TAB3_TITLE=Cameras
rem set TAB3_COLOR=#7ac943
rem set TAB3_ICON=

rem ===== Extra tab 4 (optional) =====
rem set TAB4_URL=http://192.168.1.70/hubitat/dashboard/1
rem set TAB4_TITLE=Lights
rem set TAB4_COLOR=
rem set TAB4_ICON=

node server\index.js

Things worth knowing:

• Change MUSIC_DIR to wherever your music actually lives, or delete that line if you don't have a music folder.
• Change TZ to your timezone if you're not in Mountain time (for example America/New_York, America/Chicago, America/Los_Angeles, Europe/London).
• For the extra tabs, the _URL line is the only one that matters. A tab appears as soon as its URL is set, and won't appear at all without it. Title, colour, and icon are optional decoration -- you can leave them commented out.
• Don't put spaces around the =, and don't add a trailing space after a value. set PORT=8080 works; set PORT = 8080 does not.
• node server\index.js must be the last line, and appear only once. It starts the panel; any set line below it is ignored.
• Changes only take effect on restart. After editing this file, close the panel's black window and double-click the file again.

5. Start it

Double-click start-panel.bat. A black window opens and stays open -- that's the panel running; closing it stops the panel.

The first time you run it, Windows will ask whether to allow Node.js through the firewall. You must click Allow, with "Private networks" checked. If you miss this prompt, the panel will find zero speakers. To fix it later, go to Windows Security > Firewall & network protection > Allow an app through firewall, and make sure Node.js is checked for Private.

Now open a browser to http://localhost:8080 on that PC, or http://<that-pc's-IP>:8080 from a tablet or phone on the same network.

6. Keep it running

Two settings matter on an always-on machine:

• Stop it sleeping. Settings > System > Power > Screen and sleep: set sleep to Never. A sleeping PC takes your wall panels down with it.
• Start it automatically. Press Win+R, type shell:startup, and put a shortcut to start-panel.bat in the folder that opens. The panel then starts whenever the PC boots. (For a tidier setup that runs invisibly in the background, install NSSM and run nssm install SonosPanel.)

Windows troubleshooting

No speakers found. Almost always the firewall prompt from step 5. Confirm Node.js is allowed on Private networks. Also make sure the PC is on the same network as the speakers, not a guest or IoT VLAN.

Port 8080 already in use. Change set PORT=8080 in the .bat file to another number, such as 8081, and use that in the browser address instead.

npm install fails with a long error mentioning better-sqlite3, node-gyp, or Visual Studio. The panel uses one component that ships as a prebuilt binary; if npm can't download the right one, it tries to build it from source and fails without Microsoft's C++ build tools installed.

First, run node -v. If it prints anything below v20, install a current Node.js and try again.

Otherwise it's usually a failed download (the error contains socket hang up or ECONNRESET). Try:

npm cache clean --force
npm install --omit=dev

Antivirus or VPN software sometimes blocks the binary download -- if it keeps failing, pause that briefly and retry. As a last resort you can install the "Desktop development with C++" workload from the Visual Studio Build Tools, which lets it compile locally, but that's a large download and is rarely necessary.

Music files don't appear. First check the panel can actually read the folder: paste the MUSIC_DIR path into File Explorer's address bar. If it doesn't open there, it won't work in the panel either -- see Where your music can live, especially if your music is on another computer or a NAS. If the folder does open, the files may be over the format limits -- those are skipped on purpose and listed with reasons in incompatible-files.txt inside your DATA_DIR folder.

Music is indexed but won't play through the speakers. The speakers fetch audio from the panel over the network, so they need to be able to reach it. Confirm Node.js is allowed through Windows Firewall on Private networks (step 5), and that the PC and the speakers are on the same network. If it still fails, set PUBLIC_BASE_URL explicitly, for example set PUBLIC_BASE_URL=http://192.168.1.25:8080, using the PC's own LAN address.

Settings

All settings are optional except the music path (and only if you want the Network Music Library). On Unraid these are template fields; on Windows they are set NAME=value lines in start-panel.bat. The name in the first column is the environment variable in both cases.

Setting	Default	What it does
SONOS_SYSTEM	s2	Which Sonos generation this instance controls: s2 or s1. One per instance -- run two to cover both
MUSIC_DIR	(blank)	Folder of music files enabling the Network Music Library. On Unraid this is the Music Path field, mapped read-only
PASSCODE	(blank)	4-digit code enabling the passcode lock. Blank = everything unlocked
SCREENSAVER_TIMEOUT_SECONDS	600	Idle seconds before the screensaver starts
RESCAN_SCHEDULE	(blank)	daily@HH:MM or weekly@DAY@HH:MM library rescans (a quick incremental scan always runs at startup)
TZ	America/Denver	Timezone for the rescan schedule
PORT	3000	Port the panel listens on (the Unraid template uses 80)
PUBLIC_BASE_URL	auto	URL the speakers use to stream from the panel. Auto-detected; only set it if local files won't play
DATA_DIR	./data	Where the library index, artwork cache, and saved settings live
TAB2_URL, TAB3_URL, TAB4_URL	(blank)	Each adds an extra tab embedding that URL. Optional TAB2_TITLE / _ICON / _COLOR etc. style them -- see Extra tabs

The passcode lock

Set PASSCODE to any 4 digits and the panel asks for it before anything structural: deleting or renaming playlists, adding or removing playlist tracks, editing account names, and creating or changing room groups. Playback, volume, and the queue stay open, so guests can play whatever they like without rearranging your setup. An onscreen keypad appears -- no keyboard needed on a tablet. Once entered, the panel stays unlocked while it's being used and re-locks after 60 seconds of no touches. Leave it blank to disable the lock entirely.

The screensaver

SCREENSAVER_TIMEOUT_SECONDS sets how long the panel waits before going ambient (default 600 = 10 minutes). While music is playing it shows a slowly drifting now-playing display with album art; when idle it shows animated colour-cycling rings. Touching the screen anywhere brings the panel straight back.

Extra tabs

The panel can show up to three extra tabs beside the Sonos one, each embedding another page on your network -- a Home Assistant dashboard, a Hubitat dashboard, a camera view, anything with a URL. This turns a single wall tablet into a whole-house control panel instead of just a music remote.

There are twelve variables in total: four for each of the three tabs, named TAB2_, TAB3_, and TAB4_ (there is no "Tab 1" -- that slot is always Sonos itself).

Variable	Required?	What it does
TAB2_URL	Required	Full URL of the page to embed. Tab 2 only appears if this is set
TAB2_TITLE	Optional	Name on the tab. Defaults to "Tab 2"
TAB2_ICON	Optional	An emoji, or a full image URL, shown before the title
TAB2_COLOR	Optional	Hex colour for the tab's underline, e.g. #41bdf5
TAB3_URL	Required	Full URL to embed. Tab 3 only appears if this is set
TAB3_TITLE	Optional	Name on the tab. Defaults to "Tab 3"
TAB3_ICON	Optional	Emoji or image URL
TAB3_COLOR	Optional	Hex colour for the underline
TAB4_URL	Required	Full URL to embed. Tab 4 only appears if this is set
TAB4_TITLE	Optional	Name on the tab. Defaults to "Tab 4"
TAB4_ICON	Optional	Emoji or image URL
TAB4_COLOR	Optional	Hex colour for the underline

The URL is the only one that matters. Set just TAB2_URL and you get a working tab called "Tab 2" in the default colour with no icon. The other three fields are pure decoration -- fill in the ones you care about and leave the rest blank. You do not need to populate all four fields for a tab to work.

Tabs also don't have to be used in order. Configuring only TAB3_URL works fine, and leaving TAB2_URL blank simply means one fewer tab.

Example: one tab

set TAB2_TITLE=Home
set TAB2_URL=http://192.168.1.50:8123

Example: three tabs, with decoration

set TAB2_TITLE=Home
set TAB2_URL=http://192.168.1.50:8123
set TAB2_COLOR=#41bdf5
set TAB2_ICON=https://192.168.1.50:8123/static/icons/favicon-192x192.png

set TAB3_TITLE=Cameras
set TAB3_URL=http://192.168.1.60/dashboard
set TAB3_COLOR=#7ac943

set TAB4_TITLE=Lights
set TAB4_URL=http://192.168.1.70/hubitat/dashboard/1

A single emoji works as an icon too, and is the easiest option in the Unraid template fields. In a Windows .bat file, though, emoji often get mangled by the console's character encoding -- use an image URL there instead, as above.

On Unraid, enter these same values in the Tab 2 Title / Tab 2 URL / Tab 2 Icon / Tab 2 Color template fields. Tab 3 and Tab 4 live under Show more settings in the container's edit screen.

If a tab doesn't appear

• Nothing shows up at all. The tab's _URL variable is almost certainly missing or empty -- that's the one field that creates the tab. Check for typos: it's TAB2_URL, not TAB_2_URL or TAB2URL.
• You changed a setting and nothing happened. On Windows, check that node server\index.js is the very last line of start-panel.bat and appears only once -- settings below it never run. Otherwise: the panel reads these once at startup. On Windows, close the black window and double-click start-panel.bat again. On Unraid, hit Apply on the container. Then refresh the browser.
• On Unraid, the fields aren't in the container's edit screen. Variables added to the template don't appear on a container that was created earlier. Remove the container (keeping appdata) and re-add it from the template, or use Add another Path, Port, Variable to add the variable by name manually.
• The tab appears but the page inside is blank. The site is refusing to be embedded. Most public websites (Google, and anything with strict security headers) block this deliberately and there's no way around it from this end. Home Assistant does it too by default: the fix is on the Home Assistant side, adding use_x_frame_options: false under http: in its configuration.yaml and restarting it. Hubitat dashboards embed without changes.

Network Music Library

Point the Music Path at your files and the panel indexes them into a local SQLite database and streams them straight to the speakers over HTTP -- sidestepping the Sonos music-library index limit entirely. Playlists, queueing, artwork, search, and shuffle/repeat all work against local files exactly as they do for streaming sources.

Where your music can live

The panel reads your music files itself and serves them to the speakers over HTTP. The speakers never open your files directly, so your music folder does not need to be shared for Sonos's benefit -- but the panel does need to be able to read it.

Music on the same machine as the panel. Point MUSIC_DIR (or Unraid's Music Path) straight at the folder and you're done. No sharing, no permissions, nothing else to set up.

set MUSIC_DIR=D:\Music

Music on another computer or a NAS. The panel can only read it if that folder is shared on the network and reachable from the machine running the panel. Use the full network path rather than a mapped drive letter:

set MUSIC_DIR=\\TOWER\Music

Mapped drive letters like X:\ are tied to your logged-in Windows session. They work while you're signed in, but disappear when the panel runs as a service or starts at boot before you log in -- the library then scans as empty with no obvious explanation. A full \\SERVER\Share path always works.

On Unraid, mount the remote share on the host first (Unassigned Devices plugin, giving you /mnt/remotes/...) and point Music Path there.

Sharing a folder on Windows

Do this on the computer that holds the music, not the one running the panel:

1. Right-click the music folder and choose Properties.
2. Open the Sharing tab and click Advanced Sharing.
3. Tick Share this folder. Note the Share name -- this becomes part of the path.
4. Click Permissions and make sure Read is allowed for the account you'll use (or Everyone, if it's a trusted home network).
5. Click OK, then Apply.
6. The Sharing tab now shows the Network Path, something like \\DESKTOP-ABC\Music. That's what goes in MUSIC_DIR.

Then, on the machine running the panel, paste that same path into File Explorer's address bar and press Enter. If your music appears, the panel can read it too. If Windows asks for credentials, tick Remember my credentials so the panel isn't blocked later.

If the path doesn't open, check on the machine holding the music that its network profile is set to Private (not Public), under Settings > Network & internet, and that network discovery and file sharing are turned on under Advanced sharing settings.

What each system can play

The scanner checks every file against the limits of the generation set in SONOS_SYSTEM and only indexes what the speakers can actually play:

Format	S2 limit	S1 limit
MP3 / AAC / M4A / OGG	up to 320 kbps	up to 320 kbps
WMA	up to 355 kbps (no WMA Lossless)	up to 355 kbps (no WMA Lossless)
FLAC / ALAC	up to 24-bit	up to 16-bit
AIFF / WAV	up to 16-bit	up to 16-bit
All lossless	max 48 kHz sample rate	max 48 kHz sample rate

Files over the limits (hi-res 88.2/96/192 kHz FLAC is the common case) are skipped, not added -- each is listed with its reason in incompatible-files.txt in the appdata folder, also viewable at /api/local/incompatible. The panel does not convert files; transcoding hi-res libraries is out of scope here (a separate project). Re-encode those files yourself to 48 kHz / 16- or 24-bit and the next scan picks them up.

The scanner

• First scan of a large library takes minutes (171k files indexed in ~17 at reference); every scan after that is incremental -- unchanged files are skipped, so rescans take seconds
• Album art comes from folder images (cover.jpg etc.) or embedded tags, extracted once and cached. Art is fully self-healing: every scan re-verifies each folder -- added covers upgrade, deleted covers fall back, a wiped art cache regenerates, and re-tagged embedded covers refresh automatically

Adding a music service

Service names and icons live in one user-editable file: public/icons/music_services.js, shipped with all 134 services Sonos supports. Each entry is key: 'Display Name' -- the key is the service's stream name lowercased with punctuation removed, and its icon is simply <key>.png in the same folder. Matching is by prefix, so one pandora entry covers "Pandora", "Pandora Playlist", and "Pandora Station".

If a service ever shows up unmapped, the panel displays its raw stream name -- which is exactly the key you need to add. The Docker log also prints the raw name and ready-made key every time a source plays (Play source: ...), and dumps every favorite's raw label at startup. Add the line, drop in a PNG, refresh the browser. Done -- no code, no rebuild. Download-ServiceLogos.ps1 fetches all the official logos from Sonos's support site in one run.

What it deliberately doesn't do

• Browse streaming-service catalogs (Spotify/Apple Music/Pandora search etc.) -- per-service cloud APIs, each with its own auth. Favorite things in the official app once; the panel plays all favorites, on the right account, forever after
• Alarms, TruePlay tuning, stereo-pair/surround setup, firmware updates, voice -- system-administration jobs for the official app
• Convert incompatible files (see above -- separate project)
• Mix S1 and S2 in one container (two containers covers it)

How it's built

Node.js + Express, one container, no cloud: everything is local UPnP/SOAP against the speakers themselves (AVTransport, RenderingControl, ContentDirectory, ZoneGroupTopology) with GENA event subscriptions pushing real-time state to the browser over WebSockets -- controls react instantly, whichever app made the change. The web UI is plain HTML/CSS/JS, no framework, tuned for touch.

Version and attribution appear in the lower-left corner of the panel.

Contributing

Issues and PRs welcome at github.com/almulder/Sonos_Panel.

License

MIT
