Overview

Sim Studio is an AI-powered development environment for building and testing agents. This is the main application server providing the web interface, API, and collaboration features. Features: AI agent development, real-time collaboration, semantic search with vector embeddings, and integrated development tools. Requires: simstudio-db (PostgreSQL with pgvector), simstudio-realtime (WebSocket), and simstudio-valkey (session storage).

Readme

View on GitHub

Sim.ai Documentation Slack X

Ask DeepWiki Set Up with Cursor

Sim — Integrate, Context, Build, and Monitor AI agents

A workspace to build, deploy and manage AI agents and workflows.

Quickstart

Cloud-hosted: sim.ai

Open sim.ai

Self-hosted

npx sim-setup

Open http://localhost:3000

The Sim platform — chat on the left, the visual workflow builder on the right

Capabilities

  • Connect 1,000+ integrations and every major LLM
  • Add Slack, Notion, HubSpot, Salesforce, databases, and more
  • Build agents visually, conversationally, or with code
  • Ingest files, knowledge bases, and structured table data
  • Monitor runs, logs, schedules, and workflow activity

One workspace, every surface

Chat and workflows are just the start — tables, files, and knowledge all live in the same workspace.

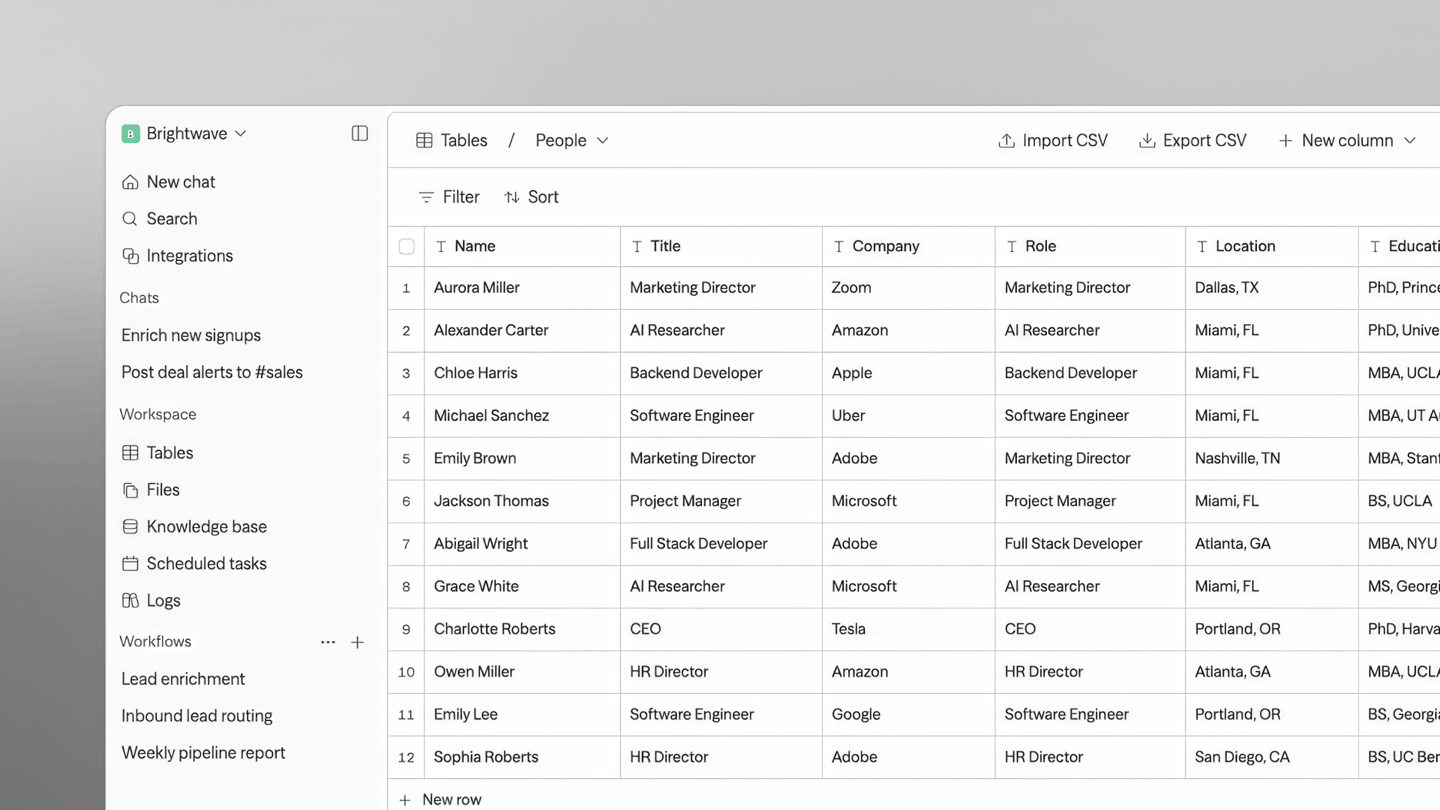

Tables in Sim — structured data your agents can query

Tables — a database, built in

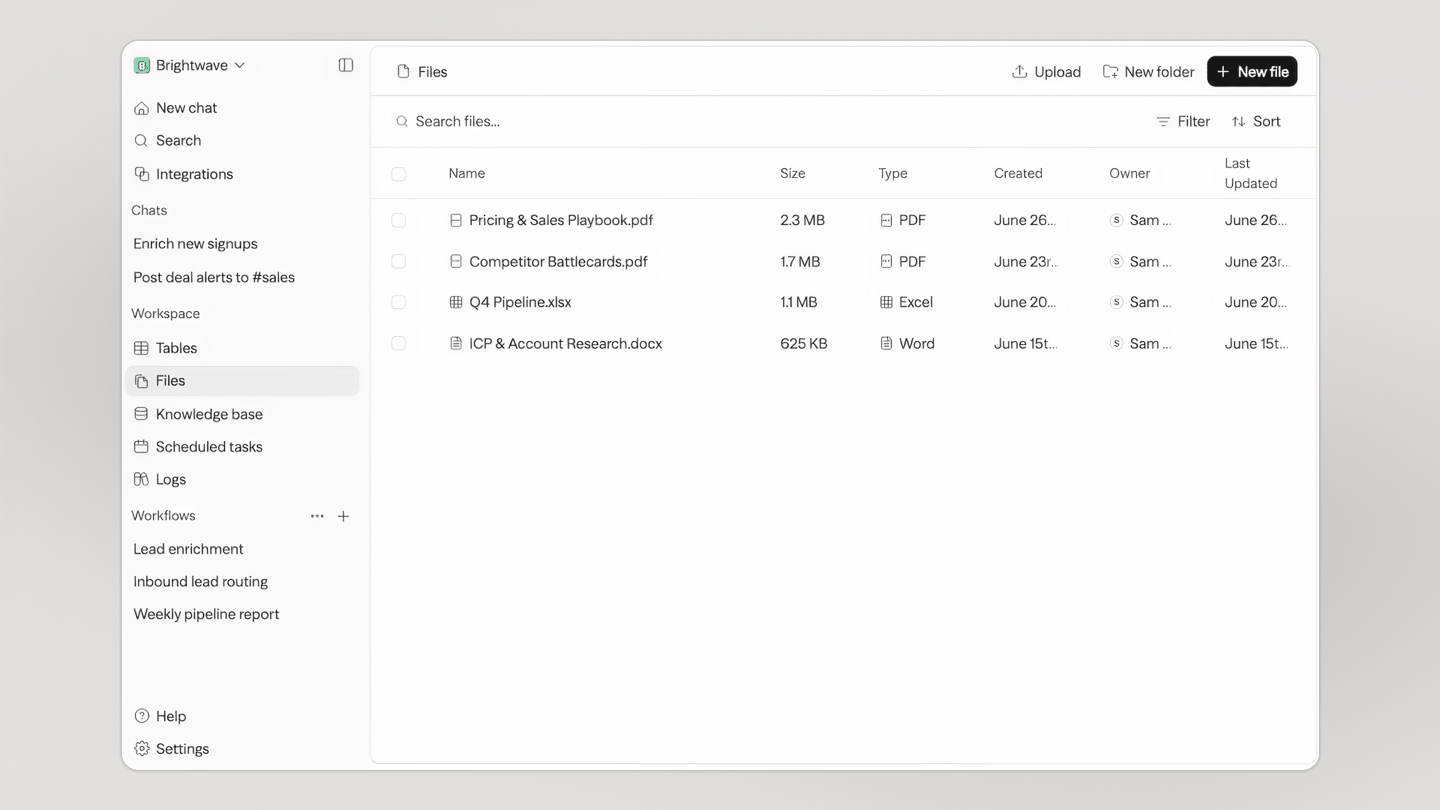

 Files in Sim — documents for your team and every agent

Files — one store for your team and every agent

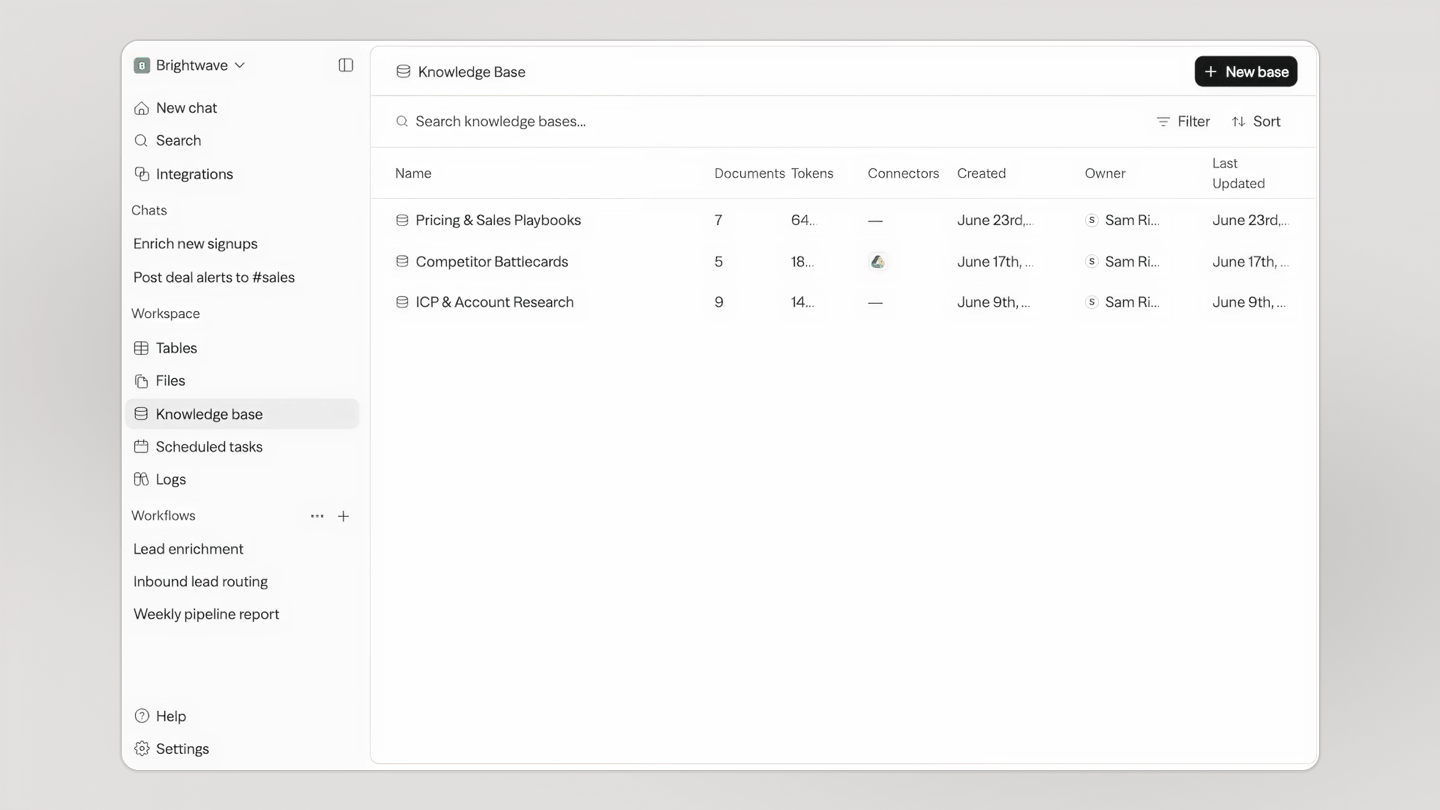

Knowledge bases in Sim — synced docs your agents can search

Knowledge — your agents' memory

Self-hosting

Requirements: Node.js 20+ and Docker.

npx sim-setup is an interactive wizard that creates a small sim/ deployment directory, provisions the database, generates secrets, writes .env, connects a Chat API key, and starts the published Sim images with Docker Compose. It does not clone the repository.

When it finishes, open http://localhost:3000.

Inside a cloned Sim repository, run bun run sim-setup to unlock the source-only local development and Kubernetes modes.

Reconfigure an optional capability without rerunning the full wizard:

npx sim-setup config
npx sim-setup add email
npx sim-setup add storage
npx sim-setup add sandbox
npx sim-setup add jobs
npx sim-setup add cache
npx sim-setup add knowledge
npx sim-setup add chat
npx sim-setup add llm
npx sim-setup add integration slack

npx sim-setup config detects the effective local-dev, Docker Compose, or current-context Helm configuration and reports configured, missing, or invalid capabilities and OAuth integrations without printing credential values. This is separate from npx sim-setup status, which reports whether installed services are running and healthy.

Manage your install from its directory:

npx sim-setup start | stop | restart   # bring your install up / down / cycle
npx sim-setup update                   # pull and apply Compose images
npx sim-setup status                   # what's installed and healthy
npx sim-setup logs                     # follow logs
npx sim-setup doctor                   # diagnose configuration problems
npx sim-setup down                     # remove containers (data kept)
npx sim-setup reset                    # archive .env and wipe managed data

The setup package detects how you're running and acts accordingly. Use --dir <path> to create or manage a deployment somewhere other than ./sim.

Sim also supports local models via Ollama and vLLM. See the self-hosting docs for details.

Chat API Keys

Chat is a Sim-managed service. npx sim-setup connects a Chat API key for you — sign in when it opens your browser and the key is stored automatically. To view, create, or revoke keys later, go to sim.ai/selfhost/settings/chat-keys.

Environment Variables

See the environment variables reference for the full list, or apps/sim/.env.example for defaults.

Tech Stack

Next.js · Bun · PostgreSQL · Drizzle · Better Auth · Tailwind — and the rest of the stack

Contributing

We welcome contributions! Please see our Contributing Guide for details.

License

This project is licensed under the Apache License 2.0 - see the LICENSE file for details.

Built by the Sim team in San Francisco

Install simstudio-app on Unraid in a few clicks.

Find simstudio-app in Community Apps on your Unraid server, review the template, and click Install. Unraid handles the Docker app or plugin setup from the published template.

Open the Apps tab on your Unraid server Search Community Apps for simstudio-app Review the template variables and paths Click Install
Explore Unraid OS

Requirements

Requires simstudio-db (PostgreSQL), simstudio-realtime (WebSocket), and simstudio-valkey (Redis) on the same Docker network (simstudio_internal). All three must be running and healthy before starting simstudio-app.

IMPORTANT: Before adding this container, you must create the Docker network 'simstudio_internal' first. Follow these steps in Unraid:

  1. Open Terminal (Go to Main, click Terminal button)
  2. Run: docker network create simstudio_internal
  3. Go to Settings > Docker
  4. Set "Enable Docker" to "No" and click Apply
  5. Set "Preserve user defined networks" to "Yes" and click Apply
  6. Set "Enable Docker" to "Yes" and click Apply
  7. The network is now ready for use with all Sim Studio containers

Categories

Development

Related apps

Explore more like this

Explore all
Development

Links

Projectsimstudio.aiSupportgithub.comRegistrygithub.comTemplateraw.githubusercontent.com

Details

Repository
ghcr.io/simstudioai/simstudio:latest
Registry
https://github.com/simstudioai/sim/pkgs/container/simstudio
Last Updated2026-08-31
First Seen2026-07-17

Runtime arguments

Web UI
http://[IP]:[PORT:3000]
Network
simstudio_internal
Shell
sh
Privileged
false
Extra Params
--health-cmd="curl -fsS http://127.0.0.1:3000" --health-interval=90s --health-retries=3 --health-start-period=10s --health-timeout=5s

Template configuration

Port: Web UIPorttcp

Sim Studio web interface and API port

Target
3000
Default
3000
Value
3000
--- Database ---Variable

PostgreSQL connection settings. Must match simstudio-db configuration.

DATABASE_URLVariable

PostgreSQL connection URL (format: postgresql://user:password@host:port/database). Must match simstudio-db.

Default
postgresql://postgres:postgres@simstudio-db:5432/simstudio
Value
postgresql://postgres:postgres@simstudio-db:5432/simstudio
--- Authentication &amp; Security ---Variable

Authentication and security configuration.

BETTER_AUTH_SECRETVariable

Authentication secret key (shared with simstudio-realtime). Must be 32+ characters. Generate: openssl rand -base64 32

BETTER_AUTH_URLVariable

Base URL for authentication (same as NEXT_PUBLIC_APP_URL)

Default
http://localhost:3000
Value
http://localhost:3000
INTERNAL_API_SECRETVariable

Secret for internal service-to-service communication (shared with simstudio-realtime). Generate: openssl rand -base64 32

ENCRYPTION_KEYVariable

Data encryption key for sensitive information. Generate: openssl rand -base64 32

API_ENCRYPTION_KEYVariable

API-specific encryption key. Generate: openssl rand -base64 32

--- Application URLs ---Variable

Public URLs and domain configuration.

NEXT_PUBLIC_APP_URLVariable

Public application URL (e.g., http://your-server-ip:3000 or https://simstudio.example.com). Used by browser clients.

Default
http://localhost:3000
Value
http://localhost:3000
TRUSTED_ORIGINSVariable

Comma-separated list of additional trusted origins for authentication (e.g., apex + www, aliases, reverse-proxy IPs). Leave empty to use only NEXT_PUBLIC_APP_URL.

--- Realtime &amp; WebSocket ---Variable

Real-time communication settings.

SOCKET_SERVER_URLVariable

Internal URL for WebSocket server (container-to-container)

Default
http://simstudio-realtime:3002
Value
http://simstudio-realtime:3002
NEXT_PUBLIC_SOCKET_URLVariable

Public WebSocket URL for browser clients. Leave empty to use page origin (requires reverse proxy to route /socket.io). Set explicitly if realtime is on different host:port (e.g., wss://socket.example.com).

--- Valkey Session Storage ---Variable

Redis/Valkey connection for session persistence.

REDIS_URLVariable

Valkey connection URL (format: redis://host:port/db)

Default
redis://simstudio-valkey:6379/1
Value
redis://simstudio-valkey:6379/1
--- External APIs ---Variable

Third-party API integrations.

COPILOT_API_KEYVariable

GitHub Copilot API key for AI features

SIM_AGENT_API_URLVariable

URL for Sim Agent API (e.g., http://agent-service:port)

OLLAMA_URLVariable

Ollama API endpoint for local LLM inference (optional)

Default
http://localhost:11434
Value
http://localhost:11434
--- Performance ---Variable

Performance tuning and resource limits.

ADMISSION_GATE_MAX_INFLIGHTVariable

Maximum number of concurrent inflight requests to the admission gate

Default
500
Value
500
--- System ---Variable

Node.js and timezone configuration.

NODE_ENVVariable

Node.js environment (production/development)

Default
production
Value
production
Variable: TZVariable

Timezone. See: https://en.wikipedia.org/wiki/List_of_tz_database_time_zones#List

Target
TZ
Default
Europe/Berlin
Value
Europe/Berlin
--- Advanced ---Variable

Advanced settings and debugging options.

LOG_LEVELVariable

Log verbosity: error, warn, info, debug

Default
info
Value
info
