Your RCT Power inverter is just one REST call away.
What is RCT Manager?
Do you have an RCT inverter and want to do more than the manufacturer’s app allows? RCT Manager connects to one or more inverters via TCP, providing access to readings and controls via a REST API. This means you can build your own integrations without having to work directly with the proprietary RCT protocol.
Built independently from the ground up, it combines the API, monitoring, data export and an administration interface in a single service. No vendor app is required.
✨ Features
| Category | Highlights |
|---|---|
| REST API | Read values from the full protocol catalogue and control approved functions programmatically with JSON responses and standard error messages. |
| Your own analytics | Use the Prometheus /metrics endpoint or export data to your own InfluxDB 2 or QuestDB for Grafana, Telegraf, and custom analysis. |
| Dynamic electricity tariffs | Use the API to automate your own tariff and charge the battery from the grid or discharge it to supply your home, setting a target state of charge, power limit and duration. |

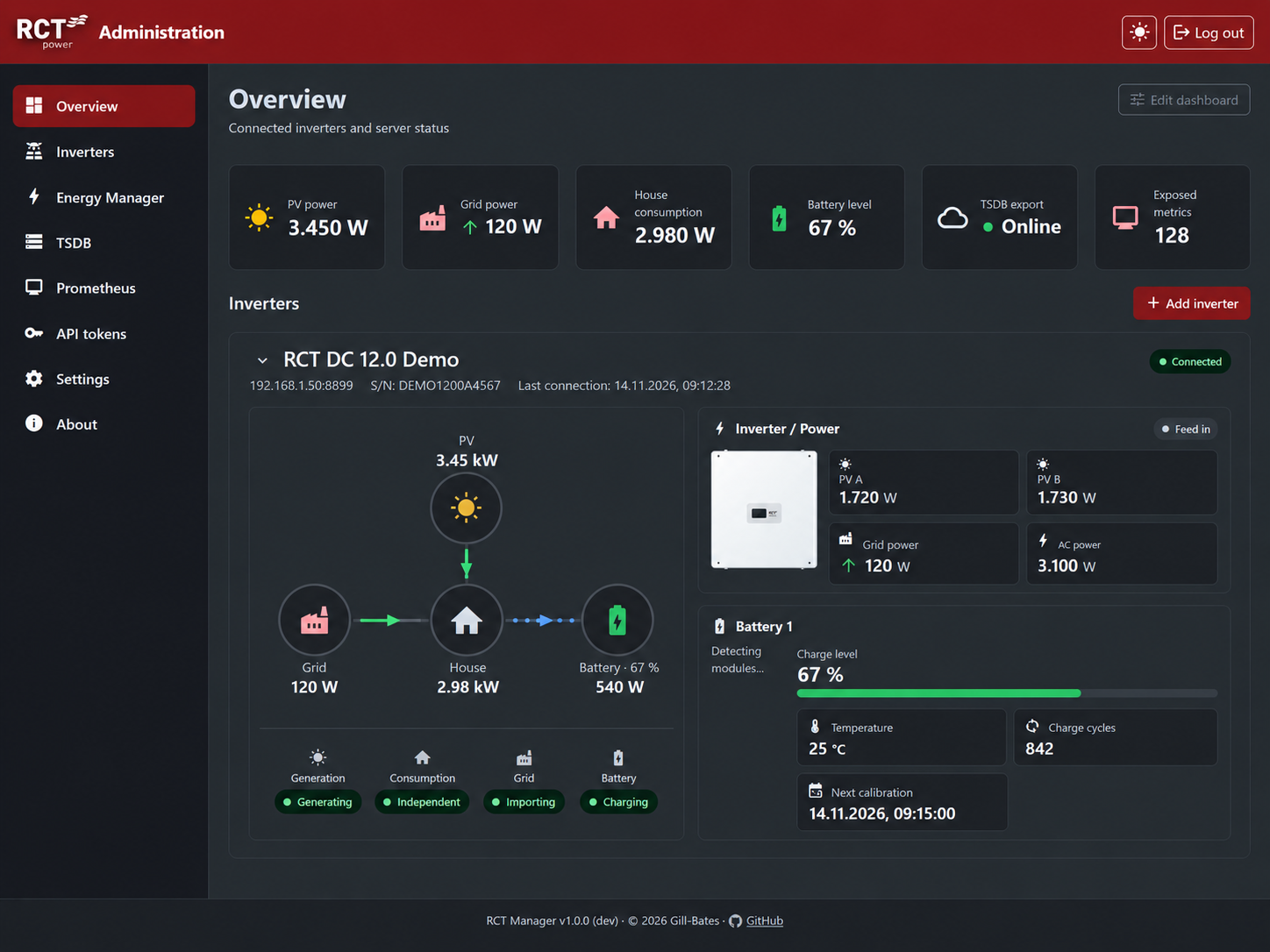

| Administration GUI | Manage the overview, inverters, Energy Manager, TSDB, Prometheus, API tokens and settings all in one place. |
| Guarded controls | Writes are disabled by default and checked after execution; access is protected by tokens and separate admin sessions. |
| Multiple devices | Connect several inverters to one API. Requests to each endpoint are coordinated to avoid conflicts at the device level. |
| Hardened container | The container uses a read-only root file system, drops capabilities for the server process and runs it as a non-root user. It also includes a health check. |
🚀 Quick start
cp settings.env.example settings.env # set HMAC_SECRET (openssl rand -base64 32) for Docker
docker compose -f docker/compose.yaml up -d
Without Docker, use Python 3.13+:
python -m pip install -e '.[dev]'
python -m app validate
python -m app
Open http://127.0.0.1:8000/. The one-time admin password appears in a
FIRST START - admin login block on first startup and is also saved to
data/initial-admin-password. You must change this password when you first log
in.
Settings are stored in data/rct.db, encrypted and authenticated with
HMAC_SECRET from settings.env (generated on a local start, required for
Docker). Back up the database and the secret together. See
Configuration.
Documentation: https://gill-bates.github.io/rct-manager/.
Container details are in docker/README_docker.md.
If RCT Manager works well for you, please leave a star on GitHub. If something is missing or does not work as expected, open an issue.
[!IMPORTANT] Disclaimer: This is an independent open-source project. It is not affiliated with, endorsed by or connected to RCT Power GmbH, Line-Eid-Str. 1, D-78467 Konstanz. "RCT Power" and related names are trademarks of their respective owners and are used only to describe compatibility.
License
Released under the MIT License. Third-party components retain their respective licenses.
Categories
Download Statistics
Related apps
Explore more like this
Explore allDetails
giiibates/rct-manager:latestRuntime arguments
- Web UI
http://[IP]:[PORT:8000]- Network
bridge- Shell
bash- Privileged
- false
- Extra Params
--restart unless-stopped --security-opt=no-new-privileges:true --cap-drop=ALL --cap-add=CHOWN --cap-add=SETUID --cap-add=SETGID --read-only --tmpfs /tmp:rw,noexec,nosuid,nodev,size=1m,mode=1777
Template configuration
REQUIRED: Encrypts the administration database (data/rct.db). Generate with: openssl rand -base64 32. Changing it afterwards makes the database unreadable - back it up together with the data volume.
- Target
- HMAC_SECRET
Listen address inside the container. Leave at 0.0.0.0 so the published port reaches the service; a loopback value makes the container unreachable through the port mapping.
- Target
- BIND_ADDRESS
- Default
- 0.0.0.0
- Value
- 0.0.0.0
Listen port inside the container. Must match the container port in the WebUI/Port mapping below.
- Target
- BIND_PORT
- Default
- 8000
- Value
- 8000
Explicit consent for a non-loopback listener inside the container. Does not provide TLS; terminate TLS at a reverse proxy and enable 'behind reverse proxy' on the admin Settings page.
- Target
- ALLOW_NON_LOOPBACK_BIND
- Default
- true|false
- Value
- true
true: serve /docs and /openapi.json without a token. false: both return 404 on every bind address.
- Target
- DOCS_PUBLIC
- Default
- false|true
- Value
- false
Verbosity of the container logs.
- Target
- LOG_LEVEL
- Default
- INFO|DEBUG|WARNING|ERROR
- Value
- INFO
rct-manager Web UI/API port (container listens on 8000, mapped to host port 8000 by default).
- Target
- 8000
- Default
- 8000
Encrypted administration database (devices, API tokens, settings), dispatch state and the one-time admin password fallback. Back up together with HMAC_SECRET.
- Target
- /app/data
- Default
- /mnt/user/appdata/rct-manager/data
