Pinebridge

TradingView alerts to MetaTrader 5, self-hosted.

Tired of paying a monthly fee just to get your TradingView alerts into MetaTrader 5? Or renting a VPS only so MT5 stays online around the clock? If you have an Unraid server, you already own the hardware for both. Pinebridge receives your TradingView strategy alerts and places the trades in MT5, which runs in a Windows container on your own server. No signal-relay subscription, no VPS bill, and your broker login stays on your own server instead of with a third-party service.

This executes real trades on a real or demo account with no human in the loop. Read the risk notice before using this with a live account, and test on a demo account first.

How it works

TradingView alert -> Cloudflare Tunnel -> pinebridge-bridge (Flask) -> ZeroMQ -> MT5 EA -> your broker

Three containers:

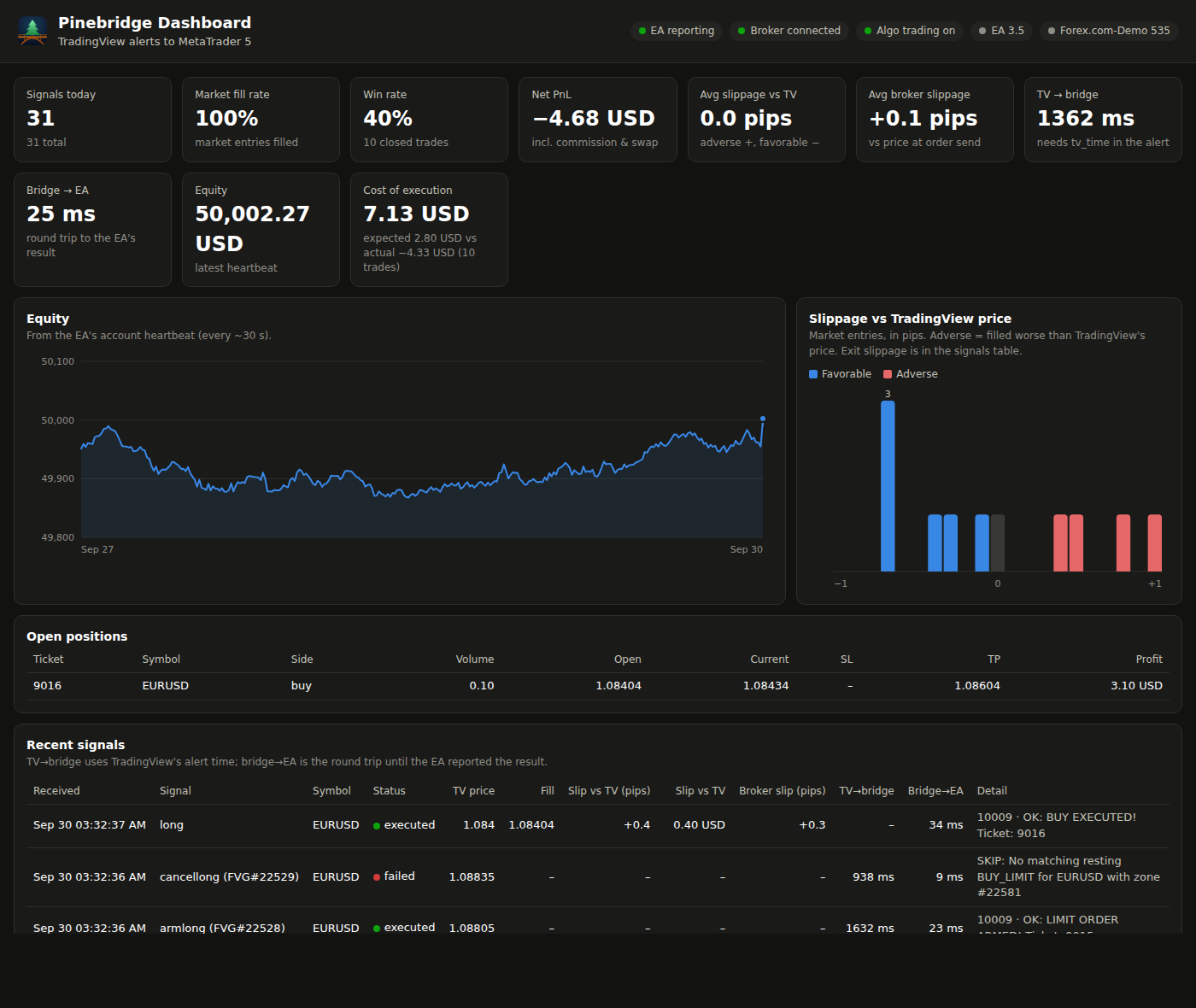

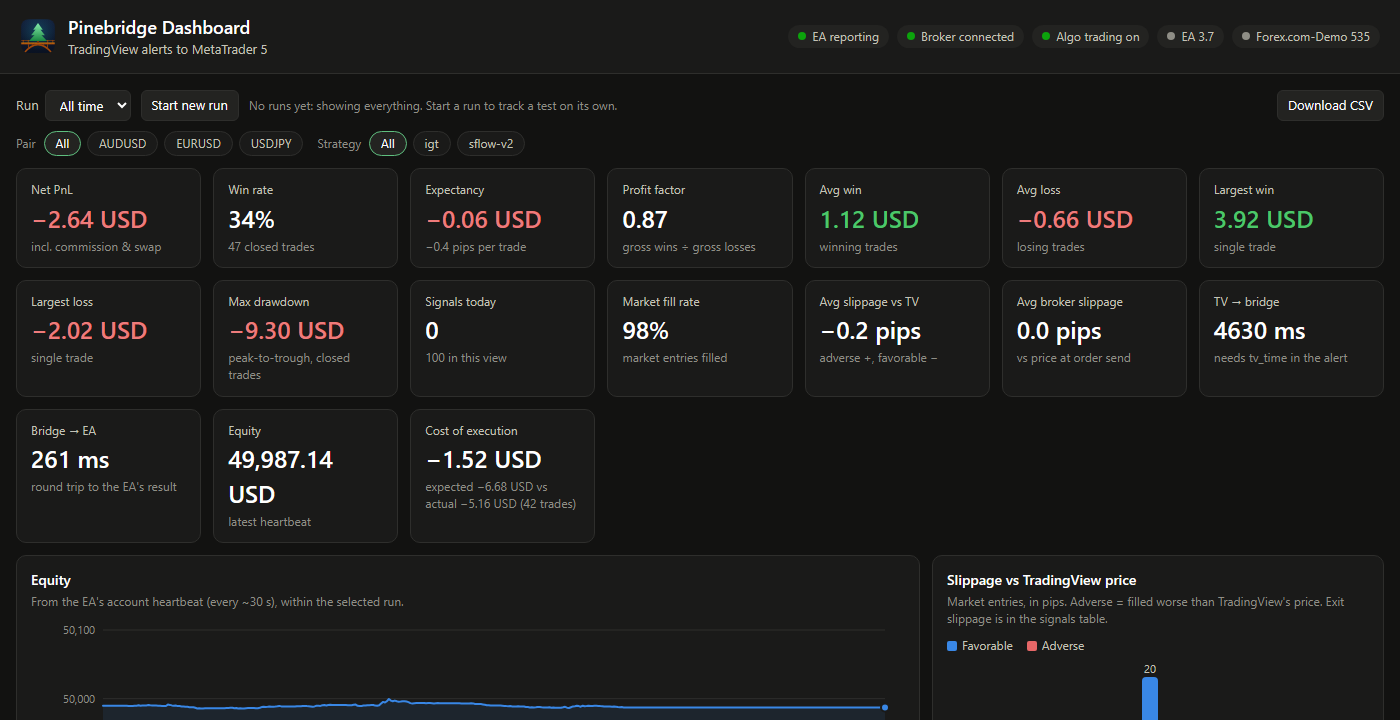

The Pinebridge Dashboard (port 8081, LAN only) shows every signal and fill, slippage against TradingView's price, latency, win rate, PnL and equity. See docs/dashboard.md.

See docs/architecture.md for the full data-flow diagram and the reasoning behind each piece.

Quick start (Docker Compose)

1. cp .env.example .env and fill in the values (see comments in the file).
2. Set up a Cloudflare Tunnel per docs/cloudflare-tunnel-setup.md and put the token in .env.
3. docker compose up -d

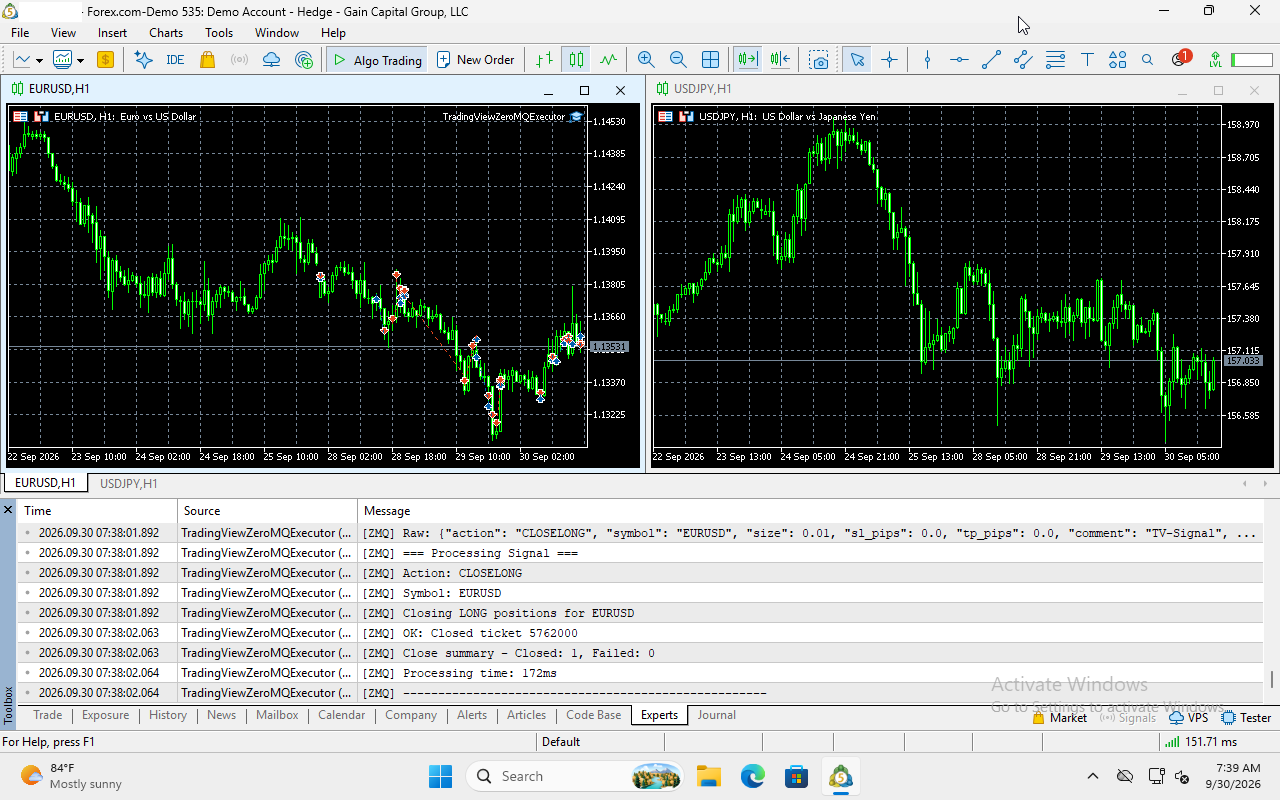

4. Watch pinebridge-mt5 provision itself at http://<host>:8006 (noVNC) — see docs/mt5-ea-setup.md for what's automated and how to verify it worked.

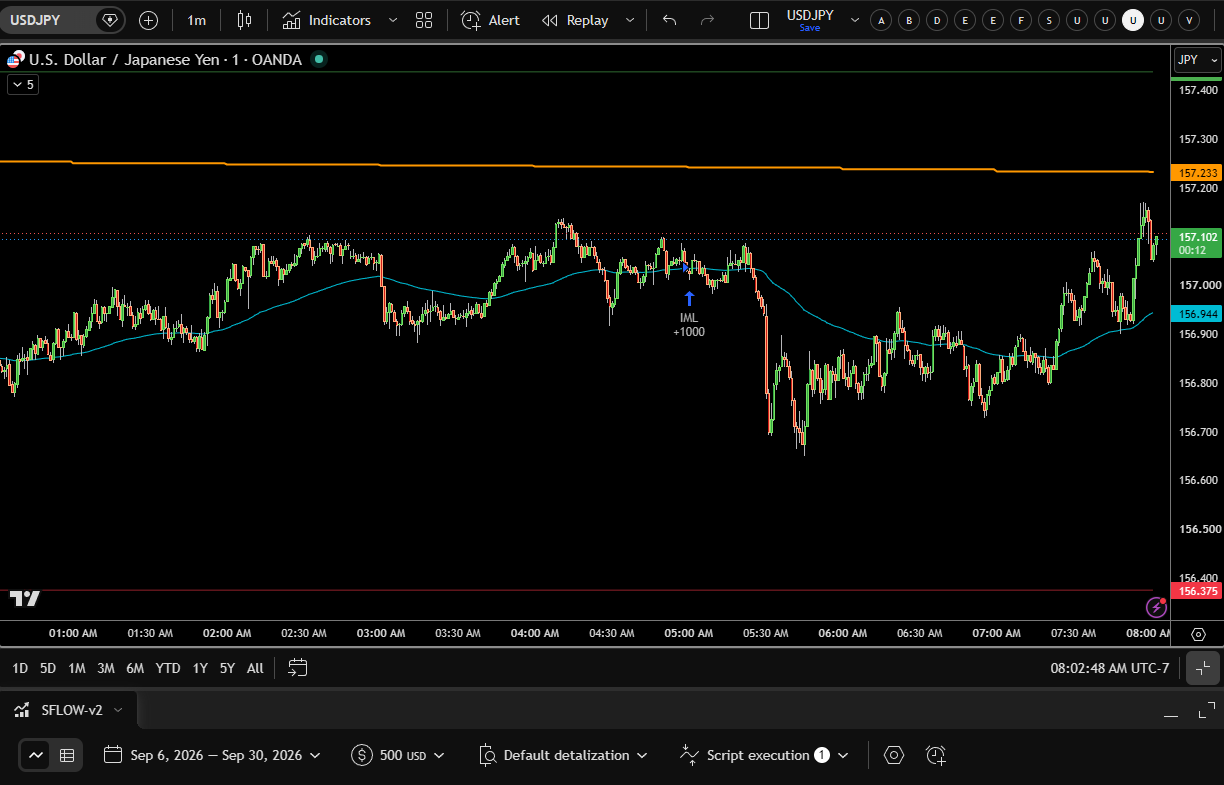

5. Point a TradingView alert at your tunnel's /webhook URL using the format in docs/tradingview-alert-format.md.

Quick start (Unraid)

See docs/unraid-install.md: add the templates with one terminal command, then install the containers from Docker > Add Container. Coming from the old tv-mt5-bridge names? See Moving from tv-mt5-bridge.

Support

Questions and help: the Unraid forum support thread. Bugs and feature requests: GitHub issues.

Security

• The webhook requires a shared secret (WEBHOOK_SECRET), sent either in the webhook URL (/webhook?secret=...) or as a secret= field in the alert body — TradingView can't send custom headers, so this is the auth mechanism. Use the URL form for strategies that send messages from Pine alert() calls. Don't disable this for anything reachable from the internet.
• Public exposure goes through a Cloudflare Tunnel, not a forwarded port.
• No broker or Windows credentials are ever baked into the images — they're supplied via .env / Unraid template fields at runtime.

Repo layout

• signal-bridge/ — source of the pinebridge-bridge image (Flask + ZeroMQ webhook receiver)
• mt5-windows/ — source of the pinebridge-mt5 image, built on dockur/windows; oem/ holds the provisioning scripts + EA source baked into it
• unraid-templates/ — Unraid container templates (the ones listed in Community Applications)
• extras/ — the optional pinebridge-tunnel template (.template, not .xml, so the CA scanner does not list it: CA already lists cloudflared)
• docs/ — setup guides for each piece

Status

Tested on real Unraid hardware with a Forex.com demo account:

• Install: a fresh first boot installs MT5, compiles the EA and attaches it.
• Live alerts end to end: market entries and exits, resting limit orders (arm/cancel), double-down adds and SL/TP moves, all from live TradingView alerts through a Cloudflare Tunnel.
• Failure handling: close retries after a broker disconnect, and FIFO-compliant closing on a US account.

See docs/mt5-ea-setup.md for what was found along the way. Issues and PRs welcome.

Support the project

If Pinebridge saves you a VPS or a signal subscription, consider buying me a coffee.

License

MIT. Please also read the automated trading risk notice.
