MKV Orchestrator

A focused media operations console for organizing, inspecting, and preparing MKV and MP4 libraries.

About · Screenshots · Get started · Issues

About

MKV Orchestrator (MKVO) brings everyday media-library maintenance into one desktop and container-ready interface. Scan folders, inspect tracks, preview safe renames, plan mux/remux operations, and edit MKV properties without jumping between disconnected tools.

The application combines a Rust core with a React interface hosted by Tauri for desktop use and by Docker for server or NAS-style access. Both modes share the same workflows and processing logic; only their access boundaries differ.

What MKVO Does

• Scans folders for MKV and MP4 files.
• Displays file, video, audio, and subtitle track details.
• Compares files against a selected template file.
• Looks up TV or movie metadata from TVDB or TMDB for rename previews.
• Supports rename templates for TV episodes and movies.
• Records rename batches so recent rename operations can be reviewed and undone.
• Plans MKV mux/remux operations with MKVToolNix.
• Muxes matching external subtitle sidecars into MKV files.
• Converts MP4 files to MKV with a lossless container copy (no re-encoding), with optional cleanup of the original MP4.
• Edits MKV container title, track names, languages, default flags, and forced flags.
• Builds and manages a local metadata cache for watch folders.
• Discovers library paths from Emby, Jellyfin, or Plex servers with per-library enablement and path mapping.
• Supports user-editable GUI themes.

Screenshots

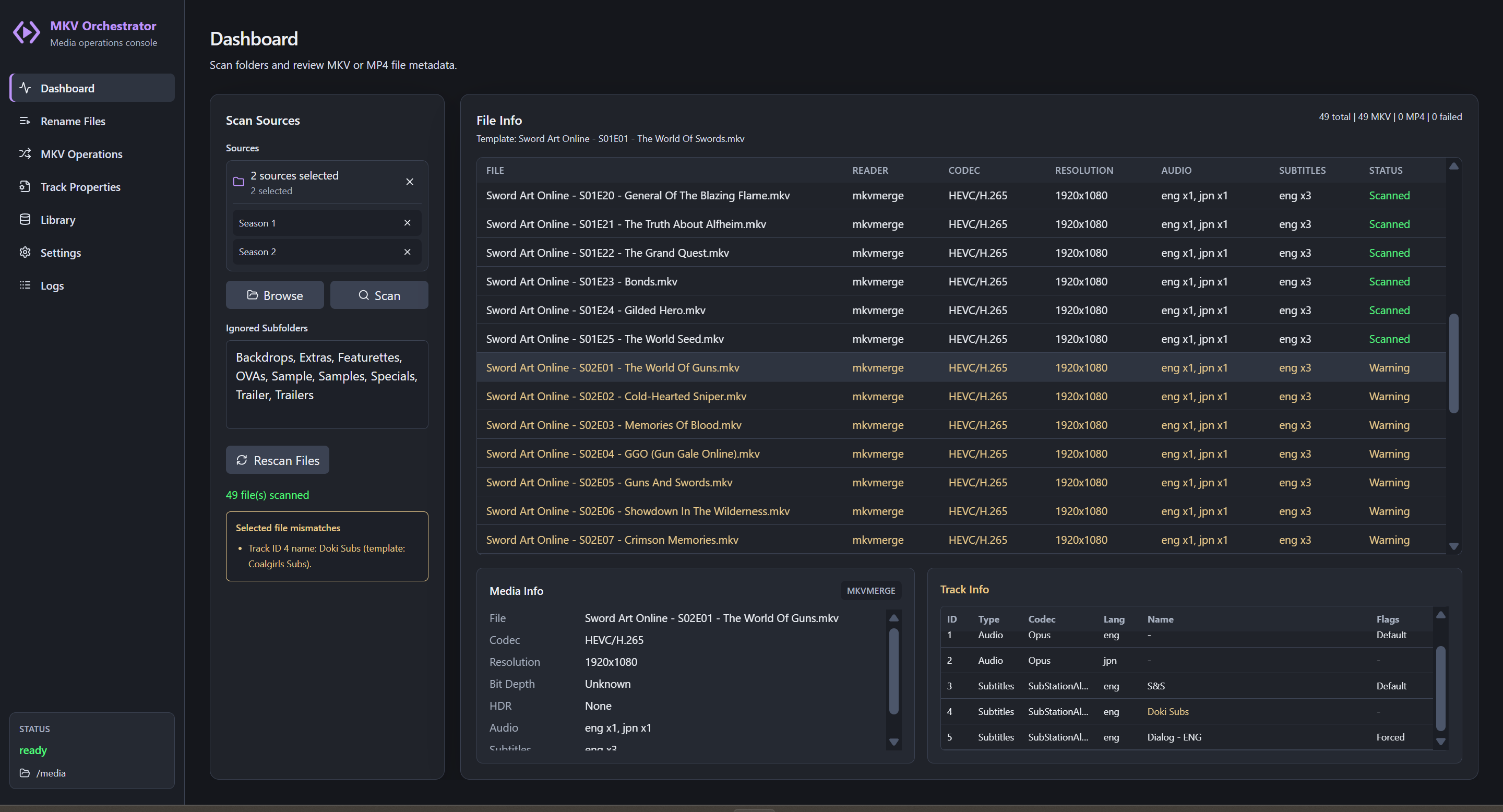

Dashboard

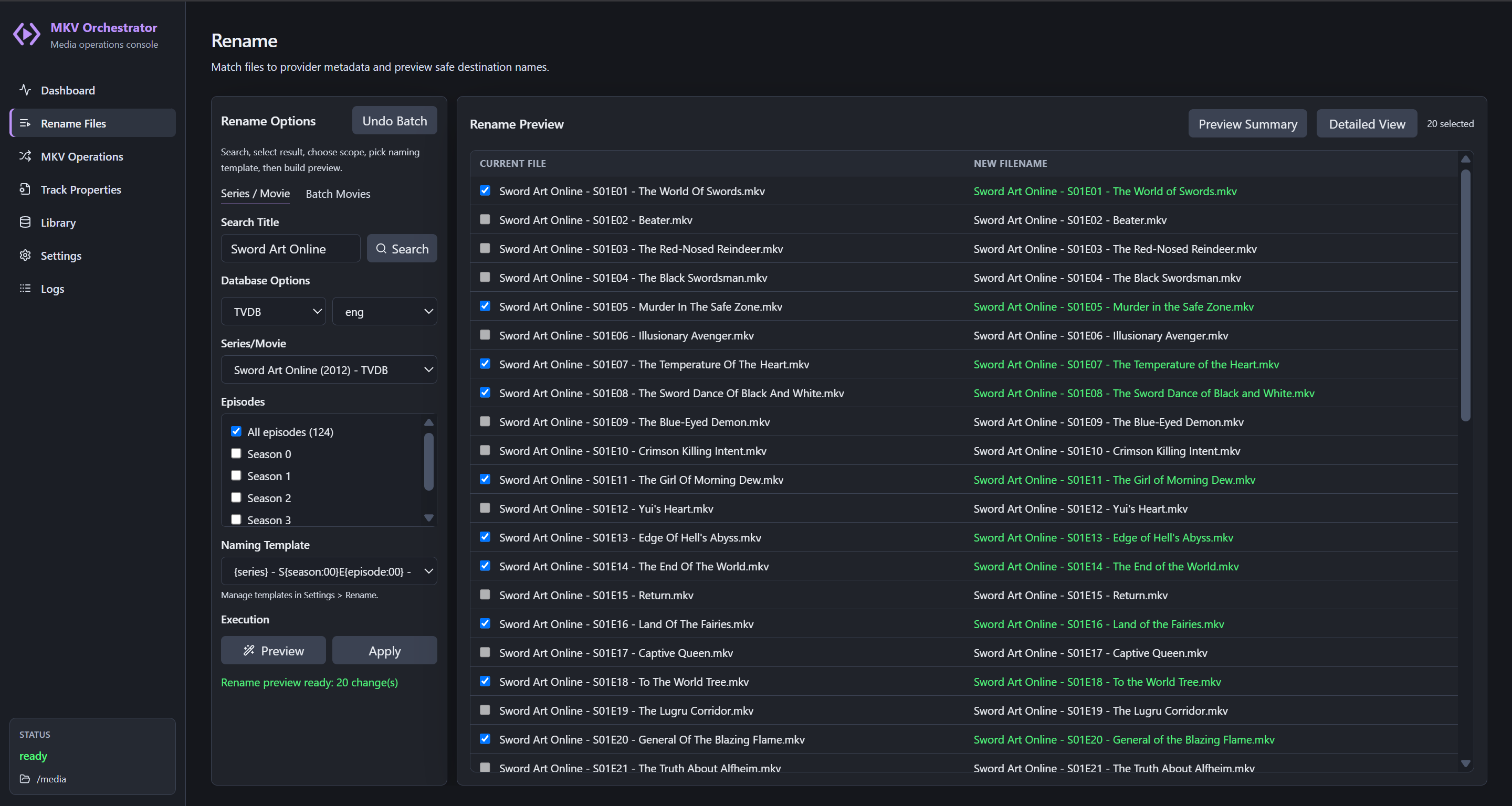

Rename Files

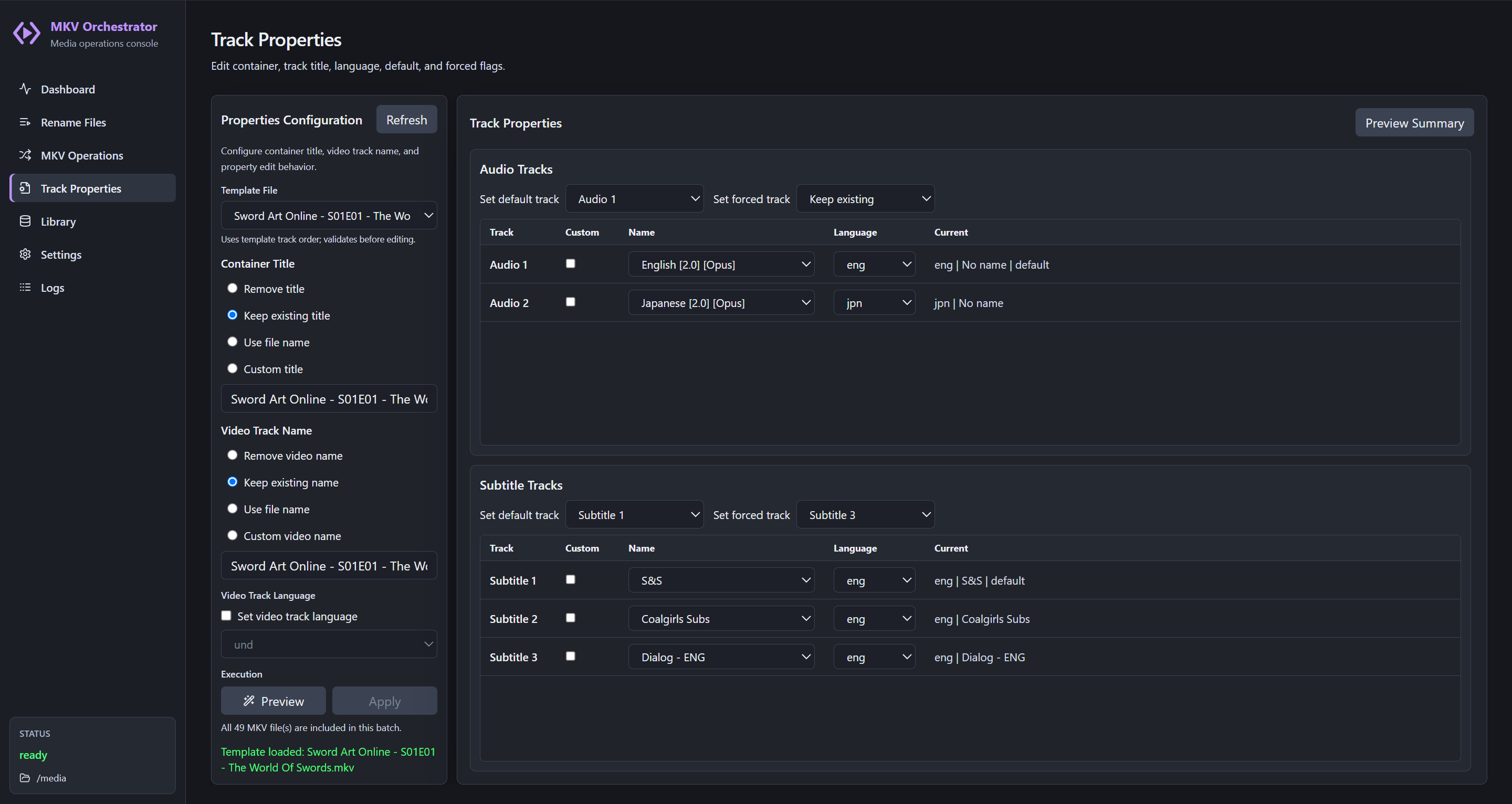

Track Properties

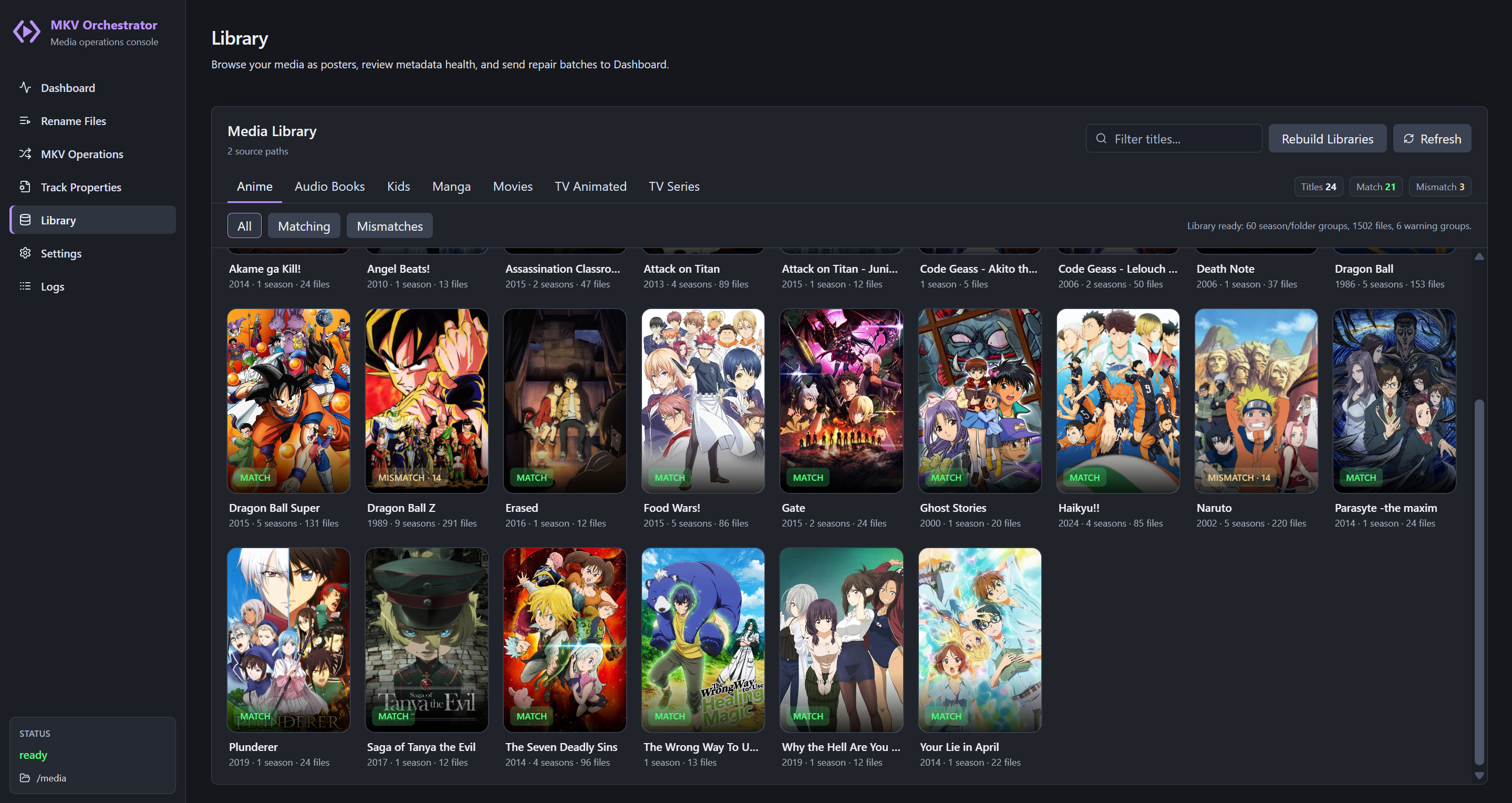

Library

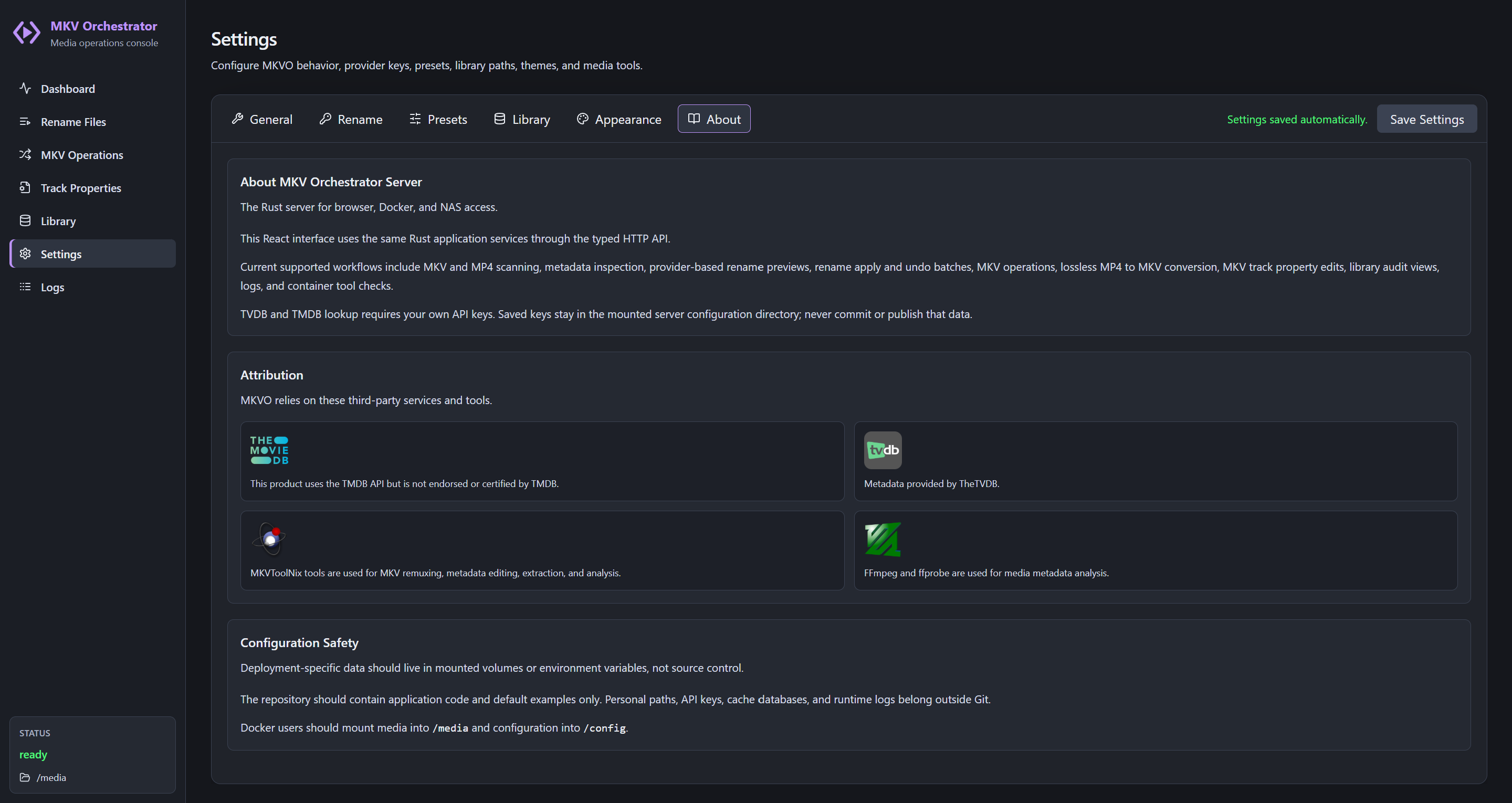

Settings

Screenshots live in docs/screenshots/; see that folder's README for naming conventions when adding new captures.

Requirements

Required For Running From Source

• Windows desktop environment. Linux and macOS build from the same sources.
• Rust 1.88 or newer.
• Node.js 22 or newer.
• Git, if you are cloning from GitHub.

Required Media Tools

Install these separately. MKVO does not bundle them.

MKVToolNix

MKVToolNix is required for MKV analysis, remuxing, extraction, and metadata editing.

MKVO expects access to these executables:

• mkvmerge
• mkvpropedit
• mkvextract
• mkvinfo

On Windows, install MKVToolNix from:

https://mkvtoolnix.download/

Then configure the install folder in:

Settings > General > MKVToolNix Paths

Use the folder that contains the tools, for example:

C:\Program Files\MKVToolNix

You can also use Auto Find if MKVToolNix is installed in a common location or available on PATH.

FFmpeg And ffprobe

FFmpeg and ffprobe are used for additional media inspection and MP4 readability support.

MKVO expects access to:

• ffmpeg
• ffprobe

Install FFmpeg from:

https://ffmpeg.org/

Then configure the FFmpeg bin folder in:

Settings > General > FFmpeg Directory

Example:

C:\ffmpeg\bin

You can also use Auto Find if FFmpeg is installed in a common location or available on PATH.

Metadata Provider API Keys

MKVO does not ship shared TVDB or TMDB production API keys.

Each user must provide their own API credentials for rename metadata lookup.

Configure provider credentials in:

Settings > API Providers

Supported providers:

• TVDB
• TMDB

TVDB is used for TV and movie metadata lookup through TheTVDB.

TMDB is used for TV and movie metadata lookup through The Movie Database.

The app masks key fields, stores keys locally in the user settings file, and does not write API keys to logs.

Provider setup links are shown inside the app under Settings.

First-Run Setup

1. Install MKVToolNix.
2. Install FFmpeg.
3. Open MKVO.
4. Go to Settings > General.
5. Set the MKVToolNix folder or click Auto Find.
6. Set the FFmpeg folder or click Auto Find.
7. Go to Settings > API Providers.
8. Enter your own TVDB and/or TMDB API key.
9. Click Test Selected Provider to confirm lookup access.
10. Go to Dashboard and scan one or more folders.

Rename Workflow

1. Scan files from the Dashboard.
2. Go to Rename Files.
3. Search for the show or movie title.
4. Select the correct TVDB or TMDB result.
5. Confirm the episode scope or movie mode.
6. Choose a naming template.
7. Click Preview.
8. Review the Rename Preview table and Preview Summary.
9. Click Apply only when the preview is correct.

Rename batches are recorded locally. Use Undo Batch in Rename Options to review recent rename jobs and restore files when possible.

Subtitle Mux Filename Format

External subtitle sidecars should be placed in the same folder as the matching MKV file.

Expected format:

base_name.language.tag.ext

Example:

Episode 01.mkv
Episode 01.eng.Dialogue.ass
Episode 01.eng.Signs & Songs.ass
Episode 01.jpn.Dialogue.ass

The language token is read from the filename. The tag token becomes the subtitle track name.

Local Data And Privacy

MKVO stores user settings, local metadata cache files, and rename history locally on the machine.

Do not commit or publish local runtime files such as:

• API keys
• settings.json
• metadata_cache*.db
• local logs
• local publish output

The repository .gitignore excludes the common local runtime files.

Build From Source

Build the workspace:

cargo build --workspace

Run the desktop app with hot reload. This starts the Vite dev server and the desktop host together, and must be run from the repository root -- that is where the Tauri CLI finds apps/desktop/src-tauri/tauri.conf.json:

.\web\node_modules\.bin\tauri.cmd dev

Run the tests:

cargo test --workspace

npm --prefix web test

Command Line

The mkvo binary drives the same runtime as the app, against whichever configuration directory it is pointed at.

cargo run --package mkvo-cli -- scan "D:\Media\Show"

mkvo scan <folder>    [--json] [--ignore Extras,Backdrops] [--force-refresh]
mkvo inspect <folder> [--ignore ...]                       # scan --json
mkvo cleanup <folder> [--apply] [--keep-container-title] [--keep-video-title]
                      [--remove-audio-titles] [--remove-subtitle-titles]
                      [--set-audio-language eng] [--set-subtitle-language eng]
mkvo rename <folder>  [--query "Series"] [--provider AniList] [--pick 2]
                      [--list-matches] [--template "..."] [--apply]

cleanup and rename only print a plan until you pass --apply.

Exit codes: 0 success, 1 error, 2 ran fine but found nothing to do, 130 canceled. The 2 is what lets a script skip a follow-up step.

Settings come from --config, then MKVO_CONFIG_DIR, then the OS configuration directory (mkv-orchestrator).

That is not the desktop app's store. The desktop keeps its configuration under its Tauri identifier (com.mkvorchestrator.desktop) and its provider keys in the OS credential store, while the CLI uses a protected file. Point both at one directory with --config if you want a shared cache; the secrets still differ, so provider keys have to be configured for each.

What is not shared is the working set: the list of files a running app has on screen is that process's own state, so mkvo scan will not populate the dashboard of a server or desktop that is already running. The cache it writes does make that app's next scan faster.

Renaming goes through a provider lookup, so it needs something to search for; without --query the folder name is used. AniList needs no credentials, the others need keys configured in Settings.

The container carries the same binary:

docker exec mkvo mkvo scan /media --json

Docker Web Container

The Docker build runs as one container. It serves the React web UI and the Rust API from the same process and installs MKVToolNix plus FFmpeg inside the image.

Build and run:

docker compose up --build

Open:

http://localhost:8886

Default local volume mounts:

./tmp/docker-media     -> /media
./tmp/docker-downloads -> /downloads
./tmp/docker-config    -> /config

The web app browses container paths. With the default compose file, /media and /downloads are local bind mounts under ./tmp.

For a NAS or SMB share, copy .env.example to .env, edit the share paths and CIFS options, then run:

docker compose -f docker-compose.yml -f docker-compose.nas.example.yml up --build

Keep .env local. Do not commit API keys, SMB usernames, SMB passwords, or server-specific paths.

Optional container settings (see docs/DOCKER_WEB_CONTAINER.md for the full list):

• PUID / PGID / UMASK run the app as a specific user so files written to shares are not root-owned.
• MKVO_AUTH_MODE selects disabled (trusted LAN), basic, or the secure auto server default.
• MKVO_AUTH_USERNAME / MKVO_AUTH_PASSWORD are required together in basic mode.
• MKVO_SCAN_WORKERS and MKVO_EDIT_WORKERS tune scan and mkvpropedit concurrency.

The container wires Dashboard, Rename, Mux / Remux, Track Properties, Library, Settings, and Logs through the single Rust host, from the same React sources the desktop app embeds.

Publish desktop installers:

.\scripts\publish-windows.ps1

Bundles are written to target/release/bundle. The Linux equivalent is scripts/publish-linux.sh.

Documentation

Additional notes are available in:

• docs/API_PROVIDER_KEYS.md
• docs/ATTRIBUTION_AND_LOGOS.md
• docs/DOCKER_WEB_CONTAINER.md
• docs/VERSIONING_AND_MIGRATIONS.md

Attribution

MKVO uses external tools and metadata providers selected or configured by the user.

• MKVToolNix is used for MKV analysis, remuxing, extraction, and metadata editing.
• FFmpeg and ffprobe are used for media metadata inspection.
• This product uses the TMDB API but is not endorsed or certified by TMDB.
• Metadata may be provided by TheTVDB.

MKVO invokes MKVToolNix and FFmpeg as external tools and does not bundle or link their code in this repository. Those projects are distributed under their own licenses.

License

MKV Orchestrator is released under the MIT License.
