A complete, plug-and-play Docker image for running your own Matrix homeserver on Unraid. No manual config file editing, no SSH access to the container required — just enter your domain and database credentials and the container handles the rest.

⚠️ Before You Start — Two Things You Must Do

The container itself is plug-and-play, but two things outside the container must be set up correctly or Synapse will not work:

1. Create the PostgreSQL database with the right locale (UTF8 + C collation). In your Postgres container console (psql -U postgres):

CREATE USER admin WITH PASSWORD 'yoursecretpassword';
CREATE DATABASE matrix
    ENCODING 'UTF8' LC_COLLATE='C' LC_CTYPE='C'
    TEMPLATE template0 OWNER admin;

Any other locale and Synapse refuses to start. Full details in section 4.

2. Add NPM Advanced config to your matrix.yourdomain.tld proxy host. NPM → your proxy host → Edit → Advanced tab → paste this complete block into Custom Nginx Configuration:

# Matrix media uploads can be large
client_max_body_size 100M;

# Long-polling sync needs generous timeouts
proxy_read_timeout 600s;
proxy_send_timeout 600s;

# Forward real client IP (matches x_forwarded: true in homeserver.yaml)
proxy_set_header X-Forwarded-For $remote_addr;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header Host $host;

# WebSocket / HTTP-1.1 upgrade for /_matrix/client/*/sync
proxy_http_version 1.1;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection "upgrade";

Without these, media uploads fail and Sync requests time out. Details and the federation well-known snippet are in section 5 and section 6.

Table of Contents

1. What Is This?
2. Screenshots
3. Quick Start on Unraid
4. Setting Up PostgreSQL
5. NPM Configuration (Nginx Proxy Manager)
6. Enabling Federation
7. Monitoring (Prometheus)
8. Adding Bridges
9. Creating the First Admin User
10. Generating Registration Tokens
11. Updates
12. Troubleshooting
13. Contributing / License
14. Support this project

1. What Is This?

This image is a wrapper around the official Synapse image from Element (ghcr.io/element-hq/synapse). It extends bare Synapse with all the components needed for a fully functional Matrix homeserver:

Why a wrapper instead of building from scratch? The official Synapse image receives security patches immediately and is tested against every new Synapse release. We build on top of it rather than alongside it — meaning: always up to date, without maintaining our own Synapse build pipeline. The GitHub Actions workflow checks for new Synapse releases every hour and rebuilds the image automatically.

PostgreSQL is external — this image does not include its own database. Synapse requires PostgreSQL with specific locale settings (see section 3), and keeping it external gives you full control over backups, connections, and performance.

2. Screenshots

Element is the recommended web client for Synapse (separate Unraid template, e.g. LSIO's element-web).

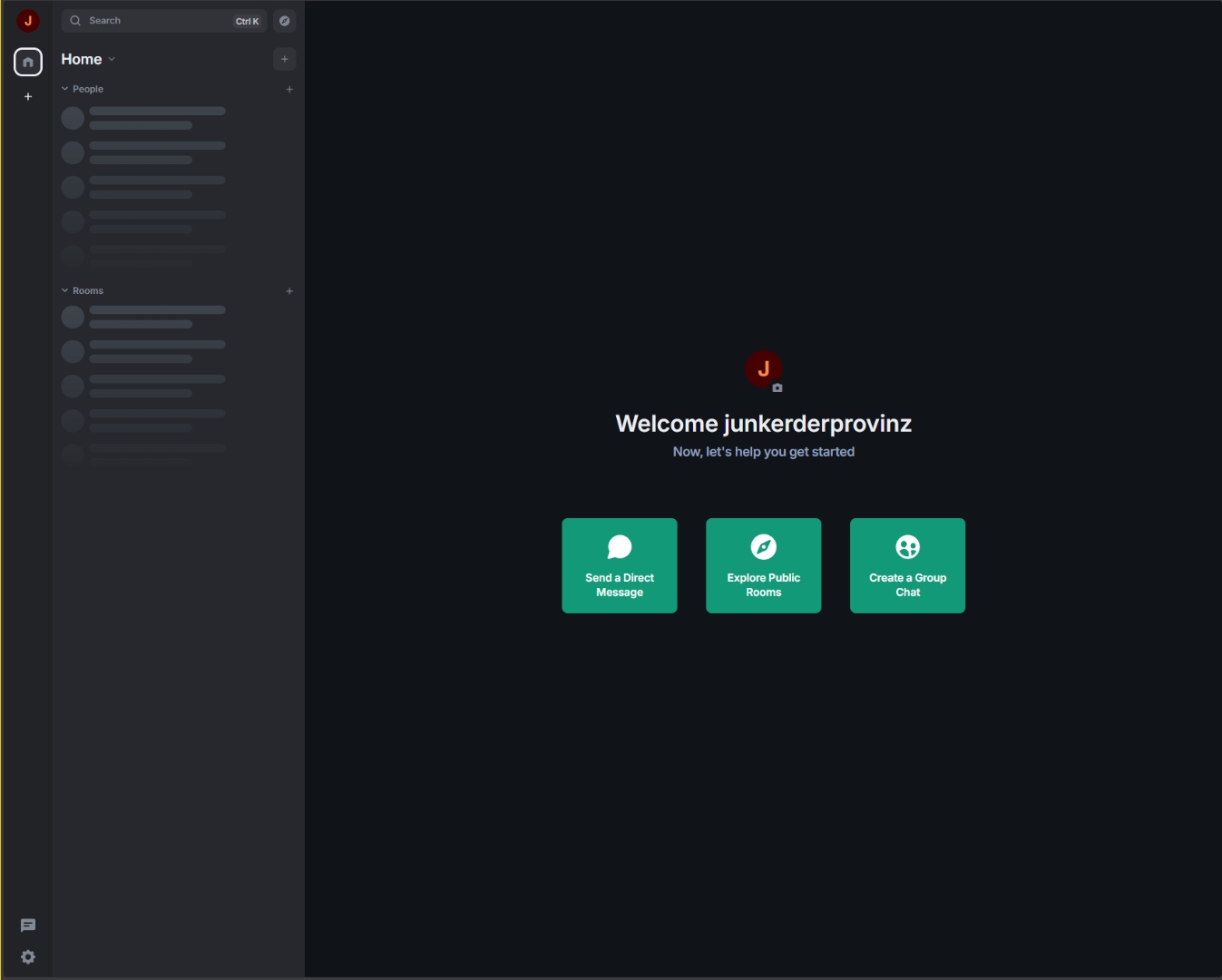

First login — Element home view served by your own Synapse homeserver.

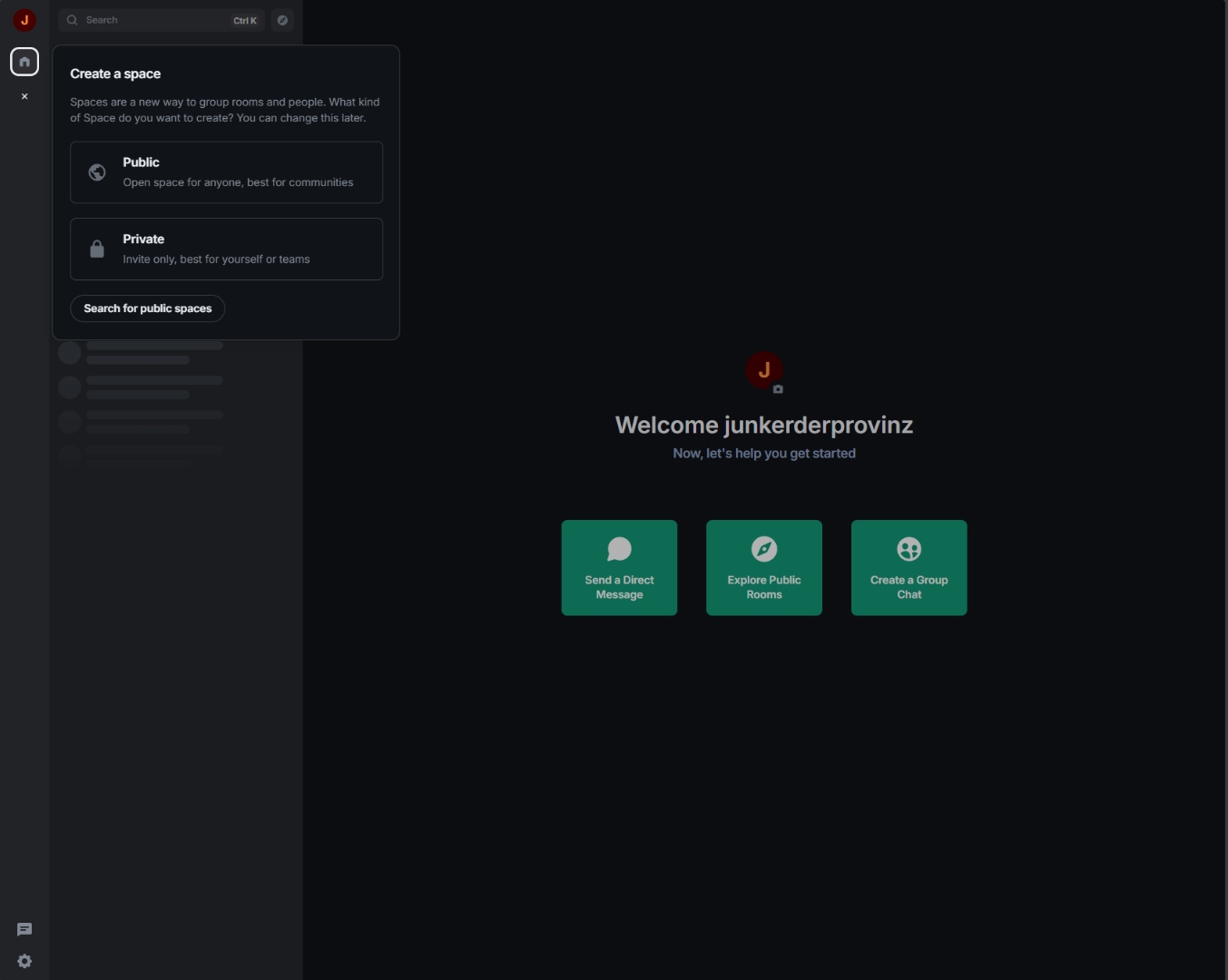

Public vs. private Spaces — group rooms and people by topic or team.

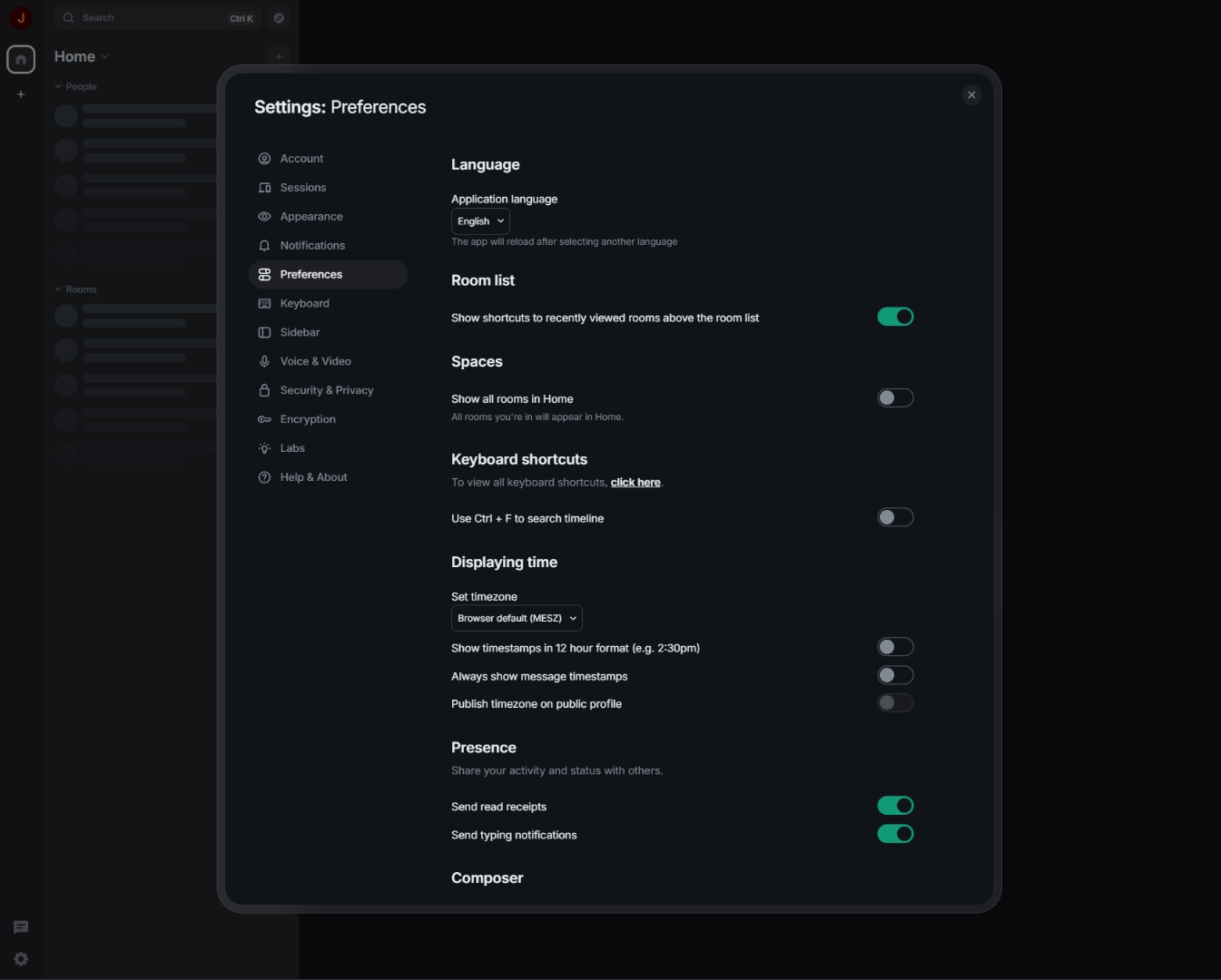

Preferences — application language, room list, Spaces, time format, presence.

3. Quick Start on Unraid

Step 1 — Create the PostgreSQL database

Before installing the Matrix template, the database must be ready (UTF8 + LC_COLLATE='C'). See section 4 for the exact SQL — Synapse will not start without it.

Step 2 — Install the template

Option A: Community Applications (recommended)

1. In Unraid, open: Apps → Community Applications
2. Search for Matrix All-in-One
3. Click Install

Option B: Manual template URL

1. Unraid → Docker → Add Container
2. Click Template URLs in the top right
3. Paste the following URL:

   https://raw.githubusercontent.com/junkerderprovinz/unraid-apps/main/matrix/matrix.xml


4. Click Save, then select Matrix from the template list

Step 3 — Fill in the required fields

In the template form, you must configure the following fields:

Important: SERVER_NAME is the foundation of your Matrix identity. All user IDs take the form @username:SERVER_NAME. This setting cannot be changed after the first run without dropping the entire database.

Step 4 — Start the container and check the logs

1. Click Apply → the container starts
2. In Unraid, open: Docker → Matrix → Logs
3. You should see: [init] INFO: Container initialization complete. Starting services ...
4. After approximately 30–60 seconds, Synapse is ready

Step 5 — Configure NPM

Follow section 5 to make Synapse accessible over HTTPS. Don't forget the Advanced tab — client_max_body_size 100M; and proxy_read_timeout 600s; are required for media uploads and Sync to work.

4. Setting Up PostgreSQL

Synapse has strict requirements for the PostgreSQL database:

• Encoding: UTF8
• LC_COLLATE: C
• LC_CTYPE: C

Without these exact settings, Synapse will refuse to start with an error such as database encoding is not UTF8 or collation mismatch.

Connecting to the PostgreSQL console

In Unraid via Docker terminal:

1. Open Docker → PostgreSQL15 → Console
2. Enter:

psql -U postgres

Creating the user and database

The SQL below uses admin as the database user and matrix as the database name — these are the template defaults documented here. You are free to choose different names; just make sure the POSTGRES_USER and POSTGRES_DB fields in the Unraid template match whatever values you actually create.

-- Create the Synapse database user
-- (you may use any username; 'admin' is the template default)
CREATE USER admin WITH PASSWORD 'yoursecretpassword';

-- Create the database with the locale settings required by Synapse
-- IMPORTANT: use template0, not template1 — only template0 allows
--            overriding LC_COLLATE and LC_CTYPE
CREATE DATABASE matrix
    ENCODING 'UTF8'
    LC_COLLATE='C'
    LC_CTYPE='C'
    TEMPLATE template0
    OWNER admin;

-- Grant permissions
GRANT ALL PRIVILEGES ON DATABASE matrix TO admin;

-- Test the connection
\c matrix admin
-- If no error appears: everything is correct
\q

Why IP instead of container name?

By default, Unraid runs all containers on the standard bridge network. On this network, container name resolution does not work — Docker only resolves container names to IPs when both containers are on the same custom Docker network.

Using your Unraid host IP + the published PostgreSQL port works on any network type:

POSTGRES_HOST = 192.168.1.10
POSTGRES_PORT = 5432

This avoids "connection refused" errors that often happen when using the container name (PostgreSQL15) on the default bridge network.

If you prefer container names: create a custom Docker network in Unraid (Settings → Docker → IPv4 custom network subnet → enable), start both containers on it, and set POSTGRES_HOST to the PostgreSQL container name.

5. NPM Configuration (Nginx Proxy Manager)

Matrix clients require HTTPS. The Matrix container itself does not handle TLS — that is delegated to a reverse proxy (or a Cloudflare Tunnel).

5.1 Access options: reverse proxy vs. Cloudflare Tunnel

There are two ways to reach Matrix from the internet. Both use the ports this template already publishes (8008 for Synapse, 8080 for Element / Admin / well-known), so no template change is needed for either one.

Recommended: a reverse proxy, which is what the rest of this section documents. A Cloudflare Tunnel is a fine alternative if you would rather not open any ports — just keep the 100 MB upload cap in mind and apply the same well-known delegation (section 6) so federation works. If you ever put the domain on Cloudflare's regular orange-cloud proxy instead of a tunnel, switch the Matrix subdomain to DNS only (grey cloud): the orange proxy throws bot challenges at non-browser clients and breaks federation.

Voice / video, either way: coturn (TURN/STUN) runs over UDP and cannot pass through an HTTP reverse proxy or a Cloudflare Tunnel. For working calls, forward the TURN ports (3478 plus the relay range) to your Unraid host regardless of which option you pick.

For the reverse-proxy route you need two proxy hosts in NPM:

5.2 Proxy host: Matrix API (matrix.yourdomain.tld)

NPM → Hosts → Add Proxy Host

Why IP instead of container name?
Container names only resolve inside custom Docker networks. Using 192.168.1.10:8008 (Unraid host IP + published container port) works reliably on bridge networks too.

SSL tab: Issue a Let's Encrypt certificate → enable Force SSL

Custom Nginx configuration (Advanced tab) — paste as one block:

# Matrix media uploads can be large
client_max_body_size 100M;

# Long-polling sync needs generous timeouts
proxy_read_timeout 600s;
proxy_send_timeout 600s;

# Forward real client IP (matches x_forwarded: true in homeserver.yaml)
proxy_set_header X-Forwarded-For $remote_addr;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header Host $host;

# WebSocket / HTTP-1.1 upgrade for /_matrix/client/*/sync
proxy_http_version 1.1;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection "upgrade";

Using a path-scoped reverse proxy instead (SWAG, Traefik, hand-written nginx)? The NPM host above forwards the whole subdomain to Synapse, so it covers every endpoint. Path-based configs must forward the entire /_synapse prefix, not just /_synapse/client. A location ~ ^(/_matrix|/_synapse/client) block omits /_synapse/admin, so Synapse-Admin loads but its data calls return 404 and it shows "Server communication error". Widen it to ^(/_matrix|/_synapse). See Troubleshooting → Synapse-Admin.

5.3 Proxy host: Element Web + Admin (optional custom domain)

If you want Element Web accessible under its own domain (e.g. element.yourdomain.tld):

Element is then available at https://element.yourdomain.tld/element/.

6. Enabling Federation

Matrix federation lets your users chat with people on other Matrix servers (like @user:matrix.org). It is enabled by default and controlled by the Enable Federation template variable. Set it to false if you want to run a private island server instead.

For other servers to find yours, two well-known endpoints must be reachable at your domain. Synapse now serves both itself (serve_server_wellknown + public_baseurl, set automatically from your SERVER_NAME):

• /.well-known/matrix/server — tells other Matrix servers to federate with you over port 443
• /.well-known/matrix/client — tells Matrix clients which homeserver to use

Reverse-proxy setup (nothing extra to configure)

Because Synapse serves these on the same listener as /_matrix, the matrix.yourdomain.tld proxy host from section 5.2 already covers them. There are no custom /.well-known/... locations to add and no JSON to write by hand — just make sure that proxy host forwards https:// matrix.yourdomain.tld/ to Synapse (it does by default).

Upgrading from an older build where you added manual /.well-known/matrix/* proxy locations (or a return 200 '' snippet)? You can remove them — the container handles delegation now. Leaving them in place is harmless but redundant.

Verifying

Once the container is up and the proxy host is in place, test the endpoints:

curl -s https://matrix.yourdomain.tld/.well-known/matrix/server
# expected: {"m.server": "matrix.yourdomain.tld:443"}

curl -s https://matrix.yourdomain.tld/.well-known/matrix/client
# expected: {"m.homeserver": {"base_url": "https://matrix.yourdomain.tld"}}

Then run the federation tester:

https://federationtester.matrix.org/

Enter matrix.yourdomain.tld. All checks should be green and FederationOK: true.

Common errors:

• No .well-known found → the two custom locations above are not active yet
• context deadline exceeded on port 8448 → normal when well-known points to port 443; the tester just falls back to direct 8448. Once well-known is set up, this error becomes irrelevant
• Certificate error → SSL certificate not valid for the domain

7. Monitoring (Prometheus)

The container exposes Synapse's internal Prometheus metrics on port 9090, bound to 0.0.0.0 so Prometheus can reach them from the host network.

• Port: 9090
• Path: /_synapse/metrics
• Bind: 0.0.0.0 (all interfaces)

Keep port 9090 on a private network — these metrics expose detailed internal Synapse state and should not be publicly accessible.

Prometheus scrape_config example

Add this to your prometheus.yml:

scrape_configs:
  - job_name: 'synapse'
    metrics_path: /_synapse/metrics
    static_configs:
      - targets: ['192.168.1.10:9090']
        labels:
          instance: 'matrix.yourdomain.tld'

Grafana dashboard

The Synapse project maintains an official Grafana dashboard at: https://github.com/element-hq/synapse/tree/develop/contrib/grafana

Import the JSON dashboard into Grafana and point it at your Prometheus datasource to get a full view of federation lag, event processing rates, cache hit ratios, and more.

8. Adding Bridges

Bridges connect your Matrix homeserver to other messaging platforms — WhatsApp, Telegram, Signal, Discord, iMessage, and more. They appear as bots in your Matrix rooms and relay messages transparently between networks.

Bridges are not bundled in this image

This image deliberately does not include any bridges. Keeping the core image focused on Synapse, coturn, and the web UIs ensures a smaller attack surface and simpler upgrades. Each bridge has its own release cycle and dependencies that are better managed separately.

Recommended approach: mautrix bridges as separate containers

The mautrix bridge collection is the most actively maintained set of Matrix bridges and covers WhatsApp, Telegram, Signal, Discord, Meta (Instagram/Facebook), Google Chat, and more. Run each bridge as its own Docker container alongside this one.

General workflow:

1. Run the bridge container once to generate its config.yaml
2. Edit config.yaml to point at your Synapse homeserver URL and PostgreSQL database
3. Run the bridge with --generate-registration to produce a registration.yaml file
4. Copy registration.yaml into /data/appservices/ inside the Matrix container
5. Restart the Matrix container — Synapse will automatically load all .yaml files from /data/appservices/ at startup

The /data/appservices/ directory on your Unraid host maps to /mnt/user/appdata/matrix/appservices/. Create it manually if it does not yet exist.

Bridge documentation

Full installation guides for every supported platform: https://docs.mau.fi/bridges/

9. Creating the First Admin User

After the first run there are no users yet. Since open registration is disabled, the first admin user must be created. There are two ways to do this.

Method 1: Auto-create via template variables (recommended)

The template ships with two optional environment variables:

1. Edit the Matrix container in Unraid
2. Set ADMIN_USER and ADMIN_PASSWORD
3. Apply — the container restarts and creates the admin user automatically

On the next boot, after Synapse is ready, the bootstrap service registers the user as an admin — or promotes an existing account to server admin if that username already exists. Clear both variables afterwards so it doesn't run again on every restart.

The resulting Matrix ID is @<ADMIN_USER>:<SERVER_NAME>, e.g. @admin:matrix.yourdomain.tld.

Already registered that account in Element? Set ADMIN_USER/ADMIN_PASSWORD to its name and restart — the bootstrap promotes the existing account to server admin (it only sets the admin flag; it won't change the password). This is what Synapse-Admin needs: a Synapse server admin, which is different from an Element room admin. Without it, Synapse-Admin loads but shows "Server communication error" because the /_synapse/admin API returns 403.

Method 2: Manually via the Unraid container console

1. Unraid → Docker → Matrix → Console
2. Run the following command (replace the placeholder values):

register_new_matrix_user \
  -c /data/homeserver.yaml \
  -u YOUR_USERNAME \
  -p YOUR_PASSWORD \
  --admin \
  http://localhost:8008

You will be prompted for a username, password, and admin status interactively if you omit the -u and -p flags.

Security note: The password is stored in the shell history when passed as a flag. For production use, omit the flags and enter credentials interactively.

Signing in

Open http://UNRAID-IP:8080/element/ in your browser.

1. Click Sign In
2. Click Edit next to the homeserver
3. Enter https://matrix.yourdomain.tld
4. Sign in with your username and password

10. Generating Registration Tokens

Registration tokens let you invite specific users to register without enabling open registration for everyone.

Method 1: Synapse-Admin (recommended)

1. Open http://UNRAID-IP:8080/admin/
2. Sign in with the admin user
3. Registration Tokens → Create Token
4. Configure: maximum uses, expiry date
5. Copy the token and share it with the invited user

Method 2: Admin API (curl)

# First, obtain an access token for the admin user:
curl -XPOST \
  'https://matrix.yourdomain.tld/_matrix/client/v3/login' \
  -H 'Content-Type: application/json' \
  -d '{"type":"m.login.password","user":"ADMIN_USER","password":"ADMIN_PASSWORD"}'

# Copy the token from the response, then:
curl -XPOST \
  'https://matrix.yourdomain.tld/_synapse/admin/v1/registration_tokens/new' \
  -H 'Authorization: Bearer YOUR_ACCESS_TOKEN' \
  -H 'Content-Type: application/json' \
  -d '{"uses_allowed": 1}'

Enabling token-based registration

For users to register with a token, the following must be set in /data/homeserver.yaml (or in /data/homeserver-overrides.yaml):

enable_registration: true
registration_requires_token: true

Then restart the container: Docker → Matrix → Restart

11. Updates

Automatic image updates (GitHub Actions)

The GitHub Actions workflow checks every hour for a new Synapse release. When one is found, the image is automatically rebuilt for linux/amd64 and linux/arm64 and pushed to junkerderprovinz/matrix on Docker Hub (mirrored to ghcr.io/junkerderprovinz/matrix).

Updating the container on Unraid

1. Unraid → Docker → Matrix
2. Click the container icon → Update available appears when a new version is out
3. Click Update → Unraid pulls the new image and restarts the container

Or use Unraid's bulk update: Unraid → Docker → Update All Containers

Updates do not affect data in /data — your homeserver.yaml, media files, and signing keys are preserved. Synapse database migrations run automatically on startup.

12. Troubleshooting

Error: "database encoding is not UTF8" or "LC_COLLATE mismatch"

Cause: The PostgreSQL database was created without the correct locale settings.

Fix:

-- Drop and recreate the database (data loss!)
DROP DATABASE matrix;
CREATE DATABASE matrix
    OWNER admin
    ENCODING 'UTF8'
    LC_COLLATE='C'
    LC_CTYPE='C'
    TEMPLATE template0;
GRANT ALL PRIVILEGES ON DATABASE matrix TO admin;

Error: "Permission denied" on /data

Cause: Files in /mnt/user/appdata/matrix/ are owned by a different user than PUID:PGID.

Fix in the Unraid terminal:

chown -R 99:100 /mnt/user/appdata/matrix/

Error: Container won't start — "SERVER_NAME not set"

Cause: The SERVER_NAME environment variable is empty or missing in the template.

Fix: Unraid → Docker → Matrix → Edit → fill in SERVER_NAME → Apply

Error: "Connection refused" to PostgreSQL

Cause: The Matrix container cannot reach the PostgreSQL container.

Checklist:

1. Is the PostgreSQL container running? → Check the Unraid Docker tab
2. Correct POSTGRES_HOST? → Use the Unraid host IP (e.g. 192.168.1.10) instead of a container name
3. Correct POSTGRES_PORT? → Default is 5432
4. Is PostgreSQL listening on 0.0.0.0? → In PostgreSQL: listen_addresses = '*' in postgresql.conf
5. Does pg_hba.conf allow connections from the Matrix container?

Federation test failing

Common causes:

Synapse-Admin: "Server communication error"

The Synapse-Admin page loads and you can log in, but the user / room lists stay empty and you get a "Server communication error". Open the browser DevTools (F12) → Network tab, reproduce, and check the status of the failing /_synapse/admin/... request:

The 404 trap hits path-scoped configs (SWAG, Traefik, hand-written nginx). A SWAG matrix.subdomain.conf typically ships with:

location ~ ^(/_matrix|/_synapse/client) {   # ← misses /_synapse/admin

Widen it so the admin API is forwarded too:

location ~ ^(/_matrix|/_synapse) {          # ← covers /_synapse/admin

NPM users following section 5.2 are not affected: that proxy host forwards the entire subdomain to Synapse on 8008, so /_synapse/admin is already covered.

Viewing logs

In Unraid:

• Docker → Matrix → icon → Logs

Via terminal:

docker logs matrix --follow --tail 100

Synapse's own logs (if configured in /data/logs/):

tail -f /mnt/user/appdata/matrix/logs/homeserver.log

TURN/video calls not working

1. Open ports 3478 (TCP+UDP) in your router and forward them to the Unraid IP
2. Verify that turn_uris is correctly set in homeserver.yaml (this happens automatically)
3. The TURN shared secret in homeserver.yaml and turnserver.conf must match (both are populated from /data/.turn_secret — check container logs if there are issues)
4. denied-peer-ip in turnserver.conf blocks private IP ranges — this may affect LAN testing but is not relevant for calls over the internet

TURN over TLS (optional)

To enable TURN over TLS on port 5349, mount a directory containing fullchain.pem and privkey.pem to /data/certs/ inside the container. The filenames must be exactly:

• /data/certs/fullchain.pem
• /data/certs/privkey.pem

Tip: NPM stores Let's Encrypt certificates in /mnt/user/appdata/NginxProxyManager/letsencrypt/live/npm-X/. You can symlink or copy them:

mkdir -p /mnt/user/appdata/matrix/certs
cp /mnt/user/appdata/NginxProxyManager/letsencrypt/live/npm-1/fullchain.pem \
   /mnt/user/appdata/matrix/certs/fullchain.pem
cp /mnt/user/appdata/NginxProxyManager/letsencrypt/live/npm-1/privkey.pem \
   /mnt/user/appdata/matrix/certs/privkey.pem

Then set the TURN-TLS Certs path in the Unraid template to /mnt/user/appdata/matrix/certs (mapped to /data/certs inside the container). If the cert files are missing, plain TURN on port 3478 still works — TLS is entirely optional.

13. Contributing / License

Issues & feature requests

Found a bug? Have a feature request? → GitHub Issues

Pull requests

PRs are welcome. Please:

1. Fork the repository
2. Create a feature branch (git checkout -b feature/my-feature)
3. Run shellcheck and hadolint locally (or rely on the lint workflow)
4. Open a PR against main

License

Apache 2.0 — see LICENSE

This project is not officially affiliated with Element HQ, the Matrix Foundation, or the Element project. Synapse, Element, and coturn are their respective trademarks/projects and are used here unmodified as base images / packages.

Built with care for the Unraid community.

14. Support this project

If this template saves you a setup hassle or a debug night, consider buying me a coffee:

_{Part of a family of self-hosted Unraid apps + plugins by junkerderprovinz — see them all at github.com/junkerderprovinz, or install from Community Applications.}
