LivePremier Plus

A local app that adds panels to an Analog Way LivePremier Web RCS session, drawn in Web RCS's own design language so they read as part of the product rather than as a bolt-on:

• Edit — the Screens / Aux. page with one row instead of two: a programmer buffer that is on neither bus. Build a look with the same sources, the same 67 layer parameters and the same memory bank, and nothing reaches the switcher until you save it — at which point it goes straight into a real memory slot, with no preset buffer written and no take fired.

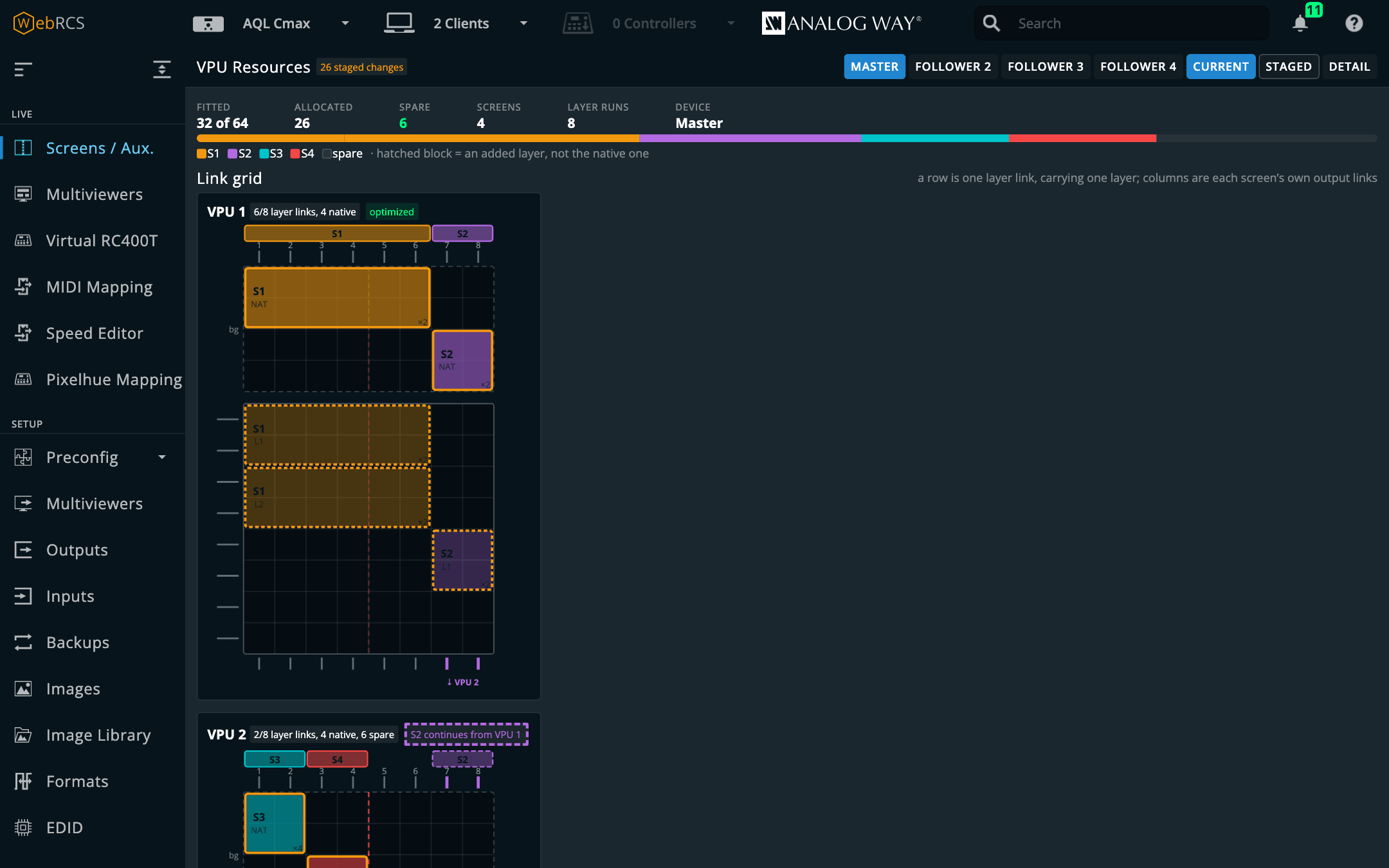

• VPU Map — the device's mixing-resource allocation, drawn as a budget. Which units are fitted, who holds them, what is spare, and what a staged preconfig would change.
• Console — Mynah's command line, a lighting-desk grammar for a video switcher. Recall Screen 1 Memory 5, R Sc 1 Th 4 Me 5 Pre, Take Screen 1. It also takes raw AWJ, raw Web RCS store writes and OSC addresses, says what a line will do before Enter, and pops out into a window of its own. On a Midra 4K or Alta 4K it routes audio as well: Set Audio Patch Input 3 To Screen 1.

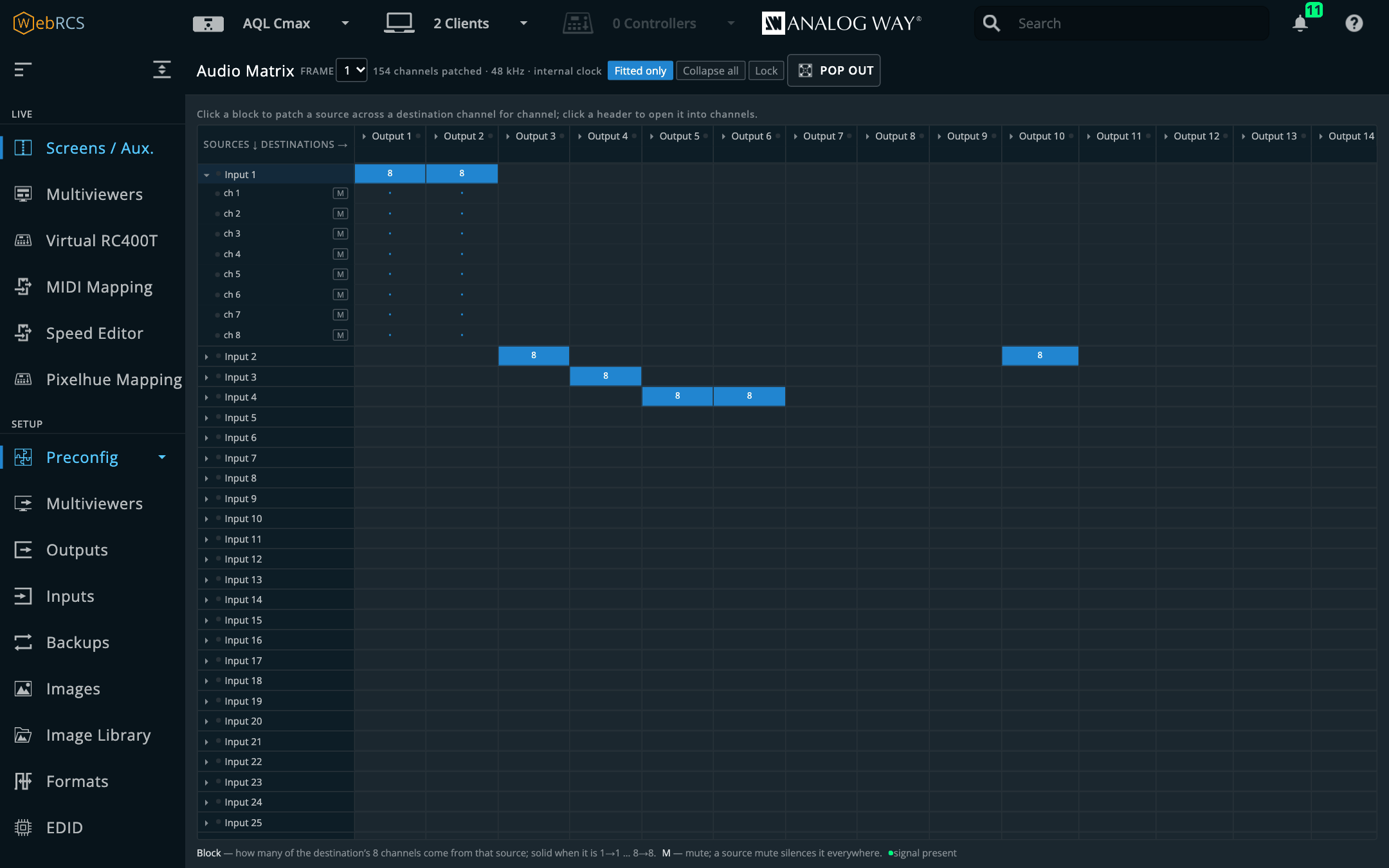

• Audio Matrix — a LivePremier's audio channel matrix as a crosspoint grid: inputs and Dante down the side, outputs, Dante and multiviewers across. It opens as blocks (click one to lay a source across a destination 1→1 … 8→8, or clear it); a header opens into its eight channels for single crosspoints and mutes. Nothing lights until the switcher echoes it, there is a Lock for a live show, and it pops out. Simulator-proven only.

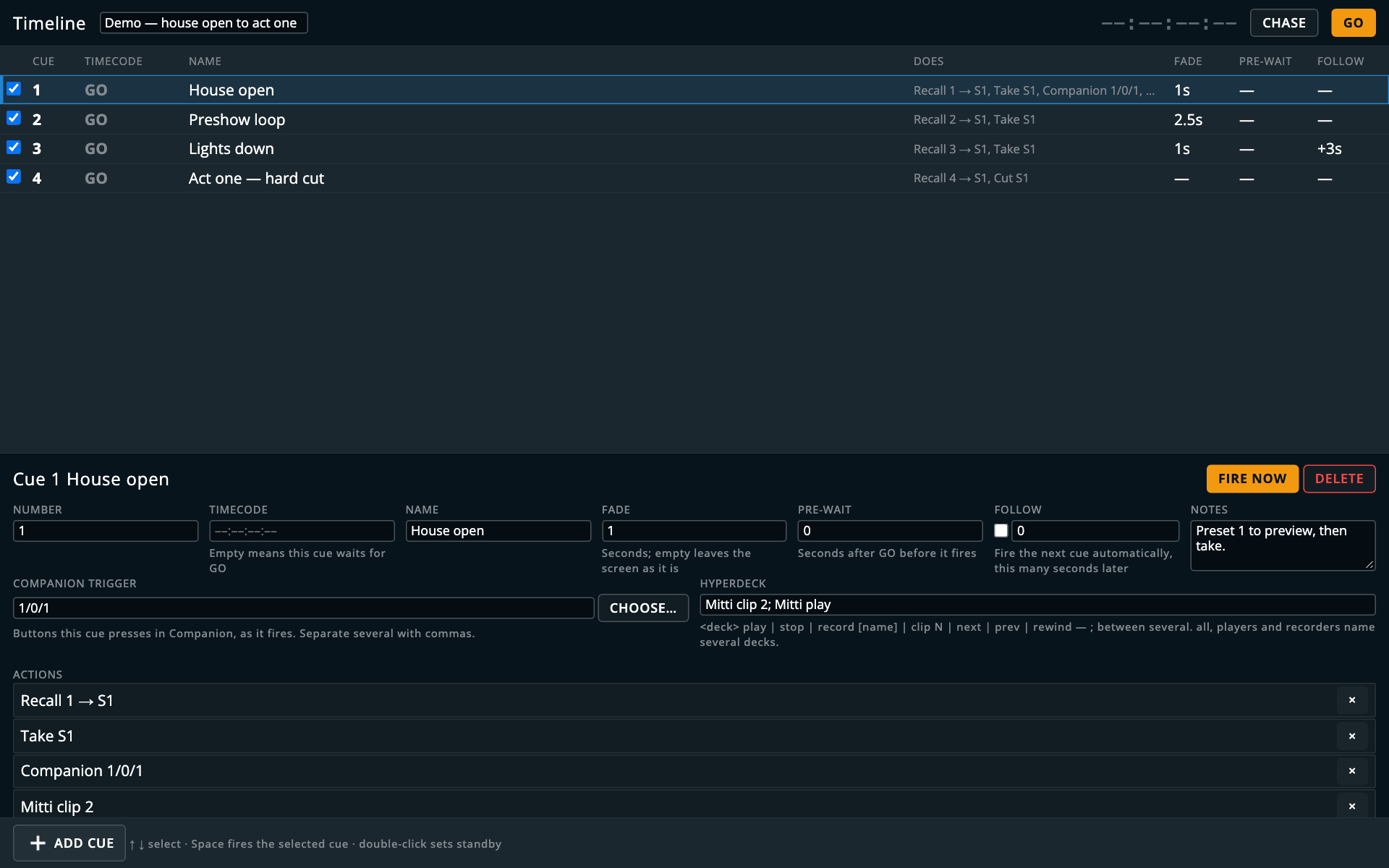

• Timeline — a theatre-style cue stack. A numbered list that advances on one GO, with per-cue fade, delay and follow times, driving the switcher's preset recalls and TAKE. A cue can also carry a timecode and fire when MIDI Time Code, LTC from an audio input, or a timecode pushed from another machine passes it.

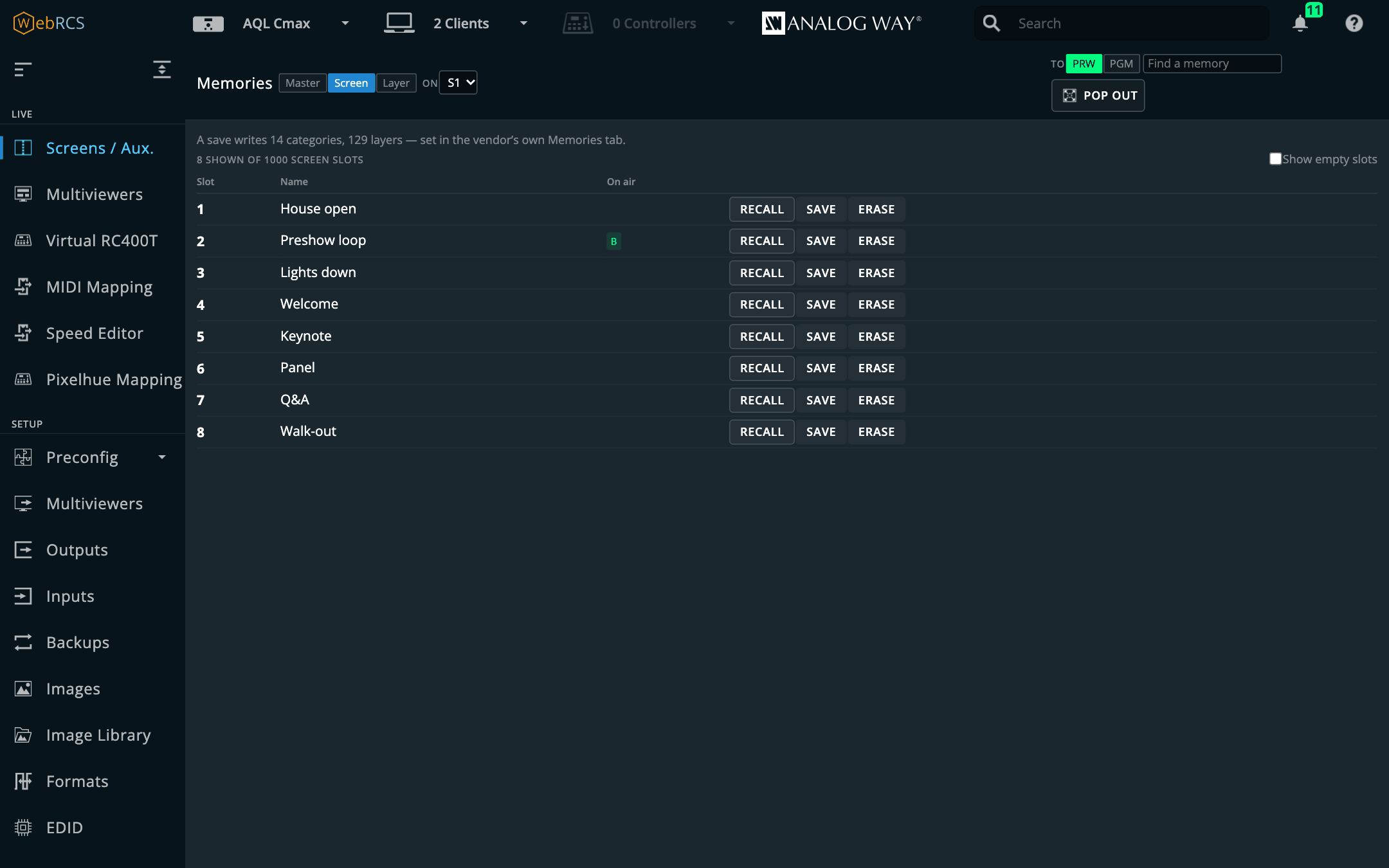

• Memories — all three banks in one list: master, screen and layer, with search, renaming, and which buffer is holding each memory right now. Recall names its target buffer every time and never defaults to program. Pops out onto a second monitor.

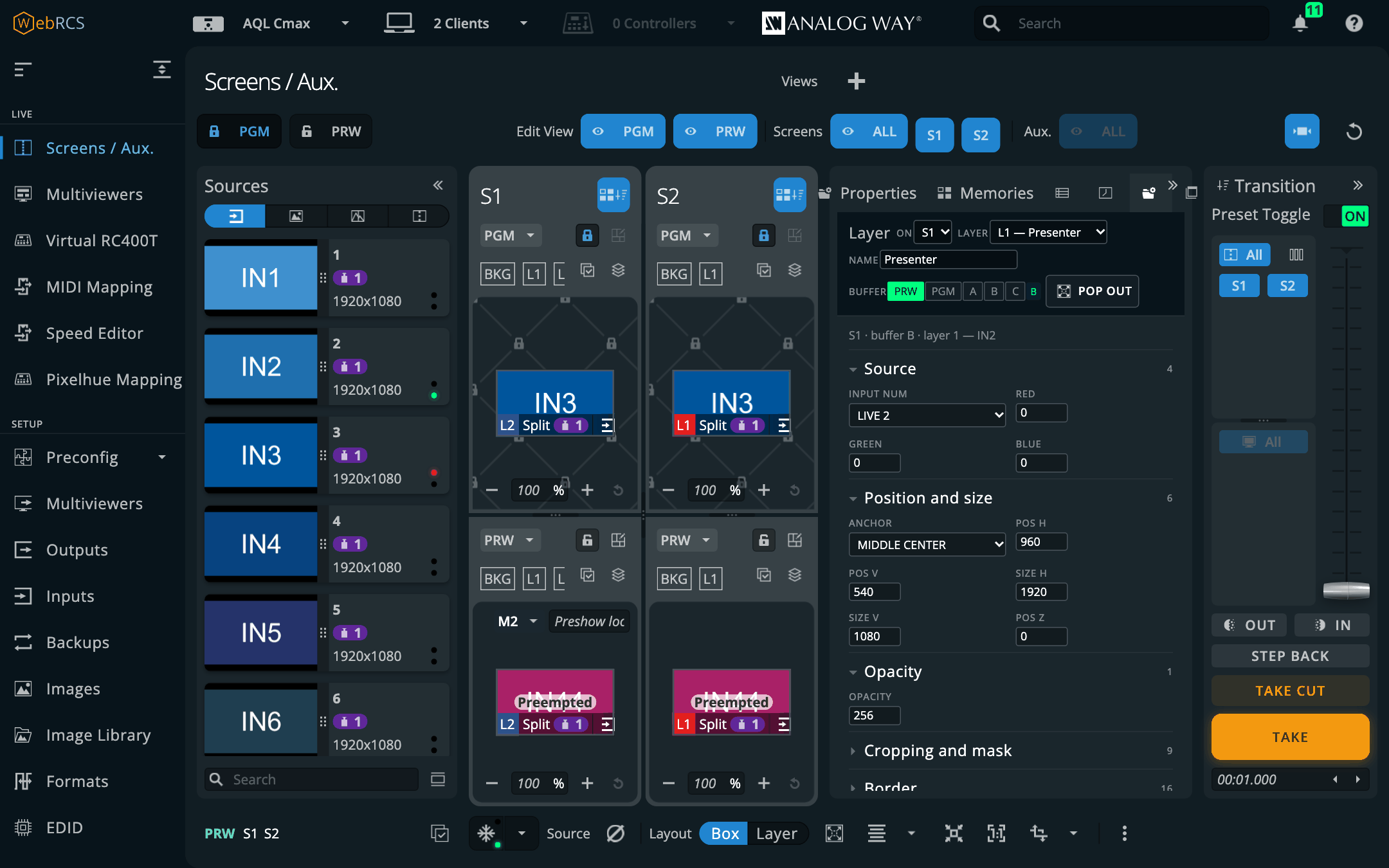

• Layer — every one of a layer's 67 properties, generated from the device's own parameter catalogue rather than transcribed, so a firmware that adds one grows a field for it. Name a layer here and the name appears in the vendor's own layer lists — the switcher itself has nowhere to keep one.

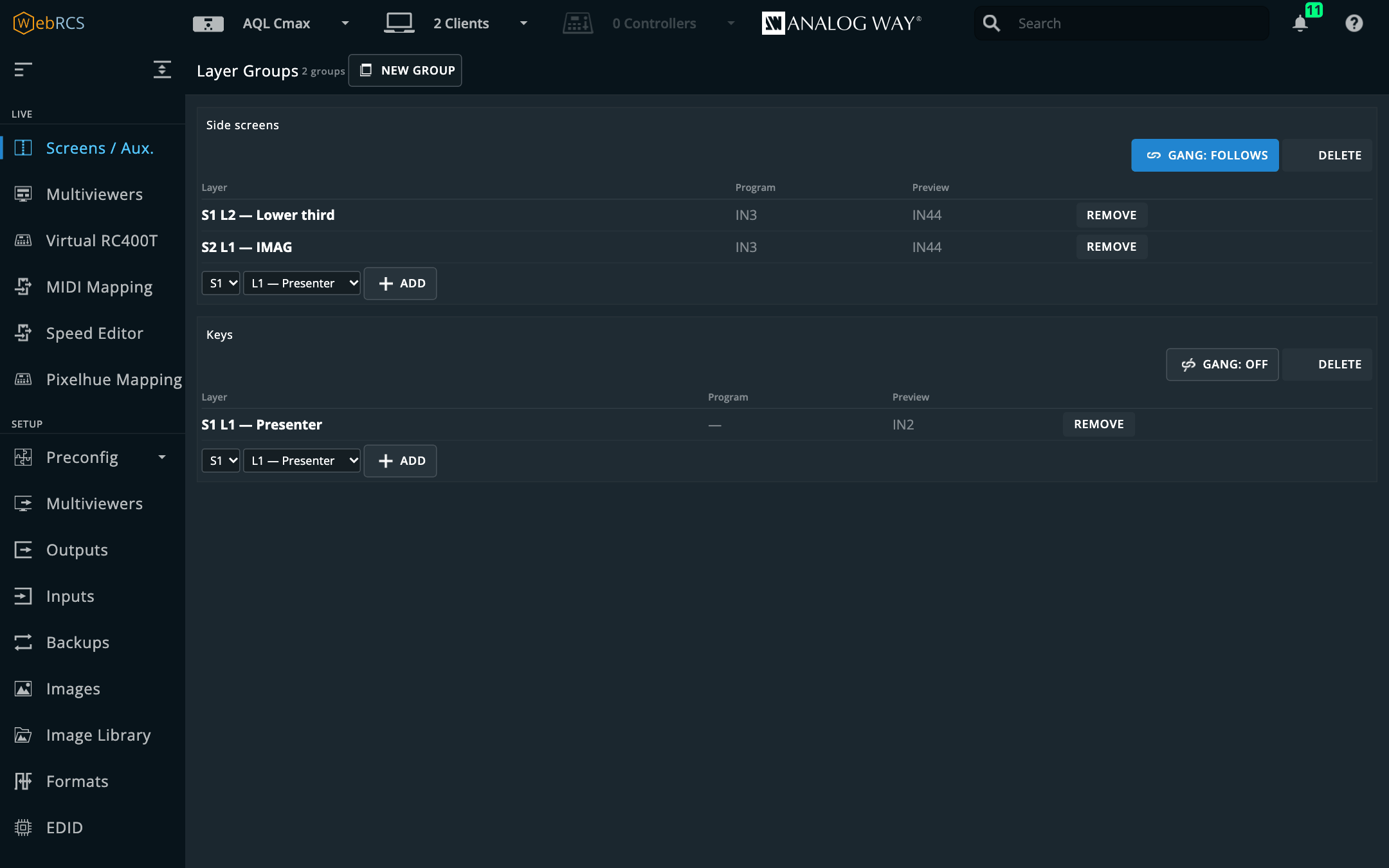

• Layer Groups — several layers, on one screen or on many, driven as one. Layer 2 on screen 1 with layer 1 on screens 2 and 3 is the side screens, and a ganged group follows a source change made to any of its members, wherever that change came from.

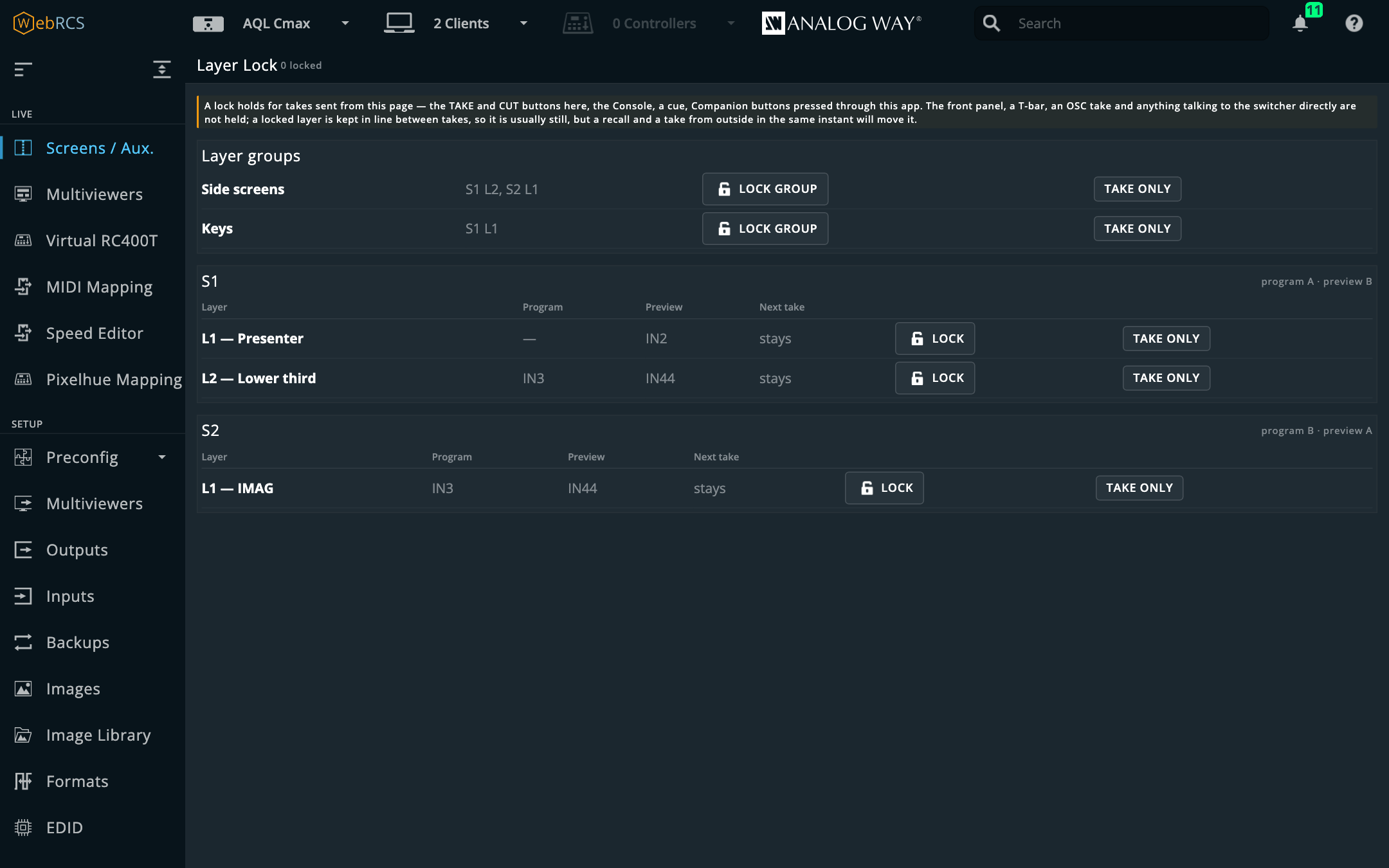

• Layer Lock — lock a layer and a take leaves it where it is; or take one layer, or one group, alone. The switcher has neither: a take swaps the whole preset buffer. So a locked layer's preview copy is kept equal to program, and every TAKE or CUT sent from this page — the vendor's own button included — is held for the moment it takes to line it up. Takes from the front panel, a T-bar or OSC are not held, and the panel says so.
• Preview lock during takes (off until you switch it on) — press TAKE and recall the next memory a moment later, and the switcher loads it into the buffer that is fading up, so it rides the take onto program. This shuts the vendor's own PRW padlock on a screen's card for as long as that screen is transitioning, so Web RCS refuses the recall with its own warning, and opens it again when the take lands. It never opens a padlock you shut yourself. This app's own recalls — Timeline cues, the Memories panel, the Console — wait instead: a recall into a preview that is mid-take goes the moment the take lands, and cues fire in the order GO was pressed. Companion, OSC and the front panel are not held back.

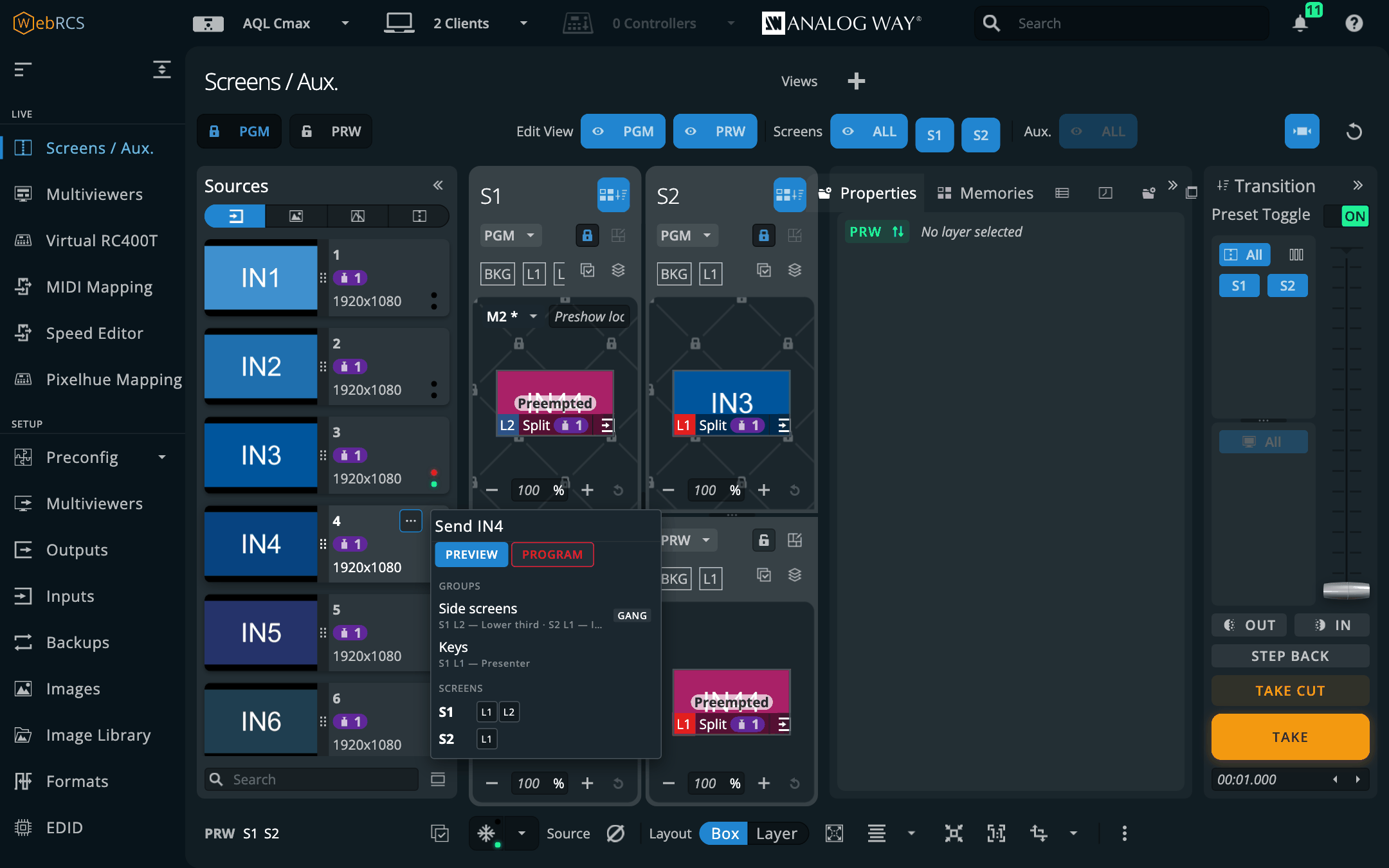

• Send to — a … on every source card that routes it without a drag: preview or program, then a screen and layer or a whole group. It respects the vendor's own PGM padlock, asking before it steps past one.
• Matrix Routing — patch the frame's own SDI and HDMI sockets to ports on a Blackmagic Videohub, a Lightware or a Turtle AV router, and route through it from the panel, a cue, the Console or OSC. You describe the cable; the direction inverts on its own.
• HyperDecks — Blackmagic HyperDecks, and Mitti through its HyperDeck control, played, cued and recorded from a panel, a cue or OSC. Link a deck to the input it feeds and it can follow the show the way Mitti follows an ATEM: play when put on air, load the next clip when taken off, and take when its clip ends — a set number of seconds early, so the mix lands on the last frame.
• Dante (preview, off by default) — the Dante audio network's routing as a crosspoint grid beside the switcher it feeds: devices found over mDNS, every receive channel's subscription and its status, a click to subscribe or clear, snapshots recalled from a cue or OSC, and Dante Controller presets written for it to load and read back as a difference before anything is applied. The switcher's own Dante card is marked, with its Audio Matrix patching beside its channels. Never yet run against a real Dante device.

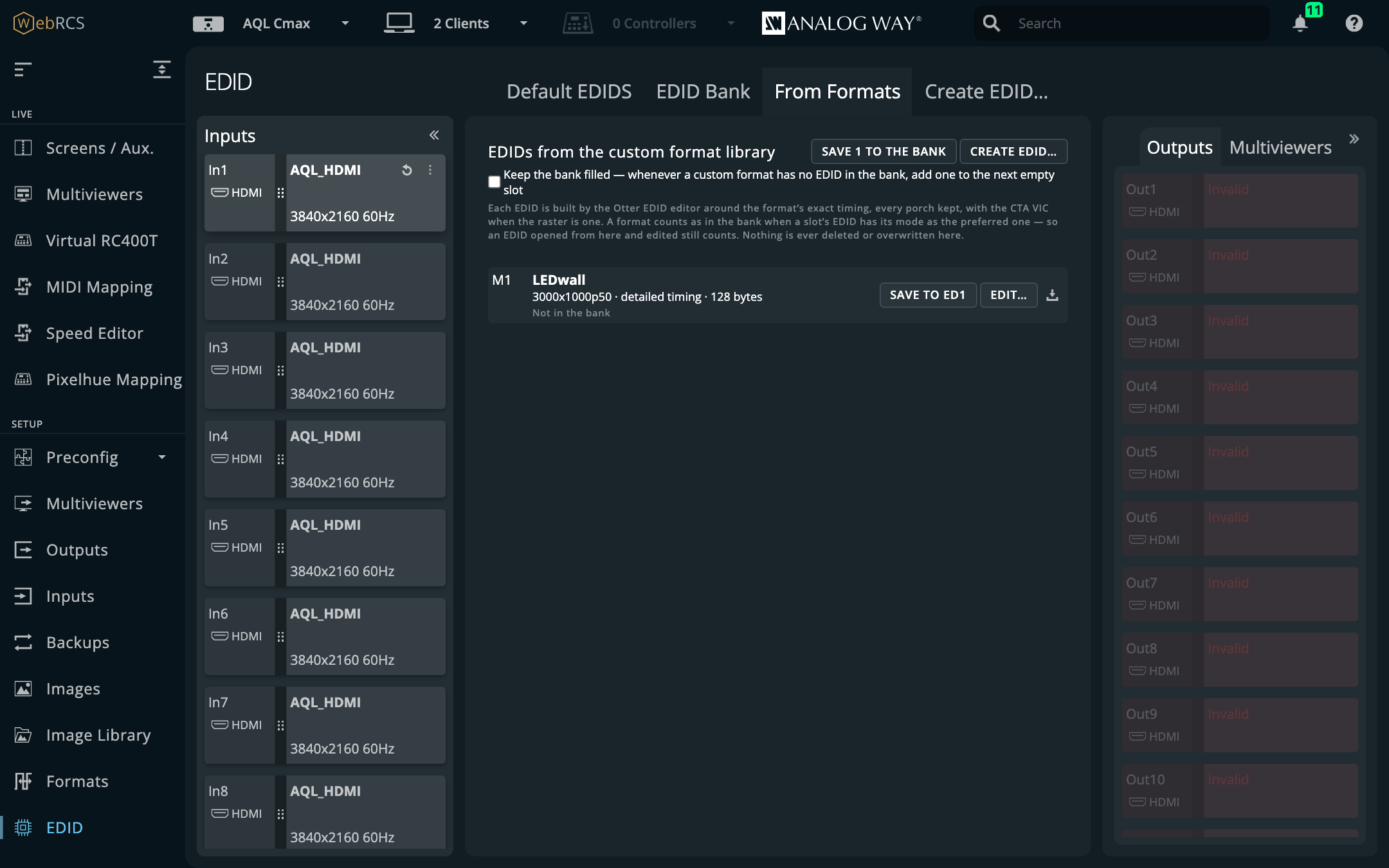

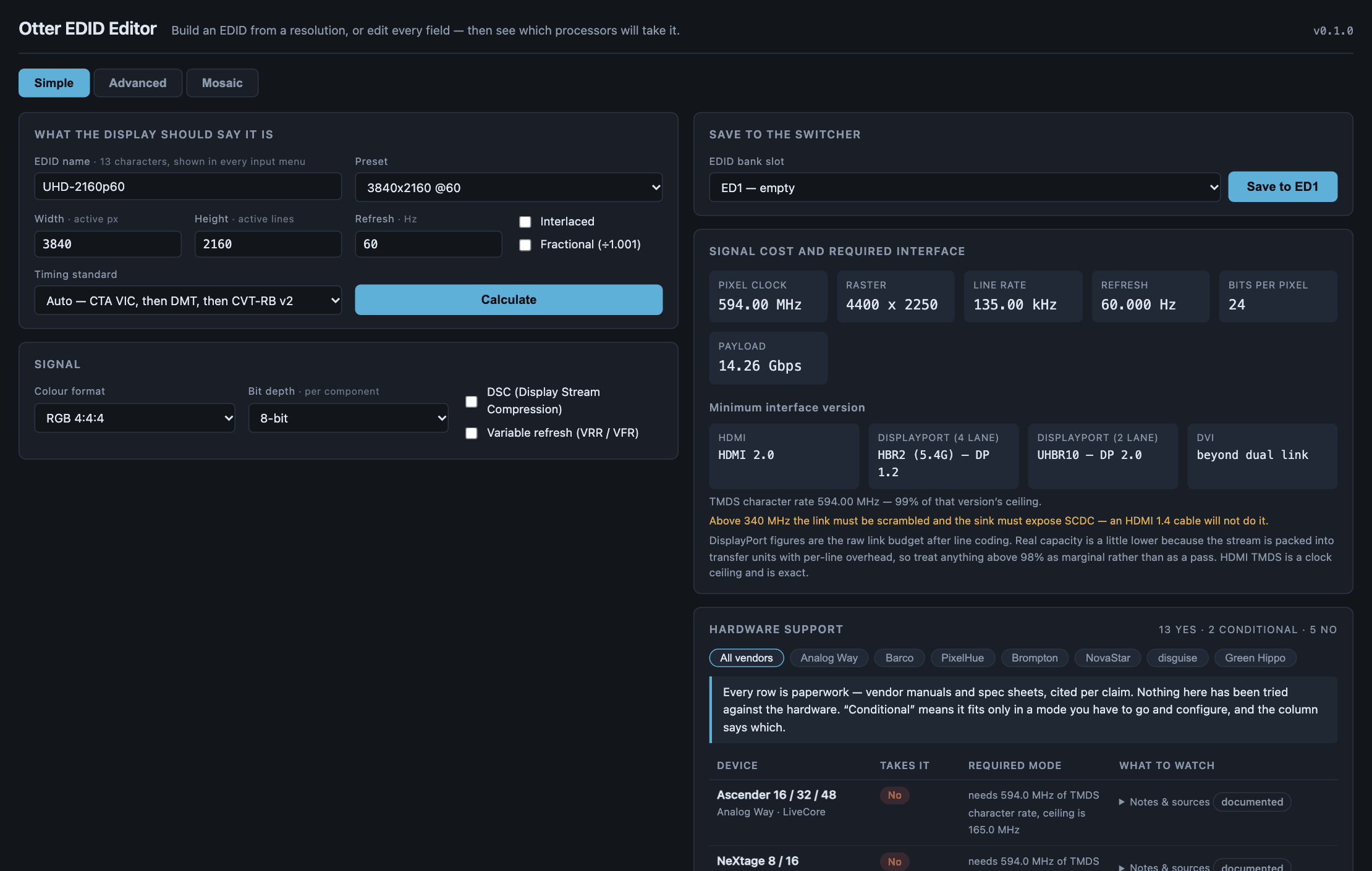

• EDID builder — the Otter EDID editor on the switcher's own EDID page. From Formats, a tab beside Default EDIDS and EDID Bank, builds one EDID per custom format in Setup ▸ Formats — every porch kept, the CTA VIC carried when the raster is one — and saves it into the bank in one click, or keeps the bank filled with them on its own. Create EDID… and an Edit tool on every bank slot open the full editor in a window of its own, including its Mosaic mode for tiled multi-plug EDIDs, saving straight into a slot.

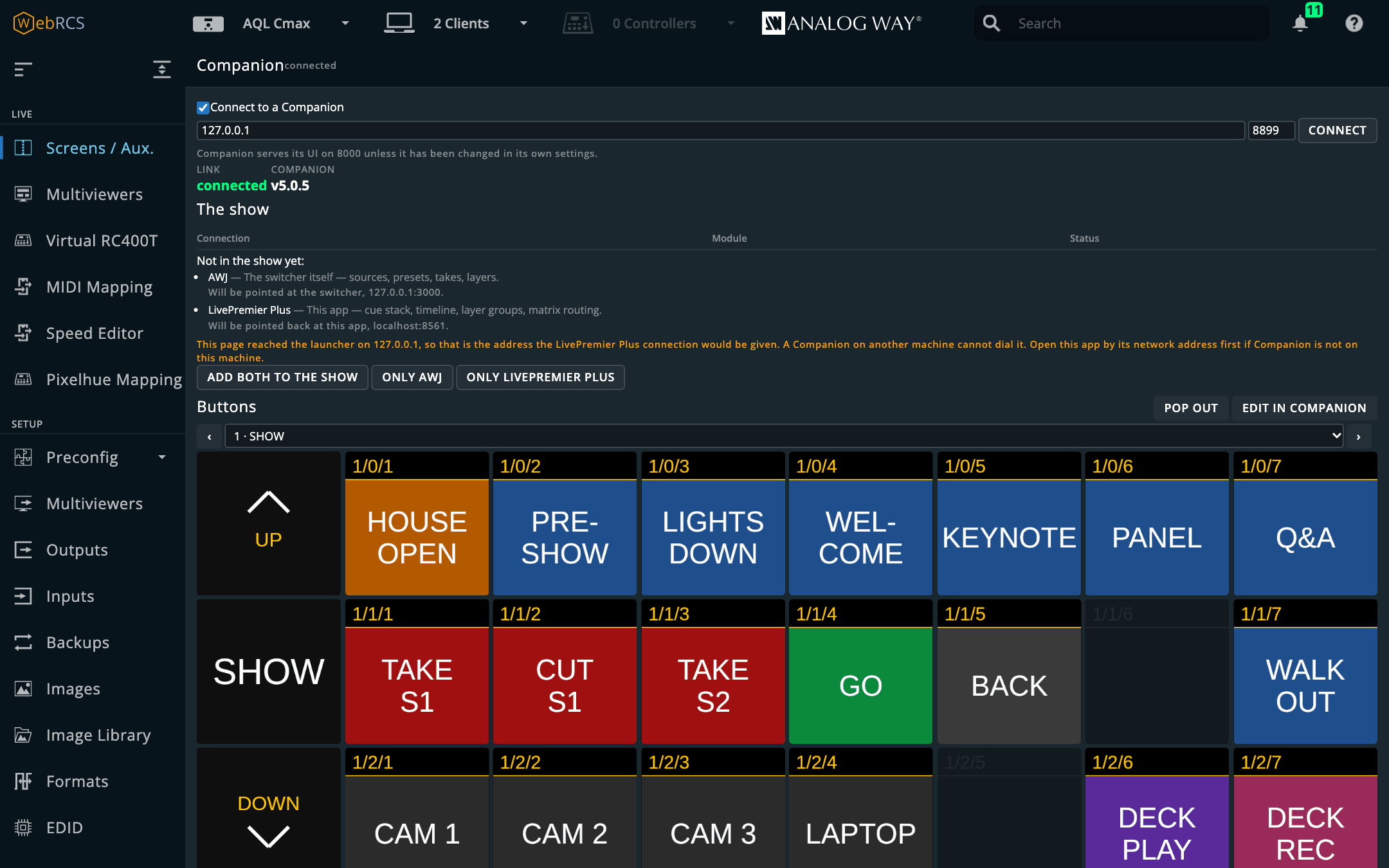

• Companion — a Bitfocus Companion linked to this app: its pages of buttons drawn in the app's own look, live and pressable, and poppable onto a second monitor; a Companion trigger on any cue and on any memory recall, so the show presses the buttons as it runs; and Companion's own editor served on the same address as Web RCS, with no second port and no CORS. A panel lists the show's real connections, follows them live, and offers to add the AWJ and LivePremier Plus connections pointed at whichever switcher you are on — saying what it will create before it does.
• Pitch Compensation — a screen spanning LED walls of different pixel pitches needs H and V ratios per output, and the device has the fields and no help filling them in. Give it the pitches; it reads everything else off the switcher and writes the ratios on a second press.
• OSC input — QLab, TouchOSC, a lighting desk or Companion drive the switcher over UDP, with no browser open. Off until you turn it on; every address is in docs/OSC.md.
• MIDI Mapping — a control surface driving the switcher, from the page itself. Faders to opacity, encoders to size and position, buttons to select.
• Speed Editor (preview) — a DaVinci Resolve Speed Editor as a switcher panel, plugged into the machine this app runs on: CAM 1–9 put a source on the selected layer, CUT and DIS cut and take, and the wheel moves opacity, position, size or the T-bar. Proven on a real panel over USB, 2026-09-25.

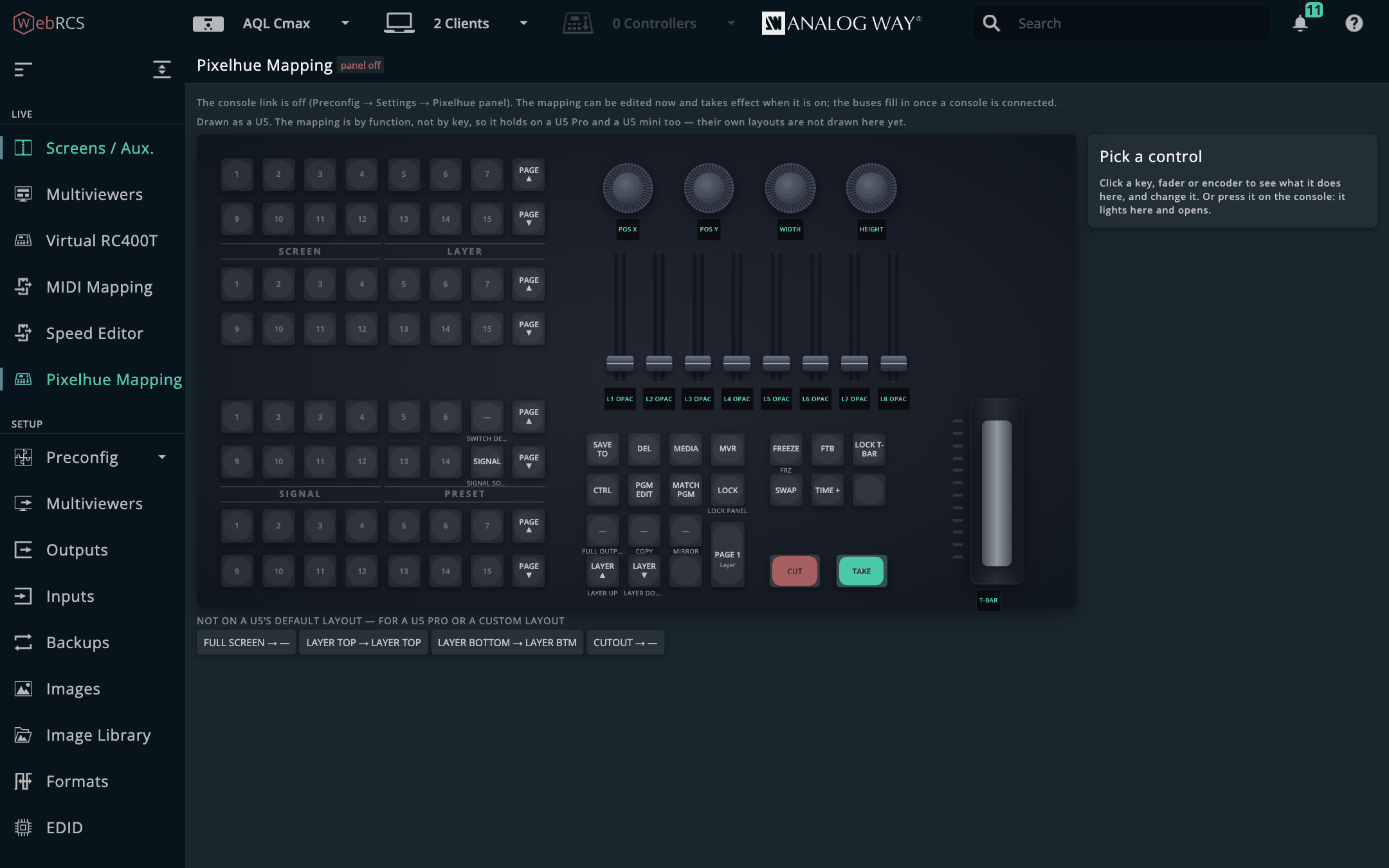

• Pixelhue panel (preview) — a Pixelhue U5, U5 Pro or U5 mini drives the switcher from a model of it rather than from a key map, and Pixelhue Mapping draws the console so every key, fader and encoder can be given a different job. It has never yet been run against a real console.
• Thumbnail relay (preview, off by default) — the switcher's source thumbnails re-encoded as JPEG and shared between pages: a twentieth or less of the bytes the vendor's pages would otherwise pull, and every Web RCS tab gets it without a change to the vendor's code. It has never yet run against a real frame.
• Multiviewer thumbnails (preview, off by default) — the switcher's multiviewer, captured or streamed into the browser, cut into its sources and put into every thumbnail in place of the once-a-second PNGs: live pictures at up to 25 frames a second. The store gives each tile's position, so nothing is calibrated by hand. On a Midra 4K or Alta 4K the switcher's own H.264 streamer can be the feed. It has never yet met a real multiviewer.
• Background Slicer (preview, off by default) — one picture laid over one or more screens and cut into a background per output, pixel for pixel: each screen's canvas drawn with its outputs, groups and slices, the picture placed by drag or by numbers, a plan of every free library slot, still and background set it will take before anything is written, then the images uploaded, the stills set, still capacities raised only where nothing in use is displaced, and the set filled — with an Undo. Its live-input mode feeds each output's background from an input instead, loads each input with the switcher's own EDID for that output, and exports the map the media server needs: a Resolume Arena Advanced Output preset, disguise, Pixera, Hippotizer, Millumin and TouchDesigner files, and a pixel-map pack for the rest. On a Midra 4K or Alta 4K it cuts one picture per screen instead — the canvas, through a Background Image shown 1:1, which an Auto Crop set has the switcher crop for each output — or fills a Custom set with an input per output. Simulator-proven only.
• Your setup in one file — the cue stack, layer groups, layer names, your variables, router patch and settings, written as one plain JSON file and read back the same way, so a rig restores with its .awc rather than half of it.
• Arithmetic in the vendor's own numeric fields — type 1080-80 into a layer width and get 1000, the way you can in every other tool on the desk.
• Variables — $S1.width, $IN3.rate, $S1.PGM.L2.x for what the switcher reports, generated from the rig it is, and @gap, @half of your own, wherever a number goes: Set Screen 1 Layer 2 Size ($S1.width / 2) $S1.height at the Console, $S1.width/2 in a width field, "@gap * 3" in an OSC argument. A role mid-take is refused, never guessed. Reads only; see docs/VARIABLES.md.

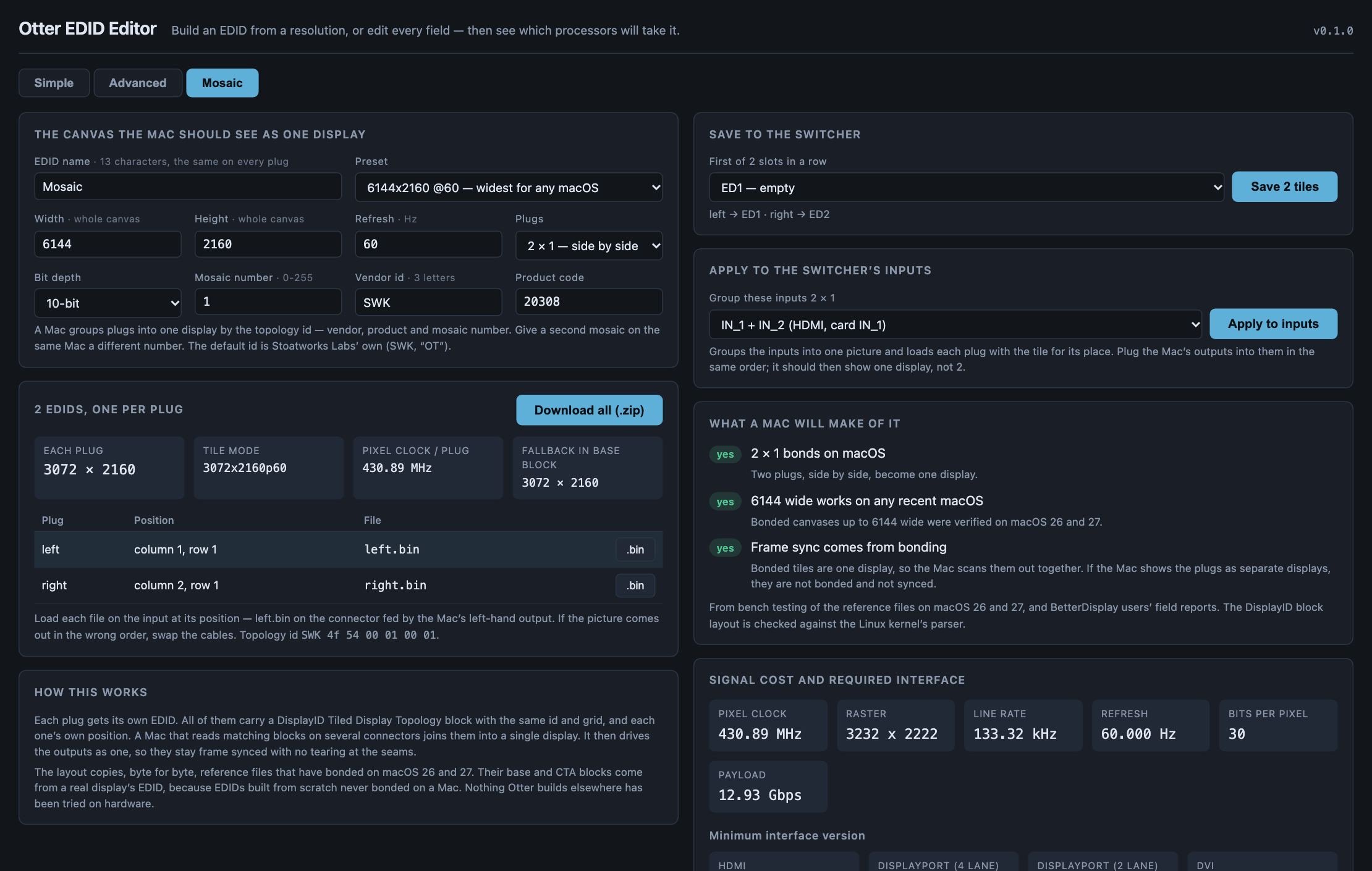

• Mosaic inputs — the EDID builder's Mosaic mode, carried through to the frame: group inputs 2X1 or 2X2 and load each plug with its tile EDID, so a Mac joins several outputs into one frame-synced display.

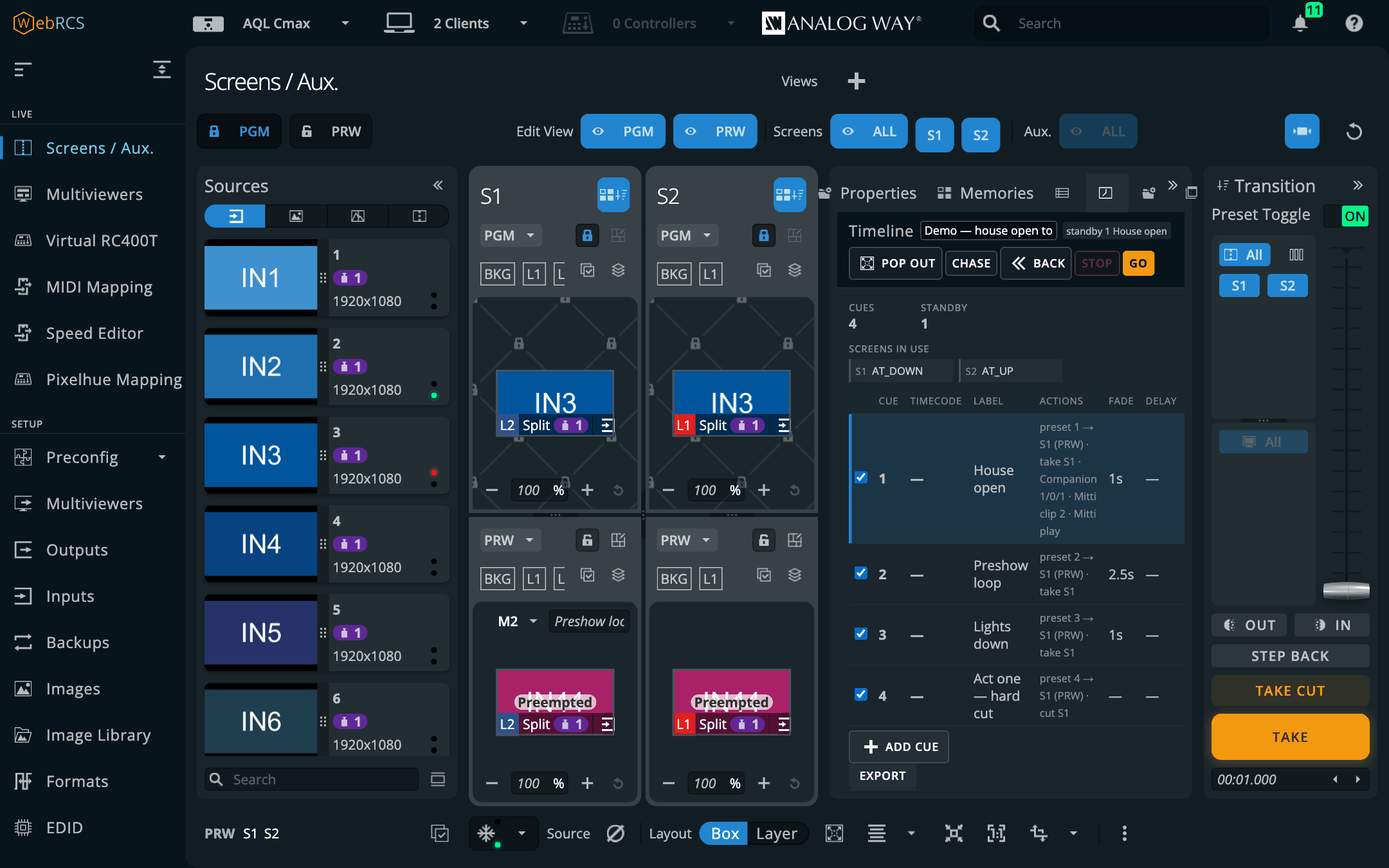

_{The Timeline tab on the vendor's own Screens / Aux. page, against Analog Way's LivePremier Simulator 6.2.73. Every screenshot here is the real app, taken with npm run demo.}

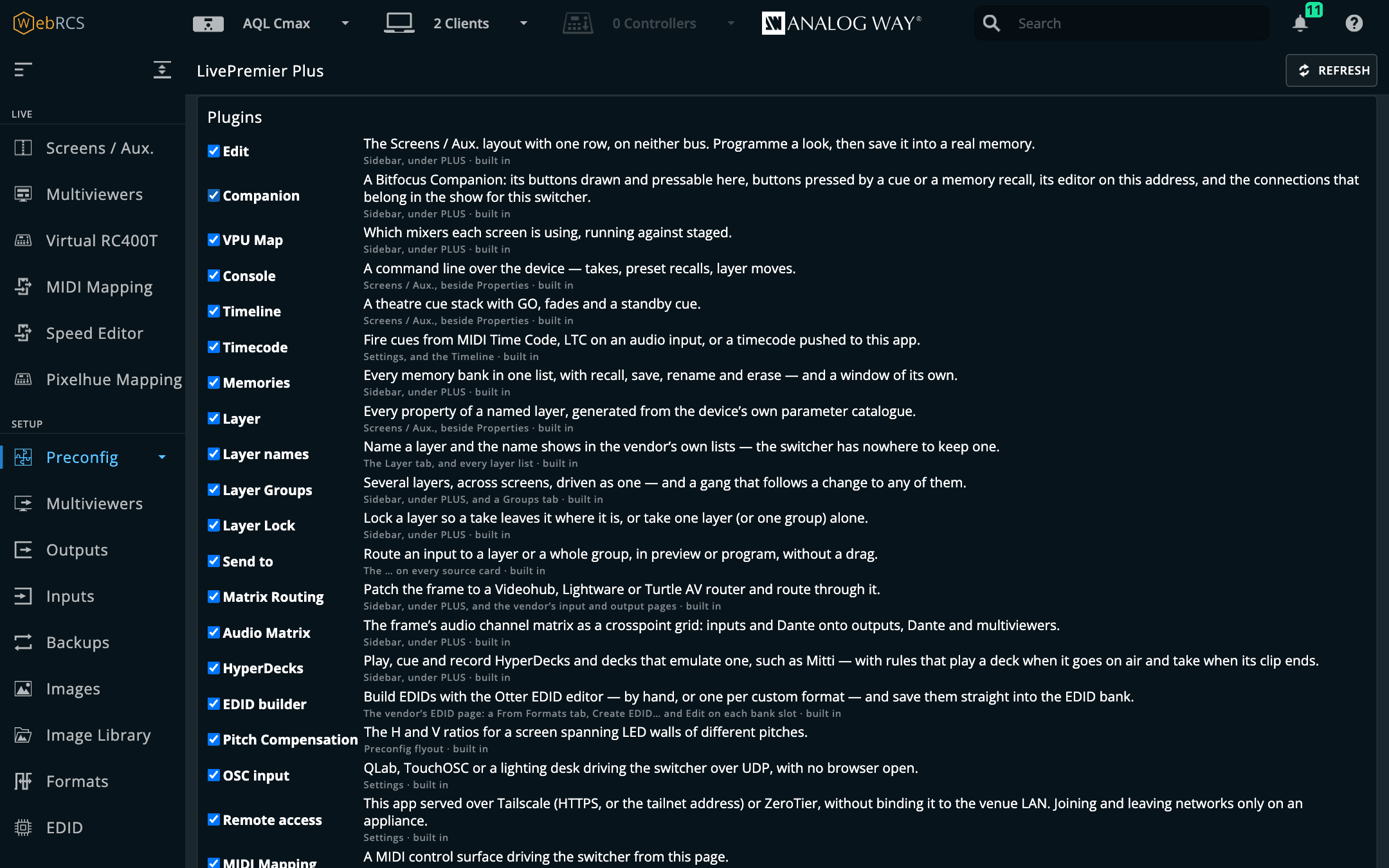

Every one of these is a plugin you can switch off, in Preconfig ▸ LivePremier Plus → Plugins; a switched-off feature leaves no menu entry, route or background service behind. You can add your own: a folder in ~/.livepremier-plus/plugins/ (or /config/plugins/ in Docker) with a plugin.json, a server half and a page half. They start switched off, and run only once you switch them on. docs/PLUGINS.md is the guide, and examples/plugins/hello-switcher the template.

Point it at a switcher, open the address it prints, and you get the vendor's own Web RCS with the extra panels already in it. The panels ride the vendor app's own WebSocket — no second Web RCS connection to the device, no replacement UI, and nothing to install in the browser. (OSC input, the Pixelhue panel and the Edit page's direct save each open a brief AWJ connection of their own when they act, and AWJ has a budget of five clients on the switcher.)

It runs as a desktop tray app for macOS, Windows and Linux, as a Docker image, or from the command line with Node 20. It works on a LivePremier and — for the Timeline, Console, Memories, Layer and Pitch Compensation — on a Midra 4K or Alta 4K as well; Platforms says which panels each gets.

Status: field testing — v0.17.0. The panels render inside a real Web RCS session and the device store mirrors live — both verified through this proxy against LivePremier Simulator 6.2.73, along with cue-stack persistence and the whole setup flow. The VPU map has been read from a live Aquilon C and is tested against that capture, including Optimized mode, interleaved output links, and a staged preconfig that differs from the running one.

The Edit page was driven on a simulator on 2026-09-22, and the thing it claims was measured rather than asserted: all three of S1's preset buffers were read over AWJ before and after a full editing session — seed from program, a source dropped on a layer, a layer dragged and resized — and came back byte-identical. A look was then saved into memory 900 by the direct route and the device reported the slot valid with the operator's label, with those three buffers still identical; the memory was read back into an emptied programmer, 132 properties, the dragged position exactly where it had been left; and a second look went into 901 by the preview route, with preview restored property-for-property afterwards. Both test slots were deleted.

⚠️ The direct route has an open question on real hardware. The path the device extracts the memory file from is the switcher's filesystem. On a simulator that is the same machine, which is why it works here; on an Aquilon it is the box's own disk, and Web RCS 6.2.73 exposes no memory import and no upload route for one. That is exactly why the preview route exists as well — it is also the only route on Midra 4K and Alta 4K, whose banks have no import at all — and why the directory is a setting rather than a constant.

Companion was driven against a running Companion 5.0.5 and a LivePremier simulator on 2026-09-22: the mounted Buttons page loaded same-origin with its grid drawn and one socket relayed; the panel listed the show's three real connections with live status, and its feed followed a connection being disabled and re-enabled; and an AWJ connection was added, configured and reported good. The cross-origin WebSocket check was confirmed live — 101 for the page we served and for a client sending no Origin, 403 for a forged origin and for the null a sandboxed iframe sends. The LivePremier Plus connection cannot be added yet, because there is no LivePremier Plus Companion module yet: the panel says so in those words. Merged into 0.11.0 after the Edit page; the merged proxy, settings and panels were re-checked through the proxy, but not against a live Companion a second time.

Layer groups and the send-to menu were driven on a simulator on 2026-09-21, against a preconfig staged for the purpose: two screens on opposite preset letters — S1 at AT_UP with program B, S2 at AT_DOWN with program A — which is the only arrangement in which getting the role conversion wrong shows up. A change to S1's layer 2 in letter B was followed onto S2's layer 1 in letter A, leaving S2's preview untouched; a group send in preview wrote both members' preview buffers and neither program; and a program send was held behind the confirmation step while the vendor's PGM padlock was shut and went straight through once it was opened, both read from the vendor's own buttons. No physical LivePremier has seen any of it.

Verified against real hardware (Aquilon C NLC_C, firmware 6.2.73, 2026-09-09). Every path this app emits was checked against the box: the command table resolved with no E12, the VPU collections answered, and the pitch paths resolved — confirming pitchedWidth/pitchedHeight really do live under canvas/status, and that the output collection key is numeric (1), not OUTPUT_1, which the device refuses. The device store was pulled whole (124 MB) and the VPU model re-checked against it rather than against a capture. Nothing disagreed with what the simulator had taught us.

The VPU map's header is part-verified from that same pull (2026-09-15). The header over the grid's columns names each link's region and output plug from outputList — usedInScreenAux, usedInRegion, capability, the mapping and the plug type — and every one of those fields is in the store the box gave us, with each screen's outputs adding up to its own figures (test/fixtures/aquilon-c-dual-outputs.json). Not yet verified on a box: the order in which a screen's links run over several outputs — every screen on that pull had one — so a screen whose outputs do not add up gets no header, and the next time an Aquilon is reachable, aquilon-vpu-map's scripts/probe-hardware.mjs step 6 and its capture guide say what to check.

Driven in a browser against the box (2026-09-10). The sidebar entries and the two Preconfig flyout pages have now been opened and navigated against a live Aquilon C in an ordinary browser session, rather than only against the simulator. That is what turned up the blank page fixed in 0.4.1: closing a panel handed back a display: none the panel had written itself, and Web RCS carried on routing and rendering into an element no wider than nothing.

The Memories and Layer panels (new in 0.5.0) were driven against the same box the day they were written: 85 screen memories listed under their real names, and program/preview resolved and checked against the device's own presetUp/presetDown/transition. Their writes — recall, save, erase, rename, and a layer property with its clamp — were exercised with the socket stubbed, so the paths and values are proven and the switcher received none of them.

Midra 4K and Alta 4K (2026-09-12). The Timeline, Console and Layer tabs, the Memories panel and Pitch Compensation now work on the other Analog Way platform too — every model of it. The object model was read off a live Pulse 4K (firmware 3.3.10, read-only, mid-show) and the port was then driven against the Midra 4K simulator as a Pulse 4K and the Alta 4K simulator as a Zenith 200: cues fired through the panel's own GO (recall → fade → take, with the device echoing each step back), memories saved, renamed and recalled through the Memories panel, including the aux bank. QuickVu, Eikos, QuickMatrix and Zenith 100 stores were captured and checked too; all six share one object model. See Platforms for what is and is not offered there.

Proven on the live Pulse 4K (2026-09-12/13). With the show's screens frozen, a test harness ran the port's whole write vocabulary against the box — takeTime, store, label, recall into the buffer the UP/DOWN rule names, a recall of an empty slot (silence, as documented), two TAKEs with preview holding program, restore and delete, a layer opacity on preview, a multiviewer layout, a pitch ratio — 39 checks, none failed, the baseline re-read identical apart from the device's own bookkeeping. The next morning the operator typed the Console's lines at the real box: the four offline refusals, then a backup, a recall to preview, a takeTime over the OSC spelling, and the restore — the first writes this app's own panels have made to a physical device, all as expected. (The Set … Opacity typed in the same run was refused by that build's Console, which handed the compiler no device facts — the bug 0.7.0 fixes; the opacity write itself is the harness's W7.) Two things only hardware could show: with preset toggle off a take passes COPY_FROM_x after its effect, so the settle is takeTime plus ~250 ms, and isLoading is a real 30 ms window rather than the simulator's zero. docs/NOTES.md has the rest.

0.17.0 (2026-10-06). Variables: $ names generated from the device store and @ names of your own, with bracketed arithmetic, wherever a number goes — the Console, cues, OSC input and the vendor's own numeric fields. Preview lock (off by default) shuts the PRW padlock while a screen transitions, so cues, Memories and the Console wait for a take to land. Dante and the Background Slicer arrive as previews, off by default: Dante has only talked to a simulator, and the Slicer — one picture cut into pixel-exact backgrounds, on LivePremier and on Midra 4K / Alta 4K — has run on simulators only, its rotated outputs, output groups and non-1.000 pitch ratios are unproven, and its Resolume preset has never been opened in Arena. The Edit page speaks Midra 4K / Alta 4K, and HyperDeck commands end with a bare line feed, so Mitti accepts them.

0.16.0 (2026-09-25). The Speed Editor now works on a real panel: it moved off WebHID, which cannot read the panel's handshake on macOS, into the device host (devices/), a program of its own that the app starts and restarts and that holds USB panels, one module per device. CUT, the CAM keys, the wheel, the battery level and a replug are proven over USB on macOS; the key lamps and Bluetooth are not yet tried. The desktop app carries the host; a checkout installs it with npm run setup:devices. The same test found CUT and TAKE firing only once on a switcher that leaves xCut true — fixed in the shared engine, so MIDI Mapping's triggers too. Audio Matrix (LivePremier) draws the frame's audio channel matrix as a crosspoint grid: sources by blocks or channels, per-channel mutes, signal-present dots, and it pops out. Remote access serves the app over Tailscale (HTTPS through tailscale serve, or the tailnet address) or ZeroTier. Multiviewer thumbnails (preview, off by default) cut a captured or streamed multiviewer into its sources and put live pictures in every thumbnail. The HyperDecks' end and preview OSC addresses are now published, and a trigger's release sends nothing. Audio Matrix, Remote access and Multiviewer thumbnails are proven on the simulator (Remote access against real Tailscale and ZeroTier), not yet against real hardware.

0.15.0 (2026-09-23). Six new plugins, each proven on the simulator only. Layer Lock keeps a layer through a take, or takes one layer alone — the switcher has neither, so both are built from a layer identical in program and preview; takes from the front panel, T-bar, OSC or direct AWJ are not held. HyperDecks plays, cues and records Blackmagic HyperDecks (or Mitti's emulation) with Mitti-style rules that follow the show: play on program, rewind in preview, take off air when a clip ends. An EDID builder on the Setup ▸ EDID page builds one EDID per custom format with Otter and saves it into the bank, and opens the whole Otter editor on any slot. Mosaic inputs group inputs 2X1/2X2 and load each plug with its tiled EDID, so a Mac joins them into one display. Pixelhue Mapping draws the U5 as a Virtual RC400T with every key, fader and encoder remappable. Speed Editor (preview) drives the switcher from a DaVinci Resolve Speed Editor over WebHID, never yet tried with a physical panel. None of these has met real hardware.

0.14.0 (2026-09-23). Thumbnail relay (preview, off by default): the switcher's source thumbnails re-encoded as JPEG and shared between pages, a twentieth or less of the bytes; the sources being edited on Screens / Aux. refresh up to 10 times a second while the rest are held — see Thumbnail relay. Placeholder routers in Matrix Routing: a Videohub, Lightware or Turtle AV model of the right size with nothing on the other end, so a show's routing can be built before the rack arrives, then taken live with Push plan. Companion draws its button pages natively instead of embedding Companion's own, and a cue or a memory recall can press a button. The Edit page gives each destination the full column, as the vendor's PRW-only view does. The Pixelhue panel (preview) gains layer binding and stepping, store and delete, the T-bar, TIME and SWAP, SIGNAL SOURCE, LOCK PANEL, faders and encoders, cue transport, MVR and SOURCE BACKUP, and fade-to-black and freeze on LivePremier — all proved against PixelFlow's virtual U5 and the simulator, still never a console — and its WebSocket handshake is fixed: a typo in the RFC's magic string meant no real UCenter would ever have accepted it. The tray app now stops its server with SIGTERM, so it saves its state and nothing it started is left running.

0.13.0 (2026-09-23). Every feature is a plugin. Each panel, page and background service — the Console, the Timeline, Matrix Routing, Companion and the rest, eighteen in all — is its own plugin, and each can be switched off in Preconfig ▸ LivePremier Plus → Plugins: off means gone, with no menu entry, route or background connection left behind. Plugins of your own go in the data directory's plugins/ folder and stay off until you switch them on — docs/PLUGINS.md is the guide, with an example to copy. Fixed on the way: a panel no longer loses the caret, the selection or half-typed text to the once-a-second repaint, and an open dropdown no longer closes under the pointer; the Companion link no longer drops every 35 s, and its embedded editor no longer reloads every second; pointing the app at another switcher no longer stops OSC input, the routers, Companion or the Pixelhue panel until a restart; and restoring a setup file now reaches the running app, not just its files. ⚠️ The Companion, Pixelhue, OSC input and Edit-page settings now live inside their plugins. An upgrade moves them for you; going back to 0.12.0 loses them.

0.12.0 (2026-09-22). Router routing on the vendor's own pages. A Router tab on Inputs ▸ an input and Outputs ▸ an output, and a Router box in Preconfig ▸ Inputs / Outputs. Each shows which router port the cable is on (patchable in place) and the router's ports as a grid of tiles and as a list: an input picks one source and routes on the click, an output picks any number of destinations and sends them on Route. Nothing lights until the router reports it. Proven against the simulator and a Videohub emulator — not yet against a real router.

0.11.0 (2026-09-22). Companion, served inside this app. A Bitfocus Companion's admin pages, web buttons and emulator open on the same address as Web RCS — Companion's own sub-path support with this proxy in front, so there is no second port and no CORS — and a panel lists the show's real connections, follows them live, and offers to add the AWJ and LivePremier Plus connections pointed at the switcher you are on, saying what it will create before it does. Companion's cross-origin WebSocket check is re-made here rather than bypassed. The LivePremier Plus connection cannot be added until a Companion module for this app exists; the panel says so. Linking a Companion also puts its admin UI behind this proxy, which is why the binding-wide warning now names it.

0.10.0 (2026-09-22). The Edit page — the Screens / Aux. layout with one row instead of two, and that row is a programmer: a buffer that is on neither preview nor program. The same sources, the same sixty-seven layer parameters and the same memory bank, with a stage you can drag and resize a layer on, and nothing reaching the switcher until you save a memory. Saving offers two routes and says what each costs: direct, which writes the bank itself through a facility Web RCS does not expose — no preset buffer, no take — and via preview, which borrows the preview buffer, fires the switcher's own save and puts preview back property-for-property. docs/NOTES.md has the device work behind it, including why the third preset buffer C looks like the answer and is not.

0.9.0 (2026-09-21). Two things an operator keeps doing by hand. Layer Groups name a set of layers across screens and drive them as one — a ganged group follows a source change made to any member, whatever made it — and a … on every source card routes an input to a screen and layer, or to a whole group, in preview or program, without a drag. You write a role, never a preset letter, because which letter is program changes on every take. Matrix Routing patches the frame's own SDI and HDMI sockets to ports on a Blackmagic Videohub, a Lightware or a Turtle AV router: you describe the cable, the direction inverts on its own, and the crosspoints are reachable from the panel, a cue, the Console and OSC. The Videohub driver was driven end to end against a working implementation of that protocol; the Lightware and Turtle AV drivers are written from their vendors' documents and have not met the hardware — docs/MATRIX.md says how to prove each on your own kit.

0.8.1 (2026-09-18). The desktop launcher says why a start failed. Pressing Start with the port held — another copy of the app, or the proxy started by hand — used to look like nothing happening; it now says so on the click and keeps Open available, names a port the OS refuses or an interface address that has gone, and quotes a proxy that dies right after starting with its last output lines. The shell is av-launcher 21bc307; nothing in the proxy or the panels changed.

0.8.0 (2026-09-17). The VPU map reads the grid top to bottom the way an output link runs: the native band sits above the eight layer links, a screen whose next layer landed on another VPU keeps its columns there — the two cards stack and the link draws straight down out of one and into the next — and a header over the columns names each link's region and output plug from outputList, with the real Aquilon C outputs of 2026-09-09 as a fixture. The desktop launcher now stops the proxy it supervises on every exit path (⌘Q and Quit from the Dock left the Node process holding the port); the shell is av-launcher 2c83ad7.

0.7.0 (2026-09-13). Three things, all proven on the simulators and not yet on hardware. Audio routing on Midra 4K / Alta 4K, at the Console: Set Audio Patch Input 3 To Screen 1 writes the preset's audio layer, Follow Layer 2 On Screen 1 or Follow Screen 2 On Line Output 1 what a point follows, Mute Output 1 Channel 3 Thru 4 where the device keeps it — mynah 1.5.0, vendored; the vendor's own header dropdown changed to "Input 3" when the line was typed at the Pulse simulator. A loopback door for a LAN-bound server: bind to an interface and it still answers on 127.0.0.1, a browser on the same machine arriving by the LAN address is sent there, and the secure-context note names the page that is actually open. And the Console now hands mynah the device facts it asks for — every Set typed at it since the Console existed had been refused with "needs a live connection" beside a live connection; the panel is now tested by typing at it, over both platforms' store captures.

Still untested on hardware, and this is the honest part: on LivePremier the panels have written only to the simulator and, with the socket stubbed, proven their paths against an Aquilon; on Midra the Timeline's GO, the Layer tab's edits and the Memories panel's own buttons have written to the simulators only. The Console is the one panel to have written to a real box.

Watch the tour (77s) — the real application, filmed on Analog Way's LivePremier simulator: the Edit page building a look off air and saving it into a real memory slot, Companion served inside the app, layer groups and the … on a source card, routing through a Videohub emulator, the VPU map, the Console and the Timeline. It was filmed on 0.12.0; 0.13.0 changed how the app is built, not what it shows. The first video, with the VPU map off a real Aquilon C capture and 1080-80 becoming 1000 in a layer width, is still up.

Running it

Needs Node 20 or newer and has no dependencies to install.

npm start

Then open http://127.0.0.1:8535/ and give it the switcher's address. That address is remembered, so subsequent runs go straight to the Web RCS.

You can also name the device up front, which skips the setup page:

npm start -- --device 192.168.2.142

There is a desktop app too — a tray launcher with an interface and port picker, in the fleet's usual shape. See launcher/.

In Docker

An image is published to ghcr.io/stoatworks-labs/livepremier-plus on every push to main, as :latest and as the commit's SHA. There is no per-version tag, so :latest can be ahead of the last release — to pin one, use the SHA its tag points at. The repo's docker-compose.yml runs it with the cue stacks and the remembered switcher kept in ./config:

docker compose up -d

or on its own:

docker run -d -p 127.0.0.1:8535:8535 -v "$PWD/config:/config" \
  ghcr.io/stoatworks-labs/livepremier-plus:latest

Inside the container it has to listen on 0.0.0.0 to be reachable at all, so where it is reachable from is decided by the port you publish. docker-compose.yml publishes 8535:8535 — every interface on the host — which is the binding-wide case below; change it to 127.0.0.1:8535:8535 unless the whole network is meant to reach it. Set LPP_DEVICE to skip the setup page.

Remote access over Tailscale or ZeroTier

Preconfig ▸ LivePremier Plus → Remote access serves the app to a Tailscale tailnet or a ZeroTier network without binding it to the venue LAN. Both are off until switched on.

Switching Tailscale serving off, or stopping the app, removes the tailscale serve entry — only ever one that still points at this app.

Joining and leaving networks — a Tailscale auth key, Disconnect, Rename, a ZeroTier network id, Leave — appear only when the app was started with --appliance (or LPP_APPLIANCE=1), and the server refuses them otherwise. That is for a box that exists to run LivePremier Plus, where nobody at the venue has a shell; on a laptop, its networks belong to its owner. tailscale up needs root unless the host joined once with --operator=<the app's account>; without it the buttons return Tailscale's own "access denied".

⚠️ Neither network is a login, and this app has none. Every member who can reach the host can drive the switcher. Who can reach it belongs in the tailnet's ACLs or the ZeroTier controller's rules.

In Docker the image has neither CLI. Run the app with the host's network and put Tailscale in front of it yourself (tailscale serve --bg http://127.0.0.1:8535 on the host, or the Tailscale sidecar's TS_SERVE_CONFIG), or run it from the Linux package on the appliance instead.

Download

v0.17.0 — prebuilt for macOS, Windows and Linux. Pick your platform:

All builds, checksums and release notes: github.com/stoatworks-labs/livepremier-plus/releases.

macOS builds are signed and notarised and open normally. The Windows builds are unsigned, so SmartScreen warns once.

On binding wide. The default is loopback for a reason: this proxy is an unauthenticated route to a switcher's entire control surface — and, once a Companion is linked, to that Companion's admin UI too. --host 0.0.0.0 hands both to everyone on the network. Do it deliberately, not by habit.

Edit

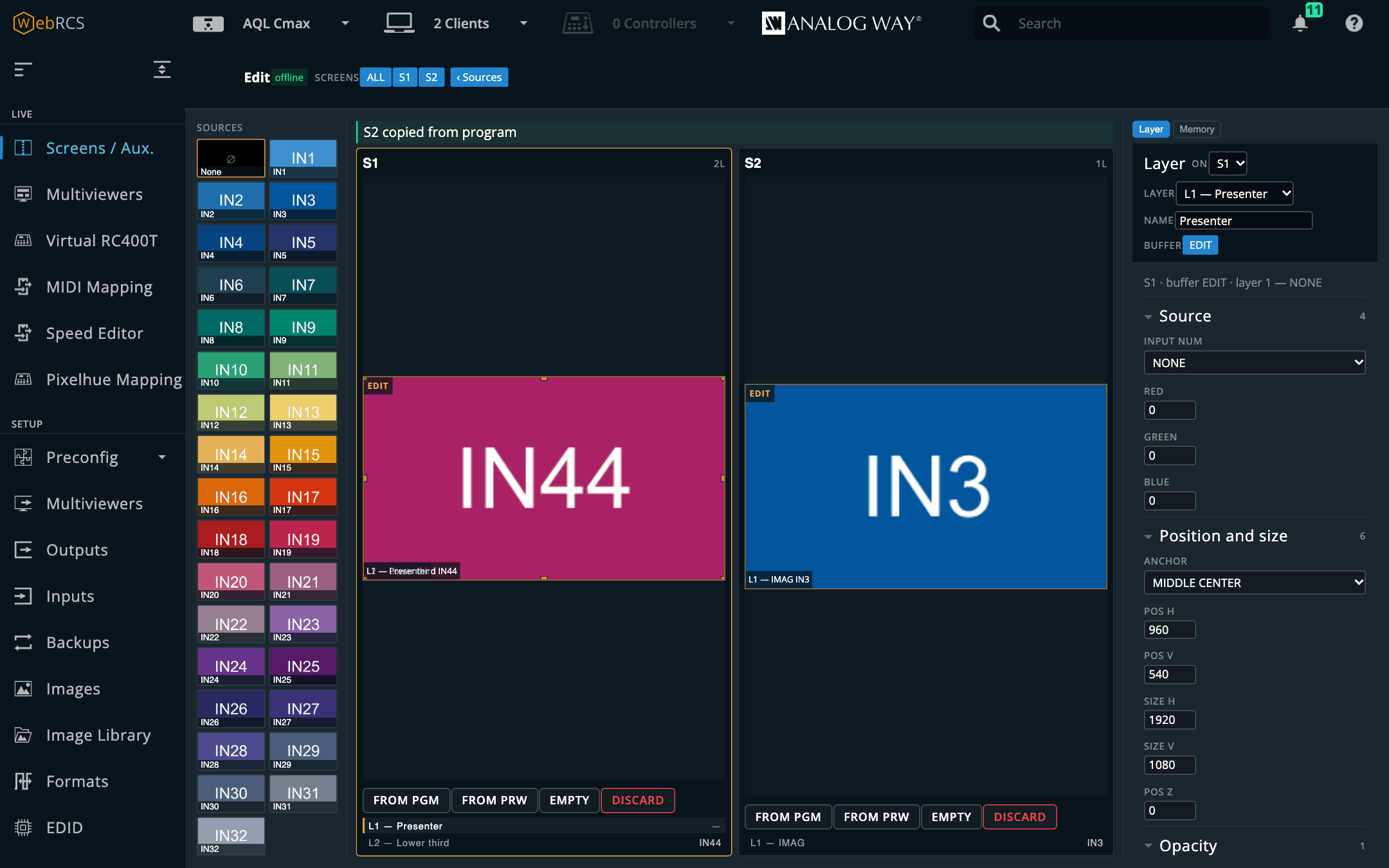

PLUS ▸ Edit is the Screens / Aux. layout with one row per destination instead of two, and that row is a programmer — a buffer on neither preview nor program, marked EDIT in amber. Fill it from PGM, from PRW or empty, drag and resize layers on the stage, put sources on them and work all sixty-seven layer parameters in the panel on the right. The switcher sees none of it.

The Memory tab is the one control on the page that writes. Direct puts the look into a memory slot with no preset buffer written and no take fired; via preview borrows the preview buffer, fires the switcher's own save and puts preview back property for property. The user guide says what each costs, and the Status note above says what is still open about the direct route on real hardware.

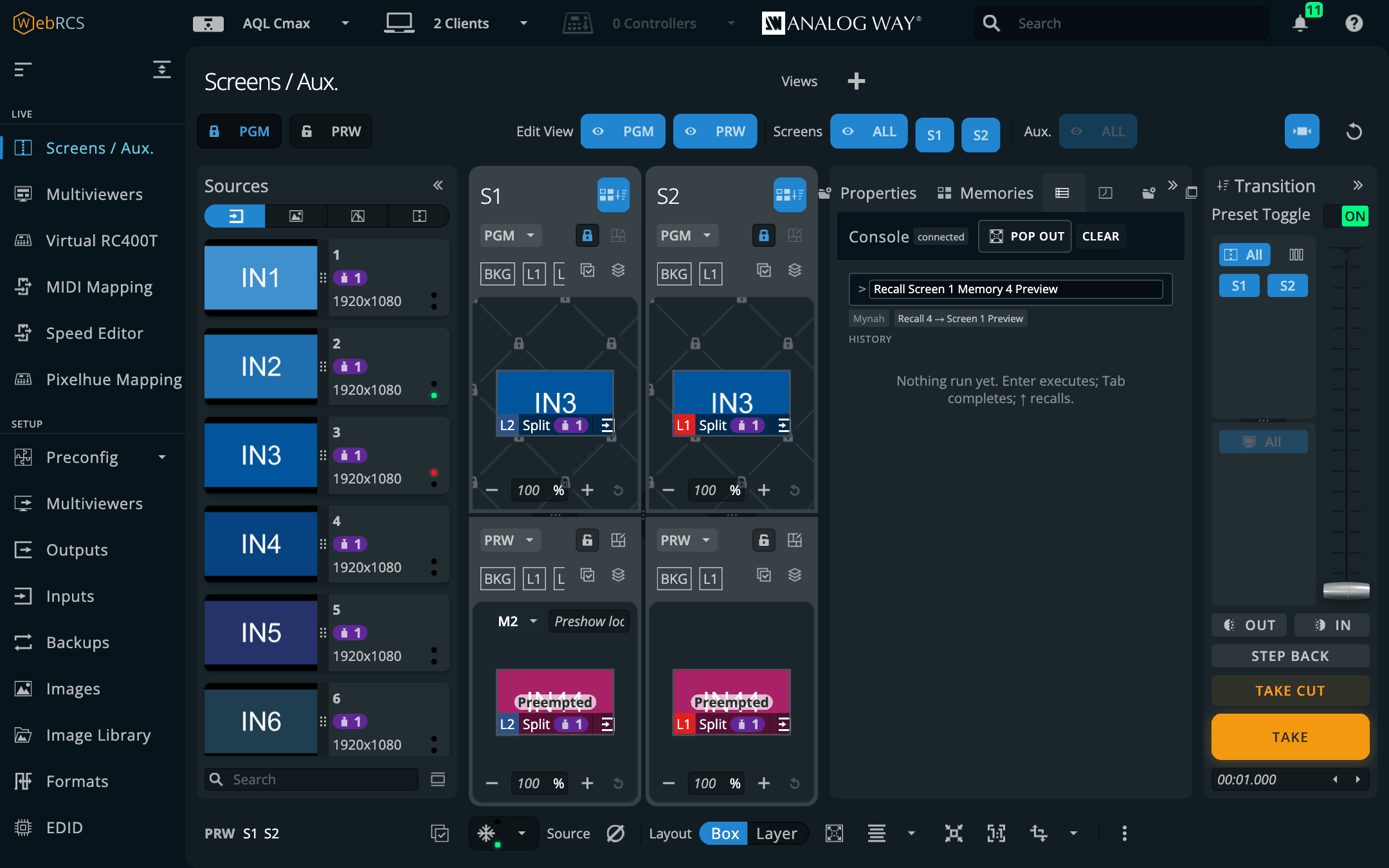

Console

Mynah's command language, inside Web RCS. Verb first, then objects, innermost scope last; every keyword abbreviates to any unambiguous prefix; Enter executes and nothing is sent before it.

Recall Screen 1 Memory 5
R Sc 1 Th 4 Me 5 Pre          the same command
Store Master 12
Take Screen 1

The line parses as you type and shows what it will do — Recall 3 → Screen 1 Preview — before anything reaches the device. Tab completes, ↑ recalls history.

Variables stand wherever a number goes — Set Screen 1 Layer 2 Size ($S1.width / 2) $S1.height, Recall Screen 1 Thru @screens Memory @opener — and the feedback names what each reads before Enter. Arithmetic goes in brackets, because outside them + and - are still the range operators. See docs/VARIABLES.md.

This panel owns no grammar. Every token, rule and device path comes from src/vendor/mynah-lang.mjs, which is mynah's own npm run build:lang output — the same artefact its Companion module vendors. If a command means the wrong thing, the fix is in mynah.

That is worth more than tidiness. Mynah's compiler and this repo's CMD builder were arrived at independently — and they emit byte-identical store paths for the commands both know. Two independent derivations agreeing is the strongest evidence either is right, and it stays true only while nobody re-types the grammar here. A test pins it.

Four languages, one line

The same command line also takes raw AWJ, raw Web RCS store JSON, and OSC. These are all the same write:

Take Screen 1
AWJ DeviceObject/$screenAuxGroup/@items/S1/control/@props/xTake = true
{"path":["device","screenAuxGroupList","items","S1","control","pp","xTake"],"value":true}
/lp/screen/1/take

Mynah is the language for driving a show. The other three are for the times a show is not going well: a path out of a packet capture, a frame out of a browser's network panel, an address a lighting desk is already sending. Each is something you already have in front of you, and translating it by hand costs a typo on a live frame.

Each line is read as whichever language it looks like, and the verdict is shown beside the feedback before you press Enter — a line read as the wrong language complains about a character rather than about a command, which reads like your own typo. A leading MYNAH, AWJ, JSON or OSC says which outright, and Settings → Console language can turn detection off altogether.

Reading a value back

AWJ get DeviceObject/system/$device/@items/1/@props/dev answers. Nothing else here does — the vendor's socket carries a stream of changes rather than a request and its answer — so a get goes out on a real TCP 10606 socket opened by this process, and the reply lands in the console log.

Everything else rides the vendor's own connection, whichever language it was typed in: one path is held once and rendered for either transport, so an AWJ message converts to a store write and lands at the same node. Settings → AWJ via switches that, for when you want the message on the wire exactly as typed; the device allows five AWJ clients and this spends one of them for the length of each exchange.

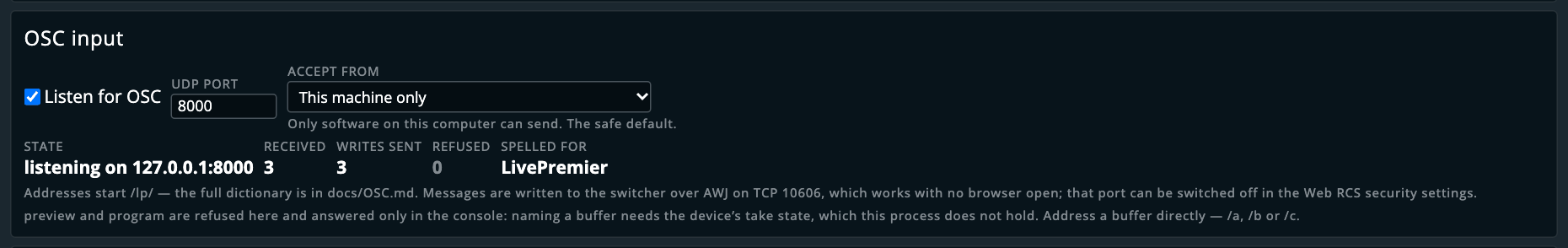

OSC input

Off by default. Turn it on in Preconfig ▸ LivePremier Plus → OSC input and this process listens on a UDP port, so QLab, TouchOSC, Companion or a lighting desk can drive the switcher directly.

/lp/screen/1/take
/lp/screen/1/memory/5/recall/preview
/lp/master/memory/12/store
/lp/screen/1/preset/a/layer/2/opacity/opacity/norm 0.5

The full dictionary is in docs/OSC.md — every address, its argument and its range. It is the same address space the MIDI mapping binds to: a fader is bound to a screen, a preset, a layer and a parameter, and that four-part address is the same thing whether it arrives as a control change or as a packet. The document is generated from the resolver's own tables, so it cannot describe an address that does not work.

Four things worth knowing before you wire a surface to it:

• The address is the target; the argument is only the value. A button with a fixed address and no argument still means something specific, which is what lets a TouchOSC layout be drawn once with no logic behind it.
• A trigger fires on a non-zero argument and on none at all. Surfaces send 1 on press and 0 on release; firing on both would take the screen twice.
• A recall never defaults to program. /lp/screen/1/memory/5/recall goes to preview. Reaching air costs the explicit word, here as everywhere else.
• /norm takes 0–1 and scales; without it the value is in the device's own units. Opacity is 0–256, not 0–100. Which one 0.5 meant cannot be worked out from the value, so it is said in the address instead.

It binds to loopback unless you choose otherwise, and the other option says in as many words that the network will be able to fire takes. Messages are written to the switcher over AWJ, so it works with no browser open — which is the point — and that port can be switched off in the Web RCS security settings.

Over UDP, live layer parameters must name a buffer — /a, /b or /c. preview and program name whichever buffer is pending or live right now, and resolving that needs the device's take state, which this listener does not hold. It refuses those addresses with that reason rather than guessing. The Console can resolve them, because the page has the device store.

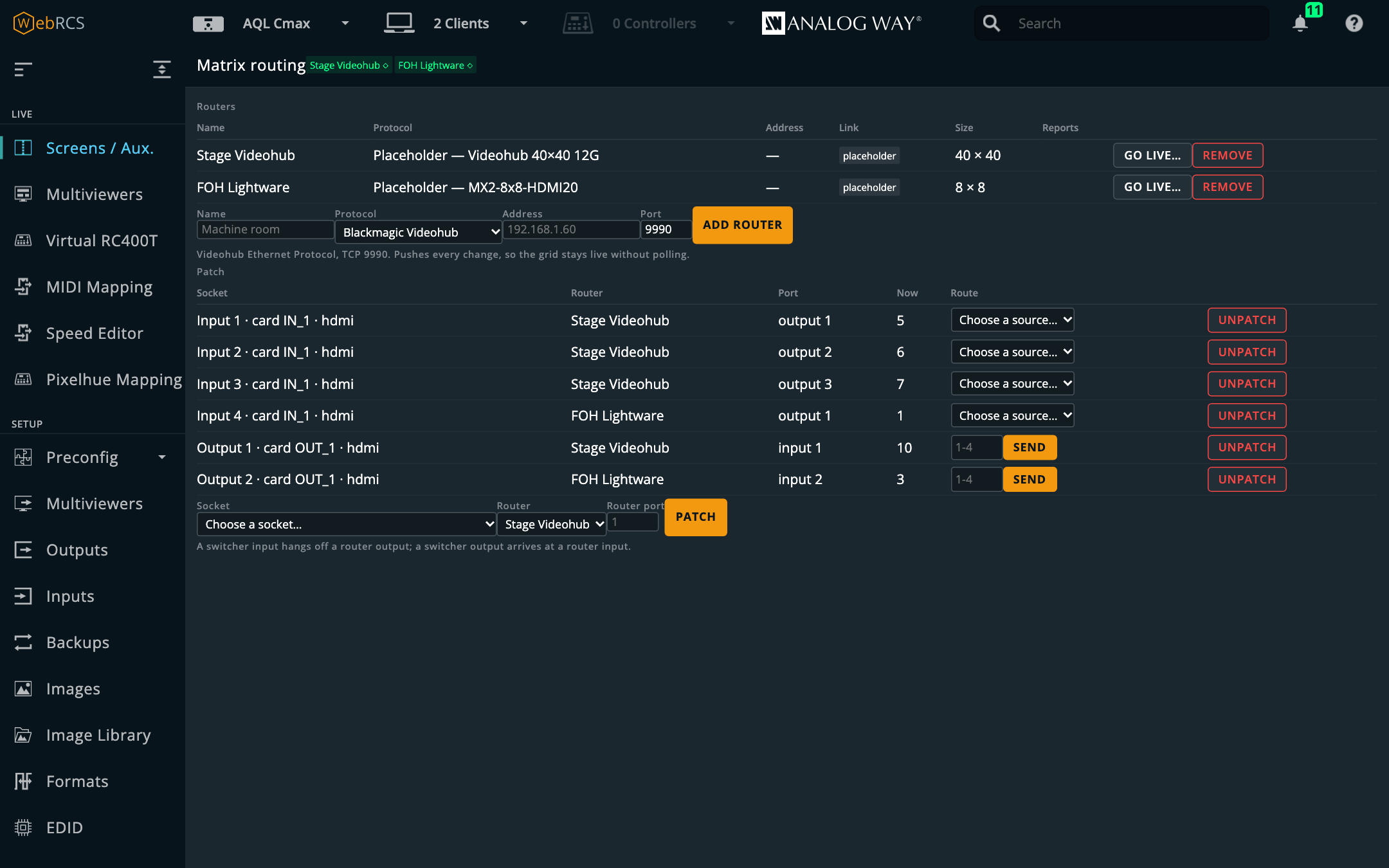

Matrix routing

Patch the switcher's own SDI and HDMI connectors to ports on a Blackmagic Videohub, a Lightware or a Turtle AV router, then route through it — from the panel, from a cue, from the Console or over OSC.

Tell it about the cable and the rest follows:

That inversion is the whole model. From it come the two operations, which are deliberately not symmetrical: an input is fed by one router output, so choosing its source is one crosspoint and fully determines what it sees; an output arrives at one router input, which can be sent to any number of destinations at once.

The panel names sockets in the device's own words — Input 13 · card IN_2 · connector IN_25 · sdi — because which connector "card 2, port 1" is depends on a legend this app cannot see.

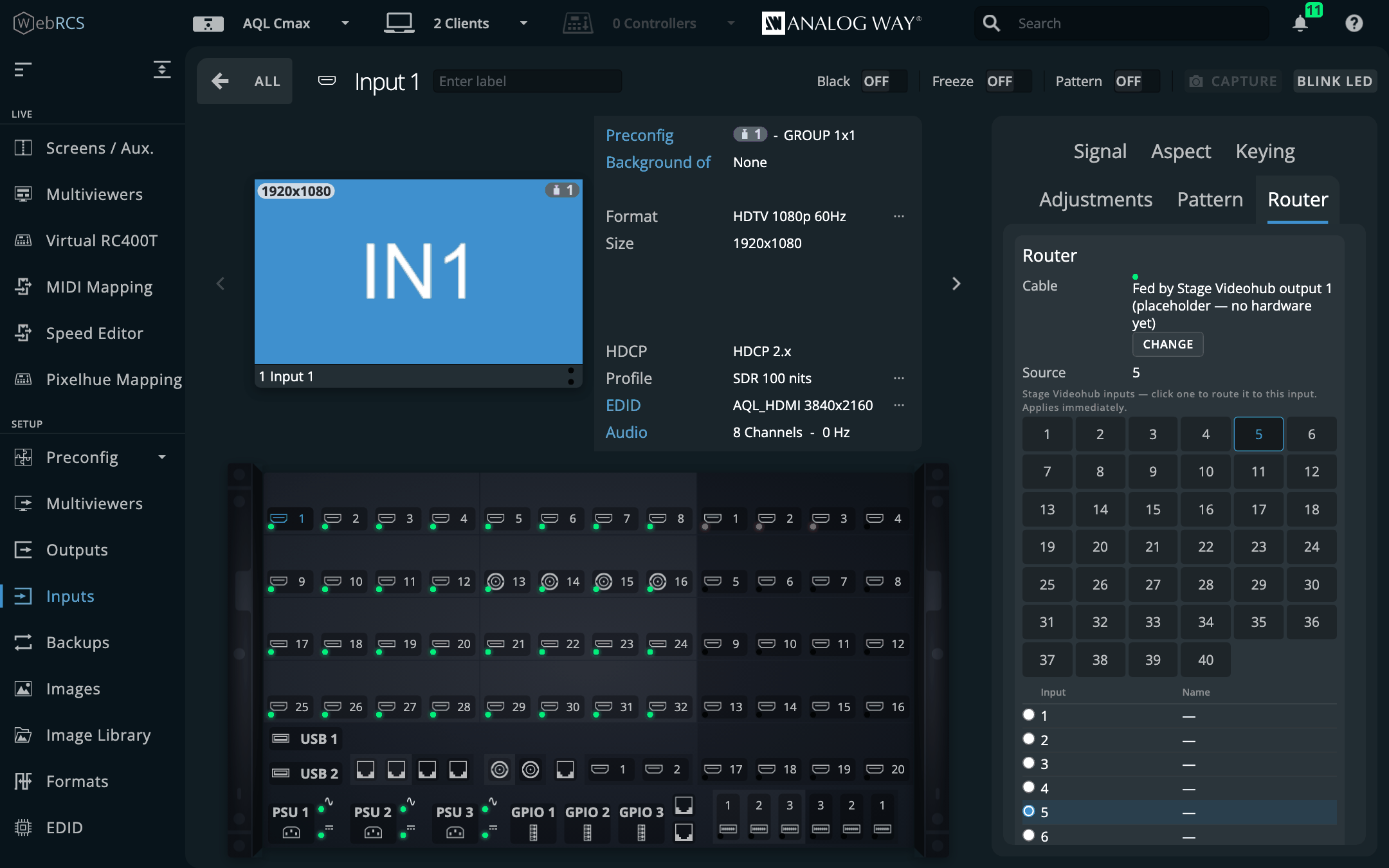

The same routing is on the vendor's own pages: a Router tab on Inputs ▸ an input and Outputs ▸ an output, and a Router box in Preconfig ▸ Inputs / Outputs.

A placeholder router — a Videohub, Lightware or Turtle AV model of the right size with nothing on the other end — takes the patch and the routing before the rack arrives; Go live… gives it an address and Push plan sends only what differs.

Nothing is optimistic. A driver never writes its own state: a click does not move the grid until the router says it moved. A Videohub answers a refused route with ACK and the unchanged routing, so a UI that showed what it asked for would lie during exactly the minute that matters.

⚠️ No real router has ever driven this. The Videohub driver is a port of BlackMatrix's, exercised against a working implementation of the protocol; the Lightware and Turtle AV drivers are written from their vendors' protocol documents and have never spoken to hardware. The patch model and the connector reader are checked against a real LivePremier's own store. docs/MATRIX.md has the whole thing, including a short procedure for proving each driver on your own kit.

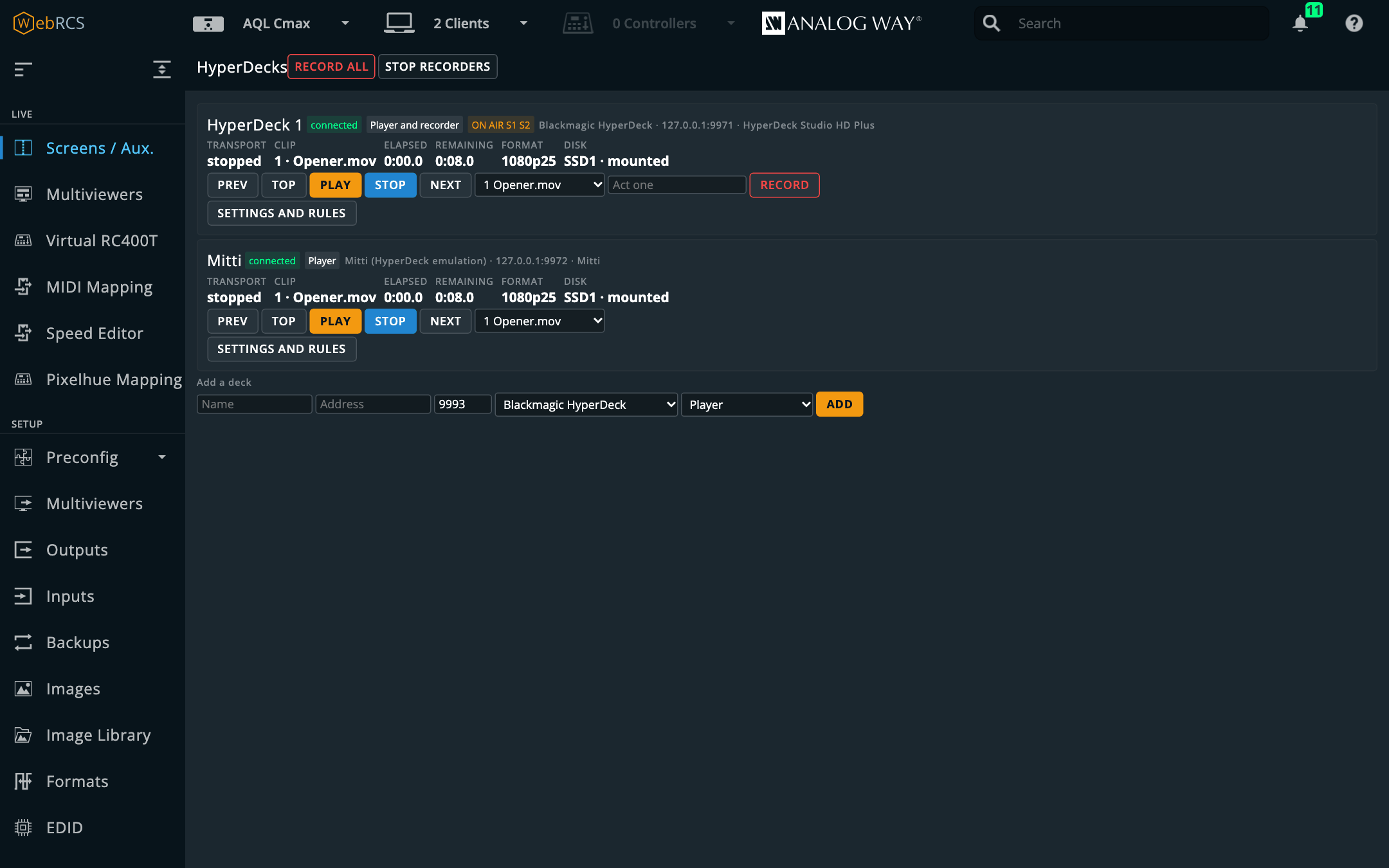

HyperDecks

PLUS ▸ HyperDecks. Blackmagic HyperDecks — and anything that answers their Ethernet protocol, Mitti included — played, cued and recorded from the panel, from a cue (VT 1 clip 3; VT 1 play) or over OSC (/hyperdeck/<deck>/play). Each card shows the transport, clip, elapsed and remaining time, format and disk, and whether its input is on air or in preview.

Tell a deck which switcher input it plays into and it can follow the show the way Mitti follows an ATEM: play when that input is put on program, rewind when it is cued, pause, rewind or load the next clip when it comes off, and take when its clip ends — a set number of seconds early, so the mix lands on the last frame. The rules run in one open page at a time, and act only on what changes after they start, so opening a page never plays a deck already on air.

⚠️ Written from Blackmagic's published protocol and proved against an emulation of it — not yet against a real HyperDeck. node tools/hyperdeck-sim.mjs is that emulation; docs/HYPERDECK.md has the protocol notes and a short procedure for proving it on your own deck.

Mitti needs 0.17.0 or later. A real Mitti 2.8.18 answers 103 unsupported to any command ending in a carriage return, which is how 0.16.0 ends them. 0.17.0 ends them with a bare line feed, which a HyperDeck also takes, and the simulator's --mitti mode now refuses CR the same way.

Dante — preview

PLUS ▸ Dante. The Dante network's routing, read off the devices themselves: receivers down the side, transmitters across the top, as device blocks that open into channels. A cell is one subscription, coloured by what the receiver reports — connected, establishing, unresolved, failed — and a click subscribes or clears it; a block lays one device across another channel for channel. The grid opens locked, because it reaches every device on the audio network, not only the switcher. Off by default; turn it on in Preconfig ▸ LivePremier Plus.

Dante Controller has no remote-control interface, so this is two things rather than one pretend one:

• Its own Dante routing control, speaking the control protocol the open-source netaudio project reverse-engineered: discovery, channels, subscriptions and their status, and adding and removing subscriptions. Every write is planned against what the devices last said, sent, and read back — what the panel reports is what the devices say afterwards, never what was asked.
• Dante Controller's own preset files. Export a preset of what this app reads, and load it in Dante Controller with File ▸ Load Preset; or import a preset Dante Controller saved and see exactly which subscriptions applying it would change — clearing the channels it leaves empty, as Dante Controller does — before anything is sent.

Routing snapshots save and recall the whole network's subscriptions, from the panel, a cue (snapshot Show A) or OSC (/lp/dante/snapshot/Show-A/recall). The switcher's own Dante card is found by the name its store reports and marked in the grid, with what its Audio Matrix does with each Dante channel beside it.

Discovery asks the network from a port of the app's own and never touches UDP 5353, so the system's mDNS responder — and Dante Controller and Dante Virtual Soundcard, which depend on it — are left alone. Devices can also be listed by address.

⚠️ Preview: never yet run against a real Dante device. The protocol codec is held, byte for byte, to packets Dante Controller itself sent, and the rest was proved against node tools/dante-sim.mjs — a simulated network built from the same tables, which is not evidence about a real one. docs/DANTE.md has the design, a source for every protocol table, and the first-device test to run before a show.

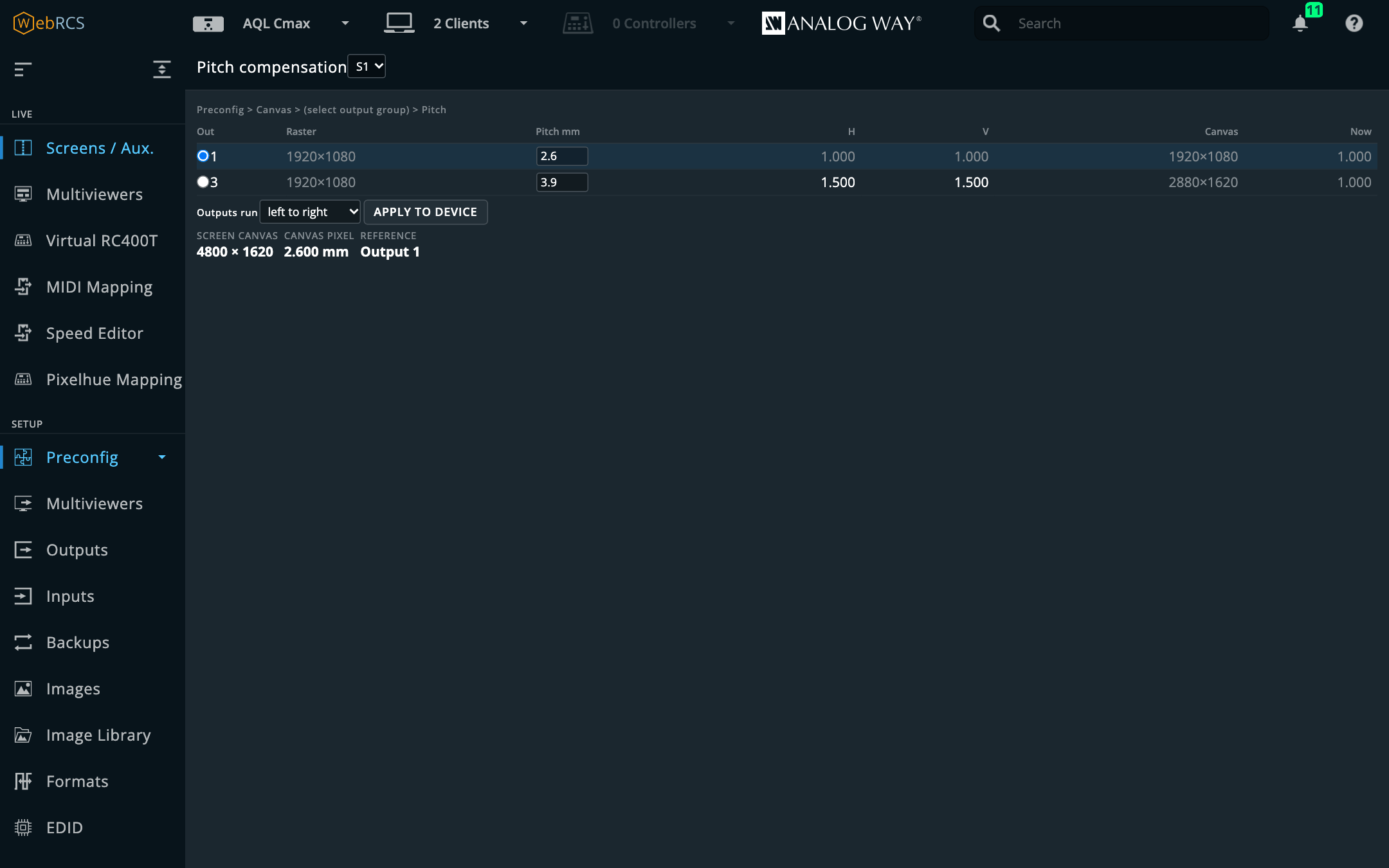

Pitch Compensation

Under Preconfig, beside the two fields it fills in.

A screen spanning LED walls of different pixel pitches needs each output group told how much canvas its raster is worth, or a layer crossing the join changes physical size the instant it crosses. The device has the fields for it — Preconfig > Canvas > Pitch, H Ratio and V Ratio — and no help at all working out what to put in them.

The device knows every number but one. It has the rasters, it knows which outputs are on the screen, and it will say what ratios are set. It has no idea how far apart the LEDs are, so the panel reads the first lot and asks you for the pitches — one per output, 2.6, or 2.6 x 3.0 if the pixels really are not square.

The engine is aquilon-pitch's, vendored into src/vendor/pitch-engine.js. It carries four things that are easy to get backwards and still look right, each established there by driving a simulator rather than reading the manual:

• the ratio multiplies a group's raster to give its canvas footprint, so a coarser wall takes a ratio above 1.000
• the field is an integer in thousandths, range 0.100 to 10.000
• an out-of-range write is discarded by the device, not clamped — so a ratio that will not fit is refused here rather than sent
• the footprint floors, so 1080 × 1.234 is 1332 and not 1333

Applying takes two presses. It is a preconfig change, it moves every output on the screen at once, and it is the only control in the panel that touches the device — so it should be hard to hit by accident. When the device already holds the computed ratios the button says so and does nothing.

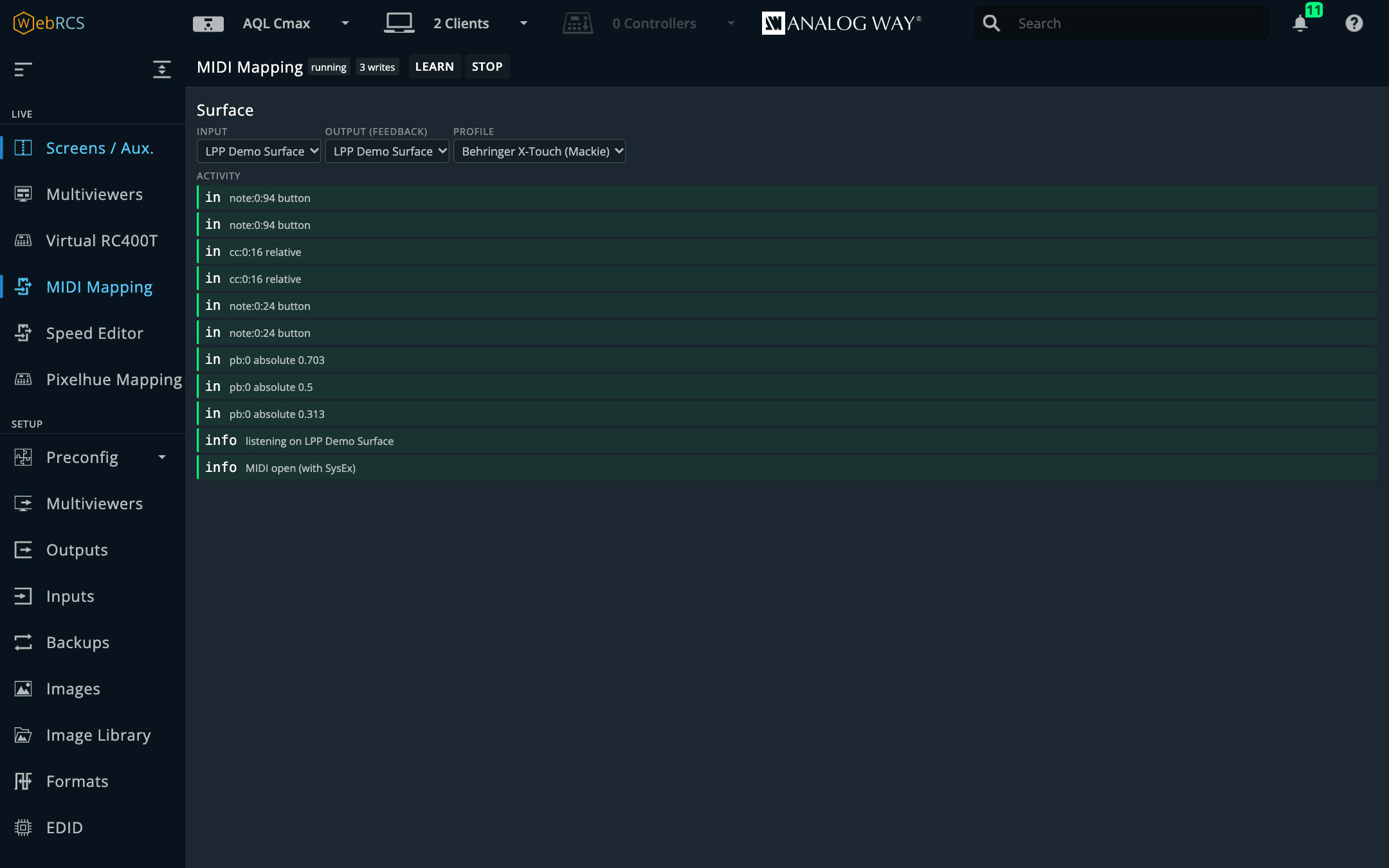

MIDI Mapping

Under Virtual RC400T. Pick an input, an output for feedback, and a controller profile; Start. Faders, encoders and buttons then drive the selected layer.

The engine is awj-surface's, vendored whole into src/vendor/surface/ along with its stock profiles (X-Touch/Mackie, APC40, MIDIcon 2 and Pro, plus a generic learn profile). Decoding, soft pickup, encoder acceleration, MCU feedback and the parameter catalogue are all upstream's. This repo contributes a front-end and nothing else.

Soft pickup is the behaviour worth knowing: a non-motorised fader will not move a live value until it has swept through that value, so picking up a fader mid-show cannot jump a layer's opacity. The panel shows the hold-off rather than looking broken.

Why this needs no offscreen document

navigator.requestMIDIAccess() is a secure-context API. When this project was a Chrome extension the page was a Web RCS on a plain-HTTP LAN address — not a secure context — and a content script inherits the page's context, so neither world could use it. The answer then was an offscreen document on the chrome-extension:// origin relaying MIDI through a service worker.

None of that is needed here. The proxy serves the vendor UI from http://127.0.0.1:<port>, loopback is a potentially-trustworthy origin, so the page is a secure context and Web MIDI is simply available. It also fixes the SysEx problem: an invisible offscreen document cannot show a permission prompt, so Mackie scribble strips needed granting from a separate page. A normal page just asks.

The corollary: a plain-http page on any address but loopback has no Web MIDI and no audio input — the switcher's own address, and equally this app's own when the launcher binds it to a LAN interface and opens http://192.168.2.69:8534/. Until 0.7.0 the note on the Settings page only knew the first case and told an operator already inside LivePremier Plus to open LivePremier Plus. Now: a LAN-bound server always answers on 127.0.0.1 as well, a browser on the same machine that arrives by the LAN address is redirected there (the server can tell — a connection whose source address is the very address it connected to was made on this host, and nothing else qualifies, not even a VM behind a NAT bridge), and the note names the page that is actually open, the loopback door with its port, and the fact that another machine would need HTTPS, which this app does not serve yet. Only top-level navigations are redirected; the vendor app's fetches and its socket stay where they are.

Speed Editor — preview

Under Virtual RC400T, beside MIDI Mapping. A DaVinci Resolve Speed Editor as a switcher panel, plugged into the machine LivePremier Plus runs on — USB, or paired over Bluetooth. The page says when it has found the panel; press Start.

It is MIDI Mapping's sibling and owns no engine: the panel's handshake and reports are awj-surface's core/hid/, vendored under src/vendor/surface/hid/, and mapping, soft pickup and feedback are the same engine the MIDI panel runs, in the page.

The device host holds the panel, not the page. The first build used WebHID, and on a real panel Chrome on macOS could not read the handshake's challenge: it reads every feature report at the length of the largest (33 bytes), and the panel refuses a 10-byte report read that way. So USB panels are held by the device host (devices/), a program of its own that the app starts, restarts if it stops, and stops with it. Its Speed Editor module opens the panel through node-hid, answers the challenge, renews it at half its lease, finds the panel again whenever it is plugged back in, and streams its reports to the page. The panel is only opened while a page has the Speed Editor started, and let go when none has; one page drives it at a time, and Take over moves it to another. Any browser works, from any address. The host's state is on the settings page (Device host).

The desktop app carries the device host. In a checkout, npm run setup:devices installs it once, and the app starts it on every run after (--no-devices to not). node-hid is the host's dependency, not the app's. The Docker image has no USB and no host. Without it the Speed Editor page says why and the rest of the app is unaffected. Quit DaVinci Resolve first: both would hear every key and fight over the lamps.

⚠️ Preview. Proven on a real panel over USB on macOS against the simulator (2026-09-25), through the device host in a staged desktop bundle: the handshake, CUT (repeatedly), CAM 1–3 into preview, the wheel on opacity, the battery level, and a replug. Not yet: whether the key lamps light, Bluetooth, and Windows or Linux. The tests run a fake panel that plays the real handshake and, like the hardware, refuses a read at the wrong length.

Thumbnail relay — preview

The switcher's source thumbnails are PNGs its firmware writes with next to no compression — about 148 KB each at 256×144 on an Aquilon C, 590 KB at 512×288 on a Pulse 4K — and the Web RCS asks for every input's about once a second. Ten inputs on a Pulse is some 47 Mbit/s of thumbnails.

Switch the relay on in Preconfig ▸ LivePremier Plus → Plugins and this app answers those requests itself: it fetches each PNG from the switcher, re-encodes it as a JPEG in a worker thread (10–40 KB, by how busy the picture is), and hands the same frame to every page that asks within 300 ms. The vendor's own source cards draw the JPEG unchanged. Anything it cannot improve — a 404, a placeholder that would grow — goes through as the switcher sent it; switched off, nothing is touched.

The Web RCS asks for every input's thumbnail in turn, whether anybody is looking at it or not. The relay tells apart the ones being edited — drawn in a screen or aux canvas on Screens / Aux., or in this app's Edit page and previews, and on screen — from the rest. While any are, the page refreshes those itself (Hot refresh, 2 Hz by default) and the relay answers the vendor for every other source from the frame it already has until it is Idle hold old (4 s). Against the simulator with 32 inputs and three on S1/S2, the three went from a new frame every 1.28 s to four a second, the other 29 to one every 5 s, and the switcher's link carried less than before. Nobody editing — a page of source cards alone — and every source is treated alike.

The switcher still sends each PNG it is asked for in full; the hold is what reduces how often it is asked. The traffic from here to the browsers shrinks most, which matters for a page on another machine — a tablet on the show Wi-Fi. Its card on the settings page shows the bytes in and out, which sources are hot, and how often each source's picture really changed.

⚠️ Preview: never yet run against a real frame. Proved against the LivePremier Simulator with a stand-in serving hardware-shaped thumbnails. node tools/snapshot-probe.mjs --device <ip> measures how often a real switcher rewrites a thumbnail — the number that decides what comes next.

Multiviewer thumbnails — preview

The switcher already draws every source, live, on its multiviewer, and the device store says to the pixel where each one sits: an Aquilon C's multiviewer 1 was a 5×4 grid of 384×270 widgets carrying IN_1…IN_20. Put that multiviewer into a browser and this plugin cuts each source out and puts it into the page's thumbnails — the vendor's source cards, the screen and aux canvases, this app's own — at up to 25 frames a second instead of one.

Where the picture comes from is chosen in each browser, on the plugin's card in Preconfig ▸ LivePremier Plus:

• Capture device — a capture card on that machine carrying the multiviewer output: anything the browser sees as a webcam. Needs localhost or https.
• Stream (WHEP) — WebRTC from MediaMTX, re-serving an encoder that carries the multiviewer. Works from any machine, a tablet on the show Wi-Fi included.
• Test pattern — a multiviewer drawn in the page from the store's own layout, for a simulator, which has no multiviewer output.

On a Midra 4K or Alta 4K the switcher can be its own feed. Its H.264 streamer takes the multiviewer (OUTPUT_MTVW) as a picture — a real Pulse 4K offers it — and pushes RTMP. Point it at a MediaMTX (rtmp://<host>:1935/<path>) and the page plays the same path back over WHEP (http://<host>:8889/<path>/whep, worked out for you). The card's Stream the multiviewer here writes one destination slot (10 by default), sets the picture and starts it — only when you press it, after a confirmation, and never while the streamer is carrying something else. It is the unit's only streamer, and the stream is 720p30 and a second or so behind: slower than a capture card, far quicker than the PNGs.

The card draws the capture with every cut outlined, so the three things not yet seen on a real output can be checked by eye: whether the picture is 16:9 inside its widget, where it sits (centre, top, bottom) with the label band beside it, and whether a tally border needs trimming. Only inputs (and, on a LivePremier, stills) have thumbnails to replace; a source not on the multiviewer keeps the switcher's picture. Three seconds without a new frame and every thumbnail is handed back to the switcher.

⚠️ Preview: never yet against a real multiviewer or a real streamer. Proven against the LivePremier Simulator with the test pattern — the vendor's own source cards drawing the cut pictures, a source leaving the layout and a dead capture both handing back — and the Midra geometry and streamer plan checked against a real Pulse 4K's store. Starting the streamer has never been seen to work: the simulators never start a stream.

Background Slicer — preview

PLUS ▸ Background Slicer. A background set gives each output of a screen its own still or input, shown 1:1 in the output's raster — so a picture that spans a wall has to be cut into exactly the piece each output shows. This does the cutting. Choose a picture and the screens; each screen's canvas is drawn with its outputs on it, the picture over them, to drag or type into place (Fit, Fill, Stretch, 1:1, Centre, or one picture spanning several screens). The plan says, before anything is written, which background set, free library slot and free still each output takes, the still capacity it needs, what it replaces, and whether its cut is a straight copy of pixels or resampled. Generate cuts the PNGs in the page; Write uploads them through the switcher's own image route, sets the stills, raises a capacity through the preconfig only when the switcher's own check says nothing in use is displaced, fills the set and, if asked, loads it into preview — each step confirmed by the switcher's echo, and Undo takes back exactly what was written.

The live-input mode gives each output an input instead: the set takes LIVE_n, each input's plug is loaded with the switcher's own EDID for that output's format, and the map the media server behind those inputs needs is exported — an Arena Advanced Output preset (written by output-map, held to files Arena itself wrote), disguise's Feed Mapping table, Pixera feed rects, a Hippotizer Video Mapper CSV, Millumin SVGs, a TouchDesigner table, and a CSV/JSON/SVG/PNG pixel-map pack with a recipe for QLab, Mitti, MadMapper and Watchout. docs/BACKGROUNDS.md is the design, what is proven, and which of those formats each server really imports.

⚠️ Preview: never yet run against a real frame. Every write was proved on the LivePremier Simulator, whose outputs are a static picture, so a background written there cannot be seen. The cut is tested on every pixel; what the switcher does with a rotated, grouped, sliced or pitched output is not seen yet, and the panel marks each output that rests on that.

On a Midra 4K or Alta 4K the platform has its own model, and the panel follows it: a screen takes one picture, its canvas, through one of its four Background Images shown 1:1, and an Auto Crop background set lets the switcher crop it for each output — the plan shows the switcher's own rectangle for every output and whether it is 1:1. The library slot is the switcher's choice (its first empty one), so the plan refuses when any Background or Foreground Image already points at that slot — the upload would appear there too. The live mode fills a Custom set with an input per output. Proved on the Midra 4K simulator 3.2.29, write and Undo, each write confirmed by the switcher's own echo; see docs/BACKGROUNDS.md.

Pixelhue panel — preview

A Pixelhue U5, U5 Pro or U5 mini event controller, driving the switcher. Off by default; turn it on in Preconfig ▸ LivePremier Plus.

It does not map keys. The console is handed a model of this switcher — its screens, its inputs, its memories — and labels, lights and pages its own keys from it; what comes back is what the operator meant (select screen S2, put LIVE_2 on the selected layer, take), carrying the identity this app published. So there is nothing to remap when a firmware moves a key.

⚠️ Preview: this has never been run against a console. It was built from the consoles' firmware and proved against the vendor's own control service running headless with no panel attached. docs/PIXELHUE.md has the wire detail, how to rig one, and the list of what is still unverified. Since 0.14.0 it has been driven key by key from PixelFlow's own virtual U5 against the simulator; fade-to-black and freeze are sent on LivePremier, not yet on a Midra 4K.

What each key, fader and encoder does is editable on Pixelhue Mapping, under Virtual RC400T: the console drawn in the Virtual RC400T's look, the buses showing what the console shows. Click a control to change it — take, cut, fade to black, layer stepping, the cue stack, a memory to preview, a Companion button — or press it on the console and it lights up here. A changed control carries a blue dot; Reset puts everything back.

A U5 mini answers on the LAN, so it is driven from wherever this app already runs. A U5 or U5 Pro serves its control port on loopback only, so this app has to run on the console itself — which is a Windows mini-PC with a touch screen, and runs the proxied Web RCS perfectly well.

The demo environment

npm run demo

Brings the whole thing up against a LivePremier Simulator, with a real Aquilon C's resource map folded in and an example cue stack already loaded, so every panel has something real to show without a switcher in the room. It prints a short list of things worth trying and the URL to open.

It needs a simulator running, and that is not a shortcut — the panels mount into Web RCS's own sidebar, are drawn with its own utility classes and ride its own socket, so a demo that stubbed all of that would be a demo of something that is not the product. The simulator is Analog Way's, runs locally, and is the honest way to have the genuine vendor UI with no device and no vendor asset copied into this repo.

What the simulator cannot provide is a VPU — it has no vpuMixerList at all, so the panel against a bare one correctly reports there is nothing to draw. tools/demo/seed.js supplies that from the recorded capture: 32 of 64 mixers fitted, 26 allocated, S1 in Optimized mode, and a staged preconfig differing from the running one in 26 mixers. Everything outside preconfig/resources stays the simulator's own live state, so cues fired from the timeline really do go on the wire.

It refuses to run against anything that is not loopback. The demo splices a store subtree and seeds a cue stack, and "I thought it was the simulator" is exactly the mistake worth making impossible. To drive a real switcher, use npm start -- --device <address>.

If the simulator is on another port:

LPP_DEMO_DEVICE=127.0.0.1:3001 npm run demo

The demo's cue stack lives in a temporary directory and is deleted on exit — ~/.livepremier-plus is never touched.

Arithmetic in numeric fields

Type an expression into any of Web RCS's own numeric fields and it is evaluated when you commit — on Enter, or on leaving the field:

+ - * / ( ) and decimals, with the usual precedence. The result is clamped to the field's own declared range and rounded to its step, so a width of 9000+1000 lands on 8192 rather than being refused.

Nothing else about the field changes. The vendor still validates it, still decides what to send, and still drags the other axis along if the aspect lock is on — all this does is substitute the number you meant, an instant before Web RCS reads it.

Where it applies, and why that is narrow on purpose. Only fields the vendor itself marks as numeric, which it does by putting min, max and step on them — its geometry fields report step="1" with real ranges. That is a steadier signal than any class name in a CSS-modules build, and it excludes everything that must not be touched: labels have no step, and neither does the transition-time field, whose 00:01.000 would be mangled by anything treating : as arithmetic.

Opacity and zoom are deliberately excluded. Those are real input[type="number"] fields, and a number input discards anything it cannot parse — after typing 1080-80 the browser reports value === "", and the expression is visible on screen but unreadable from script. Supporting them would mean swapping type to text on focus and reimplementing the native up/down stepping operators use. Mutating a vendor element's type on every focus, in a UI driving a live show, to win arithmetic on an opacity field is not a good trade.

There is no eval anywhere in this path. src/core/expr.js is a hand-written recursive-descent parser over a closed token set; anything it does not fully understand is refused rather than guessed at, and the field is left exactly as typed for the vendor to reject as it would today.

Variables work here too, while the Variables plugin is on: $S1.width/2, @gap*3, $OUT1.cw - 40. One that cannot be read right now — a program layer mid-take, a canvas the switcher has not reported — is not applied, and the field flashes amber with the reason in its tooltip. Off, a field with a variable in it is left as typed, exactly as before. The names are in docs/VARIABLES.md.

What it looks like

Every panel is built from the vendor stylesheet's own utility classes — the slate-grey scale, the spacing scale, the typography — and the sidebar entries are cloned from real ones at runtime, so they inherit whatever per-build class hashes the firmware happens to use. The result is not a skin that approximates Web RCS; it is Web RCS's own CSS.

Console, Timeline, Layer and Groups are tabs in the vendor's own strip on Screens / Aux., beside Properties and Memories, because per-screen tools belong where an operator already looks for per-screen tools:

Properties | Memories | Console | Timeline | Layer | Groups

Layer is a properties editor, and it is called Layer rather than Properties because the vendor's own Properties tab is two along in the same strip — two tabs with one name is a worse problem than a name that is only most of the truth. It is also the honest difference between them: the vendor's tab follows the layer you have clicked, which is React state inside their bundle and therefore unreadable from here, so ours makes you name a destination, a buffer and a layer outright. On a second monitor that turns out to be the better behaviour anyway, because the window stays pointed where you left it.

MIDI Mapping, Speed Editor and Pixelhue Mapping sit under Virtual RC400T in the vendor's own LIVE section — all are about control surfaces, and filing them in a section of ours would file them by who wrote them rather than by what they do. Pitch Compensation and this app's own settings sit in the Preconfig flyout, beside the device settings they belong with. The whole-device views get a section of their own:

LIVE
  Screens / Aux.
  Multiviewers
  Virtual RC400T
  MIDI Mapping       <- ours
  Speed Editor       <- ours
  Pixelhue Mapping   <- ours
SETUP
  Preconfig
    …
    Pitch Compensation   <- ours
    LivePremier Plus     <- ours: settings and the plugin switches
  Inputs / Outputs   <- the vendor's, with a Router tab of ours
  …
PLUS                 <- ours
  Edit
  VPU Map
  Memories
  Layer Groups
  Layer Lock
  Matrix Routing
  HyperDecks
  Companion

A switched-off plugin takes its entry with it, so a sidebar can be shorter than this.

The memory banks are in the sidebar rather than on the strip for two reasons. They are not per-screen — master memories cover every screen at once, and the screen bank is one flat list of 1000 slots any screen can recall from — and the strip is about 360px wide, where five tabs already fall back to icons. Layer Groups is there for the sharpest version of the same reason: a group exists because it crosses screens.

Layer groups, and sending a source to one

An operator does not think "layer 2 on screen 1, layer 1 on screen 2, layer 1 on screen 3". They think the side screens. The switcher has no word for that — a LivePremier addresses a layer as (destination, preset buffer, layer) and nothing above that ties two of them together — so this adds one.

A group is a name and a list of layers, kept per device beside the cue stack.

It does two things:

• It is a target. Send an input to the group and every member gets it.
• It follows. A group marked gang — the default — watches its members, and a source change to any one of them is written to the rest. It does not matter how that change arrived: our menu, the vendor's own drag-and-drop, a memory recall, another client on the network.

The … on each source card is how you aim at one. It is beside the vendor's own ⋮ (which opens that input's settings) and cloned from it, so it inherits the same button styling whatever the firmware hashes it to this week; the glyph is horizontal rather than vertical so the two are told apart at a glance. The menu is preview or program, then a target: a recently used one, a group, or a screen and one of its fitted layers.

It writes the role, not the letter. A layer's source lives under a preset buffer — A, B or C — and which letter is program changes on every take, so two screens are routinely on opposite ones. Sending to "program" resolves that per screen. A gang that copied letter to letter would put a preview edit on air on half the screens, and that is the single thing this feature has to get right; it is verified on a device with S1 at AT_UP and S2 at AT_DOWN, which is the only arrangement in which a wrong answer shows up.

It respects the PGM padlock. The lock on a screen card is React state inside the vendor bundle — it is not in the device store, and a write over the socket is not subject to it. The menu honours it anyway: a locked target buffer gets a confirmation step naming every layer it is about to change, an open one is sent straight through. A screen whose card is not on screen has no lock to read, so it is treated as locked and asked about.

Mid-take nothing is written at all. "Program" and "preview" do not name a buffer honestly while a transition is in flight, and the refusal is the same one the Layer panel already makes.

Popping a panel out

Console, Timeline, Memories and Layer each have a Pop out button that opens them in a window of their own, for a second monitor. A popped-out panel makes no connection of its own: it drives the session already running in the Web RCS tab, so the switcher still sees exactly one client per tab. Close that tab and the popout says so in a banner rather than quietly stopping.

Popping out is the whole reason Memories and Layer exist as panels of ours at all. The vendor's equivalents are React panes whose event listeners are bound to the app's root container, so a copy moved into a second window repaints and stops responding — there is no way to relocate them. These read the device mirror instead.

Layer Lock

PLUS ▸ Layer Lock. A LivePremier take swaps the whole preset buffer; there is no per-layer take. What this uses instead is that a layer identical in program and preview has nothing to transition. Lock keeps a layer's preview copy equal to program, and every TAKE or CUT sent from this page — the vendor's own button included — is held for the few milliseconds it takes to line a drifted lock back up. Take only takes one layer, or one group, alone: every other layer is set equal to program, the take goes, and their preview looks are put back afterwards.

⚠️ Only takes sent from this page are held, and it is proved on the simulator only. The front panel, a T-bar, an OSC take or another operator's browser go straight to the switcher; the panel says so at the top every time.

Gallery

The panels above that have no section of their own, and the windows that pop out. All of them are the real app on the LivePremier Simulator 6.2.73, taken with npm run demo; click one for the full size. The user guide explains each.

Memories — every bank in one list, renamed in place, with the buffer that holds each.	Companion — linked to Companion 5.0.5: the connections it offers to add, and a page of buttons drawn as Companion renders them.
Audio Matrix — blocks of eight, Input 1 opened into single channels.	Timeline, popped out — a cue with its Companion trigger and HyperDeck commands.
EDID ▸ From Formats — an EDID built for custom format M1, one click from the bank.	Create EDID… — the Otter editor in its own window, saving straight into a slot.
Mosaic — one tiled EDID per plug, saved and applied to a 2 × 1 input group.	Layer names in the vendor's own pages — here Preconfig ▸ Screens.

How it works

Everything the browser asks for goes through this process to the switcher and back. On the way past, the document picks up two script tags:

GET /                    the device's own index.html, plus:
  <script>…hook…</script>          inline, in <head>
  <script type="module" src="/__lpp/src/main.js">
GET /styles/app.<hash>.css         proxied, untouched
GET /api/stores/device             proxied, streamed — it is over 100 MB
ws://localhost:8535                relayed byte-for-byte to the device

Three properties of that arrangement are load-bearing:

The hook cannot lose its race, because there is no race. It has to wrap WebSocket before the vendor bundle constructs one, or it misses the connection and every frame up to it. As a Chrome extension this meant a document_start content script, which usually won but was never promised to. Here every vendor script tag is defer and the hook is an inline classic script, so the HTML parser orders it first by definition.

No URL is rewritten. Every asset the Web RCS references is root-absolute, so a path-preserving proxy needs no rewriting at all. Resist adding any: the vendor's hashes change every firmware, and a rewriter would be one more thing to keep in step with a bundle nobody controls.

One connection reaches the device. The upgrade is relayed at the byte level, so the device's client count stays honest and this process never needs to understand WebSocket framing.

The device itself is one large JSON object. The Web RCS front-end hydrates it from GET /api/stores/device and then applies a stream of {path, value} writes off the socket; writing a property is the command. The panels do the same thing, over the same connection. See docs/TRANSPORT.md.

Why a proxy and not a browser extension

This started as one, and the extension worked. The proxy replaces it because it is strictly better on four counts, at the cost of a process to run:

• It works in any browser, not only a Chrome with a sideloaded extension — which matters on a locked-down show laptop.
• The hook's ordering becomes a guarantee rather than a race.
• Cue stacks persist to a file, and are keyed by device. The extension brokered chrome.storage through a content script; that code never once executed.
• There is no MV3 packaging step to get wrong, and no unpacked-extension install for an operator to redo after a browser update.

What did not change is the important part: the panels, the store mirror and the cue engine are the same code, and they still ride the vendor's own socket.

Layout

server/
  index.js       CLI entry: flags, data dir, shutdown
  proxy.js       the reverse proxy, the injection, the socket relay, settings
  plugin-host.js loads each plugin's server half, routes to it, and stops it
  storage.js     the files on disk: settings, the remembered switcher
  documents.js   a plugin's per-switcher JSON document, as a route
  config-file.js the one-file setup's format
  osc.js         the UDP listener the OSC input plugin runs
  awj.js         one-shot AWJ exchanges with the switcher
  setup.html     shown until a switcher is chosen
src/
  core/          no DOM, no transport - importable anywhere
    paths.js       store paths, the AWJ spelling of them, and the command set
    device-store.js  the local mirror of the device object model
    vpu.js         the VPU allocation map, adapted from the device store
    cuestack.js    the cue engine: GO, follow chains, delays, fade times
    session.js     snapshot + stream, folded into a store
    plugins.js     every feature as a plugin: what it is, and whether it is on
    contributions.js  how plugins extend each other: contribution points, services
  transports/
    page-socket.js the vendor page's own WebSocket
  ui/            the shell, the tab strip, the settings page, shared panels
    plugin-host.js loads each plugin's page half into the sidebar and tabs
  hook/          the WebSocket hook, inlined into the document by the proxy
plugins/         every feature, one folder each - a server half, a page half,
  console/       or both: console, timeline, matrix-routing, companion, edit,
  …              memories, layer, layer-groups, osc-input and the rest
examples/plugins/hello-switcher/   the template for a plugin of your own
launcher/        the desktop app - the fleet's standard Tauri tray shell

core/ is deliberately free of anything browser-shaped — it imports and runs under plain Node, which is what the test suite does. The browser panels are one front-end over it; a standalone client talking AWJ over TCP 10606 is meant to be another, and only needs a second transports/ module.

Seven things are vendored, not reimplemented

Each is copied rather than re-derived for the same reason, and it is not convenience: two implementations of one grammar, one device model or one decode table will eventually disagree, and both will look right. npm run sync:* re-copies each and rewrites its provenance; test/vendor.test.js fails on drift and skips when there is no upstream checkout to compare against. Edits belong upstream.

The VPU model is shared, not reimplemented

src/vendor/vpu-model.js is a copy of public/vpu.js from aquilon-vpu-map, the standalone tool that reads the same allocation over AWJ. Deliberately the same model in both places: if two tools derived their own answers from one device they would eventually disagree about what the box is doing, and both would look right. npm run sync:vpu-model re-copies it and rewrites the recorded commit, and test/vendor.test.js fails if the copy has drifted from an upstream checkout.

src/core/vpu.js is the only part that differs between the two projects. That tool assembles mixer records from a few hundred AWJ reads; this one lifts them straight out of the device store the page already has, which also gets the per-screen resource status — the device's own "does this fit" figures — for free, where the standalone reader spends 24 round trips on it.

There is deliberately no AWJ path here. It would be easy to add — this is a process, it can open TCP 10606 — but the store is already mirrored and stays current from the socket, so an AWJ reader would be a second source of truth for the same VPU state. Two sources that can disagree about what is on air is not a trade worth making for a faster first paint.

A simulator has no VPU at all. It carries a vpuLayerList that is present and permanently empty and no vpuMixerList; $vpuLayer answers E12 on real hardware. That is an artefact of the simulator, not a second firmware generation, and the panel says so plainly rather than drawing an empty chassis or claiming the firmware is unsupported.

Platforms

Analog Way ships two Web RCS code families, and this app tells them apart by what the device's store contains rather than by its model name:

Destinations keep one spelling everywhere — S1, A2 — and only the last step onto the wire differs, so a cue stack reads the same on either. Which screens and auxes are offered comes from the switcher's applied preconfig, which is also where the models differ: a QuickVu has one screen, a Zenith 200 four screens and four auxes, and the app lists whatever the box says is in service. Everything a panel withholds is withheld with its reason, on the Settings page.

Safety

• The VPU panel never writes. Every property it reads is readOnly in the device's own model.
• The timeline writes only what a cue says. Preset recalls, transition times, TAKE, CUT and STEP BACK — nothing else, and only on GO.
• A TAKE waits 150 ms behind a recall in the same cue, so it cannot overtake its own preset load and put the previous preview on air.
• A cue is reported as sent, never as confirmed. Recalls and takes return nothing on this protocol. The log counts writes that left the browser; device status is shown separately, from the device's own status properties.
• No second connection to the Web RCS. The device counts its clients and shows them in the header; an extra socket would appear there as a phantom operator. The AWJ socket is a different budget — five clients — and is opened per exchange and closed, never held.
• The OSC listener is off until you turn it on, binds to loopback unless you choose otherwise, and never answers a packet. It listens; it does not reply, because replying to a spoofable datagram tells an unknown host that something here is worth sending to.
• An OSC address that cannot be resolved is refused, not approximated. An enum value the device does not have, a parameter that is read-only, a preset that needs a take state this process does not hold — each is turned away with the reason, and counted in Settings.
• A ganged group is the one thing that writes unprompted — that is what ganging is — and it is fenced accordingly. It writes only a layer's source and only to members of a group someone made; it resolves program and preview per screen rather than copying a preset letter; it refuses outright while a take is in flight; it acts only on a change made while the page is open, never on state it merely found at startup; and a layer can belong to only one group, so two groups cannot pull at the same layer. Turning a group's gang off leaves it a target and nothing more.
• The send-to menu respects a padlock it could ignore. The PGM lock on a screen card is state inside the vendor's own bundle — it stops their UI, not the device — so a write from here is not subject to it. The menu asks anyway when a target buffer is locked, and treats a screen it cannot see as locked.
• Remote access opens nothing until asked, and touches the host's networks only on an appliance. Serving over Tailscale or ZeroTier is off by default and listens on those networks' addresses alone, never the LAN; joining, leaving and renaming are refused unless the app was started with --appliance. Auth keys and network ids are checked before the CLI sees them, and passed as arguments, never through a shell.
• The Dante panel is off by default, opens locked, and never binds UDP 5353. It reaches every device on the audio network, so a page opens with clicks that only open and close devices; a change is made only once it is unlocked, or by a cue, an OSC address, a snapshot recall or a preset apply the operator confirmed. Every write sends only what differs, is read back, and is reported as what the devices say afterwards. Discovery asks from a port of its own, so the system's mDNS responder, Dante Controller and Dante Virtual Soundcard are never disturbed.
• Re-pointing drops the old relay. Moving to a backup frame hangs up the sockets aimed at the previous one, so a page cannot go on driving a device the operator believes they have left. Cue stacks and layer groups are both keyed by device, so neither follows you to another frame.

Testing

npm test

About 830 tests, no browser. The socket tests bind real ports on loopback.

Twenty-three cover OSC and AWJ. The framing ones run against a stand-in device on a real TCP socket rather than a mock, deliberately: everything worth catching there lives in the plumbing — the 0x04 terminator, a reply that straddles a read boundary, a write discarded because the socket was destroyed before it flushed — and a mocked net.connect would simply agree with whatever the code did. Two of those three were real bugs the tests found.

One test asserts that docs/OSC.md is exactly what its generator produces, and another runs every address the document lists through the resolver. A published address space that describes something which does not work is worse than none, because the reader believes it.

Twenty cover the expression evaluator, weighted towards what it must refuse — 1/0, 2+, 1920x1080, 00:01.000, and anything resembling code — because the failure mode that matters is a plausible wrong value on air, not a parse error someone notices.

Twenty-two cover the proxy against a stand-in Web RCS on a real socket rather than a mock — injection ordering against deferred scripts, chunked and gzipped documents, CSP stripping, path traversal, the byte-level socket relay, runtime device changes, and the shutdown path. That last one pins a hang rather than a wrong value: an upgraded socket is invisible to the HTTP server's own connection tracking, so without hanging up the relays explicitly, the launcher's Stop button never completes.

Seven run against aquilon-c-live-resources.json — the resource subtree of a real Aquilon C, read from the device on 2026-08-21 — and cover ground no simulator can reach: fitted mixers, interleaved output links, Optimized mode, and a staged preconfig whose every difference is a link move.

There is also a bench for the panels on their own:

DEVICE=192.168.2.142 npm run serve
# then open http://127.0.0.1:8765/tools/harness.html

It renders a panel against a recorded store, and proxies the vendor's real stylesheet, fonts and icon sprite from the named device — the panels are built from the vendor's utility classes, so a bench with a stylesheet of its own would prove nothing about how they look. No vendor asset is copied into this repo.

Related

webrcs-timeline (not public) is a Rust workspace with the same cue model, both transports and no UI — the headless path. Its engine and this one are independent implementations and will drift; converging them is an open decision.

aquilon-vpu-map is a standalone server-side reader of the same VPU mapping over AWJ. It and this app solve the same problem from opposite ends — that one reaches the device directly and can run headless, this one has the whole device store for free but only inside a browser tab. core/vpu.js exposes toMixerRecords(), which emits the exact record shape that tool reads, so a map from either can be opened in the other.

This project is built on other people's work — see ATTRIBUTIONS.md.
