LivePoster

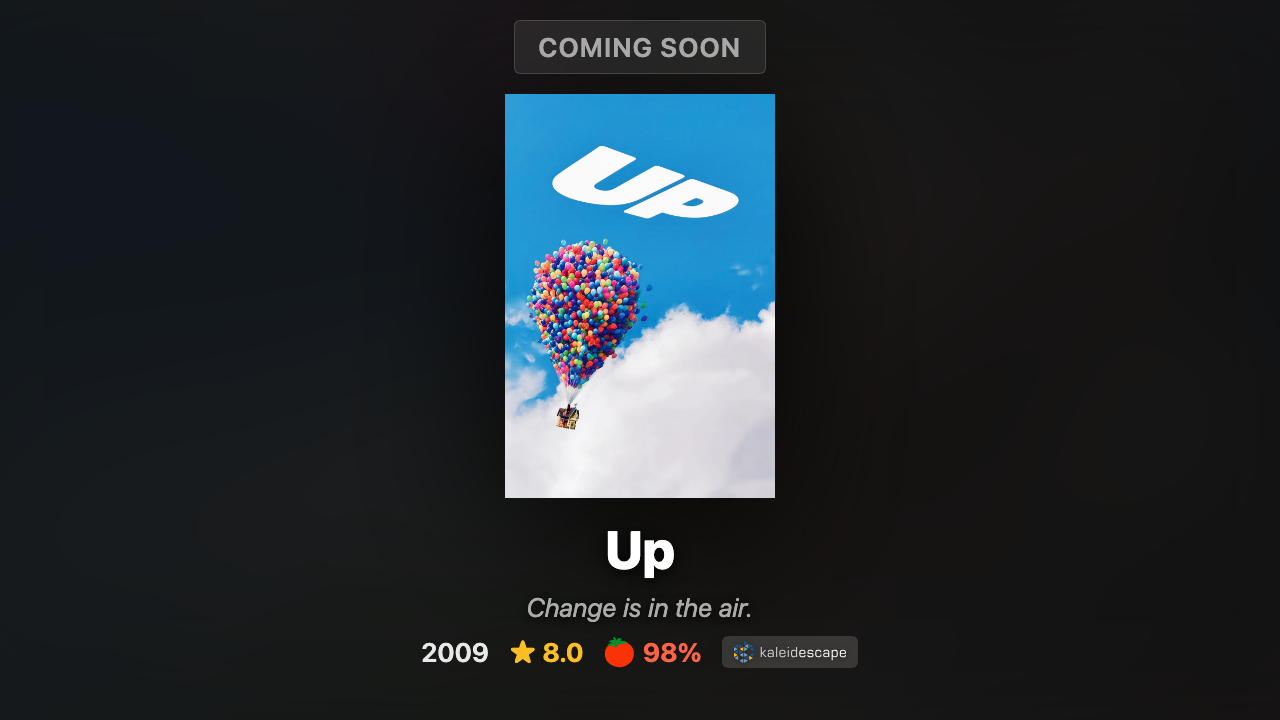

A media poster display server that monitors your home theater systems (Kaleidescape, Plex, Jellyfin, Nvidia Shield) and displays movie/TV posters. When media is playing, it shows the current content. When idle, it cycles through your Kaleidescape library as a slideshow.

Features

• Real-time monitoring of multiple media systems
• Automatic detection of currently playing content with progress bar
• Priority system: Kaleidescape > Plex > Jellyfin
• Automatic slideshow when idle (can enable/disable per movie)
• Beautiful web-based display interface
• Management UI for metadata review and correction
• Settings UI for easy configuration (no need to edit files)
• Metadata caching for fast startup times
• TMDb & OMDb integration for rich movie data and Rotten Tomatoes scores
• Docker support for easy deployment on Unraid
• Responsive design for any screen size
• Smooth transitions and animations

Supported Systems

• Kaleidescape - TCP/IP control protocol integration
• Plex - Full API integration
• Jellyfin - Full API integration
• Nvidia Shield - Via Plex or Jellyfin client

Installation

New here? Start with SETUP.md — a step-by-step guide covering credentials, working out which Kaleidescape address goes where, and first run.

Option 1: Unraid (Community Applications)

Search for LivePoster in the Apps tab and click Install. All settings are exposed as template fields; see UNRAID-QUICKSTART.md.

Option 2: Docker (Recommended elsewhere)

A prebuilt image is published, so there's nothing to compile:

docker run -d --name liveposter -p 3000:3000 \
  -v ./cache:/app/.cache --env-file .env \
  drgonzo65/liveposter:latest

Or with the included docker-compose.yml:

docker compose up -d

Then open http://localhost:3000, and configure via the settings UI at http://localhost:3000/manage.html

See DOCKER.md for secrets, updating, and building your own image, or UNRAID-QUICKSTART.md for Unraid.

Option 3: Node.js

1. Install dependencies:

npm install

1. Copy the environment example file:

cp .env.example .env

1. Edit .env and configure your systems:

# Server Configuration
PORT=3000

# TheMovieDB - both values are required
TMDB_API_KEY=your_tmdb_api_key_here
TMDB_READ_TOKEN=your_tmdb_read_token_here

# Kaleidescape - PLAYER_HOST reports what's playing; SERVER_HOST holds the movies.
# Leave SERVER_HOST blank on an all-in-one system such as a Strato V.
KALEIDESCAPE_PLAYER_HOST=192.168.1.50
KALEIDESCAPE_PORT=10000
KALEIDESCAPE_SERVER_HOST=

# Plex Configuration
PLEX_URL=http://192.168.1.60:32400
PLEX_TOKEN=your_plex_token_here

# Jellyfin Configuration
JELLYFIN_URL=http://192.168.1.61:8096
JELLYFIN_API_KEY=your_jellyfin_api_key_here

# Polling interval in milliseconds (default: 10000 = 10 seconds)
POLL_INTERVAL=10000

# Idle slideshow interval in milliseconds (default: 30000 = 30 seconds)
SLIDESHOW_INTERVAL=30000

See SETUP.md for how to obtain each credential.

Getting API Keys

Plex Token

1. Sign in to Plex Web App
2. Open any media item and click "Get Info" or "..."
3. Click "View XML"
4. Look for X-Plex-Token in the URL

Or visit: https://support.plex.tv/articles/204059436-finding-an-authentication-token-x-plex-token/

Jellyfin API Key

1. Sign in to Jellyfin Dashboard
2. Go to Dashboard > API Keys
3. Click "+" to create a new API key
4. Name it "LivePoster" and save

Kaleidescape

No authentication is required, but which device you point at matters:

• KALEIDESCAPE_PLAYER_HOST must be the player — it reports what's playing (port 10000)
• KALEIDESCAPE_SERVER_HOST must be the device holding your movies — a Terra movie server, or the same player on an all-in-one system such as a Strato V

On an all-in-one system, set KALEIDESCAPE_PLAYER_HOST and leave KALEIDESCAPE_SERVER_HOST blank; it falls back to the same address.

Pointing KALEIDESCAPE_PLAYER_HOST at a movie server is the most common setup mistake — the slideshow works but "Now Playing" never appears. See SETUP.md for commands that identify each device.

Usage

Start the server:

npm start

Or for development with auto-reload:

npm run dev

Then open your browser to:

http://localhost:3000

How It Works

1. Monitoring: The server polls all configured systems every 10 seconds (configurable)
2. Priority: If multiple systems are playing, it shows content in this order:
   • Kaleidescape (highest priority)
   • Plex
   • Jellyfin (lowest priority)
3. Idle Mode: When nothing is playing, it displays random posters from your Kaleidescape library
4. Display: The web interface automatically updates when playback state changes

Web Interfaces

• Main Display: http://localhost:3000 - The poster display
• Management UI: http://localhost:3000/manage.html - Review and fix movie metadata
• Settings UI: Click "⚙️ Settings" in management UI - Configure all API keys and systems

API Endpoints

Status & Library

• GET /api/status - Current playback state
• GET /api/library?source=all - Get library (sources: all, kaleidescape, plex, jellyfin)
• GET /api/random?source=all - Get random movie from library for slideshow
• GET /api/config - Server configuration
• GET /api/health - Health check
• GET /api/loading - Loading status during startup

Metadata Management

• GET /api/movies/all?source=all - Get all movies with metadata quality indicators
• GET /api/movies/search?title=MovieName&year=2020 - Search TMDb for alternative matches
• POST /api/movies/update - Update movie metadata with correct TMDb match
• POST /api/movies/toggle-slideshow - Enable/disable movie in slideshow

Settings

• GET /api/settings - Get current configuration. API keys and tokens are returned masked, never in full
• POST /api/settings - Save configuration to .cache/settings.json (persists across container updates)

Configuration

Configuration comes from environment variables (or the Settings UI, which overrides them). Any variable can also be supplied as <NAME>_FILE pointing at a file containing the value — see Docker secrets.

Troubleshooting

Kaleidescape not connecting

• Verify the IP address is correct
• Check that port 10000 is not blocked by firewall
• Ensure control protocol is enabled on your Kaleidescape player

Plex not working

• Verify your Plex token is correct
• Make sure the Plex server URL is accessible from the machine running LivePoster
• Check that your Plex server is running

Jellyfin not working

• Verify your API key is correct
• Ensure the Jellyfin URL is accessible
• Check that your Jellyfin server is running

No posters showing

• Check the server logs for errors
• Verify at least one system is configured
• Make sure you have movies in your library

Project Structure

liveposter/
├── lib/
│   ├── kaleidescape.js   # Kaleidescape TCP/IP control client
│   ├── plex.js           # Plex API integration
│   ├── jellyfin.js       # Jellyfin API integration
│   ├── tmdb.js           # TheMovieDB metadata enrichment
│   ├── omdb.js           # OMDb lookups (Rotten Tomatoes scores)
│   ├── cache.js          # Metadata cache manager
│   └── monitor.js        # Media monitoring service
├── public/
│   ├── index.html        # Poster display
│   ├── app.js            # Display logic
│   ├── style.css         # Styles
│   ├── manage.html       # Metadata manager + settings UI
│   └── manage.js         # Manager logic
├── .cache/               # Metadata cache + saved settings (mount this in Docker)
├── server.js             # Express server
├── package.json
├── .env.example
├── SETUP.md              # Full setup guide
├── DOCKER.md             # Docker / Unraid deployment
└── README.md

Credits

Inspired by posterr by petersem.

License

MIT
