HELBOOT

Provisioning engine for homelabs — unattended OS installs over the network

HELBOOT is a provisioning engine for homelabs. Upload an original OS ISO, let HELBOOT detect what it is, create an installation profile, register your machines by MAC address, assign a profile — and get fully automated, unattended OS installations over the network.

PXE is just one boot method. The architecture is built to grow: iPXE, HTTP boot, USB boot images, VM provisioning, cloud-init, Redfish and IPMI are all part of the roadmap.

🚧 Status: Early development, moving fast. Implemented so far: the full network boot chain (ProxyDHCP/DHCP, TFTP, iPXE scripts, answer files), ISO management with automatic OS detection, the installation queue, host discovery, user management with roles, backup/restore, a log viewer and USB/CD boot media — all behind a bilingual (en/de) web UI. Not yet hardened for production use; field testing of the boot chain against real hardware is ongoing. See ARCHITECTURE.md and the ADRs.

Screenshots

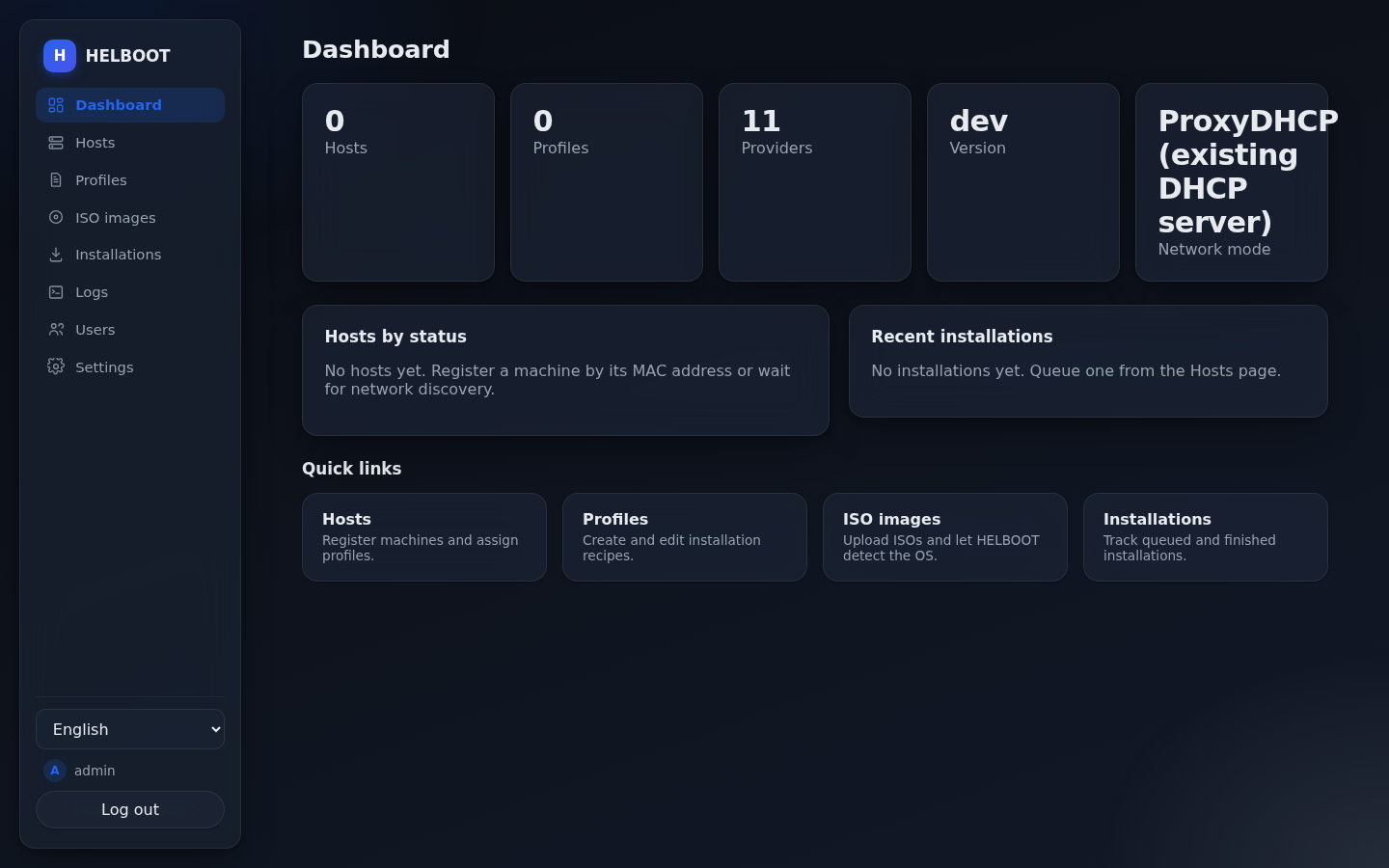

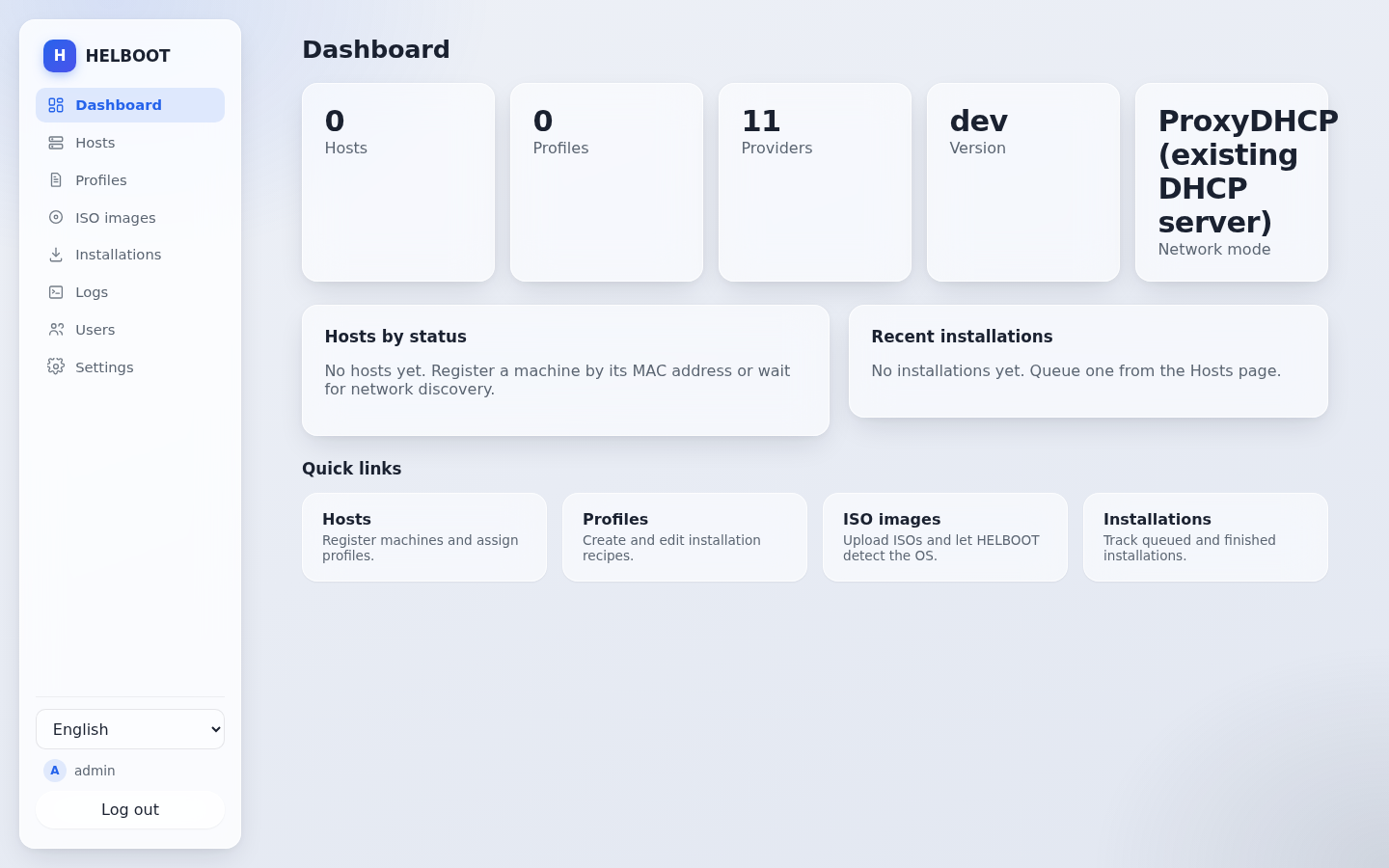

Dashboard overview — light and dark

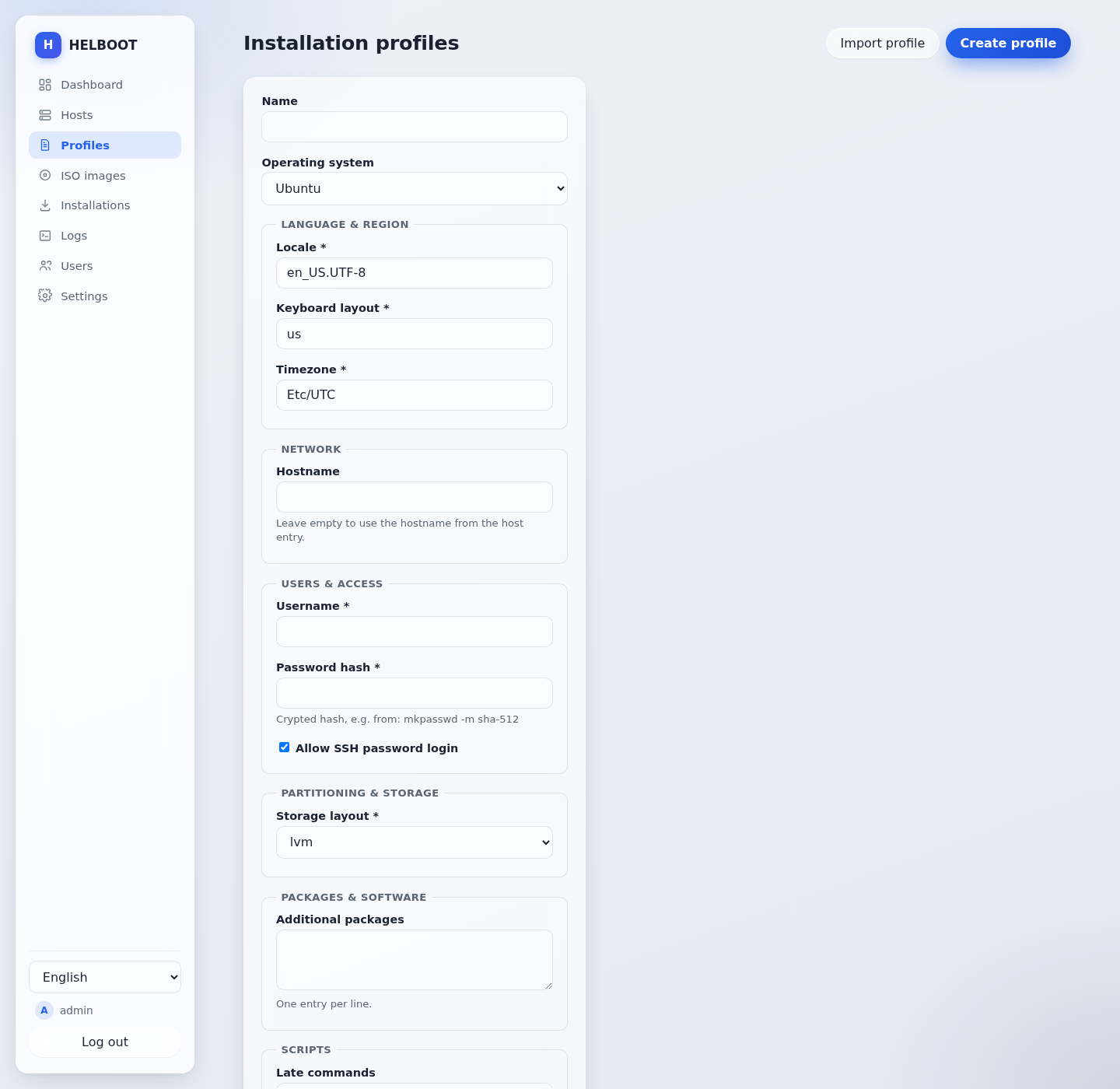

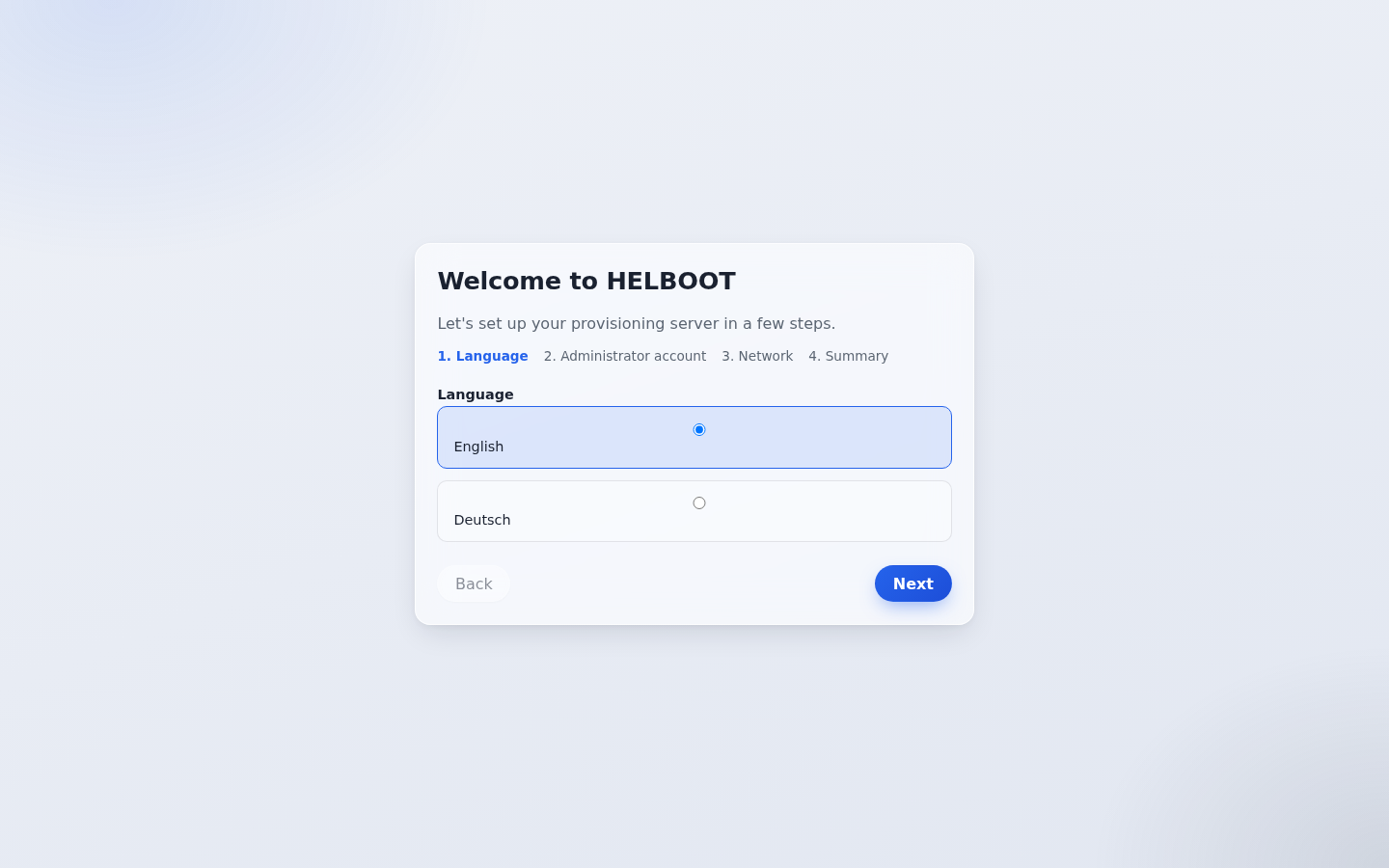

First-run setup wizard, and a profile form generated entirely from the provider's settings schema — no hardcoded per-OS forms

Why HELBOOT?

Existing netboot tools either serve live images only, require deep manual configuration, or are built for enterprise fleets. HELBOOT targets the homelab: one Docker container, a first-run wizard, original (unmodified) ISOs, and profiles that generate the unattended-install answer files for you.

Core concepts

Supported operating systems (v1 targets)

• Windows: 10, 11, Server 2022, Server 2025
• Linux: Debian, Ubuntu, Fedora, openSUSE
• Virtualization: Proxmox VE, VMware ESXi
• NAS: TrueNAS SCALE

Where full automation is not technically possible for an OS, the provider documents its limitations and the UI reflects them via capabilities — for example TrueNAS SCALE network-boots its installer but has no unattended answer-file format of its own.

HELBOOT only ships providers it can install fully unattended over the network (or, like TrueNAS SCALE, at least network-boot). Operating systems that ship as pre-built disk images with no network-install path of their own (e.g. DietPi, Home Assistant OS) are out of scope until HELBOOT gains a network image-write capability — see the provider request template if you'd like to help design that.

Network modes

• Mode A — existing DHCP (e.g. a FRITZ!Box): HELBOOT runs ProxyDHCP, PXE/iPXE, TFTP and HTTP boot alongside your router. No changes to your network required.
• Mode B — HELBOOT DHCP: HELBOOT provides DHCP itself, plus PXE, TFTP and HTTP.

Deployment

One Docker image, one container. Host networking is the recommended mode (required for DHCP/ProxyDHCP broadcast traffic). See DOCKER.md and UNRAID.md for details, including the Unraid Community Applications template.

docker run -d \
  --name helboot \
  --network host \
  -v /path/to/data:/data \
  -v /path/to/isos:/data/isos \
  ghcr.io/kreuzbube88/helboot:latest

On first start, the web UI walks you through a setup wizard: language, admin account, network mode, storage locations, and optionally your first ISO and profile.

Tech stack

• Backend: Go — single static binary, REST API with OpenAPI spec
• Frontend: React + TypeScript, fully internationalized (English and German)
• Database: SQLite with migrations, backup and restore
• Auth: Local users (Argon2id) with roles (Administrator, Operator, Viewer); OIDC-ready

See the Architecture Decision Records for the reasoning behind each choice.

Documentation

• Architecture
• Development guide
• API
• Docker deployment
• Unraid
• Security policy
• Contributing

License

HELBOOT is licensed under the GNU Affero General Public License v3.0.
