Factorio Map Renderer

An interactive map of your Factorio save game, in your browser.

A self-hosted web app: one Docker container reads a save game, renders every planet and space platform into a zoomable map in the colours of the game's own map view, and serves it. Load the save by drag and drop, take the newest save from your server's saves folder or over SSH, and refresh it with one click; with the server's RCON the running game is saved first. Everyone else just opens the page and sees the map.

Questions and help: Discussions · Bugs: Issues · Changelog

What you get

• Every surface: Nauvis, Vulcanus, Fulgora, Gleba, Aquilo and every space platform, each as far as it is charted, switched with one click. Names with icons ([item=space-science-pack]) show their icons.
• The map view's look when zoomed out: the ground, water, ore and trees in the colours the game itself uses on its map, uncharted land black.
• The game's own graphics when zoomed in, as two layers of their own: the ground in the game's textures, and every building, belt, pipe, inserter, pole, ore stage, tree, rock and nest as the game draws it. The browser draws them from the game's own files (64 px per tile, the game's high-resolution graphics), so they are as sharp as in the game at every zoom and on high-resolution screens. Like the game, which switches from its map to its world when you zoom in.
• The solar system: the star map with the sun, every planet as a globe drawn from the textures the game wraps around its 3D planets (1024 px, with clouds, lava glow and atmosphere, lit from the sun's side), the routes between them, and every space platform, in orbit or on its way. A click opens a planet's or platform's map.
• The whole factory: buildings with their game icons when zoomed in, belts, pipes, rails and elevated rails, signals, trains, electric poles with their copper wires.
• Click for details: the recipe and status of a machine (working, output full, no power…), the contents of chests, wagons and the platform hub, the fluids in tanks, what a drill mines, the quality of a building.
• Markers: players with their colour, train stops and map tags with their names and icons, vehicles and locomotives, rocket silos, cargo landing pads and platform hubs, resource patches with their total amount, enemy bases with their spawners and worms.
• Statistics per surface: everything produced there since the game started, from the game's production statistics, and how many of each building and tree there are.
• Tools: search, layer groups with legends and filters, a chunk grid, shareable links (#nauvis/9/-120/340), light and dark theme.
• Save game sources, chosen by an admin in the page:
  • browse or drag and drop a save .zip,
  • a folder on the machine (in Docker: a mount), for example your Factorio server's saves,
  • SSH to the machine that holds the saves,
  • and the server's RCON on top: the running game is saved first (/server-save), and the Server tab shows the server's version, who is online, the map's age and the evolution per planet, with a console for admins.
• Visitors only see the map. Choosing and refreshing the save needs the admin password.

Made for Factorio 2.0 and 2.1 and tested with a Space Age save of 2.0 in Factorio 2.1. Mods work as long as the renderer has them (see Mods).

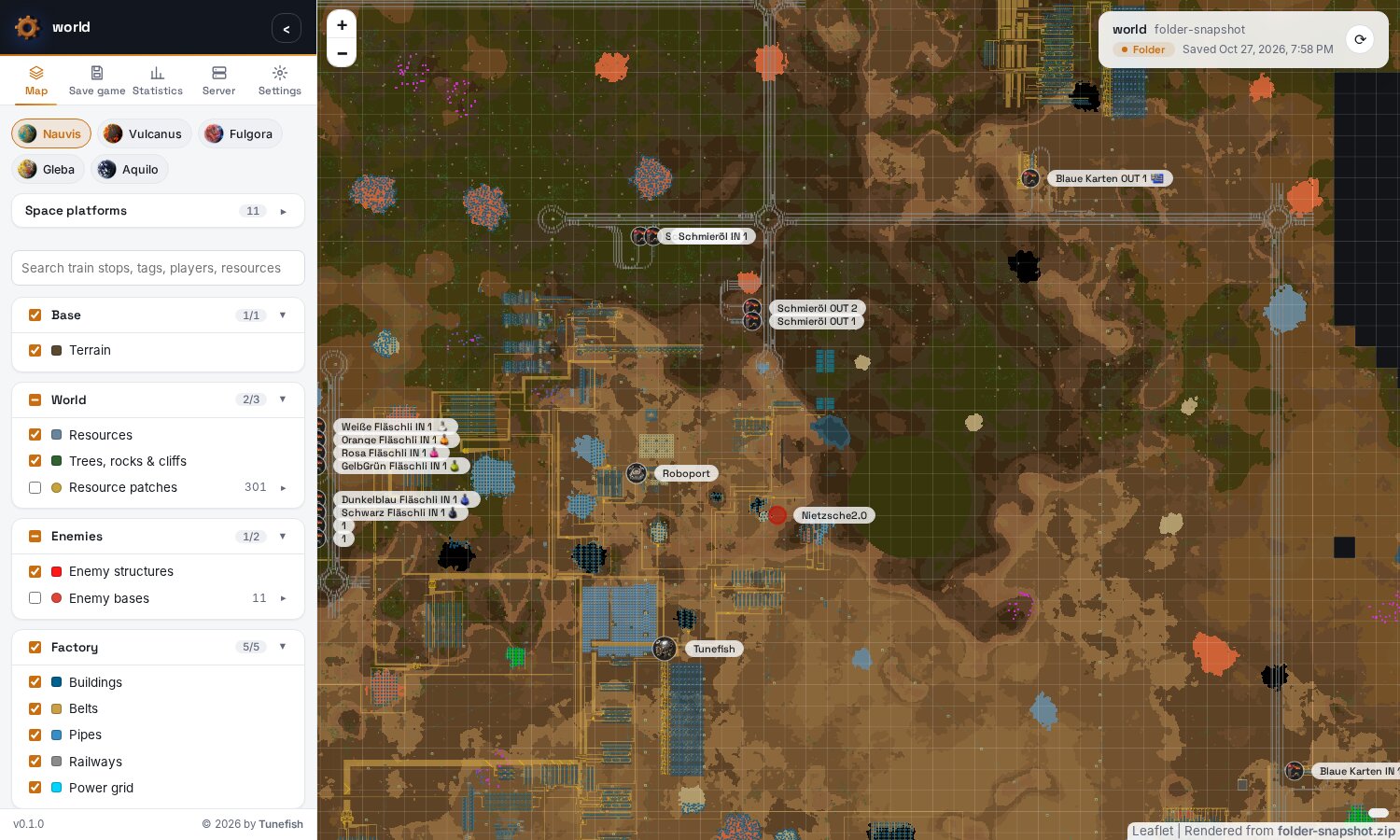

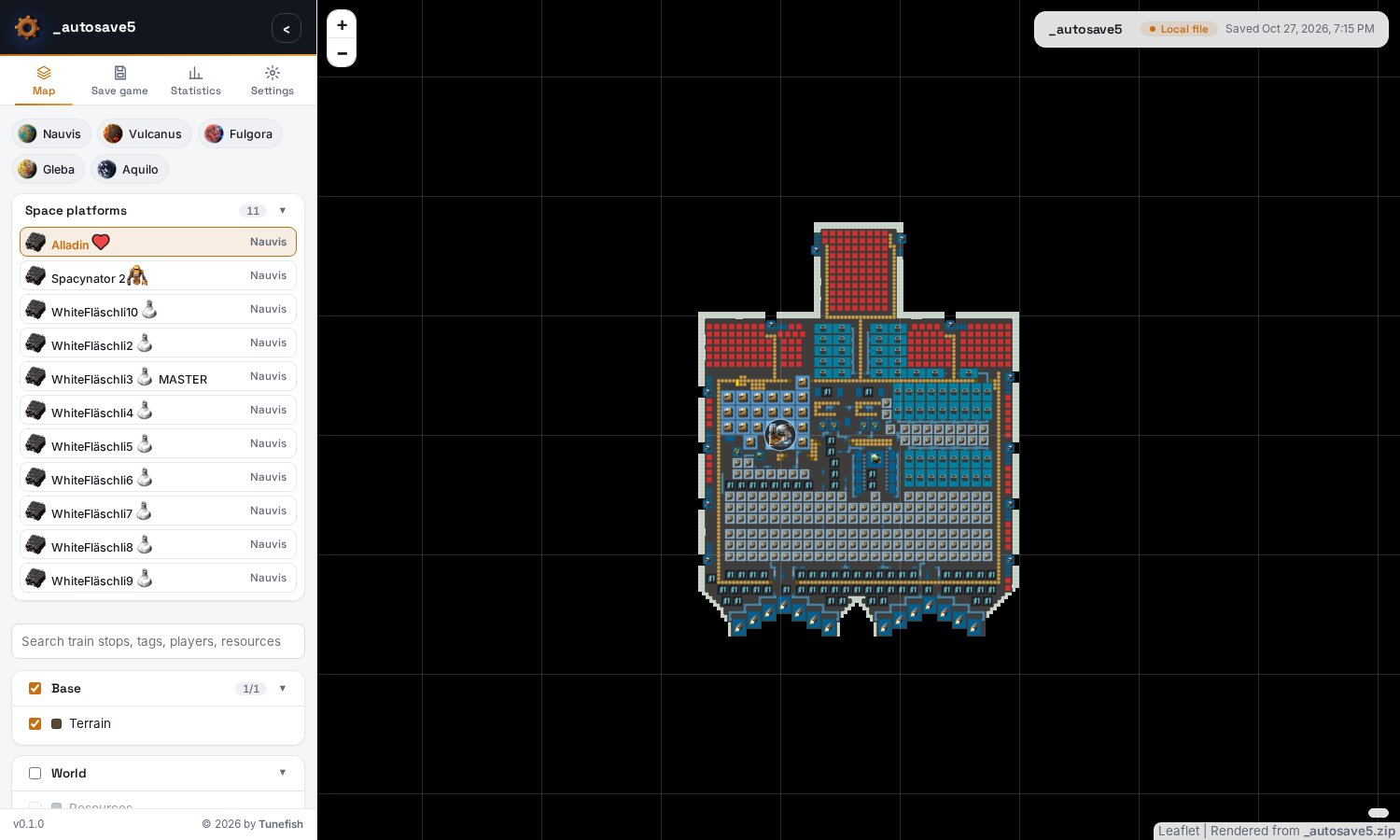

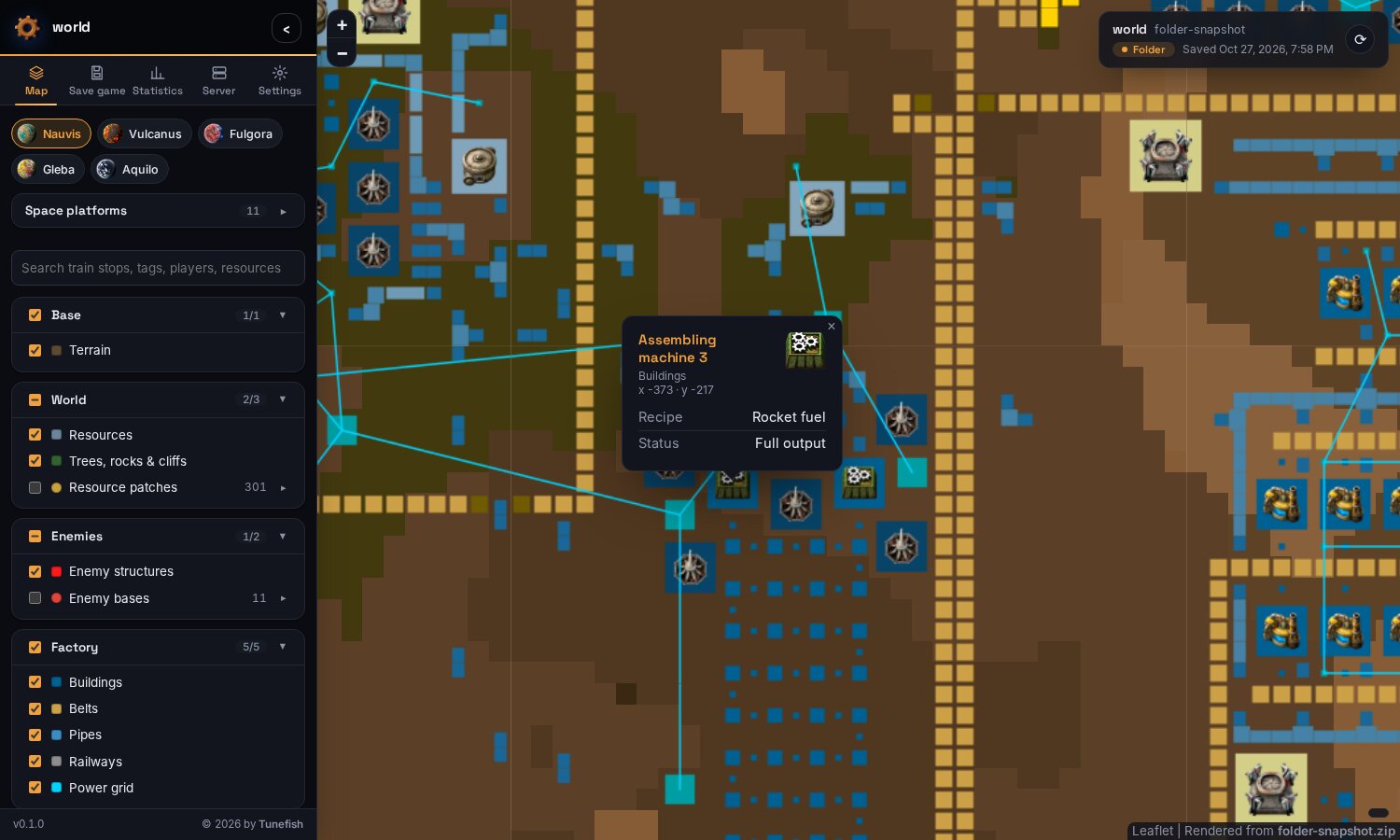

Zoomed in: buildings with their icons, click for details	A space platform

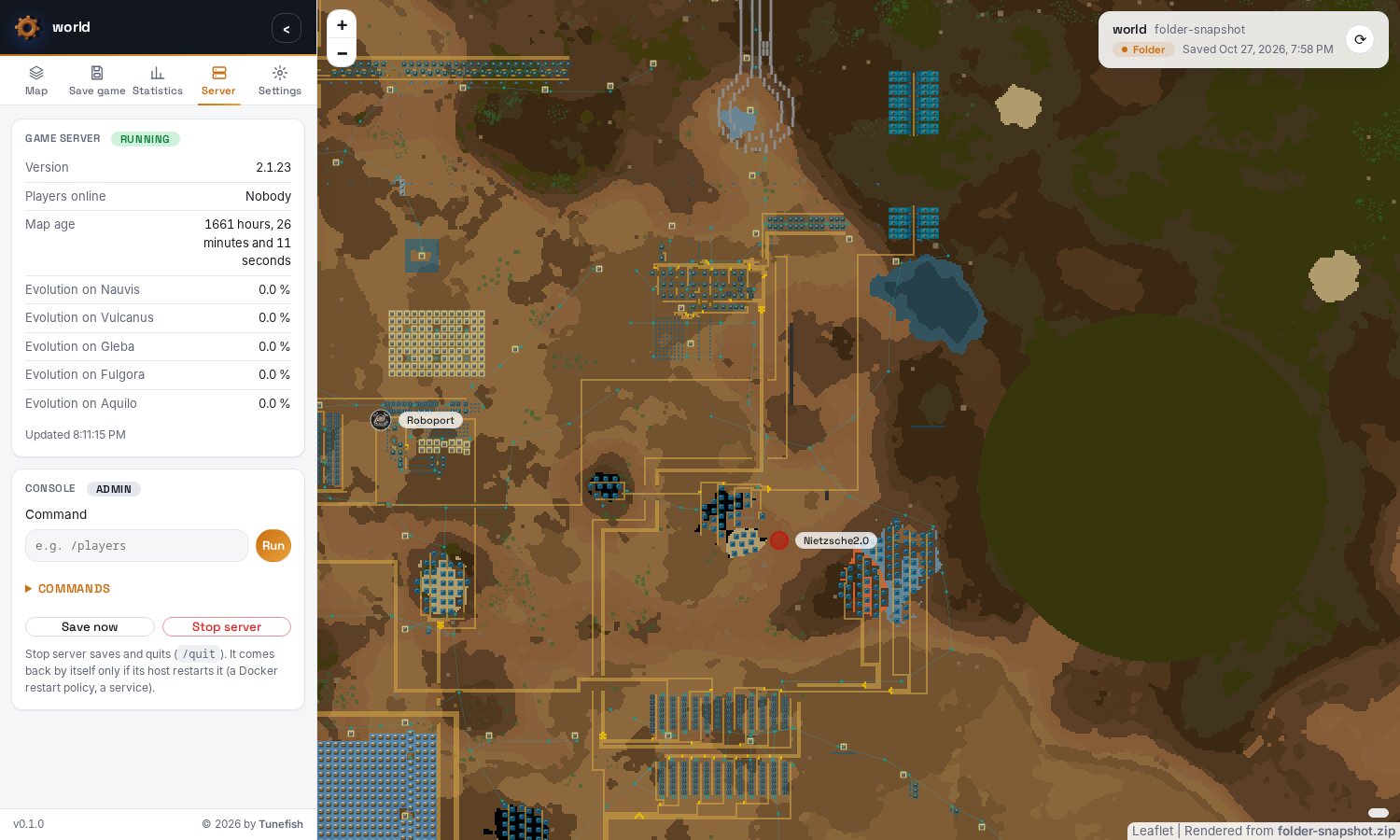

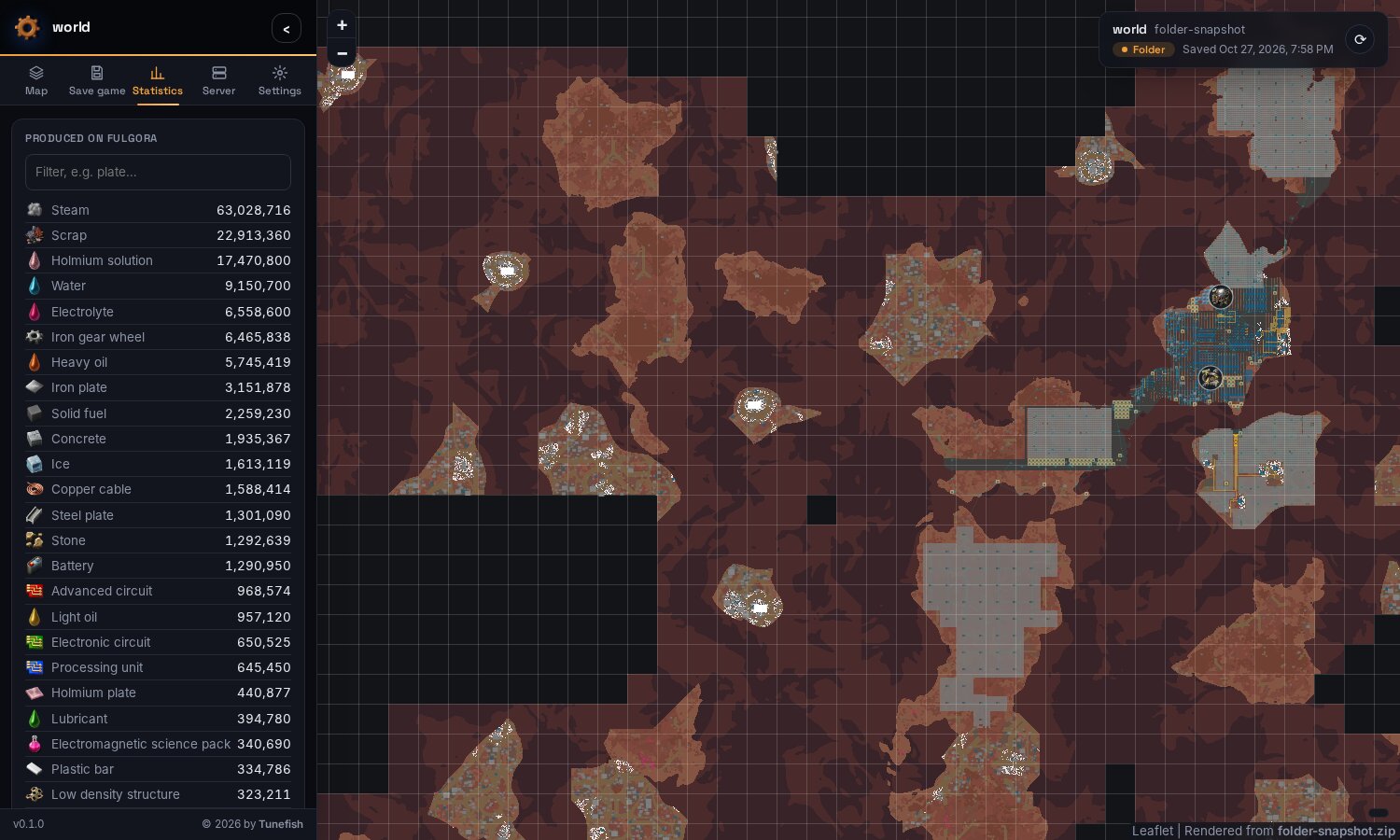

Dark theme, production statistics	The Server tab over RCON

How it works

Factorio's map data (level.dat in the save) is not documented and changes with every game version, so the renderer does not try to decode it. The game reads the save itself: the renderer starts Factorio with the save as a one-tick benchmark and adds a small mod of its own to the mods the save was played with. When the game has loaded the save, that mod writes the charted ground, every building, resource, tree, wire, map tag and player, and the production statistics into Factorio's script-output folder, and the game ends. The save is never written. The renderer then draws the tiles from that.

The Factorio that does this is Factorio's headless server, which comes with the image (free, no account), or your game, mounted into the container. Only for a save that is newer than both does the container download a newer headless server from factorio.com, once. Everything the page shows (icons, sprites, ground textures, the star map, fonts, Leaflet) is in the image and served by the container itself: the page loads nothing from other sites. Reading a large save takes Factorio about half a minute; drawing the map takes another minute.

Installation

Docker Compose

Save this as docker-compose.yml, set a password, and run docker compose up -d:

services:
  map:
    image: ghcr.io/tunefish92/factoriomaprenderer:latest
    restart: unless-stopped
    environment:
      # Required, at least 8 characters. A "$" in the password must be written as "$$" here.
      FMR_ADMIN_PASSWORD: change-me-please
    ports:
      - "8080:8080"
    volumes:
      - ./map-data:/data
      # Optional, read-only: your Factorio server's saves, for the "Folder" source.
      # - /path/to/factorio/saves:/saves:ro

Open http://localhost:8080/, click Admin login in the Save game tab of the side panel, and choose your save game. The image is also on Docker Hub as tunefish92/factoriomaprenderer. The headless server in the image is x86-64 only; on ARM machines, mount a Factorio for ARM at /game.

The admin password

The password may contain any characters and needs at least 8 of them. It is compared exactly: upper and lower case matter, and so do spaces at the beginning or end.

Mind the $ in Docker Compose. Compose reads $ in docker-compose.yml and in .env as the start of a variable and changes the password without telling you. The login then fails with the password you believe you set:

There are two ways around it:

1. Write $$ for every $ of the password, as in the last row.

2. Keep the password in its own file, which Compose passes on unchanged (needs Docker Compose 2.30 or newer). Create admin.env next to docker-compose.yml:

   FMR_ADMIN_PASSWORD=your password, exactly as it is


   and replace the environment: entry for the password with:

       env_file:
         - path: admin.env
           format: raw


   Everything after the = is the password: no quotes are needed, and $, #, quotes and spaces are ordinary characters there.

With docker run -e and on Unraid, Compose is not involved; quote the password for your shell as usual.

Unraid

From the Apps tab. Search for Factorio Map Renderer in Community Applications and click Install. The template lives in Tunefish92/unraid-templates; a copy is in unraid/.

If it is not listed (yet). Put the template on the flash drive yourself, from the Unraid terminal:

wget -O /boot/config/plugins/dockerMan/templates-user/my-Factorio-Map-Renderer.xml \
  https://raw.githubusercontent.com/Tunefish92/unraid-templates/main/templates/factorio-map-renderer.xml

Then open the Docker tab, click Add Container and choose Factorio-Map-Renderer from the Template list.

Settings in the template

Click Apply, then open the map from the container's WebUI menu entry and log in under Save game → Admin login.

With a Factorio server on the same Unraid box, for example the factoriotools/factorio container: set Server Saves to its saves folder, e.g. /mnt/user/appdata/factorio/saves, and in the map choose Folder with the path /saves. With the server's RCON port and password (Game server (RCON) in the Save game tab) the running game is saved before each refresh.

From this repository

cp admin.env.example admin.env      # put the admin password into it
docker compose up -d --build

The repository's compose file already uses the admin.env approach from above. Optional settings (port, data folder, zoom) go into .env; see .env.example.

Choosing the save game

• File: Browse… or drop a save .zip anywhere on the page.
• Folder: a folder on the machine the renderer runs on, or one save file in it. The newest .zip below the folder is taken. In Docker, mount the folder first (e.g. at /saves).
• SSH: user@host, port and the path of a save or of the folder with the saves (the newest .zip below it is taken). It uses the container's ssh with keys from map-data/home/.ssh/; passwords are not supported. A host is trusted the first time it is seen.
• Game server (RCON): host, RCON port (27015 by default) and RCON password, as the server was started with (--rcon-port, --rcon-password, or RCON_PORT and rconpw with factoriotools/factorio). Check connection shows the server's version. It works together with Folder or SSH: with "Save the running game before fetching it", every load and refresh first saves the game on the server and waits until the new save is written, so the map shows the game as it is now.
• Refresh snapshot (also the ⟳ button at the top right of the map) loads the newest save again.

While a save is loaded, a progress window shows what is happening. Connection settings, including the RCON password, are stored in the data folder (cache/source.json), readable by the app's user only.

The Server tab

When the server's RCON is set up, the side panel gets a Server tab. Every visitor sees what the server says about itself: its version, who is online, how long the map has been running and how far the enemies have evolved on each planet. It is asked every ten seconds while the tab is open.

Logged in as admin, the tab also has a console that runs a command on the game server and shows its output, with a list of the commands that matter for running a server, and Save now and Stop server (/quit). Text without a leading / goes to the game's chat. Lua commands (/c, /sc) switch off achievements in that save, as they do in the game.

Game data, mods and your own game

The image brings the game's icons, names, map colours, sprites, ground textures and star map, exported from Factorio 2.1.23 with Space Age, so the map has them out of the box.

Your own game (optional): mount a Factorio for Linux, the Steam version or the standalone one, read-only at /game (the folder that contains bin and data). It then reads the saves instead of the downloaded headless server, and when its version differs from the bundled game data, its icons and names are exported once into the data folder and used from then on. A Factorio for Windows or macOS cannot run in the container.

Mods

The renderer loads a save with the mods it was played with. Space Age, Quality and Elevated Rails come with the game. Mods from the mod portal have to be put into map-data/mods/ as the zip files the game downloads (copy them from your game's or server's mods folder). Mods that are missing are left out: their buildings are then missing from the map, and the log says which mods those are. Buildings of mods are drawn in their map colours, but they have no icons or names unless their game data is exported (mount a game with these mods at /game).

Settings

On the internet. The container speaks plain HTTP on port 8080. Put it behind a reverse proxy that adds HTTPS and forwards Host and X-Forwarded-Proto; otherwise the admin password travels unencrypted.

Updates. When an admin switches on "Check for updates on GitHub" in the Settings tab, the page checks this project's GitHub releases, at most every six hours, and shows a banner when a newer version is out. It is off by default; the check is a request from the admin's browser to api.github.com, and visitors never make it.

Supported versions

The game itself reads the save: the renderer uses a game at least as new as the save, and fetches Factorio's free headless server of the save's version when it has none (FMR_DOWNLOAD_HEADLESS). Any map seed, any map generation settings and every preset work, since the map shows what the game generated; the seed is listed under the save's details.

Limitations

• The map shows what the player force has charted, like the game's map. Space platforms are shown whole, and so is a new map that nobody has joined yet (a server's): its generated starting area.
• The game graphics show frame 0 of each animation, without shadows, lights and smoke. Trains and vehicles turn freely and keep their footprint with their icon, rail ramps too; signals show their post without the rail piece under it. Transitions between different grounds are hard edges.
• Rendering needs a Factorio that can load the save: one at least as new as the save, with the save's mods.
• A Factorio server offers no live feed. "Live" means saving, fetching and rendering a new snapshot, about two minutes for a large factory at the default zoom.

Development

The app is one .NET 10 project: the save header reader, the runner that lets Factorio export the map, a SkiaSharp tile renderer and a small HTTP server that serves the viewer (plain HTML/CSS/JS with Leaflet, bundled).

dotnet run --project src/FactorioMapRenderer -c Release -- --serve 8000 -o output/map

serves it at http://localhost:8000/. On localhost no admin password is needed; --bind '*' listens on all interfaces and requires one. A game in basegame/ or in the usual Steam folders is found by itself; --game <dir> gives another one and --download-headless allows the download. Without --serve, a save given on the command line is rendered into a folder that works without a server. --help lists every option.

dotnet test --solution FactorioMapRenderer.slnx          # xUnit v3

• The tests write the export mod's output for a small synthetic world and run it through the whole pipeline: reading, layers and markers, tiles, the page. The RCON client is tested against an in-process server.
• RealGameTests let a real game export a real save: a Factorio for Linux in basegame/ (or FMR_TEST_GAME) and saves in savegame/ (or FMR_TEST_SAVES=a.zip;b.zip). Both folders are ignored by git.
• --export-game-data --game <dir> exports the icons, names and map colours into gamedata/.

src/FactorioMapRenderer/
  Save/          the save's header: game version, scenario, mods
  Game/          finding and running Factorio, the headless download, exporting game data
  World/         reading the export, surfaces → layers, markers and clickable buildings
  Rendering/     tile renderer, viewer export
  Serve/         HTTP server, admin login, folder and SSH sources, RCON
  Assets/        the export mod for the game, the viewer and bundled Leaflet

Releases: a tag v1.2.3 builds the image for amd64 and arm64 and publishes it to GHCR and, when the repository variable DOCKERHUB_USERNAME and the secret DOCKERHUB_TOKEN are set, to Docker Hub. A tag with a hyphen (v1.3.0-beta.1) is a pre-release and does not move latest.

Buy me a coffee

Factorio Map Renderer is free and open source, and it will stay that way. If it makes your factory nicer to look at and you'd like to say thanks, you can buy me a coffee:

☕ paypal.me/tunefish92

It's entirely voluntary and a thank-you only: it doesn't buy features, priority support or a warranty, and the software stays under the MIT licence either way. Please don't send money as "Friends and Family" on PayPal.
