Instant sharing for your home network — like AirDrop, but for every device. Get a text or a file from your phone to your PC, from Windows to a Mac, from Android to an iPhone: open one web page, drop it in, and it is on every other device at once. No app, no login, no cloud — everything stays on your own server.

Something has to leave the house? Share a single file or text through a link that expires by itself, optionally with a password. It is served by a second, locked-down container — Drop itself is never reachable from the internet.

Dropnook™ is the project's name; on your devices it is simply Drop — the page calls itself "Tower Drop", after your server.

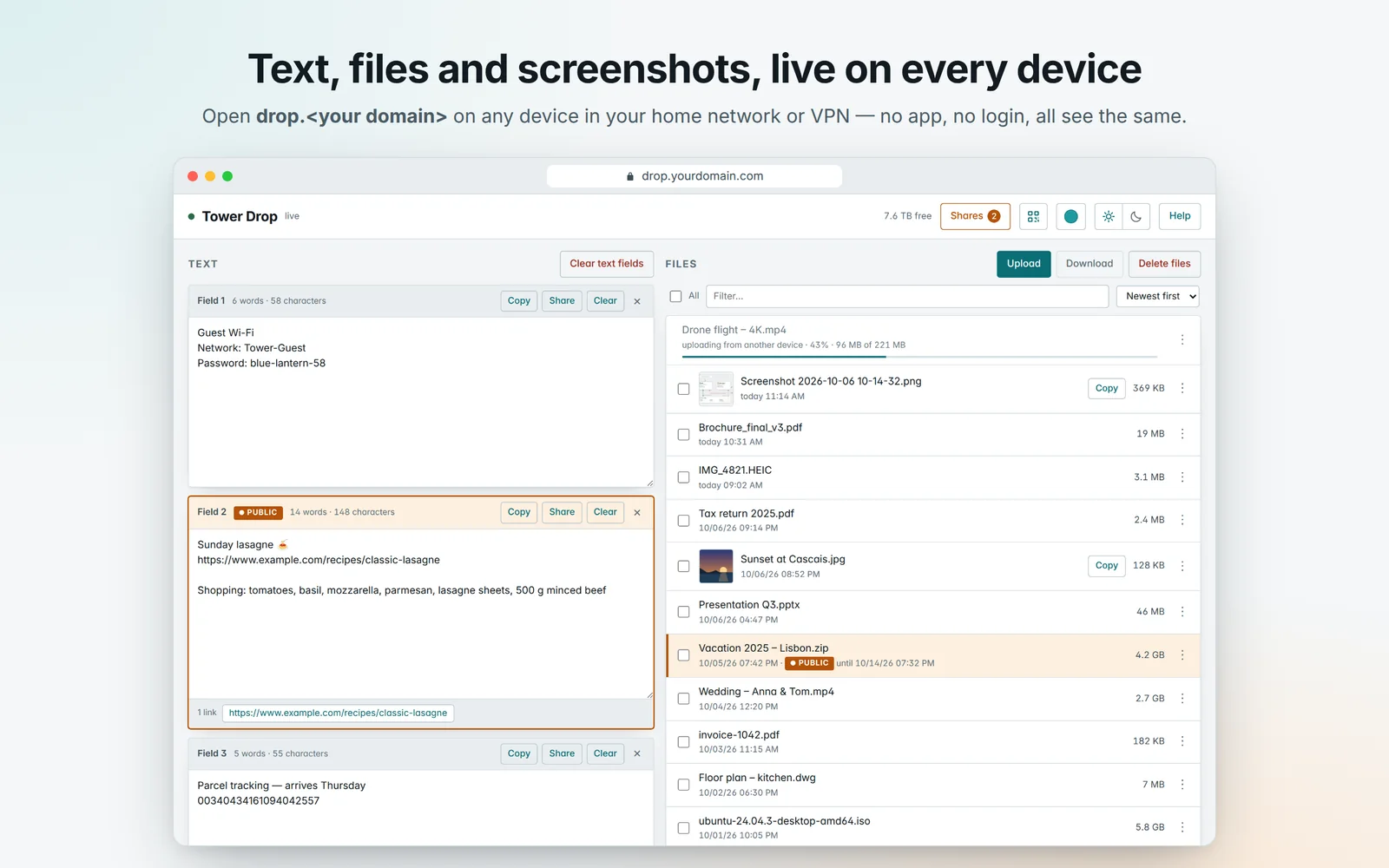

_{Open the gallery — browse with arrows, zoom in with a click.}

• Text fields with word, character and link counts; unsaved text survives reloads and lost connections.
• Uploads of any size — resumable, with progress visible to everyone.
• The page is called "<server name> Drop", with the name read live from Unraid.
• Screenshots straight from the clipboard with Ctrl+V; pictures with a preview, a large view and Copy into the clipboard of another computer.
• 17 languages, picked from the browser.
• Five colour layouts — teal, gold, blue, violet, coral — each in light and dark.
• Optional users: up to five, each with a PIN, an area of their own next to the shared one, and their own colour.

yourdomain.com stands for your own domain throughout.

Made for Unraid, and this guide is for Unraid — but Drop runs on any Linux host with Docker Compose, too: see Without Unraid.

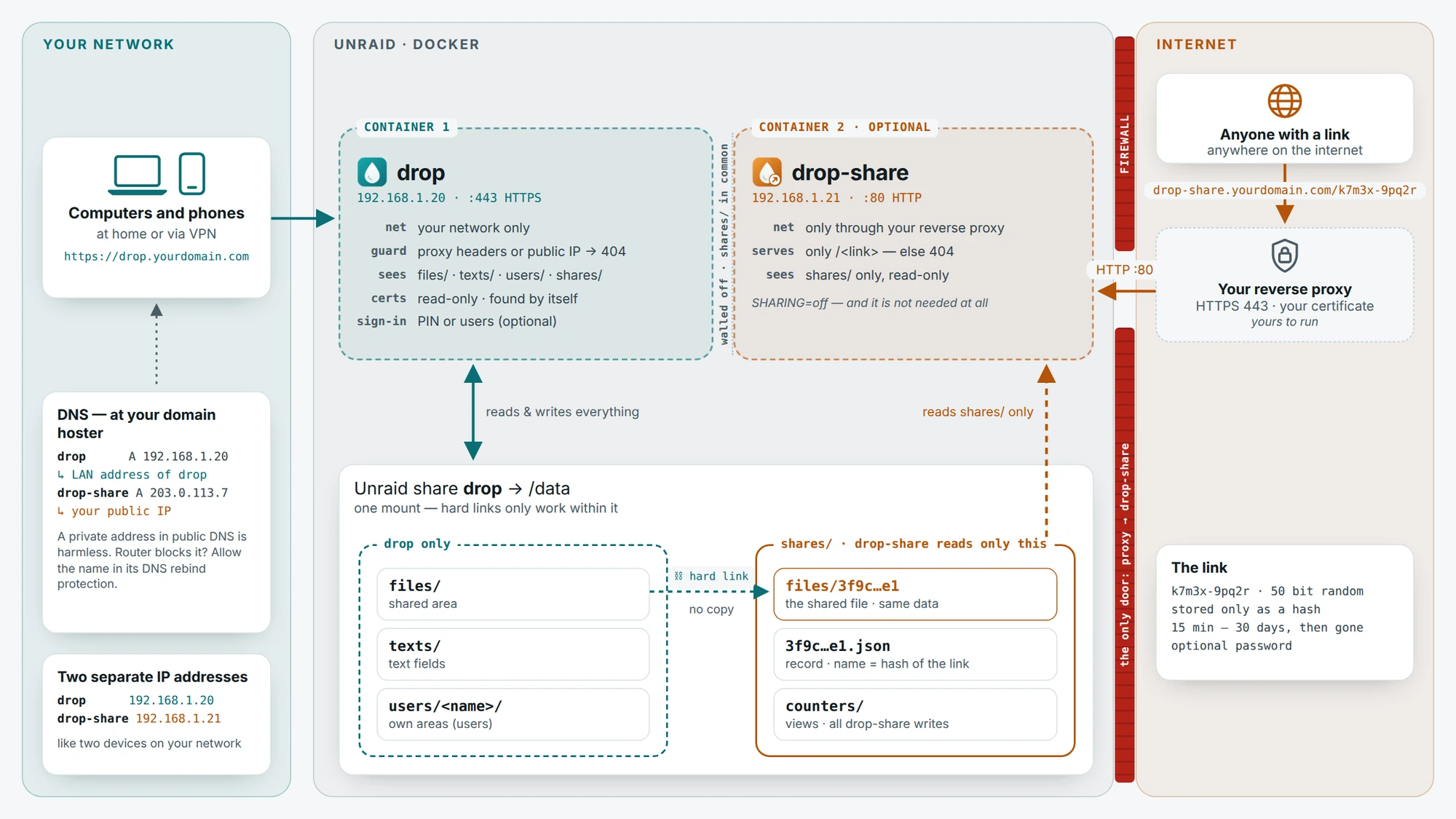

How it fits together

Your reverse proxy and your certificates stay yours — Drop only expects what is listed under What Drop expects from your reverse proxy.

What you need

• A server with Docker. Recommended, and what this guide shows: Unraid with the plugin Compose Manager Plus (Apps → search for it → Install). Any other Linux host with Docker Compose works, too — see Without Unraid.
• Two free addresses in your LAN, one for drop, one for drop-share.
• Your own domain with two names — without one, Drop works by IP address, just without sharing to the internet and without HTTPS:
  • drop.yourdomain.com → the LAN address of drop — simplest as a DNS record at your domain hoster (a private address there is harmless), or as a local DNS entry in your router or DNS server.
  • drop-share.yourdomain.com → your public IP address (with a changing IP: dynamic DNS).
• A reverse proxy reachable from the internet, for sharing.
• Recommended: a certificate for drop.yourdomain.com (a wildcard *.yourdomain.com works) — then Drop uses HTTPS in your network, too.

Installation

1. Create a new share "drop" on Unraid

A share of its own for Drop's files and texts. In the Unraid web interface, Shares → Add Share:

• Name drop, on the pool you want.
• Secondary storage: none (if the share uses Exclusive Access).
• Minimum free space: generous — a large upload must not fill the pool to the brim.

Drop never creates this share itself. Inside it, it creates files/, texts/ and shares/ on its own (with users also users/).

2. Check Unraid's Docker network

In the Unraid web interface, Settings → Docker (switch on Advanced View at the top right):

• Under the custom networks, br0 must show your LAN's subnet and gateway — the network both addresses from above are in.
• If your reverse proxy runs on this Unraid in bridge or host mode, set Host access to custom networks to Enabled — otherwise it cannot reach drop-share. (Docker has to be stopped to change it.)

3. Add Drop as a stack in Compose Manager Plus

In the Unraid web interface, tab Docker → section Compose further down → Add New Stack → name drop.

On the new stack, Edit Stack:

1. Tab Compose: paste the content of compose-projects-drop/compose.yaml (raw) — as it is, there is nothing to change in it.
2. Tab .env: paste the content of compose-projects-drop/.env.example (raw) and fill in your values (what the .env is for):

Comments go on lines of their own, never behind a value. The image (ghcr.io/dropnook/dropnook:2, follows every 2.x release) is set in compose.yaml.

Save. While in Edit Stack, tab Settings → Icon URL gives the stack its icon:

https://raw.githubusercontent.com/dropnook/dropnook.app/main/.github/icons/drop.png

Or paste this into the Unraid terminal (>_ at the top right of the web interface), then reload the page:

d=/boot/config/plugins/compose.manager/projects/drop; [ -d "$d" ] && printf '%s' https://raw.githubusercontent.com/dropnook/dropnook.app/main/.github/icons/drop.png > "$d/icon_url" && echo "Icon set" || echo "No stack 'drop' found"

4. Start the stack

In the Compose section, on the stack drop: Compose Up. drop starts first; as soon as it answers, drop-share follows. Both show as healthy, each with its own icon.

On the stack, Logs — drop should say:

Certificate found for drop.yourdomain.com: …
Starting on port 443 with TLS
Tower Drop ready — files in /data/files, texts in /data/texts

and drop-share:

Drop — public part on port 80, shares only, from /data/shares

Tip: HTTPS in your network, too. If drop says Starting on port 80 without TLS, it runs on plain http://. That works — but browsers then warn about or block downloads ("insecure download"), pictures cannot be copied, and the share menu on Android stays closed. Two things make it HTTPS:

1. The name: at your domain hoster, add a DNS record drop → the LAN address of drop (type A, e.g. 192.168.1.20). A private address in public DNS is harmless — it only works inside your network. If the name does not resolve at home, your router's DNS rebind protection blocks it: allow drop.yourdomain.com there (FRITZ!Box: Home Network → Network → Network Settings → DNS Rebind Protection). A local DNS entry in your router or Pi-hole/AdGuard works just as well.
2. The certificate: Drop usually finds your reverse proxy's certificate by itself — see HTTPS in your network.

Then open https://drop.yourdomain.com, not the IP address.

5. Try Drop out

• Open https://drop.yourdomain.com — the dot at the top left turns green, with "live" next to it. WebUI on drop in the Docker tab opens it too.
• Share a text field (Share), copy the link and open it on your phone with Wi-Fi off.
• https://drop-share.yourdomain.com/ on its own must show nothing but an error page: from outside, only the individual links exist.

What Drop expects from your reverse proxy

How you run your reverse proxy and where your certificates come from is up to you. Drop only needs this:

drop-share itself speaks plain HTTP inside your network and never sees a certificate. As a second line of defence, drop refuses every request that comes through a proxy or from the internet — even a misconfigured proxy does not reach Drop itself.

HTTPS in your network

Over plain http://, browsers block some downloads ("insecure download"), copying text works only in a roundabout way and pictures cannot be copied at all. A certificate for drop.yourdomain.com fixes that — usually the one your reverse proxy already has, if it covers that name (a wildcard *.yourdomain.com does).

Drop reads it from the folder CERTS_DIR, read-only. TLS_CERT in the .env decides how:

CERTS_DIR is preset to Nginx Proxy Manager's folder; with something else, put in the folder your certificates live in. Never put certificates into Drop's appdata folder — drop-share can read that one.

Rather not let Drop see all your certificates? CERTS_DIR is mounted read-only, but drop could read every certificate in it — that is how auto finds the right one, and a file path in TLS_CERT only turns off the search, not the access. To give it just one: copy the certificate chain and its key into a folder of their own (e.g. /mnt/user/appdata/drop-certs/), set CERTS_DIR to that folder and TLS_CERT/TLS_KEY to the two files. Drop then sees nothing else — but renewals are up to you: copy the new files there after each one (e.g. with the User Scripts plugin); Drop picks them up by itself. With Nginx Proxy Manager, mounting only live/npm-<N> does not work — the files there are links into archive/. Without HTTPS in your network at all: TLS_CERT= (empty), and CERTS_DIR= any existing folder without certificates, e.g. /mnt/user/appdata/drop — otherwise Docker creates the preset one, empty.

If auto does not get a certificate — on the stack drop in the Compose section, open Logs of the container drop. Right after the start it says what it found, and the fix goes into the .env (Edit Stack → tab .env, then Compose Up):

Renewed certificates are picked up by themselves: Drop restarts for a moment, once no upload is running (one that has not moved for ten minutes does not count). Old http:// bookmarks are redirected.

Updating

In the Unraid web interface, tab Docker → section Compose → Check for Updates, then Update on the stack drop. Your files, texts and shares stay where they are.

:2 follows every 2.x release — fixes and new languages; should a release ever need something from you, its release notes say so first. An update touches neither compose.yaml nor the .env. If a release brings a new compose.yaml, paste it in as a whole (Edit Stack → tab Compose) — your values stay in the .env.

Coming from 1.x? Change :1 to :2 in the image line of compose.yaml, then Compose Up. Nothing else changes: without users Drop works as before, and your files, texts, links and PIN stay as they are. :1 gets no more updates. Better still, switch to the new compose.yaml with the .env right away — see the next section.

What the .env is for

Your values — addresses, folders, PIN, users — are in the .env next to compose.yaml, and compose.yaml holds none of them (it takes them with ${DROP_IP} and the like). That keeps the two apart: compose.yaml can be replaced by a newer one as a whole, shown or posted in a forum without giving away an address or a PIN; the .env is yours.

• It is not a vault: like every setting, the values end up in the containers' environment, and whoever administers the server sees them (docker inspect). The PIN keeps out guests on your network, not the server's admin.

• The .env lives with the stack on the flash drive; no container sees it. Never put it into Drop's appdata folder — drop-share can read that.

• Comments go on lines of their own; special characters ($, #, ", spaces at the end) in single quotes: PIN='a$b#c'.

• After a change: Compose Up. The log of drop says what it found (Starting on port 443 with TLS, PIN is set …, User Anna (teal) …).

• From a compose.yaml with a SETTINGS block (up to 2.0.0): it keeps working. To switch, copy your values into the .env once, then replace compose.yaml as a whole:

  SETTINGS	.env
  drop-ip, share-ip	DROP_IP, SHARE_IP
  data, appdata, certs	DATA_DIR, APPDATA_DIR, CERTS_DIR
  tls-cert, tls-key	TLS_CERT, TLS_KEY ("" becomes empty)
  share-subdomain	SHARE_SUBDOMAIN
  label net.unraid.docker.webui	WEBUI
  PIN, USER_…, TZ under environment	PIN, USER_…, TZ

Security updates reach the image on their own: every Monday the current release is rebuilt on a fresh base image (Debian, Python, OpenSSL) whenever that base has changed. Check for Updates then shows an update for the same version — take it like any other. Every image is tested before it is published.

Using Drop

Text fields — three to start with, more with "+ Text field"; × removes one for everyone. Each holds up to 2 million characters. If someone removes a field while you still have unsaved text in it, you are offered to keep it as a new field. If two people save the same field at once, the second one is asked which version to keep.

Screenshots and pictures — take a screenshot into the clipboard and press Ctrl+V on the page (⌘V on a Mac): it is uploaded at once and shows up on every other device, briefly highlighted. Pictures get a small preview in the file list; a click shows them large (arrows or swiping for the next one). Copy puts the picture itself into the clipboard — ready to paste into a chat, a mail or a document. That needs HTTPS; without it, right-click the large picture and use the browser's Copy image. iPhone photos (HEIC) are kept like any file, but get no preview.

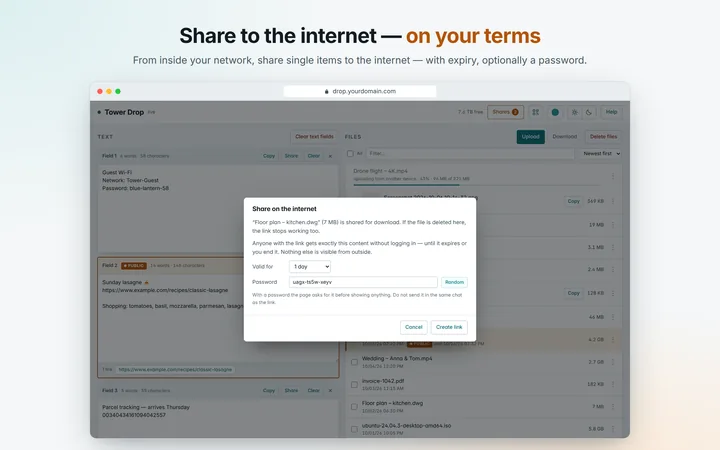

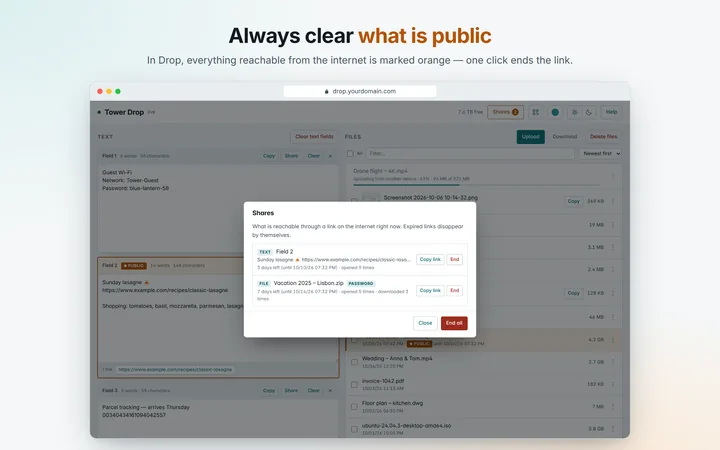

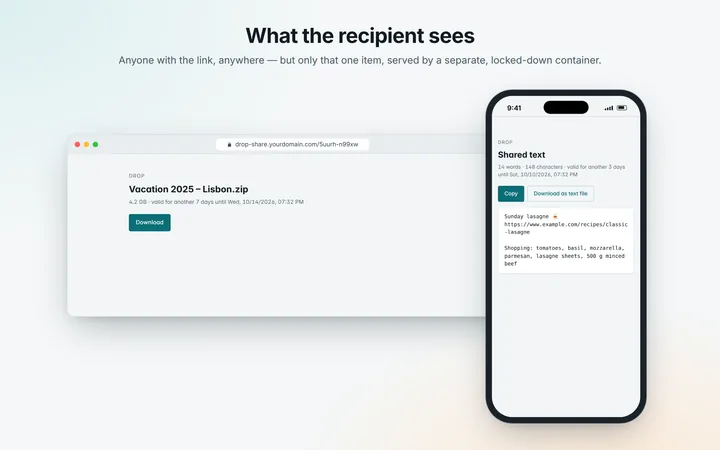

Sharing — Share on a text field, or Share on the internet… in a file's menu: choose how long the link lives (15 minutes to 30 days) and optionally a password. What is public is always visible: an orange "Public" badge on the field or file, an orange Shares button with the count; Shares lists every open link with its views and downloads and ends any of them at once.

Links look like drop-share.yourdomain.com/k7m3x-9pq2r — easy to read out and type (no 0/o or 1/l/i, case and dash don't matter), and still impossible to guess. Drop shares only when it is opened by its name: opened by IP address it cannot know the link's address, and says so.

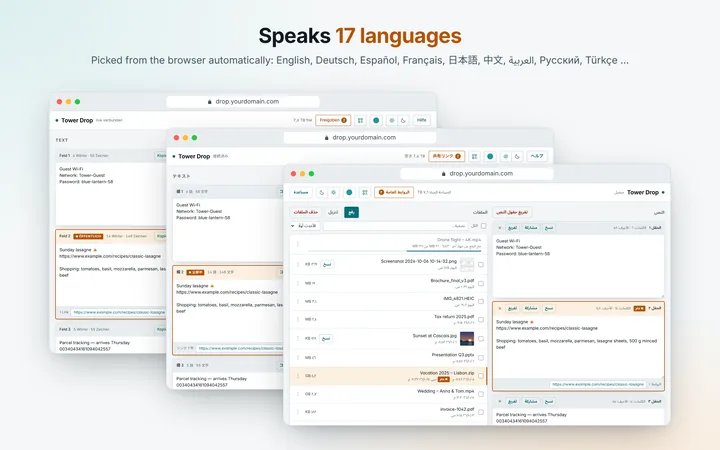

Languages — the page follows the browser: Arabic, Chinese, Dutch, English, French, German, Hindi, Icelandic, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish and Turkish. To change wording or add a language for yourself, put a file into lang/ in the appdata folder — see lang/README.md.

On another device — the QR button in the header (on computers and tablets) shows Drop's address as a QR code: point the phone's camera at it, and the page opens there.

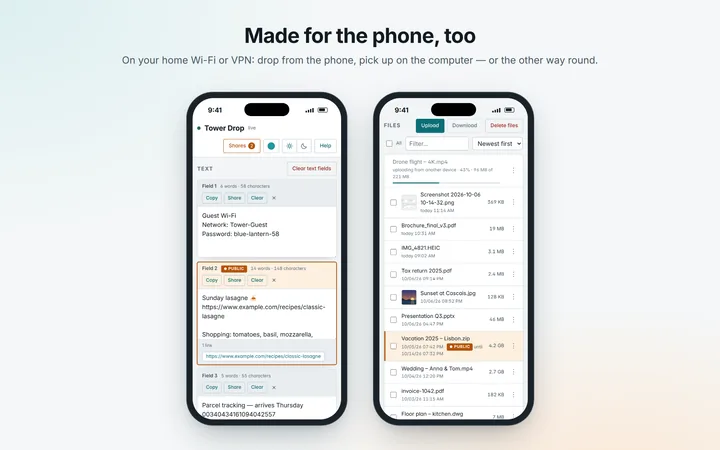

On the home screen — Drop can sit there like an app: on the iPhone in Safari Share → Add to Home Screen, on Android Install app in the browser menu. On Android it then also shows up in the share menu: share pictures, files or a link straight to Drop — files land in the list, text and links in a new text field. The share menu on Android needs HTTPS.

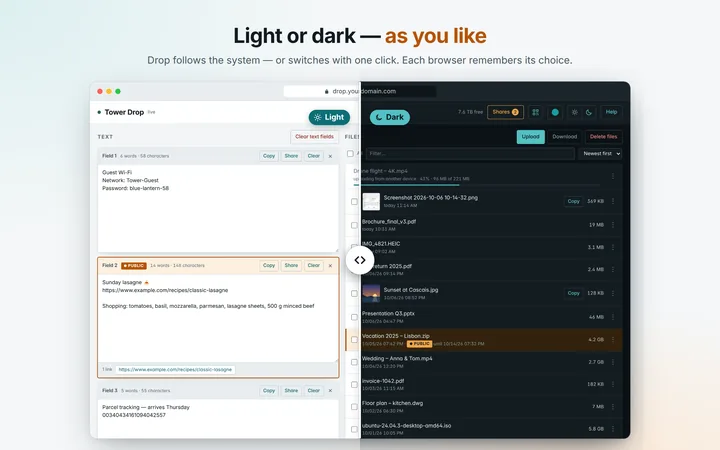

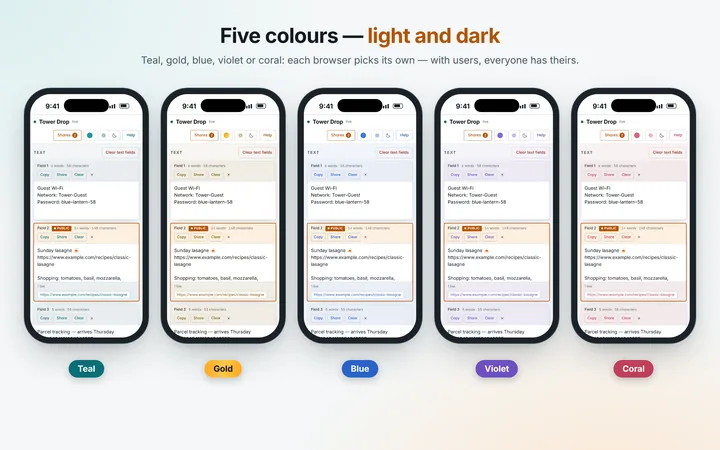

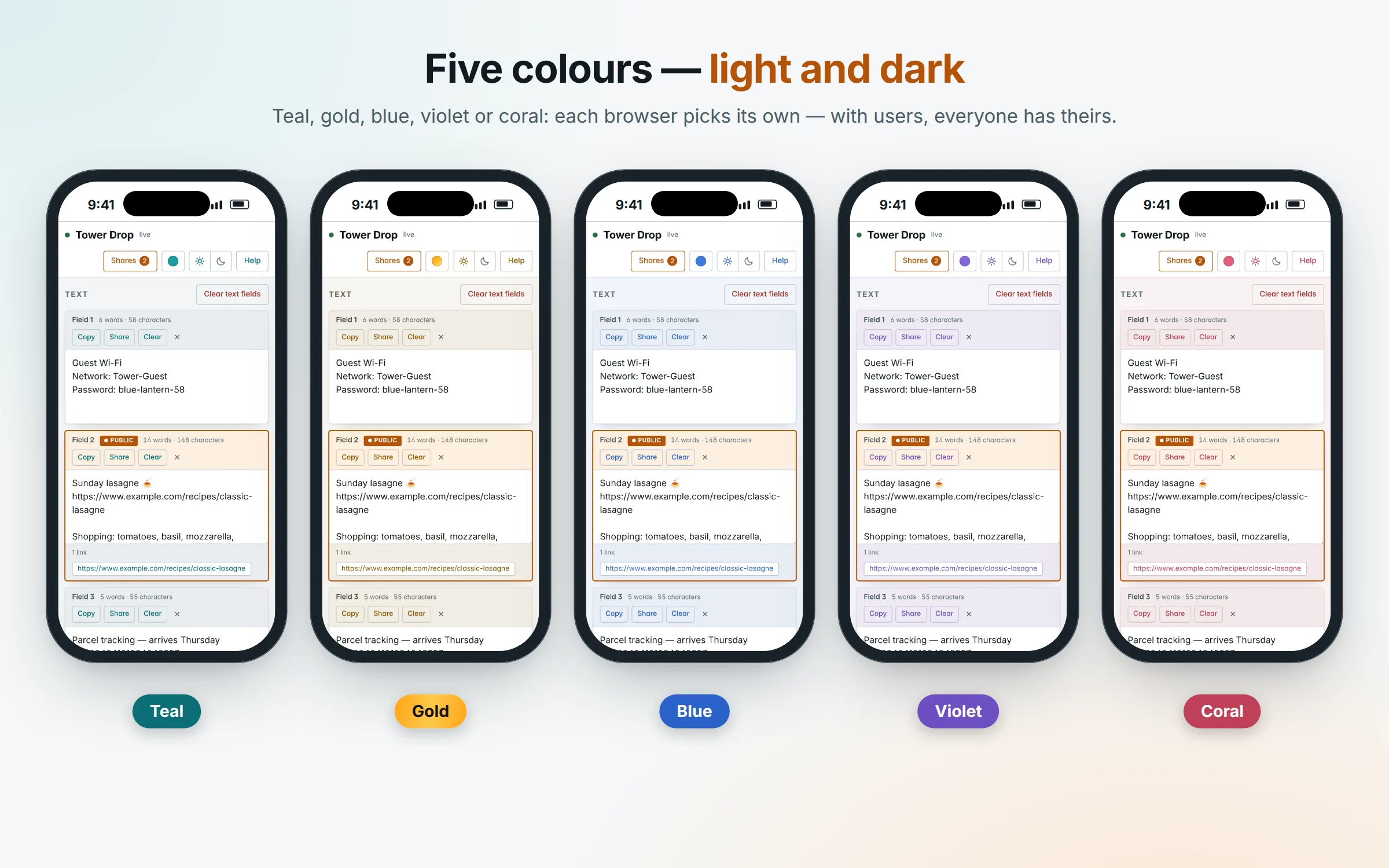

Colours, light and dark — the round button in the header picks one of five colour layouts: teal, gold, blue, violet or coral. Light and dark follow the system; ☀ and ☾ next to Help pick one by hand, a second click on the chosen one goes back to automatic. Each browser remembers both. With users, the colour is the user's.

Times are shown in each viewer's own time zone; nothing to set.

How it is protected

drop-share runs without root, with a read-only file system, no Linux capabilities and limited memory. Even a serious bug in it could at most expose what is shared anyway — your files, the text fields and the certificate do not exist in that container. It also checks every share record it reads and ignores any that drop did not write that way.

drop needs root to own the data folders, but keeps only the four Linux capabilities it uses (file ownership, hard links, ports 80/443), cannot gain more, and has a memory limit. Picture previews are made only from PNG, JPEG, GIF, WebP, BMP and AVIF, within size and pixel limits — no other decoder ever sees the file. It answers only to its own names — IP addresses, local ones such as tower.local, the names of its certificates and WEBUI — so a web site that points its own name at drop's address (DNS rebinding) gets nothing; and no other site may frame its page or embed its files.

Every image is tested before it is published — including these attacks: path traversal, forged share records, password guessing in parallel, header injection through file names, disguised picture formats, DNS rebinding, uploads and texts too large to handle.

• A shared file is a hard link, not a copy — no extra space. Delete the file in Drop and its link stops working.
• A shared text is a copy; later edits to the field are not shared.
• Passwords are stored as hashes only; after 10 wrong tries in 15 minutes a link is locked for that time.
• Downloads are always attachments — a shared HTML file never runs in the browser. Expired links disappear by themselves.

PIN or password (optional)

Anyone in your network can open Drop — at home that is usually just right. With guests in your Wi-Fi, or in a network you share, set a PIN or password in the .env of the stack (Edit Stack → tab .env):

PIN=2468

Every new browser is asked for it once and stays signed in for 90 days. Change the PIN (then Compose Up) to sign every device out; remove it to switch the question off. After 10 wrong tries in 15 minutes a browser has to wait. It keeps out guests in your Wi-Fi — not someone who can get at the server itself. Share links are not affected; they have a password of their own.

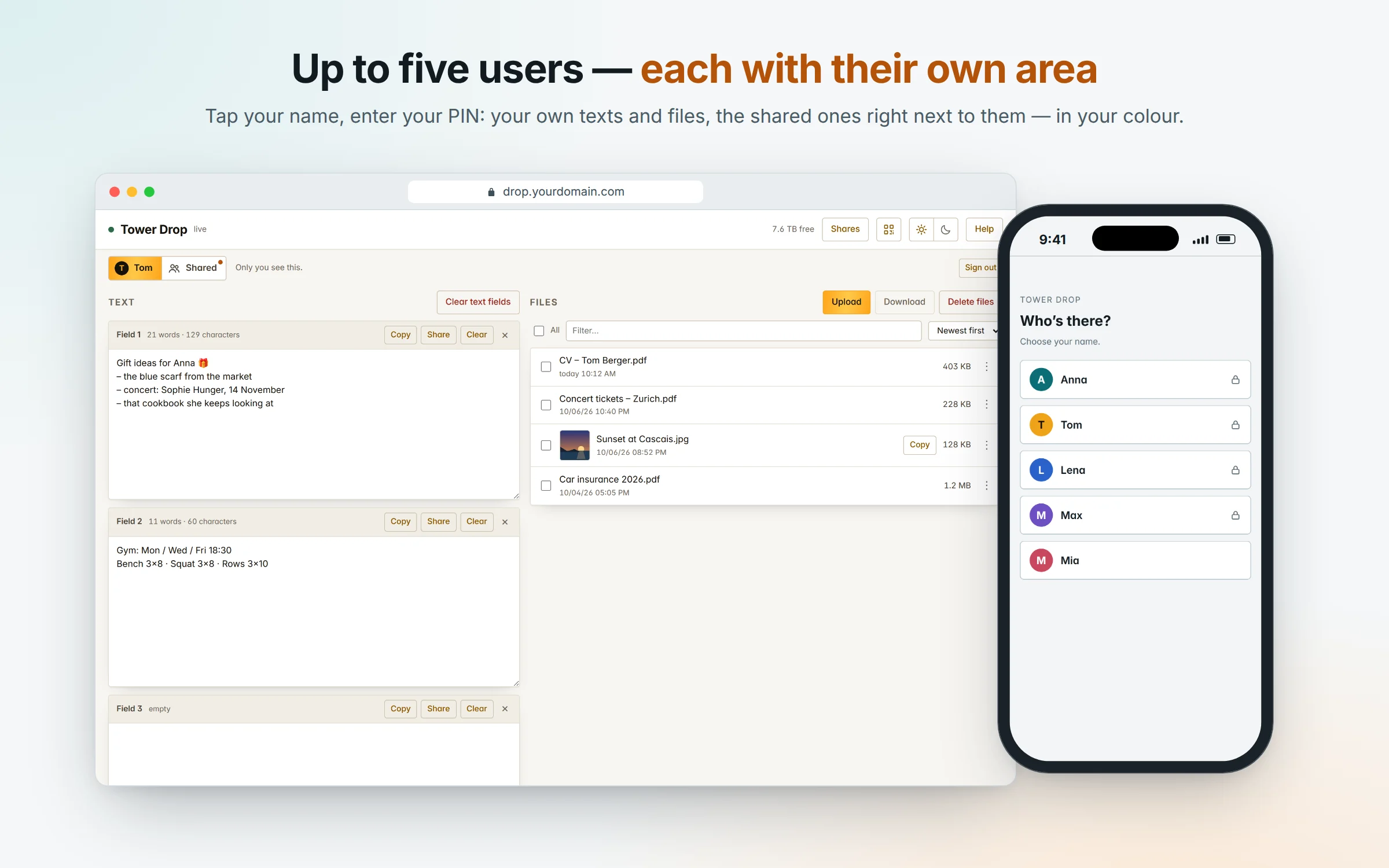

Users (optional)

Several people, each with something of their own? Give up to five of them a name, a PIN and a colour — one user per colour, in the .env of the stack:

USER_TEAL=Anna:2468
USER_GOLD=Tom:1357
USER_BLUE=Lena:8642
USER_VIOLET=Max:9753
# without ":PIN": the name alone signs in (or PIN, if set)
USER_CORAL=Mia

Drop then starts with "Who's there?": everyone taps their name once per device, enters their PIN, and stays signed in for 90 days. At the top they switch between their own area — text fields and files only they see — and the shared area everyone sees; a dot shows news in the other one. The page is in their colour, so it is clear at a glance whose it is. Links shared from an own area are listed only for that user.

The files are in the share drop under users/<name>/, the shared area stays where it was (files/, texts/). Renaming a user starts an empty area — rename the folder as well; renaming or removing a user also ends the links shared from their area. A changed PIN signs that user out, nobody else. A user without a PIN of their own signs in with PIN, if that is set; otherwise their name alone does, and anyone in your network can open that area — fine for a living-room TV, not for something private.

Troubleshooting

Compose Up: "bind source path does not exist: /mnt/user/drop" — the share is missing or named differently (step 1, or DATA_DIR in the .env).

Compose Up: "required variable DROP_IP is missing a value" (or SHARE_IP) — the .env is empty or was not saved: Edit Stack → tab .env, fill in (step 3).

The page says "Unknown name" — Drop answers only to names that are clearly yours: IP addresses, local ones (tower.local, ….lan, ….fritz.box), the names of its certificates and WEBUI in the .env. Put the name you open Drop under into WEBUI (several: HOSTS=drop.example.org,*.example.net), then Compose Up. Still on a compose.yaml with a SETTINGS block? Then switch to the .env — only the new one passes WEBUI on.

Compose Up: "no configured subnet contains IP address …" — br0 does not carry your LAN's subnet (step 2). In Settings → Docker: stop Docker, set Preserve user defined networks to No, start Docker again — Unraid then rebuilds br0 from your network settings.

A share link gives "502 Bad Gateway" — the reverse proxy does not reach drop-share: does it forward to <share-IP> on port 80, and is Host access to custom networks on (step 2)?

"Sharing only works through the name" — the page is open by IP address. Open https://drop.yourdomain.com instead.

Still http:// although there is a certificate — the log of drop says why: No certificate for drop.… in … — see If auto does not get a certificate.

"Copying pictures needs HTTPS" — the page is open over http:// or by IP address. Open https://drop.yourdomain.com (see HTTPS).

A picture has no preview — HEIC (iPhone photos) gets none; neither does a picture larger than 80 MB or 60 megapixels, nor a file whose content is not what its extension says.

Compose Up: "Your kernel does not support swap limit capabilities … Memory limited without swap" — harmless. Both containers have a memory limit (a safeguard); Unraid's kernel cannot also limit swap, and Unraid normally has no swap anyway. The limit works as it should.

PIN or users are not asked for — after changing the .env, Save alone is not enough: Compose Up. The log of drop then says what it found (PIN is set …, User Anna (teal) …); if it does not, check the spelling — PIN=2468, in capitals, at the start of the line.

The dot at the top left stays red — the browser does not reach drop: is the stack running, does drop.yourdomain.com point to <drop-IP>? You can keep typing; unsaved text is sent once the connection is back.

What Drop deliberately does not do

• No folders — zip them first. An uploaded ZIP is stored, not extracted.
• No permissions or roles: whoever gets in may do everything in the areas they see, including sharing to the internet. Users only separate own areas from the shared one; there is no admin.
• No recycle bin. Deleted is deleted.
• Nothing in Drop expires by itself — only share links do, and uploads nobody continued for a week. Keep an eye on the free space shown at the top right; an upload that does not fit is refused.
• No uploads from outside. Sharing works in one direction only: out.
