Atem Overseer

AI-assisted project. This codebase was created with Claude Code (Anthropic), directed and reviewed by a human author. It was developed and verified end-to-end against a built-in simulated switcher fleet (--mock), and has since been tested against real ATEM hardware in a lab — but never on a live show. Validate transport, streaming and media-upload behaviour against your own switchers before relying on it for one.

A browser-based dashboard for monitoring — and controlling — a fleet of Blackmagic ATEM switchers from one screen, styled after Blackmagic's own multiviewer.

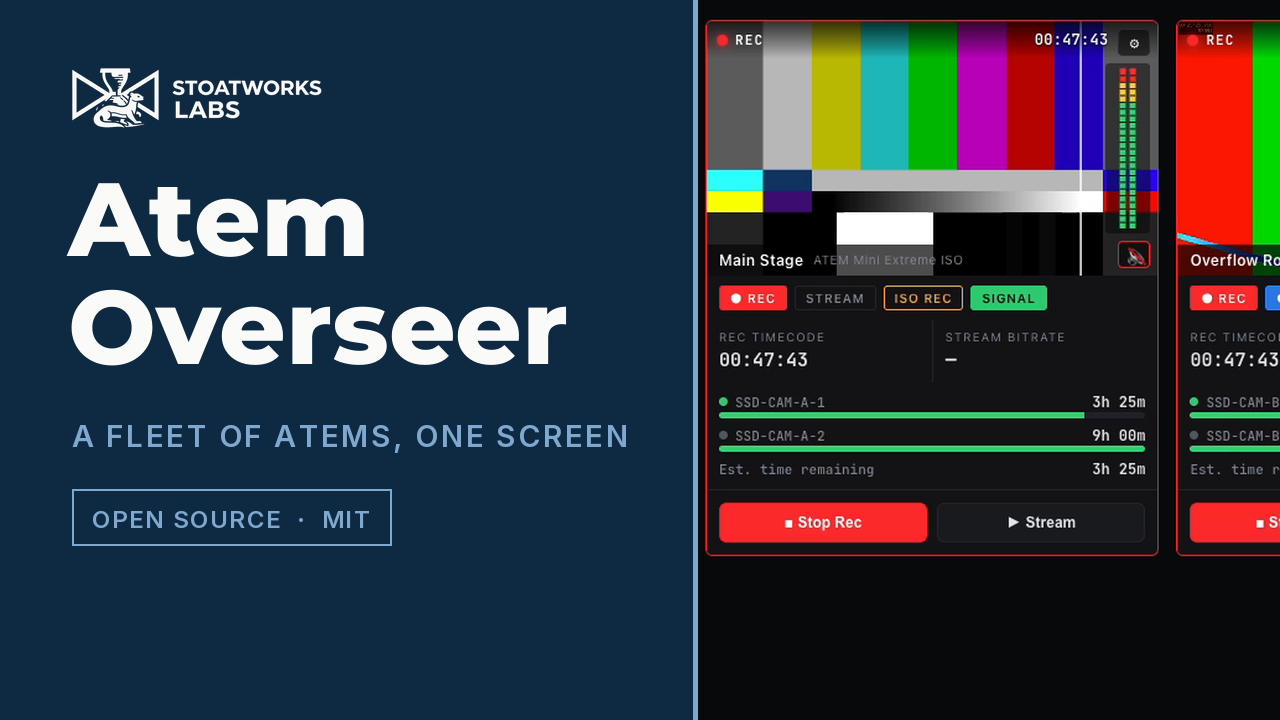

A 39-second tour, driven over the app's own HTTP API. The three switchers are the built-in --mock fleet, so their record/stream state is simulated — but the picture in the tiles is not: real test-pattern streams were pushed into the app's RTMP ingest, and what you see is the app receiving them.

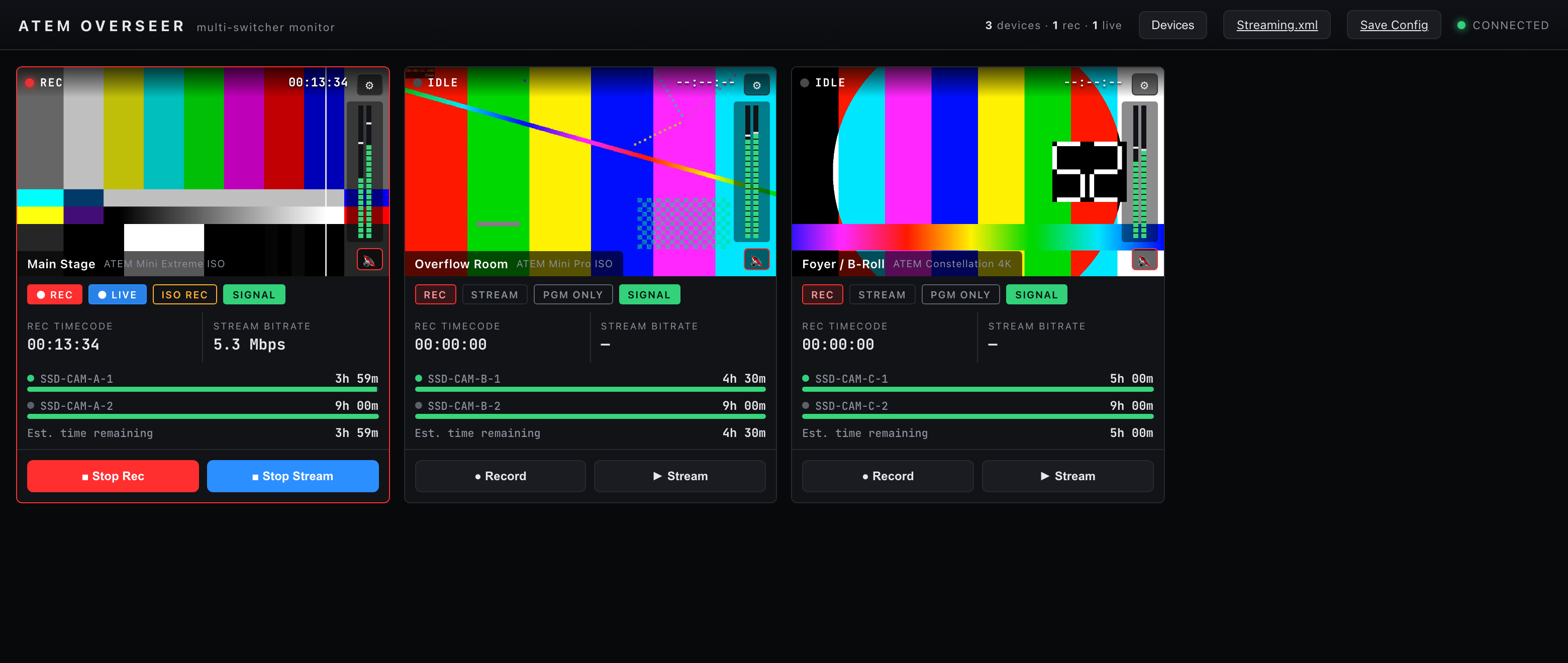

The dashboard running the built-in --mock fleet: one tile per switcher with record/stream status, live program-audio meters, drive time-remaining, ISO/PGM mode and transport controls.

Click around it yourself: https://atem-overseer-demo.stoatworks-labs.com — the real dashboard in your browser, replaying recorded telemetry from the --mock fleet, so the meters move and the timecode advances. Transport controls are inert there and say so; the server has to be on the network with your switchers to control anything. See demo/README.md.

flowchart LR
    subgraph Switchers["ATEM switchers"]
        A1[ATEM #1]
        A2[ATEM #2]
    end
    subgraph Server["Overseer server (Node)"]
        DM[Device manager<br/>atem-connection]
        MS[node-media-server<br/>RTMP → http-flv]
        WS[REST + WebSocket]
    end
    subgraph Browser["Dashboard (React)"]
        T[Multiview tiles]
        MET[Canvas meters]
        V[mpegts.js preview]
    end
    A1 & A2 -- UDP state/control --> DM
    A1 & A2 -- RTMP push --> MS
    DM --> WS
    MS --> WS
    WS -- snapshots + levels --> T
    WS --> MET
    MS -- http-flv --> V

Point it at any number of ATEMs on your network and get, per device:

• Record & stream status with live timecode and a tally-red tile border when rolling
• Drive capacity / estimated time remaining per disk, with working-set and low/critical warnings
• ISO vs PGM-only record-mode indicator (and toggle)
• Stereo program audio metering (Fairlight levels, peak-hold) that runs at display rate
• Live output preview — the ATEM streams to Overseer's bundled RTMP ingest and plays back in the tile with no transcode
• Per-device audio monitoring you can mute/un-mute independently, so you listen to one wall at a time
• Remote transport — start/stop record and stream from the browser

From the top-bar Devices button — fleet management (see docs/device-management.md):

• Best-effort mDNS discovery of ATEMs on the network, plus manual add by IP or hostname
• Add / remove devices from the dashboard live (persisted to the config file)
• Per-device info — model, IP, reverse-DNS hostname, record name, protocol version
• One-click launch of ATEM Software Control, ATEM Setup, MixEffect or ATEM Fleet Manager, targeting the device where a mechanism exists (MixEffect URL scheme; commands are configurable) and copying the IP to the clipboard otherwise

Behind each tile's ⚙ (gear):

• Streaming.xml generator — drop it into ATEM Software Control (or apply the service to a switcher directly) so the ATEM streams to Overseer
• Restreamer split pipeline (optional) — stream the ATEM to a Restreamer instead, which copies one feed back to Overseer for preview and fans the rest out to YouTube/Twitch/etc., managed per-device. See docs/restreamer.md. Built as a portable @av/restreamer package so flock can reuse it.
• Config XML save / load for the monitored fleet
• Media pool upload (any image, converted to the switcher's native RGBA in-browser) and media-player assignment

Download

v0.2.2 — prebuilt for macOS, Windows and Linux. Pick your platform:

Also in this release:

• atem-overseer-node-bundle.tar.gz — Node bundle (run it yourself), 202 KB

All builds, checksums and release notes: github.com/stoatworks-labs/atem-overseer/releases.

macOS builds are signed and notarised and open normally. The Windows builds are unsigned, so SmartScreen warns once — see Windows SmartScreen & Defender Firewall for the one-time click-through.

Architecture

 ATEM switchers ──UDP(atem-connection)──┐
        │                               │
        └──RTMP push (Streaming.xml)──┐ │
                                      ▼ ▼
                            ┌───────────────────────┐
                            │   Overseer server     │
                            │  • device manager     │
                            │  • node-media-server  │  RTMP:1935  →  http-flv:8000
                            │  • REST + WebSocket    │
                            └───────────┬───────────┘
                                        │  WS: snapshots + batched audio levels
                                        ▼
                            ┌───────────────────────┐
                            │  Web dashboard (React) │  mpegts.js plays the http-flv feed
                            │  BMD multiview tiles   │  canvas meters @ display rate
                            └───────────────────────┘

• packages/server — Node + TypeScript. Wraps atem-connection for each device, normalizes state into a UI-friendly model, and fans it out over WebSocket. Bundles node-media-server so each switcher's RTMP stream is re-served as low-latency http-flv. REST for commands, config, and media upload.
• packages/web — Vite + React + TypeScript. The multiview dashboard; mpegts.js for playback.

The stream key is the device id — that's how a published RTMP stream is matched to its tile.

Quick start

npm install

# no hardware? run the simulated 3-switcher fleet:
npm run dev:mock          # dashboard at http://localhost:4700

# real devices — copy the example, edit addresses, then:
cp atem-overseer.config.example.json atem-overseer.config.json
npm run build
npm start

Set publicHost to the IP the ATEMs (and browsers) reach this machine at — it's baked into the generated Streaming.xml and the http-flv playback URLs.

Wiring up live preview

1. Open a tile's ⚙ → Download Streaming.xml, and place it in ATEM Software Control's streaming support folder (or hit Apply local service to switcher to push the RTMP URL directly over the protocol).
2. Set the switcher's stream key to its Overseer device id (listed in the XML).
3. Start streaming — the feed appears in the tile.

Desktop app

Prefer a one-click app over npm? The launcher/ directory wraps Overseer in the fleet's av-launcher tray shell — a small native menu-bar app (Tauri v2) that embeds a Node runtime and the whole app, so nothing needs to be installed. Pick an interface + port, Start/Stop, and open the dashboard from the system tray. Download an installer from Releases, or see launcher/README.md to build one.

Ports

Documentation

Scope & honest caveats

• Metering is telemetry, always shown. The per-tile mute only silences the browser's local audio playback of that stream — it never affects the meter or the switcher.
• "Drive capacity" comes from the ATEM as recording time available, not raw bytes (the protocol doesn't expose capacity); the bar uses 4h as a nominal "full" reference.
• Config XML here is Overseer's own fleet/ingest config, not a full ATEM state backup. Device-list changes take effect on restart.
• No authentication, and the server binds to every interface. Anyone who can reach port 4700 can start/stop recording and streaming on your switchers. There is no token, session or TLS option — run it on a private production network only.
• Developed and verified end-to-end against the built-in --mock fleet, and since tested against real ATEM hardware in a lab — but never on a live show. Validate transport/upload behaviour against your specific ATEM model before relying on it live.

Windows SmartScreen & Defender Firewall

macOS builds are Developer ID-signed and notarised by Apple — they open normally, with no Gatekeeper warning and no quarantine step. The Windows binaries are not code-signed, so Windows still warns you the first time.

• Windows — SmartScreen shows "Windows protected your PC" → More info → Run anyway.
• Windows Defender Firewall — first launch pops "Allow Atem Overseer to communicate on these networks". Tick Private (and Domain on a managed network) — Atem Overseer needs it to serve the dashboard and poll ATEM switchers on the LAN. Deny it and switchers stay greyed out and the dashboard won't load from another machine.
• Linux — no signing gate.

Per-artifact steps, self-signing, checksum verification and the Defender Firewall reset procedure: docs/UNSIGNED.md.

Control it from Companion

companion-module-atem-overseer is a Bitfocus Companion connection module for this app.

Record and stream per switcher and across the whole fleet, PGM/ISO mode, monitor mute and restreamer channels, with a preset section generated per switcher.

The button worth putting in front of an operator is ALL rolling — every connected switcher recording. "Something is recording" is true when three of four machines are rolling, which is the failure an ISO shoot cannot recover from.

It is not in the official Companion module store — install it via Settings → Developer modules path.

License

MIT

This project is built on other people's work — see ATTRIBUTIONS.md.
