ArrayCAD

AI-assisted project. This codebase was created with Claude Code (Anthropic), directed and reviewed by a human author. I've checked the geometry against the applications themselves rather than against a description of them. A .dbacv it writes reproduces a real ArrayCalc export byte for byte and has been round-tripped through ArrayCalc until every object came back untouched, Soundvision 3.18.0.15 imported a written .txt and read it back surface by surface, and EASE Focus 3.1.260 opened and saved a project of 57 audience planes with all 57 labels and every coordinate intact. 549 tests pin the reduction, and 38 more check it against four real venues' own published drawings. What none of that proves is acoustic orientation. No prediction has been run over an imported surface yet, and a surface wound the wrong way lands right where it should and then silently returns no mapping result, so check a mapping before you trust a whole design to it.

ArrayCAD turns a CAD venue model into a d&b ArrayCalc venue file.

Drop in a DWG, DXF, glTF, IFC, OBJ or something similar. ArrayCAD merges the model's triangles back into flat planes, lets you bin everything ArrayCalc doesn't need, lets you say what each surface is (listening, surface, stage) and writes a .dbacv.

It does L-Acoustics Soundvision too. The same reduced venue exports as Soundvision 3D room data (.txt), the format its own SketchUp and Vectorworks plug-ins write. See Soundvision.

And AFMG EASE Focus 3 (.fc3). EASE Focus has no geometry import at all (you type coordinates or trace over a picture), so writing the project file is the only way in. See EASE Focus.

All three formats open as well, so ArrayCAD converts between the three prediction tools: drop any one in, write any other. See Converting between the prediction tools.

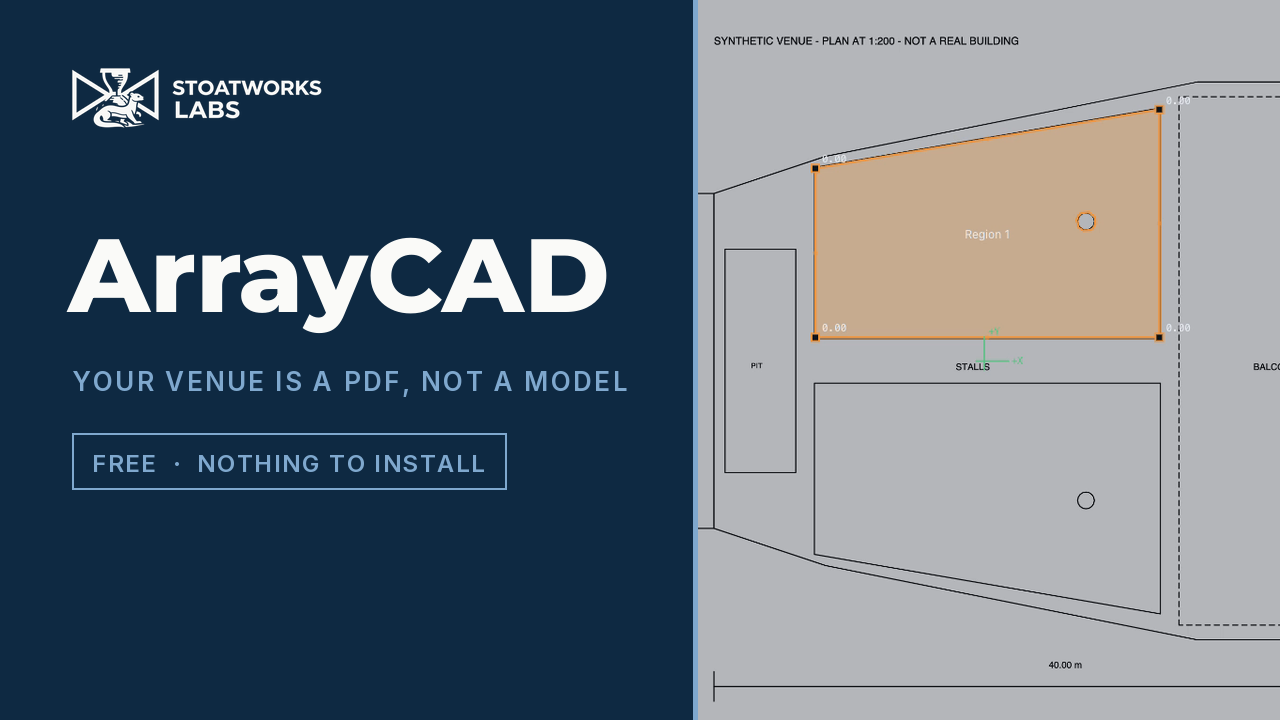

No 3D model? Trace one off the plan. Drop in a PDF or an image instead, set the scale, click inside a room to detect its outline and type a height at each corner. See Tracing a plan.

Every seat modelled separately? Select them or draw round them, and swap the lot for the one seating plane they stand for. See Rationalising a seat-by-seat plan.

Most of that happens as the file opens. Clutter gets left out, plane types are read off the names, banks of seats are flattened and meshed surfaces re-cut, and a model that arrives as one lump with no names at all is taken apart by its shape. You can see every bit of it and put any of it back with one click. See Preparing a model on import.

It runs entirely in the browser. There's no backend and no upload, so the file never leaves your machine.

Try it →

There's more on its page at stoatworks-labs.com, along with the user guide and notes on running it on your own server.

Watch

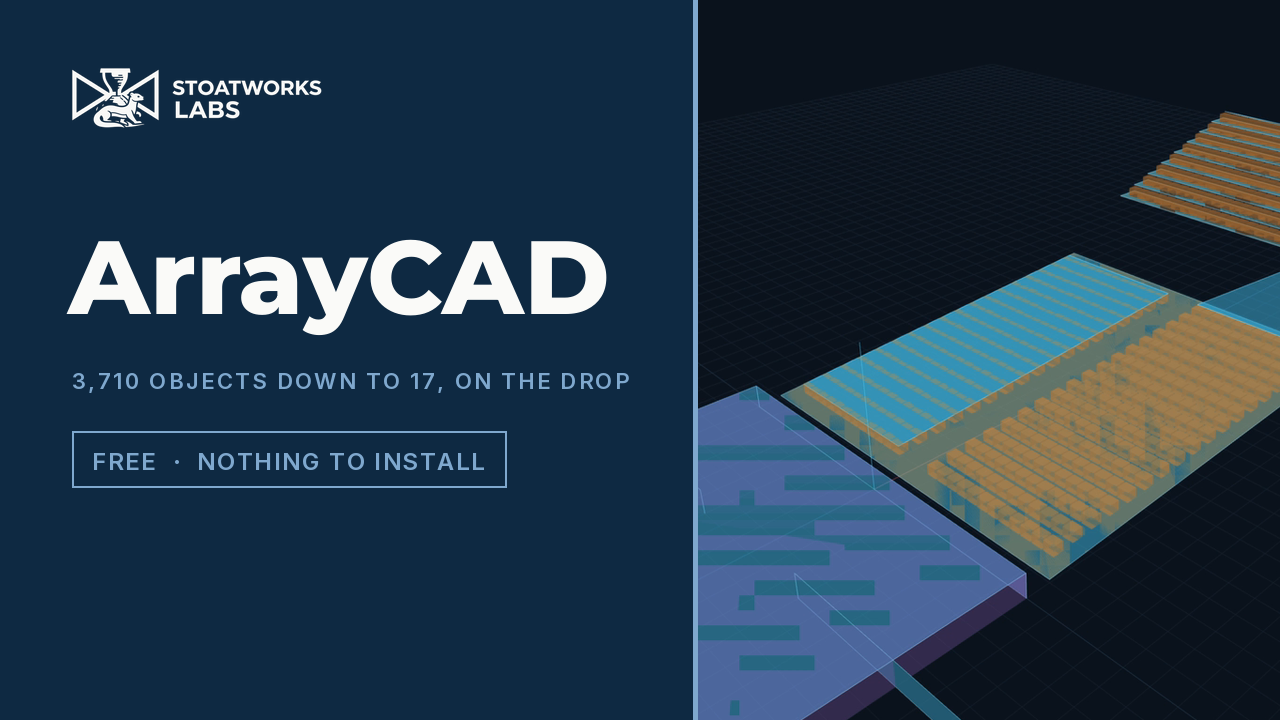

3,710 objects down to 17, on the drop →: what the layer names already tell it, read as the file opens. The box gets unticked on camera, because you can't see work that's already been done for you, but you can watch it being undone.

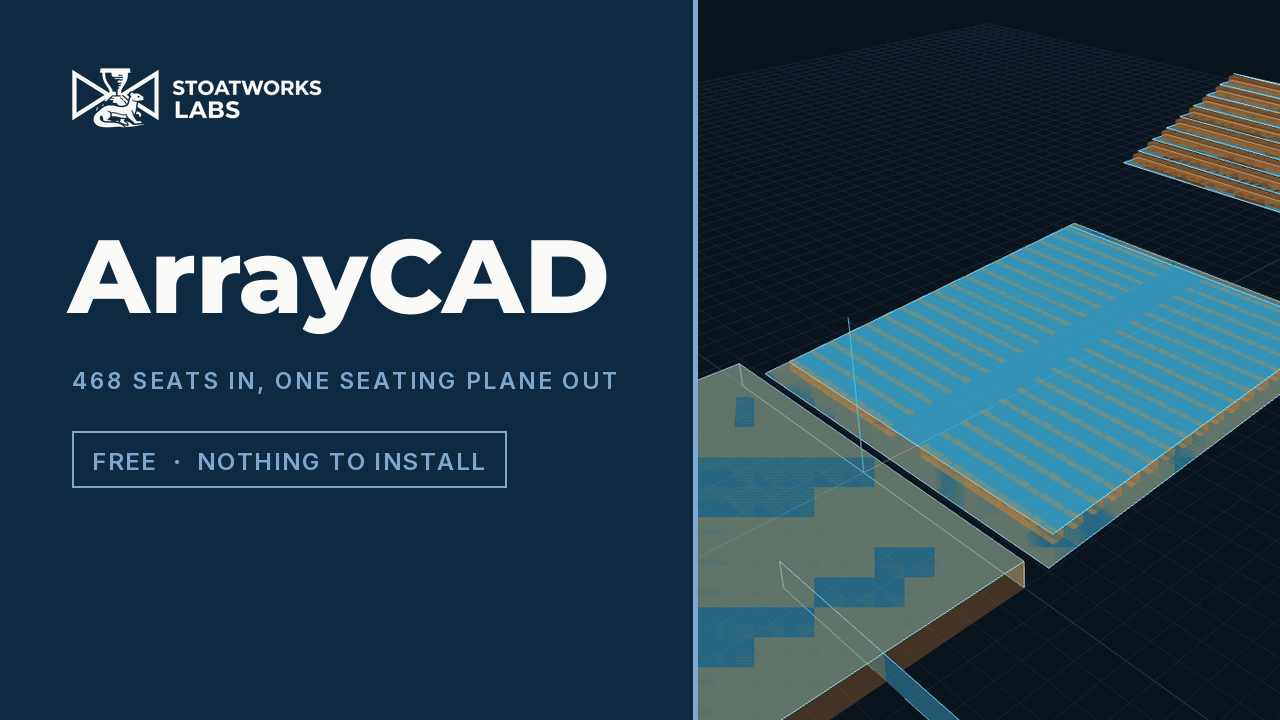

468 seats into one seating plane → — doing it by hand, and why it is an assertion	Trace a venue off the plan → — no 3D model needed

ArrayCalc and Soundvision →: one reduction, two formats.

The original 50-second tour →: a CAD model in, flat planes out.

---

Why it is not just a file conversion

An ArrayCalc venue is a few dozen parametric planes. A CAD export of the same theatre is tens of thousands of triangles, and if you hand ArrayCalc the triangles you get a file it can't do anything useful with.

So the interesting part is the reduction:

import  →  weld  →  coplanar regions  →  outline  →  simplify  →  quads/triangles  →  .dbacv

A whole raked seating deck is one plane, however many triangles the CAD model spent on it, and a 12-triangle box is six. Most of what ArrayCAD does is that collapse.

There's one thing the reduction can't do, because it only merges surfaces that touch. If the plan models every seat on its own (which architects' models do all the time), then four hundred seats really are four hundred separate surfaces. No tolerance setting will merge them, since the gap between two seats isn't a crack to be closed. The demo file for this imports as 3,710 ArrayCalc objects, which is a lot of objects for one room.

Rationalise sorts that out: select the seats, or draw round them, and replace the lot with the one plane they stand for. See Rationalising a seat-by-seat plan. ArrayCAD will also offer to do it for you on import; see Preparing a model on import.

Supported inputs

Format	Notes
DXF	Best for venue drawings. 3DFACE, polyface meshes, LWPOLYLINE (including bulges), SOLID, CIRCLE/ARC, ELLIPSE, SPLINE, INSERT blocks including row/column arrays, and 3DSOLID (truss) as its outer volume — read from the ACIS body in an R2000–R2004 DXF. Reads $INSUNITS. Loose lines and arcs are joined back into closed outlines, which is what makes an ordinary 2D plan usable; closed outlines can then be extruded to a height.
DWG	AutoCAD's own format, read directly — no export step, no converter. R13 through R2018. Same entity support and the same outline-joining as DXF. 3DSOLIDs (truss) are read from DWG 2004; the DWG reader currently loses most of them from an R2018 file, and the import says so — save as DWG 2004 or DXF 2004.
glTF / GLB	Best of the mesh formats — keeps object names and hierarchy, and declares metres and Y-up, so nothing has to be guessed.
IFC	The only format carrying real semantics. IfcSlab, IfcCovering, IfcWall etc. are mapped to suggested plane types.
MVR	A whole show from a lighting visualiser — Capture, Depence, Vectorworks, WYSIWYG, grandMA3. Layers and classes arrive as the tree; truss, fixtures and supports are tagged by their MVR type, so the rig prunes itself whatever it was named. Millimetres and Z-up are stated by the format, so nothing is guessed. See the format notes.
FBX, Collada, 3DS	Keep names and hierarchy.
OBJ, PLY, STL	Geometry only. STL has no names at all, so the whole model arrives as one node.
Scans	A LiDAR or photogrammetry scan of a room, in any of the mesh formats above. Read as a scan as it opens: flat to within the scanner's noise, not exactly flat. See Scans.
.dbacv	An existing ArrayCalc venue, for pruning, retyping and converting to Soundvision. See the caveat below.
Soundvision .txt	An existing 3D room data export, for the same — and for converting to .dbacv. Surfaces are grouped by their label, which is your CAD layer name.
EASE Focus .fc3	An existing EASE Focus 3 project. Audience zones arrive as raked planes, one object per profile segment. .fc2 must be re-saved as .fc3 in EASE Focus first.
PDF	Not a model — a drawing. Opens the tracer. A vector PDF also gives its real drawn lines to snap to.
PNG, JPEG, WebP, GIF, BMP	A scan or a photo of a plan. Opens the tracer; outlines are recovered from the pixels.

Formats that need an export step first

.vwx, .skp, .rvt, .3dm, .max and .blend are closed binary formats with no public specification. Nothing outside their own application can read them, and no amount of work on my end changes that. Drop one in and ArrayCAD tells you which export to run instead. For Vectorworks that's glTF first, then IFC, then DXF 3D.

DWG has no public specification either, but enough of it has been reverse-engineered that ArrayCAD reads it directly, so it's the one format on that list that doesn't need an export step any more.

Lighting visualisers (Capture, Depence, WYSIWYG, grandMA3) are the same story with a happier ending. Their project formats are closed, but they all read and write MVR, which is an open standard, and ArrayCAD reads that directly. Export MVR from whichever one you use and drop it in. Capture can also export glTF or DWG, and those work too.

MVR goes the other way as well (see Going back to the visualiser, below), so a room can come from a visualiser, get pruned and simplified here, and go back.

Tracing a plan

Most venues that need a design have a plan rather than a model. A PDF or an image opens a tracer instead of the reducer, and the rest of the app carries on as normal: a traced region becomes the same intermediate geometry a CAD import produces, so it goes through the same conversion, the same inspector and the same writer.

Try it on demo/demo-plan.pdf, a made-up 1:200 venue with a stage, a pit, two raked stalls blocks, columns and a balcony.

1. Set the scale. A drawing has no units. Either click each end of a dimension you know and type its real length, or, on a vector PDF, type the paper scale from the title block (1:200) and get an exact answer without clicking at all. Measure across the longest dimension on the sheet: your click accuracy stays the same, so spreading it over a longer line makes the error smaller.
2. Set the origin if you want it somewhere particular. Venue +X runs right across the sheet and +Y up it; Heading under Placement aims the room down +X afterwards.
3. Get the outlines. Detect region floods the enclosed area under the cursor and returns its outline. Anything enclosed inside it (a column, but on a real plot far more often a label, a loudspeaker symbol or a desk) is left out by default and counted in the status line; set Holes to Keep under Detection, with a size floor, when the columns matter. If the outline comes back with dozens of corners (a hall with pilasters, a wall with every door frame drawn), raise Outline detail under Detection so anything shallower than that is smoothed out of the walls, or set the region's Fit to Rectangle or Hull: the same area as four corners or a convex shape, holes dropped, heights carried across as a plane. As detected brings the outline back. For a hole that shouldn't be there, alt-click inside it, or use Remove holes for all of them. Trace draws one corner by corner, snapping to the drawing's own lines. Drag corners to adjust, alt-click one to delete it, click a midpoint to add one.
4. Type the heights. Every corner carries its own height in metres, so a level floor, a raked block, a raised balcony and a sunken pit (negative) are all the same job. Past a dozen corners the table folds away in favour of Set all and Ramp; expand it if you do want a number for every corner. Ramp does the arithmetic: pick a front corner and a back corner, give each a height, and the rest follow the slope.

A DXF or DWG plan

A rig plot or a floor plan saved as CAD is a drawing, not a model: every line at height zero. Converted as a model it comes out with every surface lying on the floor, the ceiling coffers included. When that's what's left once the clutter is out, the Prepare panel says so and offers Trace this plan, which puts the drawing's own lines on the sheet:

• No scale to set. The drawing states its units ($INSUNITS), so the sheet is calibrated exactly, and the venue origin is the drawing's own 0, 0. If it states none, the Source units setting stands in, and the Scale panel says to check it.
• Only the layers left in are drawn, so a centreline, the dimensions or the lighting don't cut a room in two for Detect region. Turn a layer off in the tree first to keep it off the sheet too.
• Snapping uses the real lines, like a vector PDF.

A plan whose lines never close into a single surface skips the question and opens in the tracer straight away. Try it on demo/demo-rigplot.dxf.

Two ways to read the heights

Single plane (default)	Fits one flat plane through the typed heights and puts every corner on it. Always one ArrayCalc object. A level floor and a constant rake are both exact; anything else is moved, and you are told by how much.
Exactly as typed	Uses the heights as they are. Right for a genuinely stepped or dished surface, but the result is not flat, so it comes out as several ArrayCalc objects.

What tracing cannot do for you

• Accuracy is the scale you set. A dimension misread by 5% makes the whole venue 5% wrong, and nothing downstream can tell. Check a second known dimension afterwards.
• A raster plan is only as good as its render. Pages are rasterised to 2400 px on the long edge, so on an A1 sheet one pixel is about 25 mm of building. Vector PDFs snap to the actual lines and don't have this limit.
• Region detect needs the area to be closed. A doorway, a dashed balcony edge or a broken hairline lets the fill escape. It tells you when that happens rather than silently handing back the whole page. Raise thicken lines to bridge small gaps, or trace it by hand. On a CAD plot, tick Ignore coloured lines so a cable run or a dimension drawn in colour across the room doesn't cut it in two. The architecture is black and the annotation usually isn't, and where a coloured line crosses a wall the wall stays closed.
• Seat rows seal a room. On a plan with the seating drawn in, a flood fill stops at the first row. Trace the block outline instead; it's four clicks.

Preparing a model on import

Most of the first ten minutes with a new file goes on work the drawing already describes. The Prepare panel does it as the file opens, and every part of it is a decision you can see and undo. Nothing is deleted: the objects it leaves out stay in the tree, ghosted in the view, one click from coming back.

Leave out clutter	Objects named as something other than a room surface: dimensions, text, lighting bars, truss, cable, ductwork, furniture, people — and modelled loudspeakers, since ArrayCalc and Soundvision place their own. Whole words only, so TEXTURED PANEL stays and TEXT goes.
Leave out tiny objects	Brackets, fixings, trim and stray facets, under a surface area you set. Seating is exempt: a seat pan is 0.2 m².
Split one-piece models	An OBJ, an STL or a media server's stock stage is one mesh with no names to prune by. It's read by its shape instead: rows of treads and risers become rakes, cut into sectors wherever one plane stops fitting (a fan into narrower fans, a bowl into its sides and corners, a balcony away from the stalls it overhangs), and the rest goes into Floor, Ceiling and Walls. Each is a row in the tree.
Flatten seating into audience planes	Banks of seats become the plane they stand for — the same thing the Rationalise panel does by hand, and editable there afterwards. Found by name, by repetition (hundreds of alike, small, upward-facing objects a metre apart are a bank of chairs whatever they are called) and by shape: every rake the split found. Tiers separated in height become separate planes.
Guess plane types from names and shape	STAGE becomes a stage, WALL and CEILING become surfaces. An object whose name says nothing becomes a surface if it's all wall, or level with the room under it and nothing to stand on above.
Re-cut heavy objects	A meshed flat wall is hundreds of triangles describing one rectangle. Re-cutting it from its own outline gives the same shape with a fraction of the triangles — a faster viewport and a faster conversion. Anything not genuinely flat, or with a hole in it, is left alone.

The panel then tells you what it actually did to your model, with counts. On demo/demo-venue.dxf that's 3,206 triangles down to 1,322, the lighting bars left out and the balcony seating flattened: 116 ArrayCalc objects become 52 before you've touched anything. On demo/demo-seats.dxf, the seat-by-seat plan, it's 3,710 objects down to 17. On demo/demo-onepiece.obj, a theatre as one Y-up mesh with a stepped fan of stalls and a balcony over them, it's 439 down to 26: three rakes, the floor, the ceiling and the walls.

Untick a box and it re-runs from the file as imported. It reads the model once, when it opens, using the units in force at that point, so if the unit guess was wrong, fix it and re-run.

A format that doesn't say which way is up (OBJ, STL, PLY, 3DS) gets that read off the model too: the axis its largest surfaces face along is the vertical one. It's a guess, and the Source units panel says so. A DWG or DXF whose seats disagree with the units it states gets a warning rather than a quiet change. A row of seats is half a metre a seat in every theatre in the world, and the National Taichung Theater's published plans, which say millimetres and are drawn in centimetres, are how I know that's worth checking.

Scans

A LiDAR or photogrammetry scan of a room is a mesh like any other, except that nothing in it is flat. Every triangle of a scanned wall is tilted a little by the scanner's noise, and the ordinary merge joins only triangles lying in exactly the same plane, so it finds no walls at all. A room scanned with 5 mm of noise on 5 cm triangles comes back as confetti, and loosening the merge until the floor reappears folds the ramp beside it into the floor as well.

So a scan is read differently. ArrayCAD measures the scanner's noise off the mesh itself, then grows each plane from the flattest part of the surface, taking in whatever lies within that noise of the plane so far. A floor comes back as one floor, a ramp beside it as a plane of its own, a wall as a wall. Outlines are smoothed at the scan's own mesh size and squared off where a rectangle fits. Holes under a square metre are filled, on the grounds that they're the shadow under a seat the scanner never saw, while a stair well stays a hole. A floor within the noise of level is set exactly level, so it's one ArrayCalc object rather than two triangles.

Whether a file is a scan is decided as it opens, from how its triangles meet: a modelled flat face is cut into triangles lying exactly in each other's plane, and a scanned one almost never is. Surfaces, under Simplification, shows the verdict (Modelled or Scanned) with the noise it measured, and switching it re-runs preparation. A synthetic 14 m hall meshed at 10 cm with 8 mm of noise is 7 ArrayCalc objects read as a scan, and 6,273 read as a model.

A scan also comes in at whatever angle the scanner started at, and ArrayCalc lays a room along its own axes: the audience towards +X, Y symmetric about zero. So a scan is squared to its walls as it opens. ArrayCAD reads which way the walls face and turns the Heading by however far they sit off the axes: a hall scanned 23° off comes in at 22.98°. A splayed wall doesn't pull it off a room that's otherwise square, and a room with no one set of right angles (an octagon, say) is left as it came. Which end the audience is at is a question walls can't answer, so that's still yours: −90° and +90° beside the heading turn the room a quarter at a time.

What it can't do: a scan holds whatever was in the room, so chairs, people and the lighting rig are just more surface, with no names to prune them by. Leave them out in the tree, or crop them in the scanning app first. And every scan this has been tested on is synthetic, made with known noise so the right answer is known. A real scanner smooths, drifts and leaves holes where it couldn't see. If you've a scan of a venue you're able to share, I'd like to see what it makes of it.

Rationalising a seat-by-seat plan

An architect's model draws every seat. A sound designer wants the seating area. The Rationalise panel turns the first into the second.

Pick what to gather up, whichever way suits the drawing:

• Select in the tree: right when each seat, or each block, is its own object, as in a glTF or IFC export.
• Box select: drag a rectangle in the 3D view over the objects you want.
• Draw an area: click the corners of the region in the view. This is the one that matters for a DXF or DWG, where the whole house is usually on one layer and no amount of pruning in the tree will separate the stalls from the balcony.

Then it fits a single plane through what it captured and gives you its outline.

Two settings decide most of the result:

• Capture: Upward faces (the default) keeps only surfaces pointing up, so a modelled seat reduces to its pan rather than dragging the plane down inside the seat. All faces is for a wall or a bare rake.
• Outline: Follow traces the seating and bridges gaps up to a distance you set. Set it to the row pitch and it joins seat to seat and row to row, and leaves an aisle wider than the pitch standing as an aisle. Hull is the convex hull, fine for a rectangular block and wrong for a horseshoe. Rectangle squares it off, which a Positioning area has to be.

Combine the tree and the drawing. If you select the seating layer first and then draw, only the seating inside your outline is captured. Draw with nothing selected and it takes everything under the polygon, including the floor beneath the seats, which fits the plane half a seat height too low. The panel says which it's about to do.

Read the numbers underneath

Every area reports what the reduction cost, because "these four hundred seats are one surface" is your assertion and not the geometry's:

432 of 5,184 triangles
46.7 m² of surface → 129.4 m²
up to 0.02 m off plane

The first line is how much got through the capture filter. The second is the actual seat surface against the area it now stands for. That should be much larger, since the air between the seats is the point, but wildly larger usually means two blocks got caught in one go. The third line is the one to watch. A smooth rake reads a centimetre or two, and a rake modelled as steps reads half a tread, which is expected. Metres means you've caught two tiers and should rationalise them separately, and it'll tell you so.

Separate areas stay separate. Two blocks either side of a gangway come back as two planes with a note saying nothing bridged them, rather than one plane paved across the traffic route.

Replace the originals is on for a tree selection and off for a drawn area, since a drawn area usually covers only part of a layer. Turn it off to see the new plane and the seats it came from together before you commit.

Nothing here edits the model. A rationalisation is a decision, worked out again from the source geometry every time, so if you change the units afterwards it moves with the room, and if you delete it the seats come back.

Try it on demo/demo-seats.dxf (regenerate with python3 scripts/make_demo_seats.py): 3,710 objects without it, 16 once both seating blocks are rationalised, or 17 the moment you drop the file, since Prepare recognises both blocks by name and does it for you.

Vectorworks plug-in

For Vectorworks there's a second route that skips the intermediate file altogether: vectorworks/ is a Python plug-in that runs inside Vectorworks and writes .dbacv directly.

It can do better than the browser tool, because inside Vectorworks it can see your class names (which an export throws away) and use them to decide what each object is. It also knows a few venue-specific tricks the browser tool can't do, like taking just the top face of a seating solid, or collapsing a lighting bridge to a single ArrayCalc box instead of six quads.

⚠️ It has never been run inside Vectorworks. Everything testable without Vectorworks is tested (80 tests, including the same byte-exact format check), but the one module that calls the Vectorworks API hasn't been verified. Run its probe script first. See vectorworks/README.md.

Getting a good result

1. Export less. In the CAD tool, export only the classes you need (seating, stage, walls, ceiling) and leave lighting, rigging, trussing and dimensions behind. This saves more work than anything in this app.
2. Check the units. Only glTF and IFC state them, and DXF often says "unitless". The app guesses from the model's overall size and tells you when it's guessing. Check it against a dimension you know.
3. Set the datum. ArrayCalc wants the audience towards +X, Y symmetric about zero, Z up. Use heading, offset and the mirror toggle; the drawn axes show which way is which. For the offset, Pick in view next to Origin is usually quicker than typing: click a point on the model (centre stage, the front edge of the stalls) and it becomes 0, 0, 0, with the axes moving there. The marker turns blue and snaps when the cursor is near a corner, so a corner lands on the corner rather than a millimetre off it, and picking works on the converted planes as well as on the source. Esc cancels. Set the heading before the origin: the room turns about the model's own datum, which carries the picked point off zero. −90° and +90° under it turn the room a quarter at a time, and a model drawn off square gets a Square up button there, which turns it onto its own walls. Nothing goes wrong if you don't: a turned wall is still one ArrayCalc object. It's ArrayCalc's convention you'd be leaving, not its geometry.
4. Choose a fit. Rectangle collapses each region to one rectangle, aligned to the level direction of its own plane so it can always be written as a single ArrayCalc quad. That's one object per region, and usually what you want for seating. Follow outline is faithful, but a ragged CAD outline turns into lots of objects, and any face that isn't a symmetric trapezoid has to be split into two triangles.
5. Watch the object count. If it's in the hundreds, raise the merge tolerances, raise the minimum area, or switch to rectangle fit.
6. Check what it cost. rms off the model, beside the object count, is how far the written surfaces sit from the triangles they stand for, as a root mean square weighted by area. The Simplification panel adds the worst point, any area that went into no object at all (pieces under the minimum area, or past the object cap) and any the outlines added. A few millimetres is a modelled room written faithfully; on a scan, expect about the scanner's own noise, and the panel says when that's what it is. Rectangle fit costs area rather than distance: every point of an L is still on the rectangle drawn round it, so it's the adds line that tells you how much floor the rectangle invented.

Pruning a long object list

You prune a venue by throwing away whole categories, not one object at a time, so the object tree groups itself:

• Groups are named after what's in them. A .dbacv names every group after its own GUID; ArrayCAD reads a proper name back off the children instead, so a row says TIER 3 rather than RoomObjectGroup: {c9ab9376-…}.
• A flat list gets grouped by name. A DXF, a DWG or a flat glTF export is one long list of siblings, and ArrayCAD clusters it by the structure already in the names, whether the category leads (TIER 3 - LEFT 1) or trails a number (25 loge, 45 loge).
• Every group folds away and selects in bulk. The triangle beside a group hides its contents; its checkbox includes or excludes everything under it at once, and shows a dash when only some of it is in.
• Group by switches between the automatic name grouping, grouping by the plane type you've assigned (the quickest way to check nothing is mistyped before exporting) and the raw tree with no grouping at all.

The .dbacv format

It's undocumented. Everything this tool knows was reverse-engineered from one real ArrayCalc 12.8.2 export plus three round trips through ArrayCalc itself, and it's all written up in docs/dbacv-format.md.

The reader and writer reproduce that file byte for byte, which is good evidence the structure is right.

The round trips were worth doing. The first one failed and turned up a real bug: a Shape=1 quad has to be written in ArrayCalc's own local frame (origin on the near edge, not the centroid), and getting it wrong makes ArrayCalc silently collapse the plane to zero depth, sometimes not until weeks later. By the third round every object came back byte-identical, and that result is pinned as a test. They also settled that PlaneType 5 is a "Positioning area", which has to be rectangular, and that a listener height is kept on type 1 but silently reset on type 2.

⚠️ Some plane-type names are still inferred. Positioning area (5) comes from ArrayCalc's own dialog, and Listening (1) is near-certain. Surface (2) and Stage (4) are still deductions, and type 3 is a real type whose name is unknown. The app always shows the raw numeric code beside the label, because that's what actually gets written. Check a converted venue in ArrayCalc before you trust a whole design to it.

Re-importing a .dbacv is lossy

Opening an existing venue tessellates every object into triangles and rebuilds it from planes. Arc segments and boxes come back as flat quads. Use it to prune and retype, not to preserve.

Soundvision

Export .txt, then in Soundvision: 3D room data → Import 3D room data.

Soundvision's native scene file (.xmls) is encrypted (AES-256-CBC, with a key the application puts together at runtime), so nothing outside Soundvision can write one. Instead ArrayCAD writes the format L-Acoustics documents for this very job, the one its own SU4SV (SketchUp) and Vectorworks plug-ins produce:

It is possible to import in Soundvision 3D room data *.txt files that were exported from CAD software, such as SketchUp or Vectorworks.

It's a plain list of labelled, planar polygons, which suits the reduction better than .dbacv does: a Soundvision surface is a free polygon, so a six-sided balcony stays one surface instead of being split into two triangles to fit ArrayCalc's canonical quad.

Two things to know:

• The format carries geometry and a label, nothing else. Audience listening levels, and which surfaces are enabled for mapping, are set in Soundvision after importing, which is its normal workflow anyway. Faces are labelled with your CAD layer names so you can find them.
• Winding matters, and getting it wrong is silent. Soundvision needs surface points counter-clockwise. A reversed one isn't an error, it just returns no mapping result. ArrayCAD orients every face for you.

The grammar, the evidence behind it and what's still unverified are in docs/soundvision-format.md.

Confirmed inside Soundvision

I imported an ArrayCAD-written file into Soundvision 3.18.0.15 (2026.2) on 2026-08-02 and read it back surface by surface. A 20 × 12 m floor, a rake rising 0 → 3 m, a six-sided polygon and a vertical wall all arrived with the coordinates as written, in order. The hexagon came in as one surface of six points, which is the main reason this target suits the reduction better than .dbacv. Soundvision also strips the face suffix from a label itself, so names round-trip unchanged.

⚠️ Geometry is confirmed; acoustic orientation is not. A surface can land in the right place and still return no mapping result if it's wound the wrong way. That's the trap described above, and nothing warns you about it. ArrayCAD orients every face, but no prediction has yet been run over an imported surface to prove it. Check a mapping before you trust a whole design to it.

EASE Focus

Export .fc3, then open it in EASE Focus 3 with File → Open. There's no import step because EASE Focus has no geometry import: its own guide offers typed coordinates (including polar, for a laser-and-inclinometer survey) or a picture to trace over, and nothing else. Opening the project file is the way in.

The catch is the model. EASE Focus has no surfaces at all. A venue is a set of audience zones, each a plan rectangle with a position, an orientation and a height profile along its axis. So this export has to properly reduce the venue rather than re-serialise it:

• Only Listening planes convert. Walls, ceilings and stages have no equivalent in EASE Focus, so leaving them out isn't losing anything. It's the only honest thing to do.
• Each plane becomes one oriented rectangle with a single profile segment, front edge at the low side, audience facing downslope. Outline detail and holes are lost, because the format has nowhere to put them.
• Zones narrower than 2 m are silently widened to 2 m by EASE Focus itself, centres unmoved, with nothing on screen to say so. Seat-by-seat rows are often narrower than that, so ArrayCAD warns you for each zone. Rationalise the rows into blocks first and the problem goes away.

The container, the model and the evidence are in docs/ease-focus-format.md.

Confirmed inside EASE Focus

Checked against EASE Focus 3.1.260 on 2026-08-03. The 57 audience planes of a real ArrayCalc theatre export were written as a project, opened, and saved back by the application: 57 zones came back, all 57 labels intact, and every position, orientation, depth and height identical to what was written. The only change the application made was the 2 m width clamp above, which is how I found out about it.

Going back to the visualiser

Export .mvr writes the room back out as MVR, for Capture, Depence, WYSIWYG, grandMA3 or Vectorworks. You get one object per plane, keeping the names you pruned by, with the plane types as MVR classes so the audience areas can be toggled as a set.

It's the only export that doesn't reduce. ArrayCalc needs parametric planes and EASE Focus needs rectangles, but MVR carries glTF, which wants triangles, and the coplanar merge has already made those. So what arrives is the simplified room: one clean surface where the source had a thousand facets, and nothing more lost to the format.

Not yet confirmed in a visualiser. The file is a valid MVR 1.4 archive, its geometry reads back through three.js's own glTF loader, and an MVR imported → exported → re-imported here reproduces the venue dimension for dimension. But nobody has opened one in Capture or Depence yet, and MVR doesn't state the units of the 3D files inside it (docs/mvr-format.md §5). Check the size after importing.

Converting between the prediction tools

None of the three applications will open another's venue, so a room modelled for one usually gets redrawn by hand for the next. That's a day's work, and it also guarantees the predictions are of subtly different buildings.

ArrayCAD opens all three formats, so converting is just an import and an export:

You have	Drop it in	Press
A d&b ArrayCalc venue	.dbacv	Export .txt → 3D room data → Import 3D room data, or Export .fc3
A Soundvision room	3D room data .txt	Export .dbacv or Export .fc3
An EASE Focus project	.fc3	Export .dbacv or Export .txt
A visualiser show	.mvr from Capture, Depence, WYSIWYG, grandMA3	any of the three
Any of the above		Export .mvr, back into the visualiser

Nothing special happens in between. The venue takes the same road a CAD model does (tessellate, weld, merge coplanar regions, recover outlines, write the other format), so you get the same tree, the same pruning and the same plane typing on the way through.

What that means in practice:

• It isn't a byte-preserving translation, and shouldn't be. The two formats don't describe the same things. ArrayCalc has boxes and arc segments and plane types; Soundvision has free polygons and a label. Going either way, geometry is rebuilt from planes; see Re-importing a .dbacv is lossy.
• Soundvision → ArrayCalc loses nothing that was there, because 3D room data carries no plane types or listening levels to lose. You set those here, once, on the way through.
• ArrayCalc → Soundvision keeps more shape than the reverse, because a Soundvision surface is a free polygon while an ArrayCalc quad has to be a symmetric trapezoid.
• Anything → EASE Focus keeps the least, because EASE Focus keeps the least: audience zones only, each one a rectangle. Convert out of EASE Focus and you get precisely the audience back (its zones are unambiguous), but nothing that was never in it.
• Surfaces come in grouped by their label. L-Acoustics' own plug-ins write "<layer name> face", so a room exported from Vectorworks arrives with the CAD layer tree intact and ready to prune. The face suffix is stripped on the way in and put back on the way out, so a name doesn't grow a word on every trip.

⚠️ The Soundvision caveat above applies to this route too: the geometry is confirmed to import, but no prediction has yet been run over an imported surface.

Drive it from Claude

ArrayCAD also runs as an MCP server, so Claude Code (or any other MCP client) can do the conversion itself: open a model, read the tree, prune and type it, flatten the seating and write the file. It's the same library the page runs, working on files on your own machine, and nothing is uploaded.

npm install

claude mcp add arraycad -- node /path/to/arraycad/scripts/mcp-server.mjs

Then ask for what you'd do in the page: open ~/venues/theatre.dwg, leave out the lighting, check the seating came out as one plane per tier and write a .dbacv. The tools are the page's panels:

• open_model imports and prepares, with units and up axis overridable. status says whether each was stated or guessed, and gives the venue's size so a wrong unit shows up as a number.
• list_tree and set_nodes do the tree: include, exclude, plane type, rename.
• set_placement sets units, axis, heading, mirror and offset, squares the room up to its walls, or puts the origin on a point.
• set_reduction and prepare set the fit and tolerances and re-run preparation.
• add_area, edit_area and remove_area rationalise seating.
• convert reports the object count and every warning, and export writes .dbacv, Soundvision .txt, EASE Focus .fc3 or .mvr beside the model. It won't overwrite without being told to.

Two things it can't do. It can't trace a PDF or an image, because that's you clicking inside rooms, so it stays in the page. And it can't show you the result. Open what it wrote in the page or the target application before you trust it. The plane-type caveat applies here too, which is why every answer gives the code next to the label.

Develop

npm install
npm run dev

npm test

npm run build

See CLAUDE.md for the full command reference and AGENTS.md for the model, the invariants and the traps.

Run your own copy

ArrayCAD is a static page, so hosting it yourself is one container serving the built files — the same files the hosted copy serves, running somewhere that still works when the venue has no internet.

Docker. The image is built by this repo's docker.yml workflow on every push and published as ghcr.io/stoatworks-labs/arraycad:

docker run -d --name arraycad --restart unless-stopped -p 8523:80 ghcr.io/stoatworks-labs/arraycad:latest

Or docker compose up -d with the docker-compose.yml in this repo, which maps the same port. Either way it is then at http://localhost:8523/.

Unraid. Search Community Applications for ArrayCAD — the template is templates/arraycad.xml in stoatworks-unraid, which is what the CA feed reads.

Stoatworks Burrow lists it under Self-hosted, with the compose file a click away.

The Dockerfile, docker-compose.yml, docker/ and the workflow are generated from fleet.json in stoatworks-unraid. Change them there and regenerate rather than editing them here.

This project is built on other people's work — see ATTRIBUTIONS.md.

Licence

MIT.
