Airbridge

Anything → Everywhere: Bridge DLNA audio streams to AirPlay & Chromecast

Airbridge creates virtual DLNA renderers that forward audio to AirPlay speakers and Chromecast devices. This allows media servers like Music Assistant to stream to these devices through DLNA.

Why?

Some AirPlay devices (like Juke Audio multi-zone speakers) have compatibility issues with certain AirPlay implementations. Airbridge works around this by:

1. Presenting itself as standard DLNA/UPnP renderers
2. Receiving audio streams via HTTP
3. Forwarding to AirPlay devices using libraop
4. Or sending media URLs to Chromecast devices via CASTV2

Features

• 🎵 Virtual DLNA renderer per AirPlay/Chromecast zone
• 📡 Automatic device discovery (mDNS for both AirPlay and Chromecast)
• 📺 Chromecast support - cast DLNA audio to Chromecast devices
• 🌐 Web admin interface with real-time status updates via WebSocket
• 🎛️ Live playback status (Playing/Idle/Paused) with instant UI updates
• ⚙️ YAML configuration for device filtering and aliases
• 🔊 Volume control support
• 🐳 Docker deployment with Unraid support
• ✅ Comprehensive test suite with CI/CD

Status

⚠️ Early Development (v0.x) - Core functionality works but expect breaking changes, bugs, and missing features. Not yet recommended for production use.

What works:

• DLNA renderer creation and discovery
• Audio streaming to AirPlay devices
• Chromecast as output target (URL-based media playback)
• Web admin interface with live status updates
• Real-time playback state via WebSocket
• Docker/Unraid/Home Assistant deployment
• Full test suite with CI/CD pipeline

Known Limitations:

• Chromecast receiver support (casting FROM apps like Spotify TO Airbridge) is blocked by Google's device authentication requirements

Quick Start

Option 1: Docker (Recommended)

docker run -d --network=host -v airbridge-data:/data ghcr.io/kenyonj/airbridge:latest

Access the web admin at http://localhost:8200/admin

Option 2: Build from Source

1. Download cliraop binary

Get the pre-built cliraop binary for your platform from libraop releases and place it in the bin/ directory:

mkdir -p bin
# Download appropriate binary for your platform
# Rename to: bin/cliraop-macos-arm64, bin/cliraop-linux-amd64, etc.
chmod +x bin/cliraop-*

2. Build airbridge

make build

3. Run

Web admin interface (recommended):

./bin/airbridge --web

Bridge a single device:

./bin/airbridge --serve --target "Guest Bedroom"

Test streaming to a device:

./bin/airbridge --test "Guest Bedroom"

Usage

Usage of ./bin/airbridge:
  -db string
      Path to SQLite database (default "./airbridge.db")
  -port int
      HTTP port for DLNA server (default 8200)
  -serve
      Run as DLNA renderer server (single device)
  -target string
      Target AirPlay device name (for serve mode)
  -test string
      Test streaming to device (by name)
  -version
      Print version
  -web
      Run with web admin interface

Configuration

Create a config.yaml file (or place at ~/.config/airbridge/config.yaml):

# HTTP port for the first renderer (subsequent use incremental ports)
http_port: 8200

# Enable automatic discovery of AirPlay devices
auto_discover: true

# Prefix for DLNA friendly names
name_prefix: "Airbridge"

# Optional: Filter to only include specific devices
device_filter:
  - "Kitchen"
  - "Living Room"
  - "Guest Bedroom"

# Optional: Device-specific configuration
devices:
  - name: "Kitchen"
    alias: "Kitchen Bridge"
    port: 8201

  - name: "Office"
    enabled: false  # Exclude this device

Architecture

┌─────────────┐     DLNA/UPnP     ┌─────────────────┐     RAOP      ┌──────────────┐
│ Media       │ ────────────────▶ │   Airbridge     │ ────────────▶ │ AirPlay      │
│ Server      │                   │                 │               │ Speakers     │
│ (MA, Plex)  │                   │ ┌─────────────┐ │               └──────────────┘
└─────────────┘                   │ │ Virtual     │ │
                                  │ │ DLNA        │ │     CASTV2    ┌──────────────┐
                                  │ │ Renderers   │ │ ────────────▶ │ Chromecast   │
                                  │ └─────────────┘ │   (URL-based) │ Devices      │
                                  └─────────────────┘               └──────────────┘

Device Types

How It Works

1. Discovery: Airbridge uses mDNS to discover AirPlay (_raop._tcp) and Chromecast (_googlecast._tcp) devices
2. SSDP: For each device, it advertises a virtual DLNA MediaRenderer
3. SOAP: When a media server (like Music Assistant) connects, it handles AVTransport and RenderingControl SOAP requests
4. Streaming:
   • AirPlay: Audio is received via HTTP and piped to the cliraop binary, which streams to the device
   • Chromecast: The media URL is sent to the Chromecast, which fetches and plays it directly

Use with Music Assistant

1. Start airbridge: ./bin/airbridge --web
2. In Music Assistant, go to Settings → Players
3. You should see "Airbridge (Device Name)" devices appear as DLNA players
4. Select a device and start playing music!

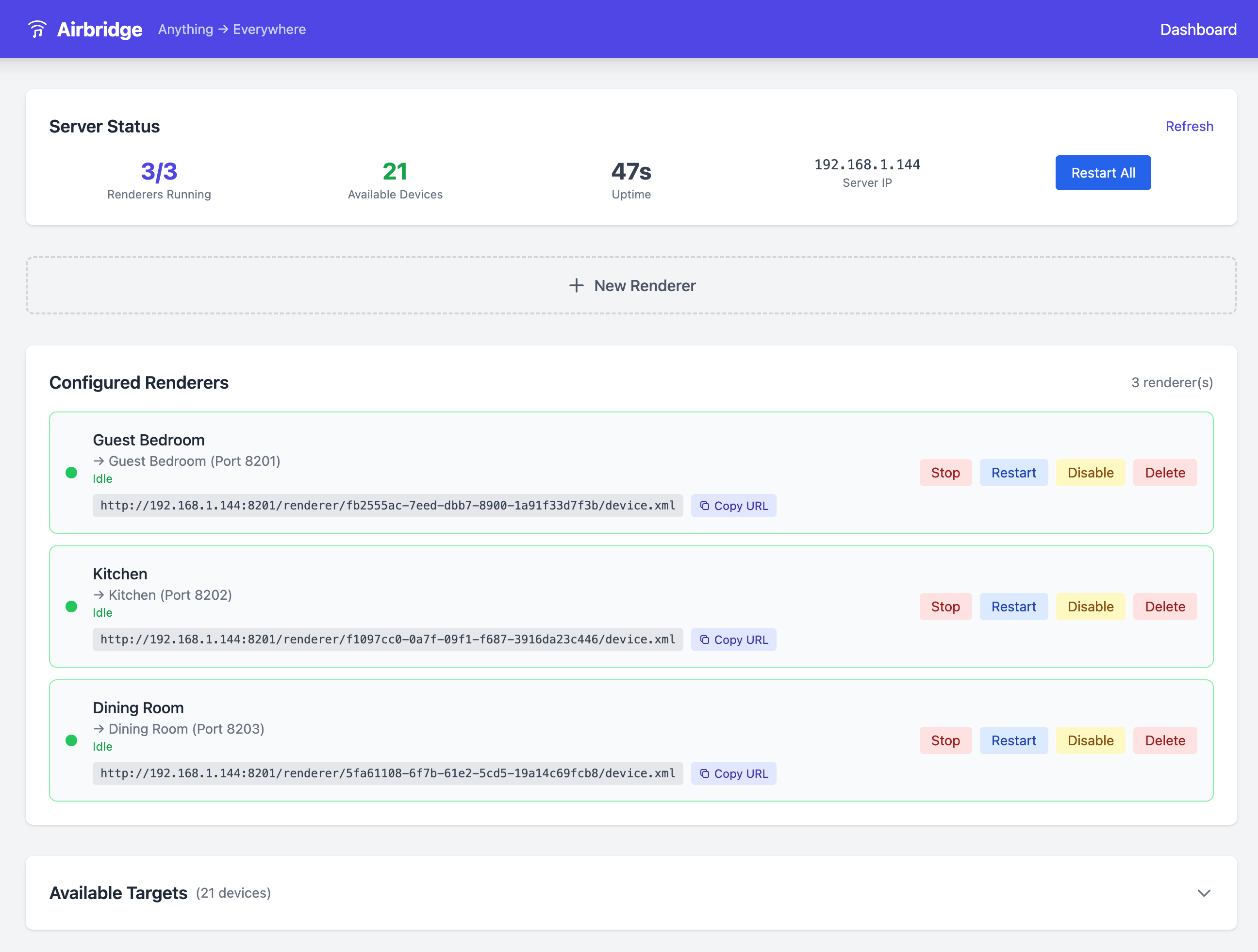

Web Admin Interface

The web admin (--web mode) provides a modern UI for managing renderers:

• Real-time status - See which renderers are Playing, Idle, or Paused (updates via WebSocket)

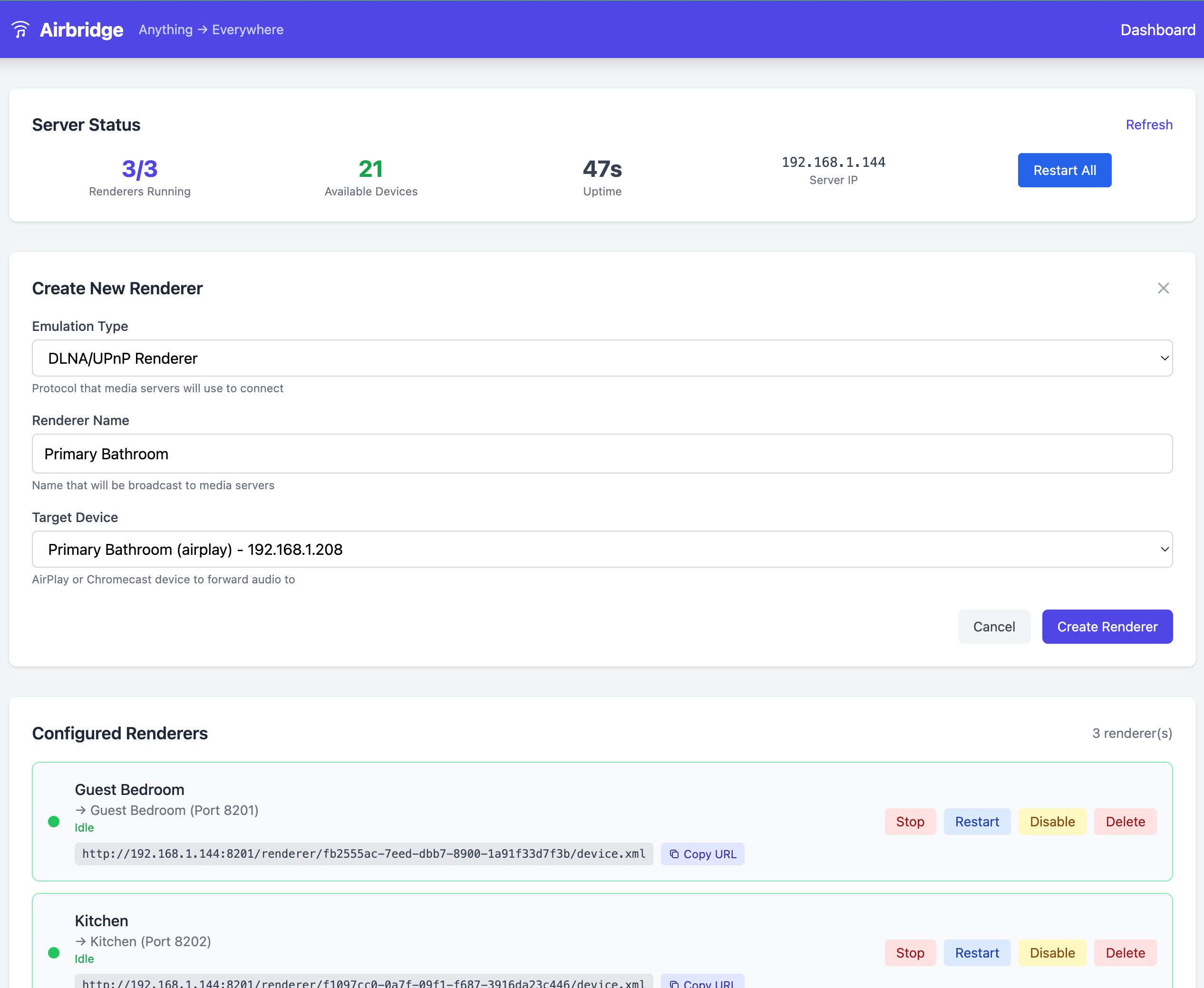

• Easy renderer creation - Click "New Renderer" to create a virtual DLNA device
• Device discovery - Automatically finds AirPlay and Chromecast devices on your network
• Full control - Start, stop, restart, enable/disable, or delete renderers

Docker

Run with Docker

# Run with web admin interface
docker run -d --network=host -v airbridge-data:/data ghcr.io/kenyonj/airbridge:latest

Note: Host network mode is required for mDNS device discovery and SSDP announcements.

Unraid

Airbridge is available in the Unraid Community Applications store. Search for "Airbridge" or manually install using the template at unraid/airbridge.xml.

Home Assistant

Airbridge is available as a Home Assistant add-on:

1. Go to Settings → Add-ons → Add-on Store
2. Click the ⋮ menu → Repositories
3. Add: https://github.com/kenyonj/airbridge
4. Click Close and refresh the page
5. Find "Airbridge" in the add-on list and click Install
6. Start the add-on and open the Web UI to manage devices

Build Docker Image Locally

make docker-build
make docker-run

Development

Prerequisites

• Go 1.22+
• Docker (for building libraop, optional)
• Make

Building

make build      # Build airbridge
make clean      # Clean build artifacts

Local Development

The easiest way to run Airbridge locally is with the dev script, which rebuilds and runs in one command:

./scripts/dev.sh --web        # Web admin interface (recommended)
./scripts/dev.sh --serve "Device Name"  # Single device

Project Structure

.
├── cmd/airbridge/       # Main application entry point
├── internal/
│   ├── bridge/          # Unified DLNA bridge with embedded devices
│   ├── database/        # SQLite database for web mode
│   ├── discovery/       # mDNS-based AirPlay and Chromecast discovery
│   ├── httpserver/      # HTTP server for UPnP endpoints
│   ├── player/          # Player implementations (RAOP + Chromecast)
│   ├── renderer/        # Multi-device renderer manager
│   ├── ssdp/            # SSDP announcement/discovery
│   ├── state/           # Playback state management
│   ├── upnp/            # UPnP/DLNA SOAP handlers
│   └── web/             # Web admin interface
├── pkg/
│   ├── config/          # YAML configuration
│   └── raop/            # cliraop subprocess wrapper
└── unraid/              # Unraid Community Apps template

Testing

make test           # Run all tests
make lint           # Run golangci-lint
go test -race ./... # Run with race detection

Tested With

• ✅ Juke Audio 8-zone multi-room speakers (AirPlay)
• ✅ HomePod mini (AirPlay)
• ✅ Apple TV (AirPlay)
• ✅ Sonos (AirPlay mode)
• ✅ Google Chromecast (Chromecast)
• ✅ Google Nest Hub (Chromecast)

Troubleshooting

Device not discovered

• Ensure your device is on the same network
• For AirPlay: dns-sd -B _raop._tcp
• For Chromecast: dns-sd -B _googlecast._tcp
• Check firewall settings allow mDNS (port 5353 UDP)

Audio doesn't play (AirPlay)

• Verify cliraop binary is in bin/ directory
• Test directly: ./bin/airbridge --test "Device Name"
• Check logs for connection errors

Audio doesn't play (Chromecast)

• Ensure the media URL is accessible from the Chromecast's network
• Chromecast pulls the media directly - it needs to reach the URL
• Check logs for CASTV2 connection errors

DLNA renderer not visible

• Ensure port 8200+ is not blocked by firewall
• Try: curl http://localhost:8200/device.xml to verify HTTP server

Unraid: Changing the default port

When changing the default port in Unraid:

1. Set the AIRBRIDGE_PORT environment variable to your desired port
2. Expand Advanced View in the container settings
3. Update the WebUI field to match the same port (e.g., http://[IP]:[PORT:XXXX]/admin)

License

MIT License - see LICENSE

Support

If you find Airbridge useful, consider supporting development:

Credits

• philippe44/libraop - RAOP client library
• vishen/go-chromecast - Chromecast client library
• tr1v3r/rcast - DLNA renderer reference
• grandcat/zeroconf - mDNS library
